Moduł LoRa EBYTE E220-900T22D LLCC68 868-915 MHz UART TTL do Arduino ESP32

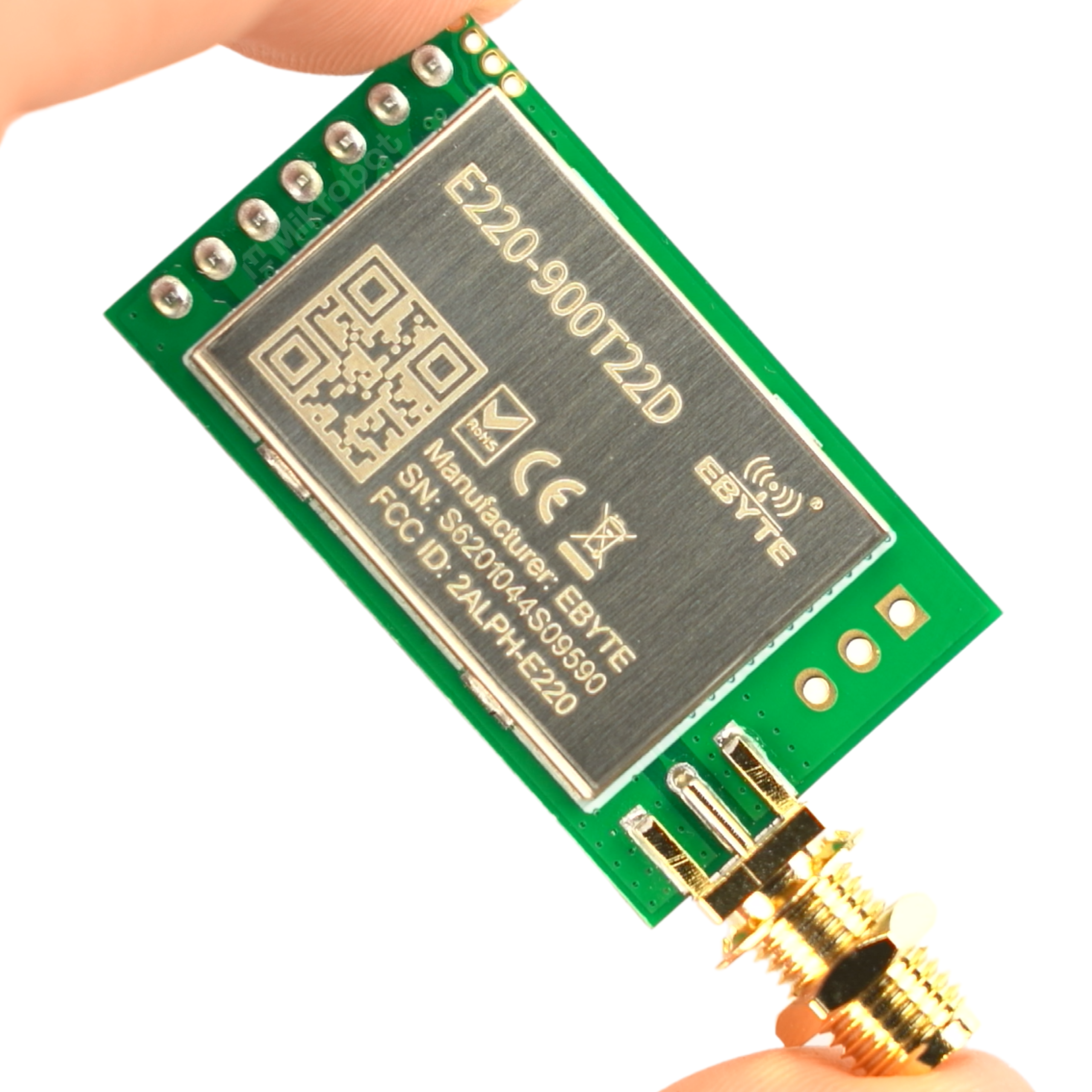

EBYTE E220-900T22D LLCC68 LoRa Module

The EBYTE E220-900T22D LoRa communication module is an advanced solution for long-range wireless data transmission, operating in the 868–915 MHz band. The use of LoRa technology ensures stable communication even in challenging conditions, such as dense urban areas or environments with high levels of radio interference. The module is compatible with ESP8266, ESP32, Arduino, and Raspberry Pi.

It stands out for its significantly greater range and higher resistance to interference compared to standard radio modules, while maintaining very low power consumption. Communication takes place via a UART (TTL) interface, which simplifies integration without the need to implement the LoRa stack yourself.

Key Technical Features

• Radio chip: LoRa LLCC68
• Operating band: 868–915 MHz
• Maximum transmit power: up to 22 dBm (approximately 160 mW)
• Communication interface: UART (TTL)
• Supply voltage: 2.3–5.5 V (recommended ≥3.3 V for full transmission power)
• UART logic level: 3.3 V TTL, 5 V compatible
• Modulation type: LoRa
• Range: 5 km (up to 10 km under ideal conditions)

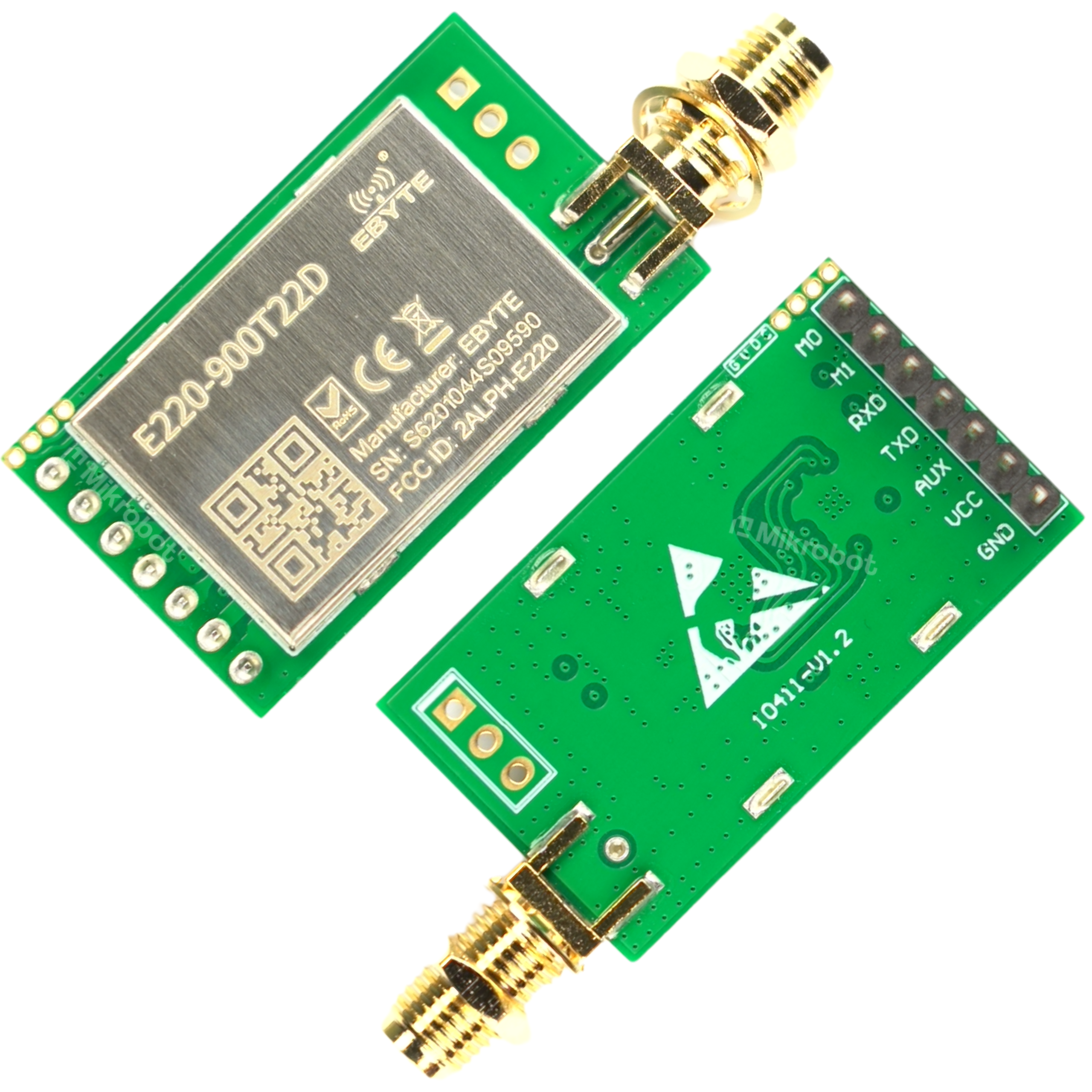

• Configuration: Operating mode set via hardware using the M0/M1 pins; parameters (address, channel, power, baud rate) programmed via a dedicated UART binary command protocol or the manufacturer’s free configuration software
• Dimensions: 21x36 mm (49 mm with connector)

Example Applications

• Complex IoT (Internet of Things) systems
• Telemetry and remote data reading from measurement sensors
• Home and industrial automation systems
• Wireless communication between devices over distances of several kilometers
• Remote control and alarm systems

Benefits

• Stable and reliable long-range communication in the 868–915 MHz band
• High resistance to radio interference thanks to LoRa modulation
• Simple and fast integration with microcontrollers via the UART (TTL) interface
• Low power consumption, allowing for use in battery-powered projects
• No need to implement a complex radio stack yourself

Compatibility

Thanks to the use of a standard UART (TTL) interface, the module is versatile and allows for easy connection to popular platforms. The product is ideal for projects using microcontrollers and minicomputers:

• Arduino
• with ESP8266
• with ESP32
• with Raspberry Pi
• with STM32
