Seeeduino XIAO SAMD21 Arduino compatible microcontroller - Cortex M0+

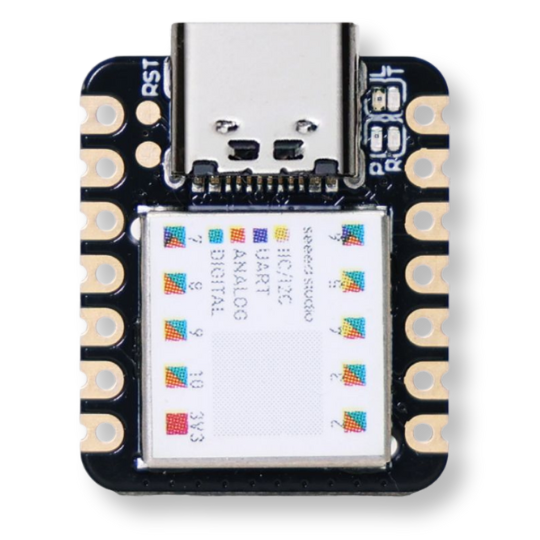

Compact module with SAM2D1G18 ARM Cortex M0+ microcontroller, offering 256 kB Flash and 32 kB SRAM, compatible with Arduino. It features 14 GPIO connectors, including 11 digital/analogue pins, 10 PWM, DAC, I2C, UART, SPI, SWD. Features clearly labelled leads for easy connection. It operates on 3.3 V, powered by USB Type C from 5 V.

The Seeeduino Xiao is characterised by the diversity of functions of its leads: from A1/D1 to A10/D10, they support PWM, while A0/D0 provides a DAC function to generate an authentic analogue signal rather than PWM. The module uses a USB C connector for power and programming. On the back of the board there are pads for battery connection. The board can be programmed via the Arduino IDE or PlatformIO environment. It is equipped with a 32.768 kHz quartz resonator for circuit stability.

Main features of the Seeeduino Xiao module:

• Microcontroller: Powerful SAMD21 ARM Cortex M0+ 32-bit 48 MHz, with 256 kB flash and 32 kB SRAM.
• Compatibility: Programmable in the Arduino IDE environment.
• Design: Intuitive and easy to use.
• Dimensions: Compact, 23.5 x 17.5 mm.
• Interfaces: A rich set, including 11 digital/analogue I/Os, 10 PWM, 1 DAC, 1 SWD, 1 I2C, 1 UART, 1 SPI.

 Examples of application of the Seeeduino Xiao module:

• Home Automation: Use to control smart home systems, for example lighting or thermostat.
• Educational Robotics: Building simple robots and educational devices to learn programming and electronics.
• Environmental monitoring: Creation of devices to monitor air quality, temperature or humidity.
• Interactive Arts and Crafts: Use in art projects such as light installations or interactive sculptures.
• Electronics Prototyping: Rapid and efficient prototyping of electronic devices thanks to the ease of programming and the multitude of interfaces available.
• Educational DIY Projects: Ideal for hobbyists and students to learn the basics of electronics and programming.
• Miniature IoT Projects: Building small, battery-powered IoT devices to collect data or control other devices.

Specification:

• Chip: SAMD21 ARM Cortex M0+ 48 MHz
• Flash memory: 256 kB
• SRAM memory: 32 kB
• GPIO: 14 ports
• Digital/Analogue I/O: 11 ports
• I2C: 1 port
• SPI: 1 port
• UART: 1 port
• PWM: 10 channels
• Power supply: 5 V via USB C
• Operating voltage: 3,3 V
• Communication: USB C
• LEDs: 1x user LED, 1x power LED, 2x serial communication LEDs
• Reset button: For an easy reboot
• Power pads: For battery connection
• Compatibility: With Arduino IDE
• Dimensions: 23.5 x 17.5 x 3.5 mm
