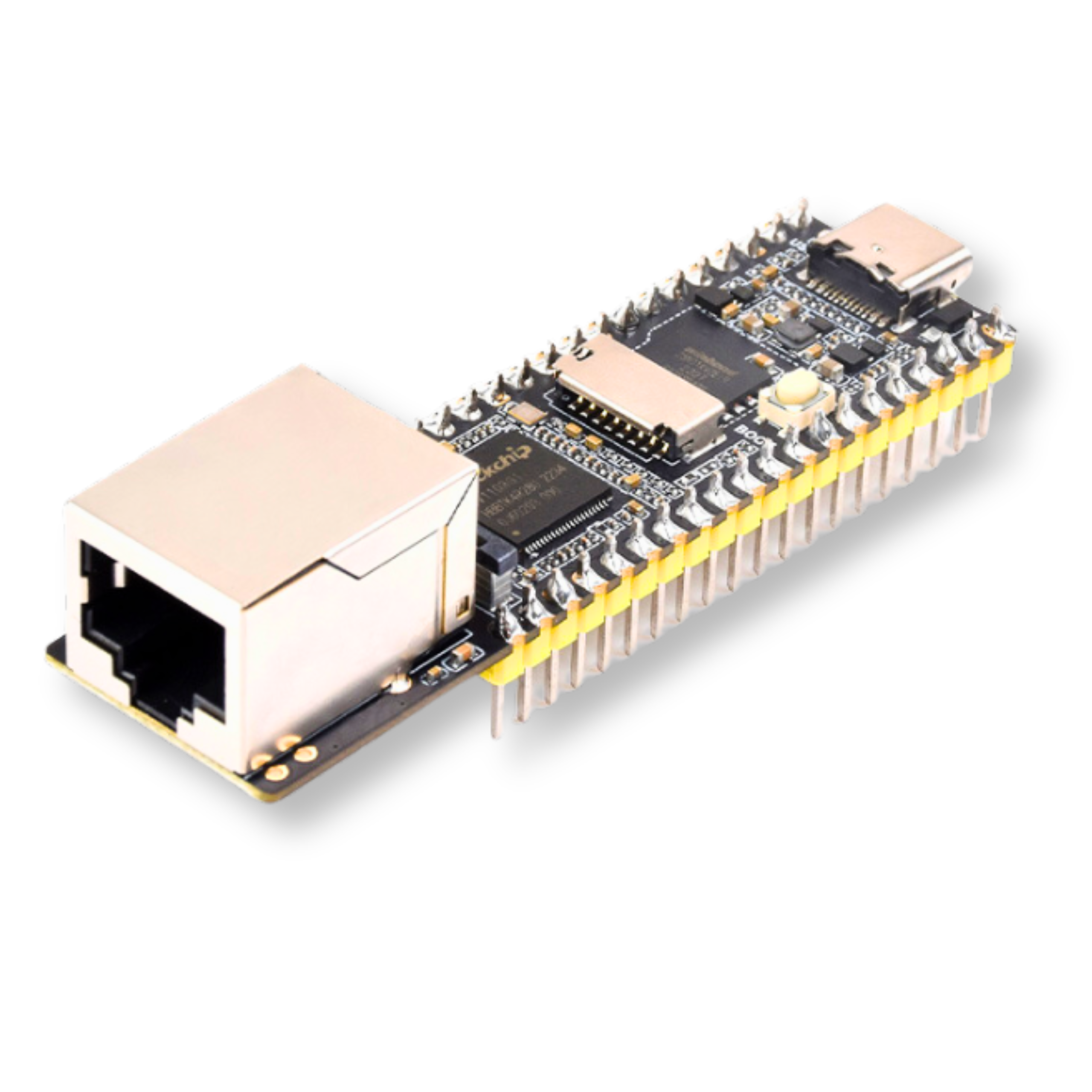

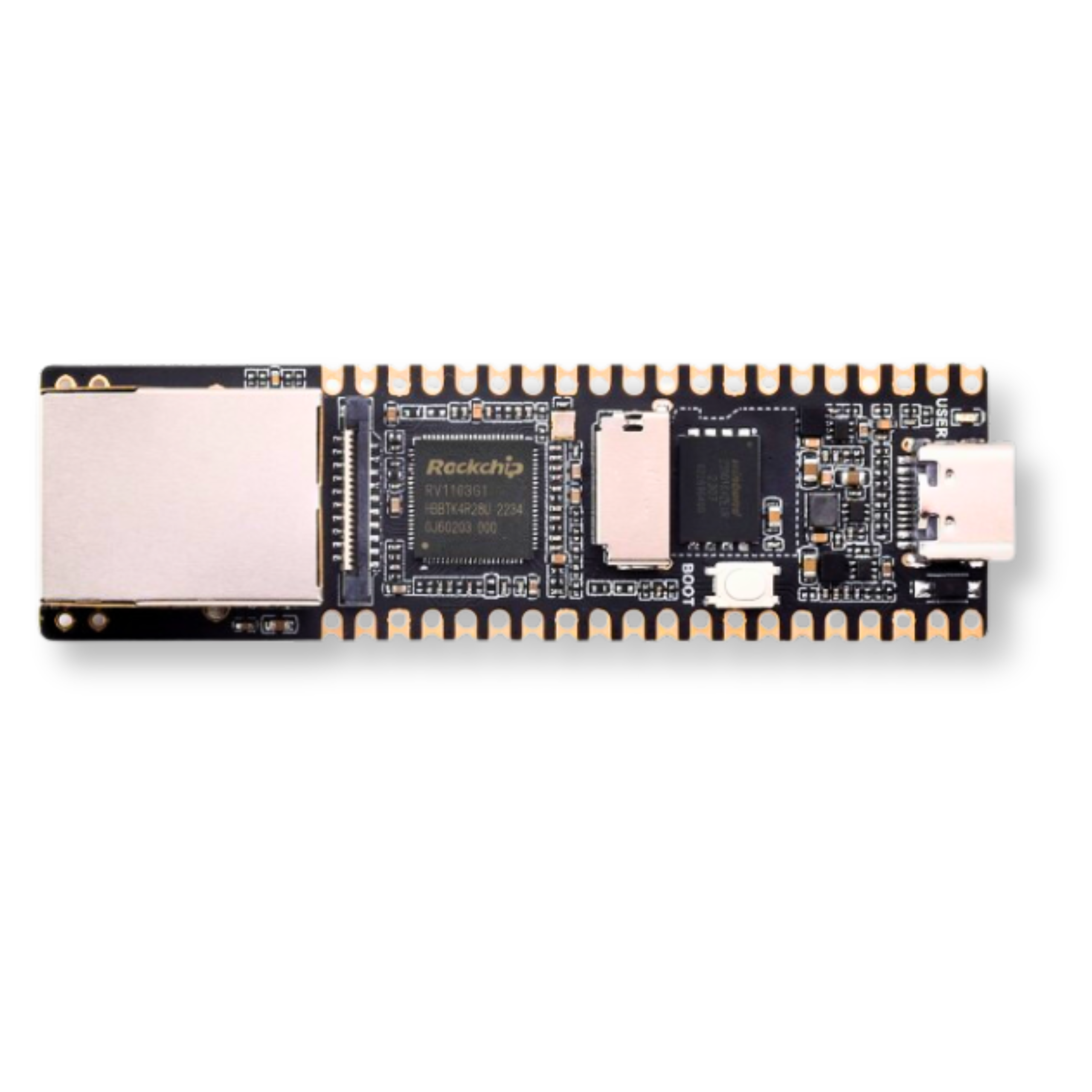

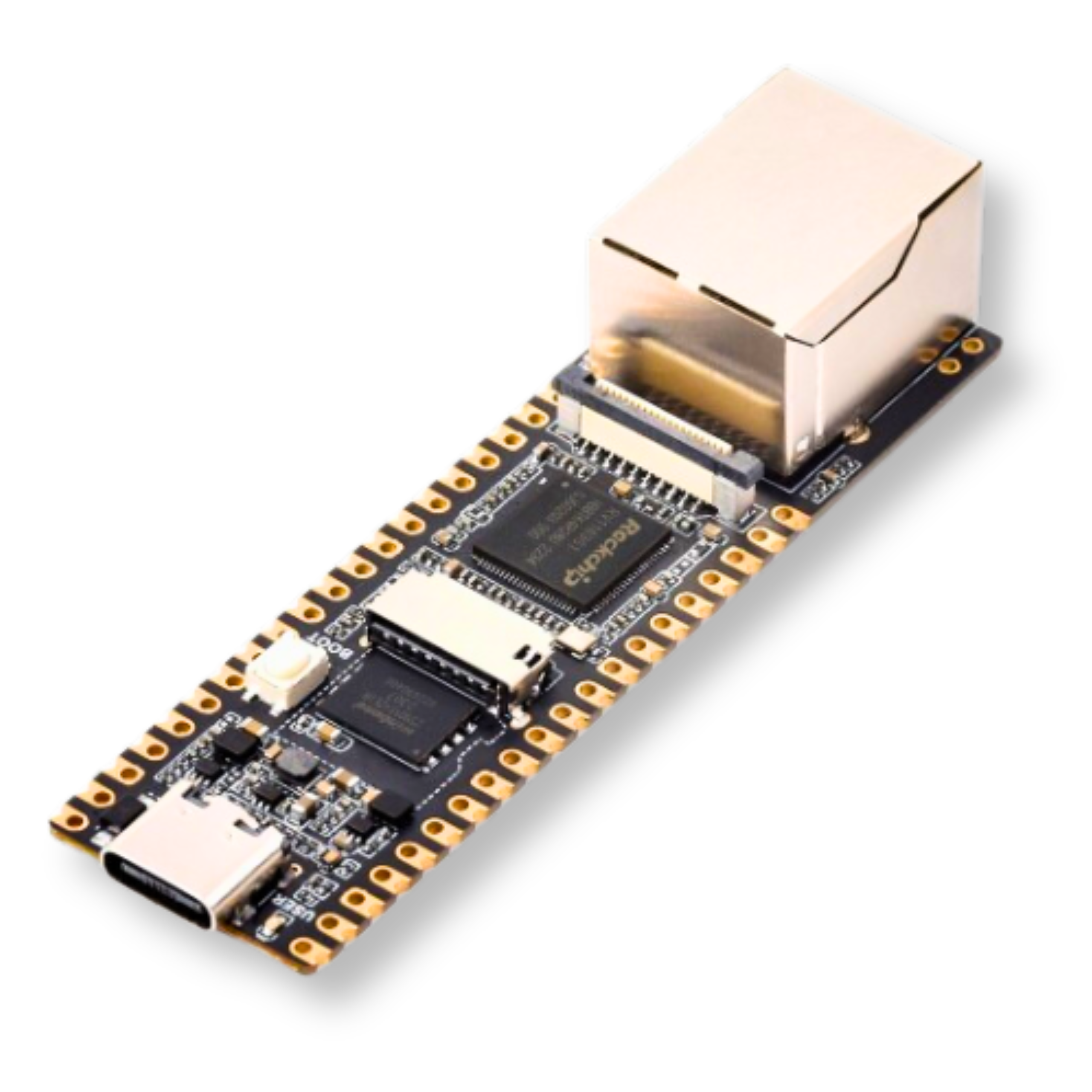

Linux LuckFox Pico Plus RV1103 microcomputer 64MB RAM Eth + soldered pins

The LuckFox Pico Plus RV1103 is an advanced Linux-based microcomputer development board, ideal for designers and engineers working on complex IoT and AI applications. The board combines a powerful ARM Cortex-A7 processor clocked at 1.2GHz with integrated NEON and FPU, and works with a RISC-V processor to enable efficient operation in demanding environments.

With an integrated NPU of 0.5 TOPS, supporting int4, int8 and int16 quantisation, the LuckFox Pico Plus RV1103 allows complex AI operations to be performed with high precision. The third-generation ISP supports up to 4-megapixel images at 30 frames per second, providing advanced image correction, including HDR and WDR, and multi-level noise reduction. As a result, the device delivers high-quality images while reducing file size and doubling storage space.

The board is equipped with 64MB of DDR2 memory and 128MB of SPI NAND FLASH memory, providing ample space for data storage and management. It also supports fast loading of AI libraries and instant image capture within 250ms, making it ideal for facial recognition systems.

The LuckFox Pico Plus RV1103 offers extensive expansion capabilities with 25 GPIO pins, a MIPI CSI camera interface and a built-in 10/100M Ethernet controller. With an integrated TF card slot, camera interface and Ethernet port, it is the ideal platform for rapid prototyping and application development.

Technical specifications:

• Processor: Cortex A7 @1.2GHz + RISC-V
• NPU: 0.5TOPS, supports int4, int8 and int16
• ISP: 4M input @30fps (Max)
• Memory: 64MB DDR2
• USB: USB 2.0 Host/Device
• Camera: MIPI CSI 2-lane

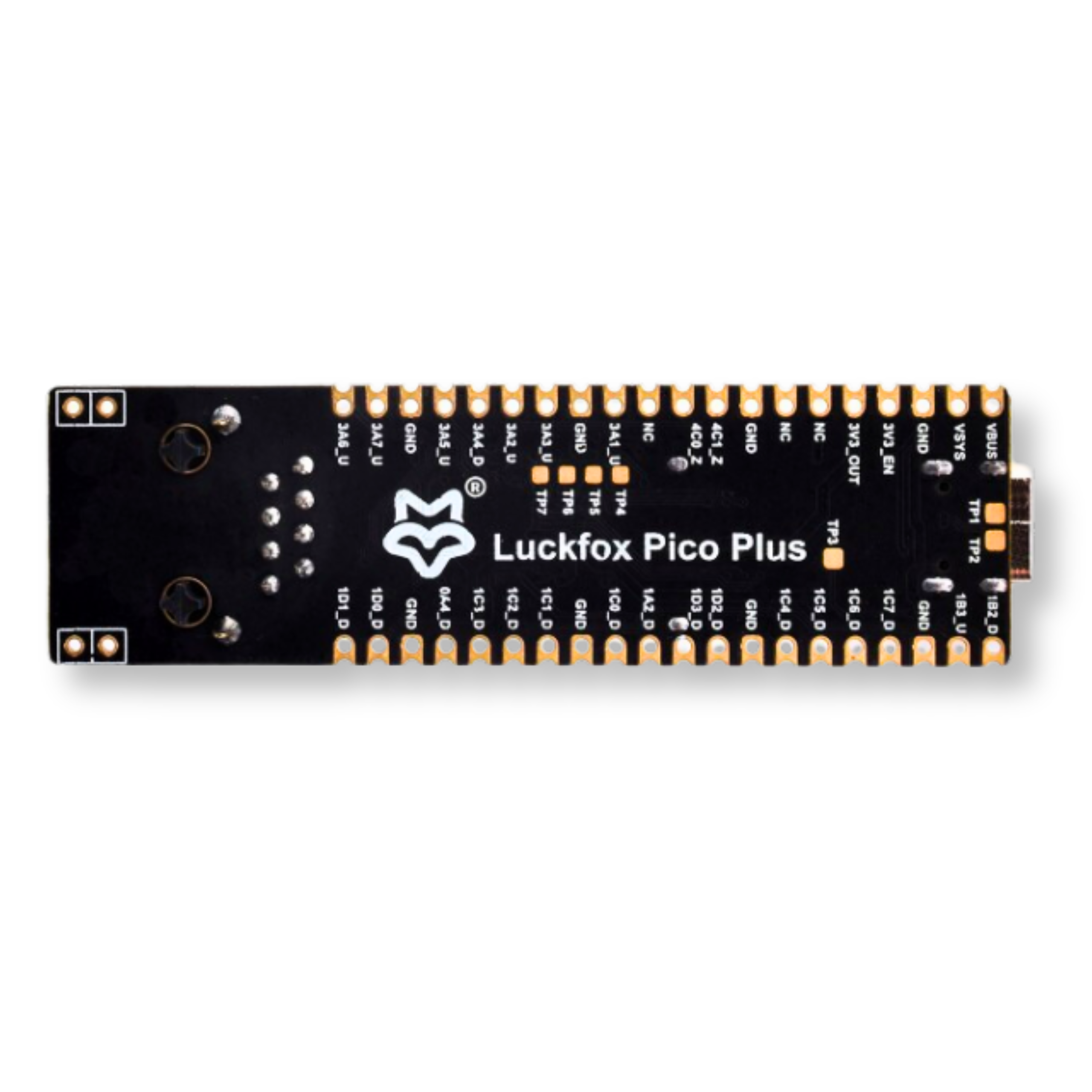

• GPIO: 25 × GPIO pins
• Ethernet port: 10/100M Ethernet controller and built-in PHY
• Default memory: SPI NAND FLASH (128MB)
