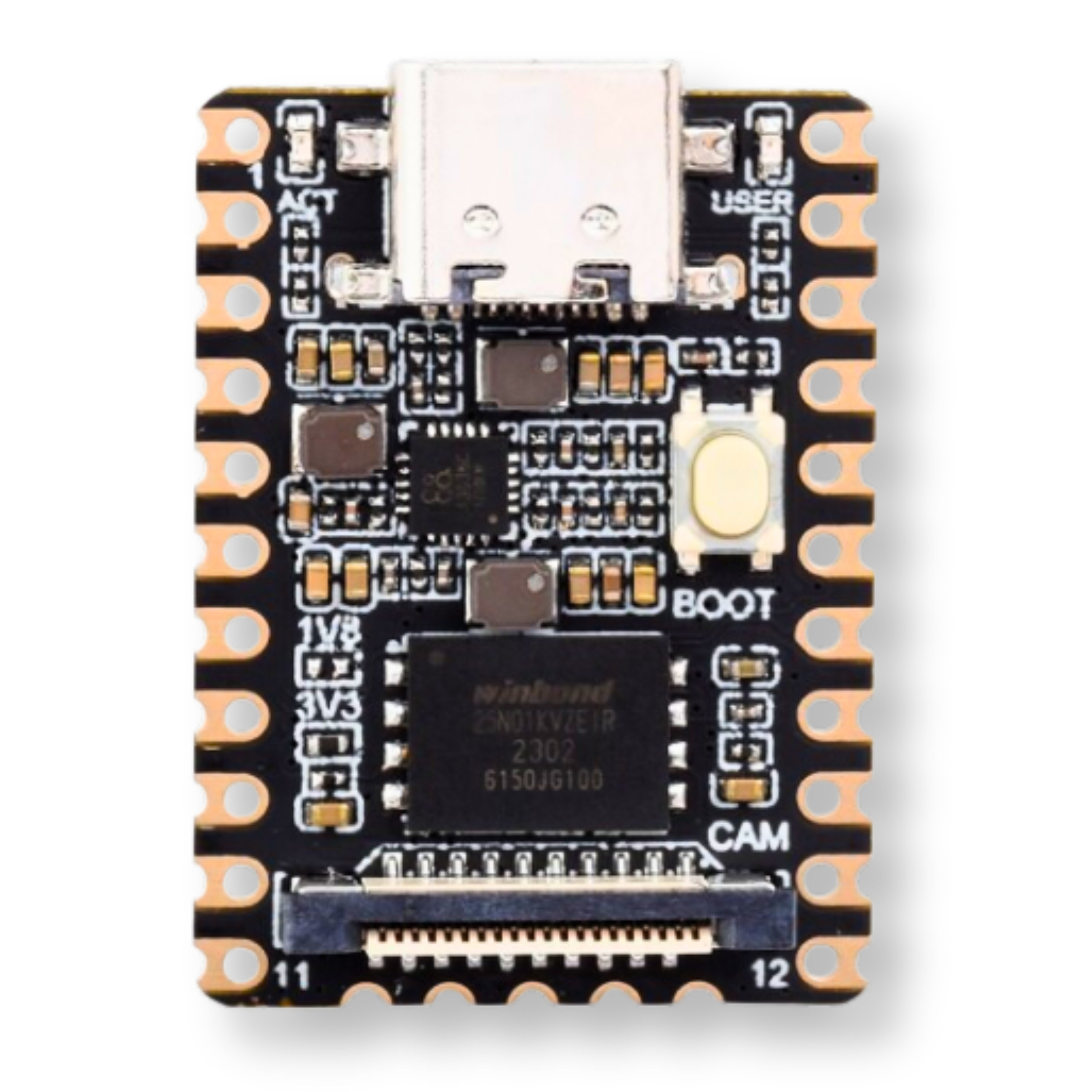

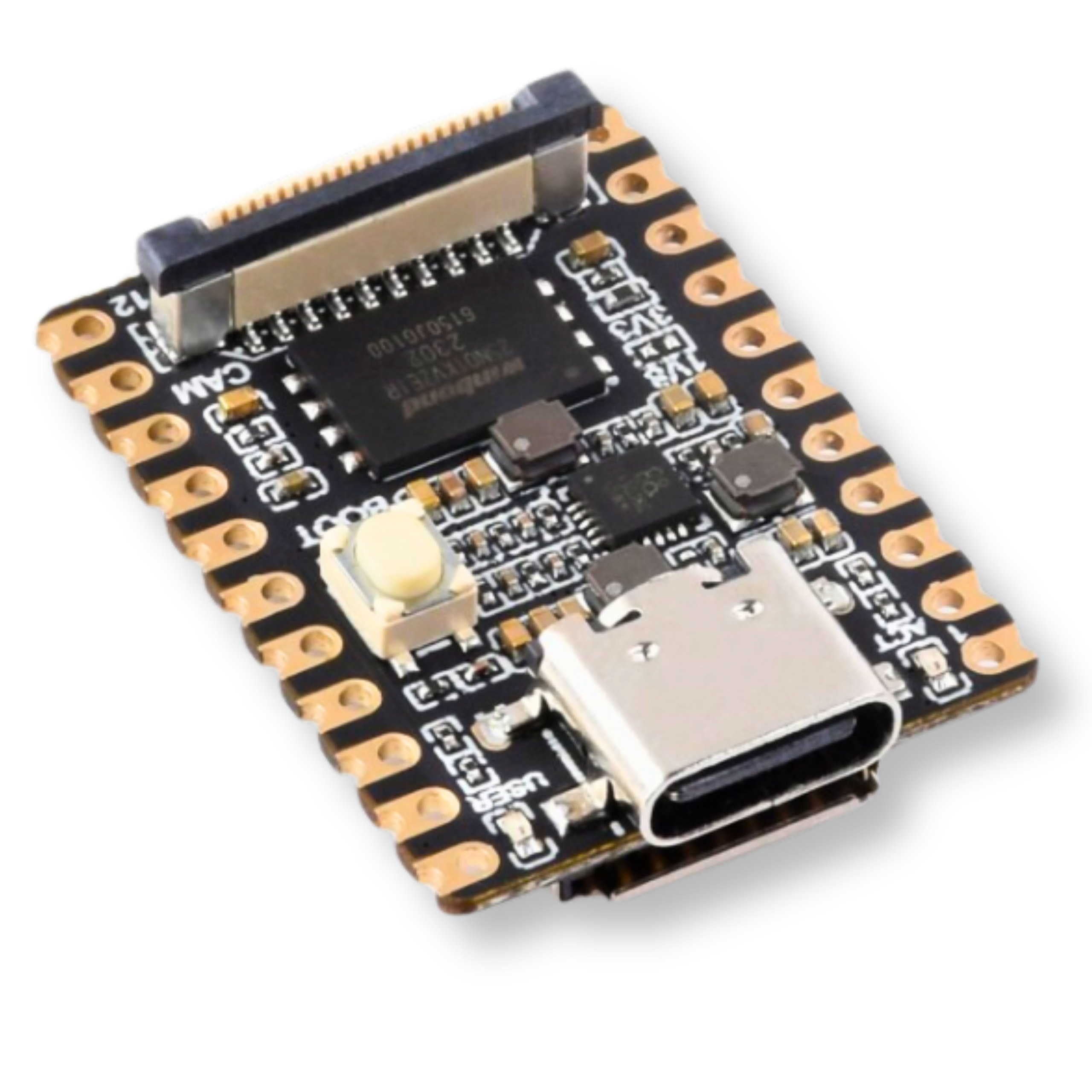

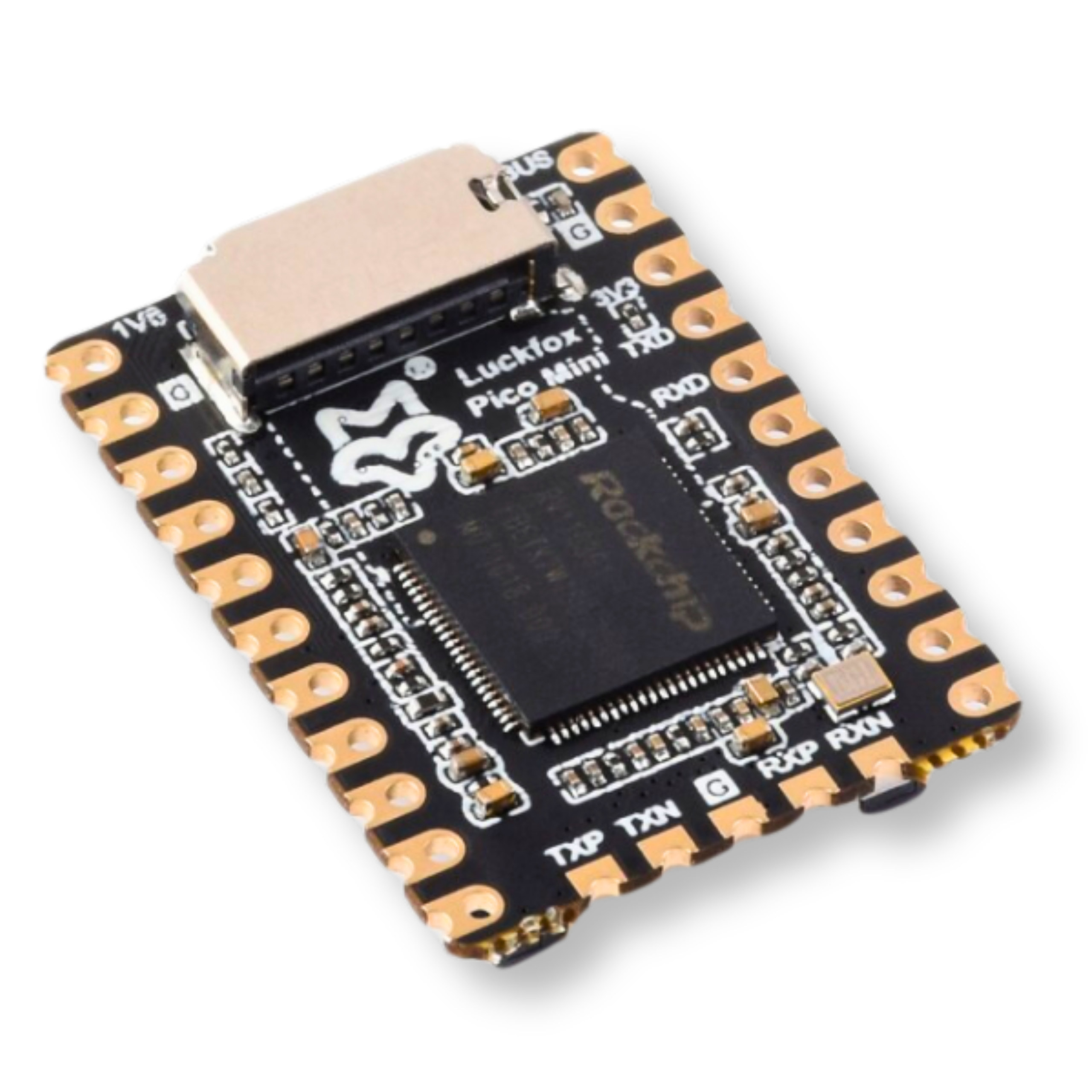

Linux Microcomputer LuckFox Pico Mini RV1103 64MB RAM 128MB FLASH + microSD

Product description: LuckFox Mini RV1103

LuckFox Mini is an advanced development board designed for smart devices, industrial automation, robotics, and drones. It features the Rockchip RV1103 SoC, which combines a Cortex-A7 core running at 1.2 GHz with additional RISC-V capabilities and 64 MB of DDR2 memory. It delivers the performance needed for a wide range of applications. Thanks to the built-in neural processing unit (NPU) delivering 0.5 TOPS, the board accelerates machine learning and artificial intelligence workloads, supporting int4, int8, and int16 formats.

The board includes an image signal processor (ISP) capable of processing up to 4 megapixel image resolution at 30 frames per second, making it suitable for image analysis projects. The USB 2.0 port, operating in host and device modes, allows connecting peripherals and communicating with other devices. It also has a MIPI CSI connector compatible with SC3336 camera modules, 17 GPIO pins for design flexibility, and a microSD card slot for convenient data storage.

It is a powerful tool for professionals and an educational platform for programming, image analysis, and AI application development. The version sold is version B, with 128 MB NAND FLASH memory soldered on board.

Key technical specifications

• Processor: Cortex A7 @ 1.2GHz + RISC-V
• NPU: 0.5 TOPS, supports int4, int8, and int16
• ISP: 4M input @ 30fps (maximum)
• RAM: 64MB DDR2
• Flash memory: 128 MB SPI NAND FLASH (soldered)
• USB: USB 2.0 Host/Device
• Camera: MIPI CSI, 2-lane
• GPIO: 17 x GPIO pins
• Dimensions: 28.14 x 21 mm

Example applications

• Smart home and building automation systems
• Robotics and drone control
• Industrial vision systems and image analysis
• Artificial intelligence and machine learning projects
• Educational platforms for learning programming and electronics

Benefits

• High computing performance thanks to the combination of Cortex-A7 and RISC-V cores
• Hardware acceleration of AI algorithms via the built-in NPU
• Smooth high-resolution video processing thanks to the dedicated ISP
• Compact dimensions for easy integration in small devices
• Ready to use with built-in 128 MB NAND FLASH memory and microSD card support
