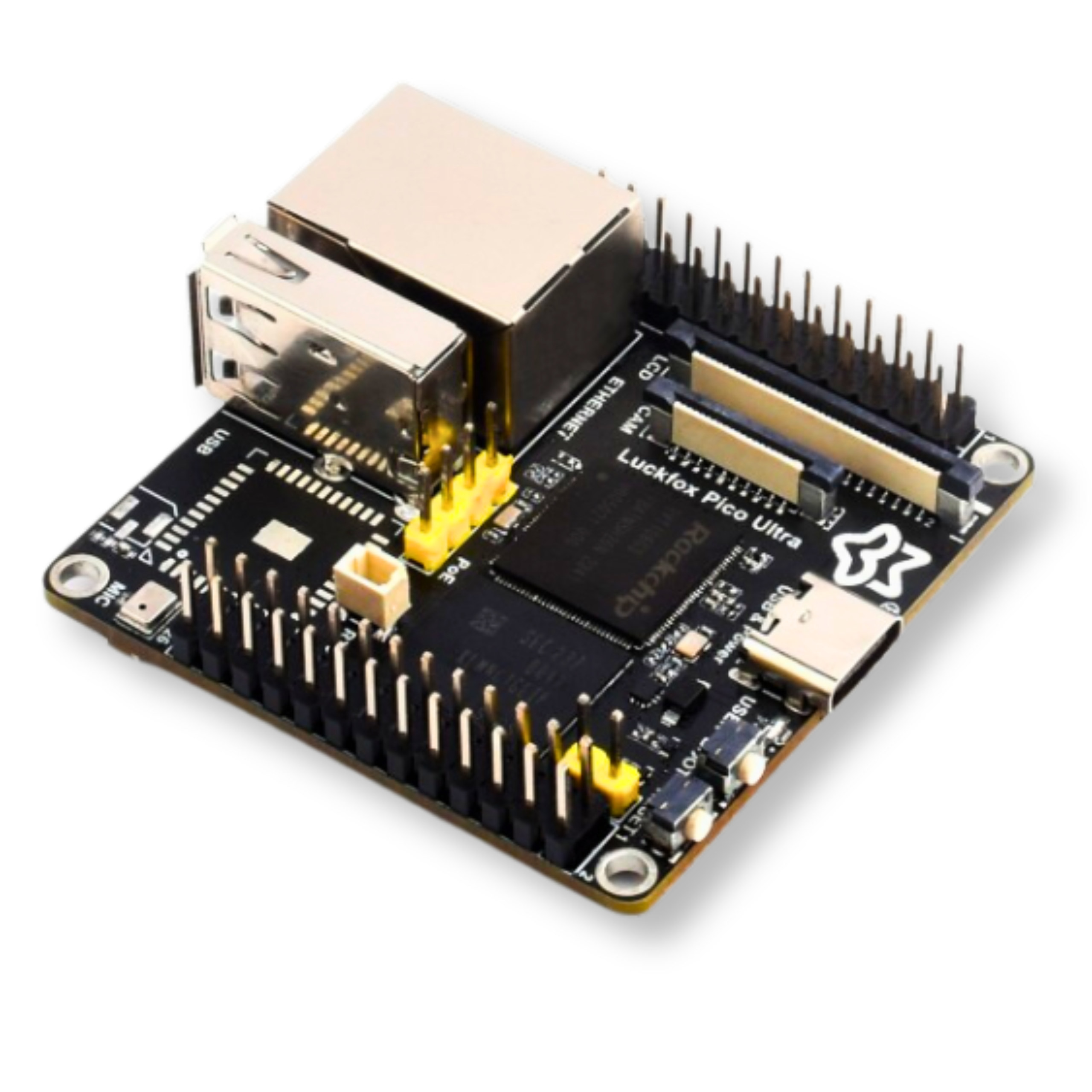

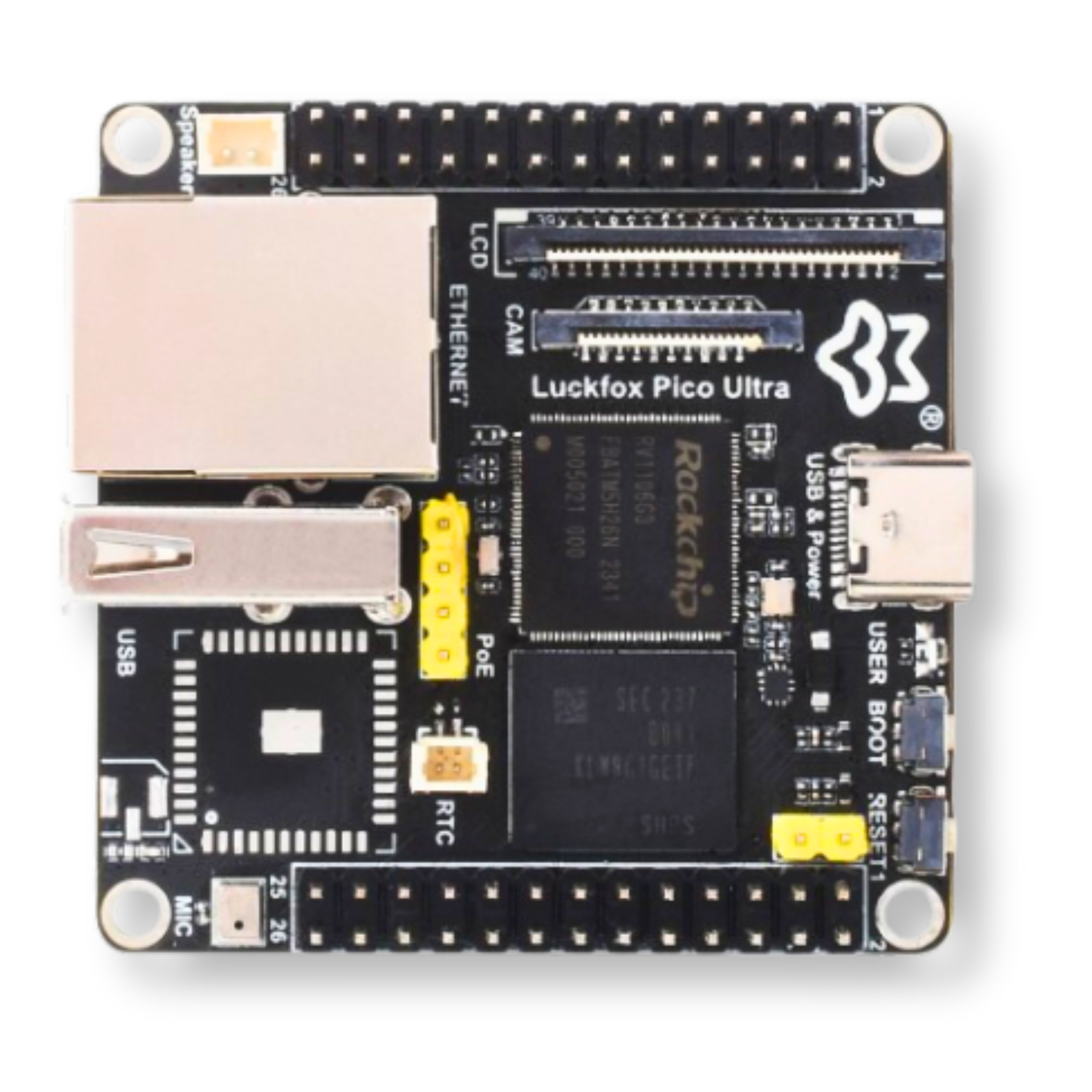

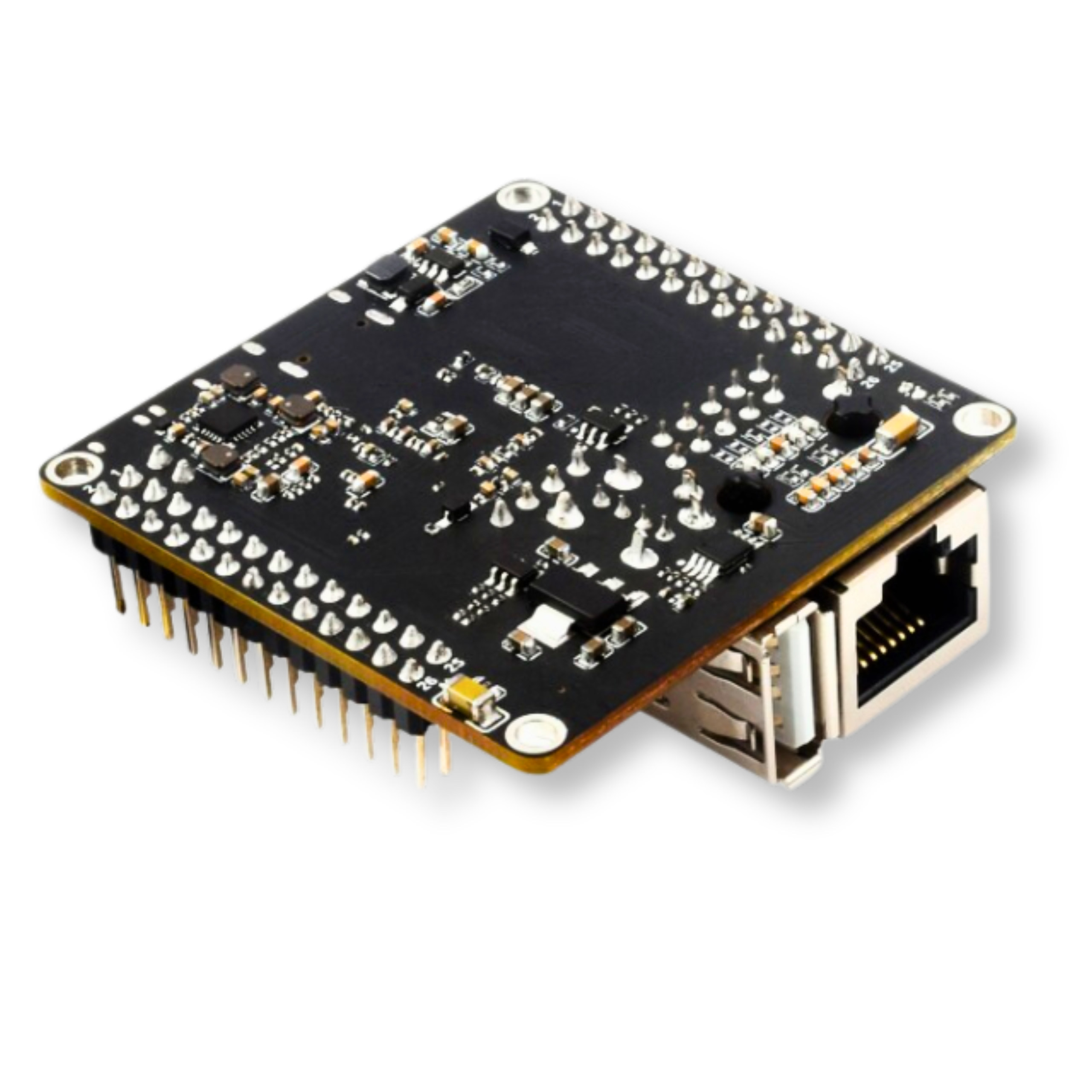

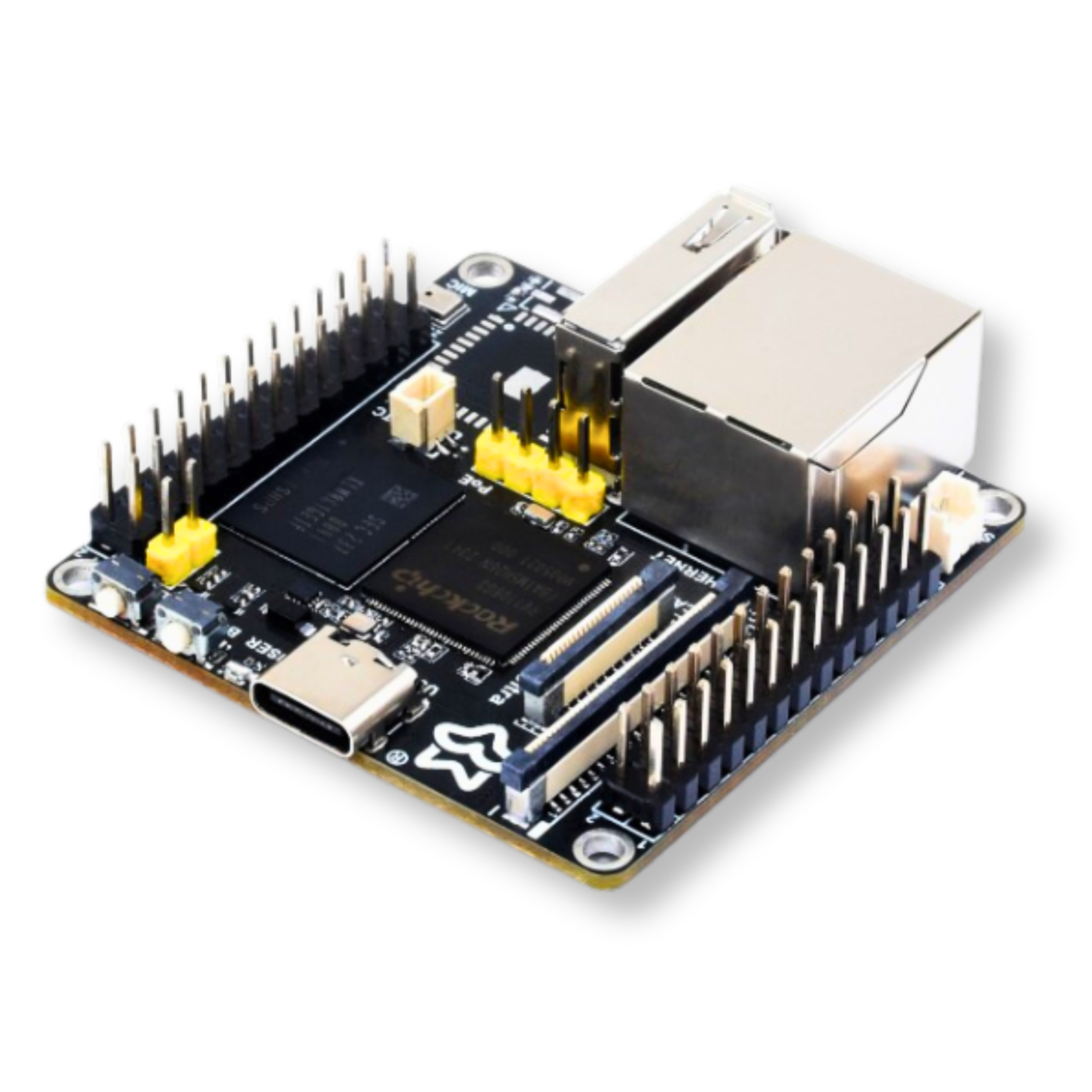

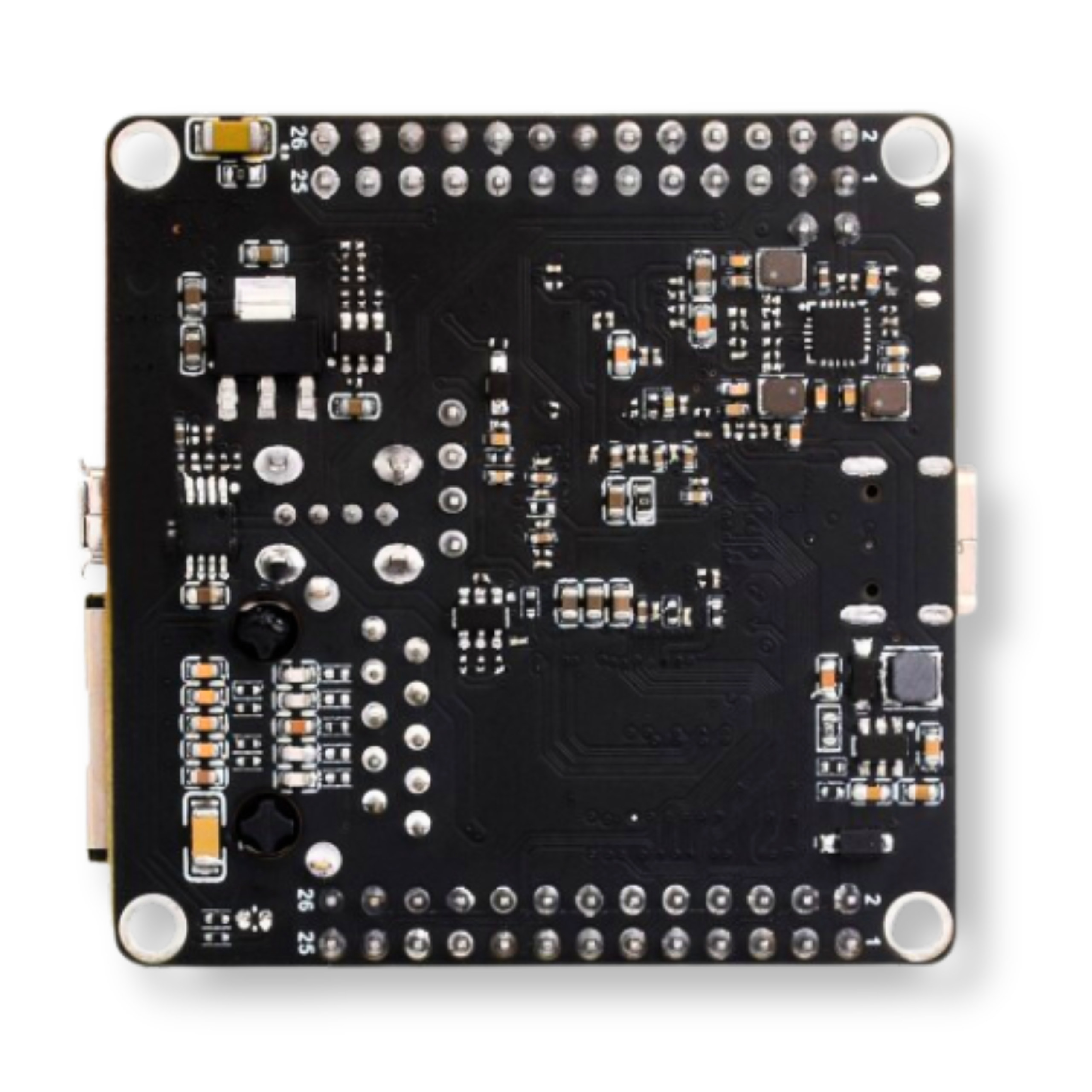

LuckFox Pico Ultra RV1106 is an advanced development board running Linux, offering extensive capabilities for AI applications and embedded systems. The board is built around the powerful Rockchip RV1106 chip, which integrates a single-chip ARM Cortex-A7 32-bit processor with a built-in NEON coprocessor and FPU. It is also equipped with a dedicated NPU delivering up to 0.5 TOPs of compute power, supporting mixed INT4/INT8/INT16 operations. It is an excellent tool for engineers and creators working on artificial intelligence and image processing projects.

The RV1106 is a modern SoC designed for visual processing in IPC and AI applications. The board features a hardware ISP image signal processor supporting advanced algorithms such as HDR, 3A, LSC, 3DNR, 2DNR, sharpening, defogging, and gamma correction. Built-in 16-bit DRAM ensures adequate bandwidth, making this module an ideal choice for demanding tasks.

The module offers a rich set of interfaces including GPIO, UART, SPI, I2C, and USB, which greatly simplifies prototyping and debugging. The LuckFox Pico Ultra series supports buildroot and Ubuntu 22.04, giving developers flexibility in choosing their operating environment.

Key technical specifications

• Chip: Rockchip RV1106G3
• Main processor: Cortex A7 1.2GHz
• Neural processing unit (NPU): 0.5 TOPS, int4, int8, int16 support
• Image processor (ISP): Maximum input 5M @30fps
• RAM: 256MB DDR3L
• Storage: Built-in 8GB eMMC
• Camera interface: MIPI CSI 2-lane
• Speaker interface: MX 1.25mm connector
• USB connectors: USB 2.0 Host/Device
• GPIO pins: 30 GPIO pins
• Networking: 10/100M Ethernet controller with integrated PHY

Example applications

• Intelligent monitoring systems and real-time image analytics
• Artificial intelligence (AI) and edge machine learning projects
• Advanced home and industrial automation systems
• Face, object, and license plate recognition
• Building autonomous robots and drones requiring visual analysis

Benefits

• High AI compute performance thanks to the dedicated 0.5 TOPS NPU
• Ready to use out of the box with built-in 8GB eMMC storage
• Excellent image quality supported by the hardware ISP
• Wide expansion and integration options via numerous communication interfaces
• Software flexibility with full Linux support
