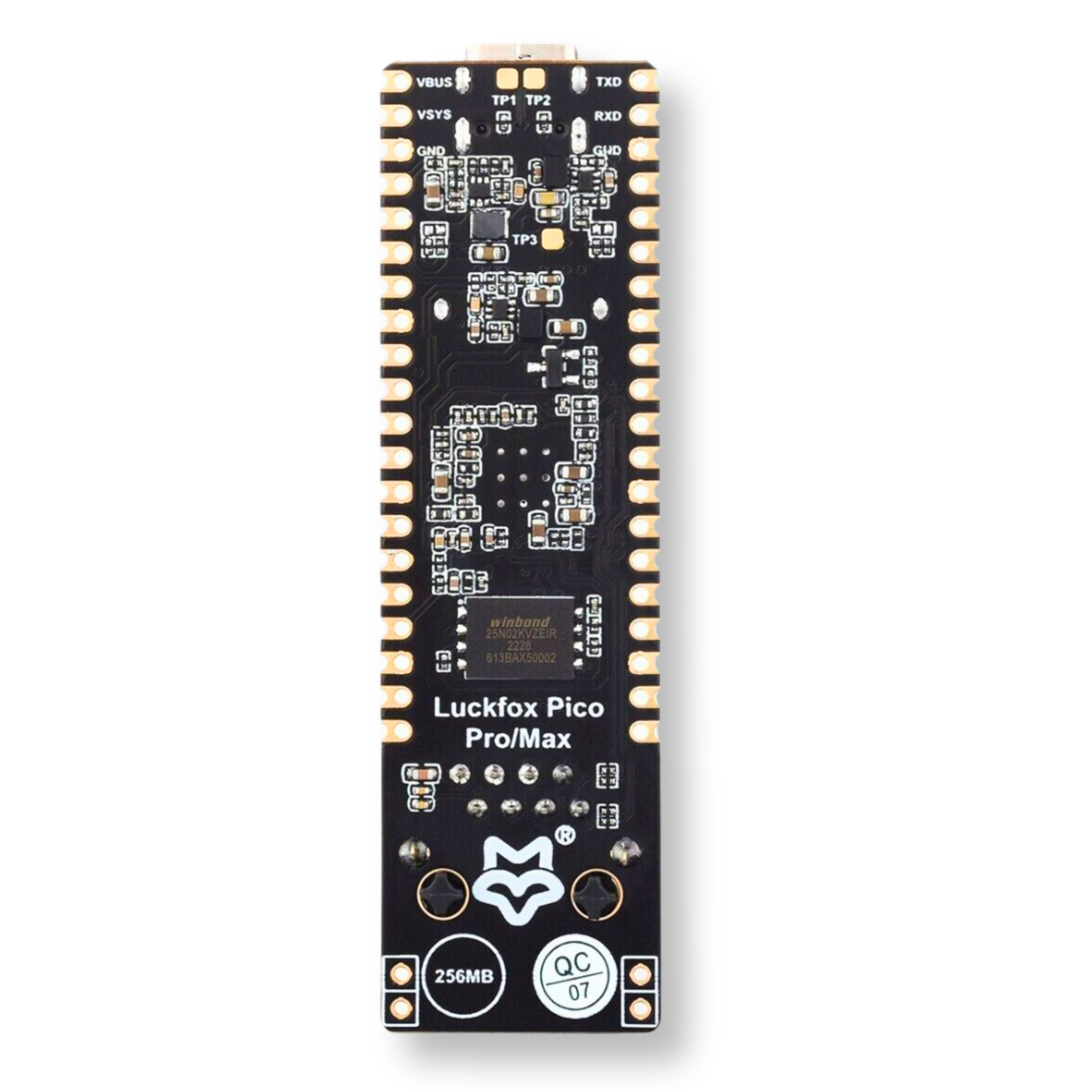

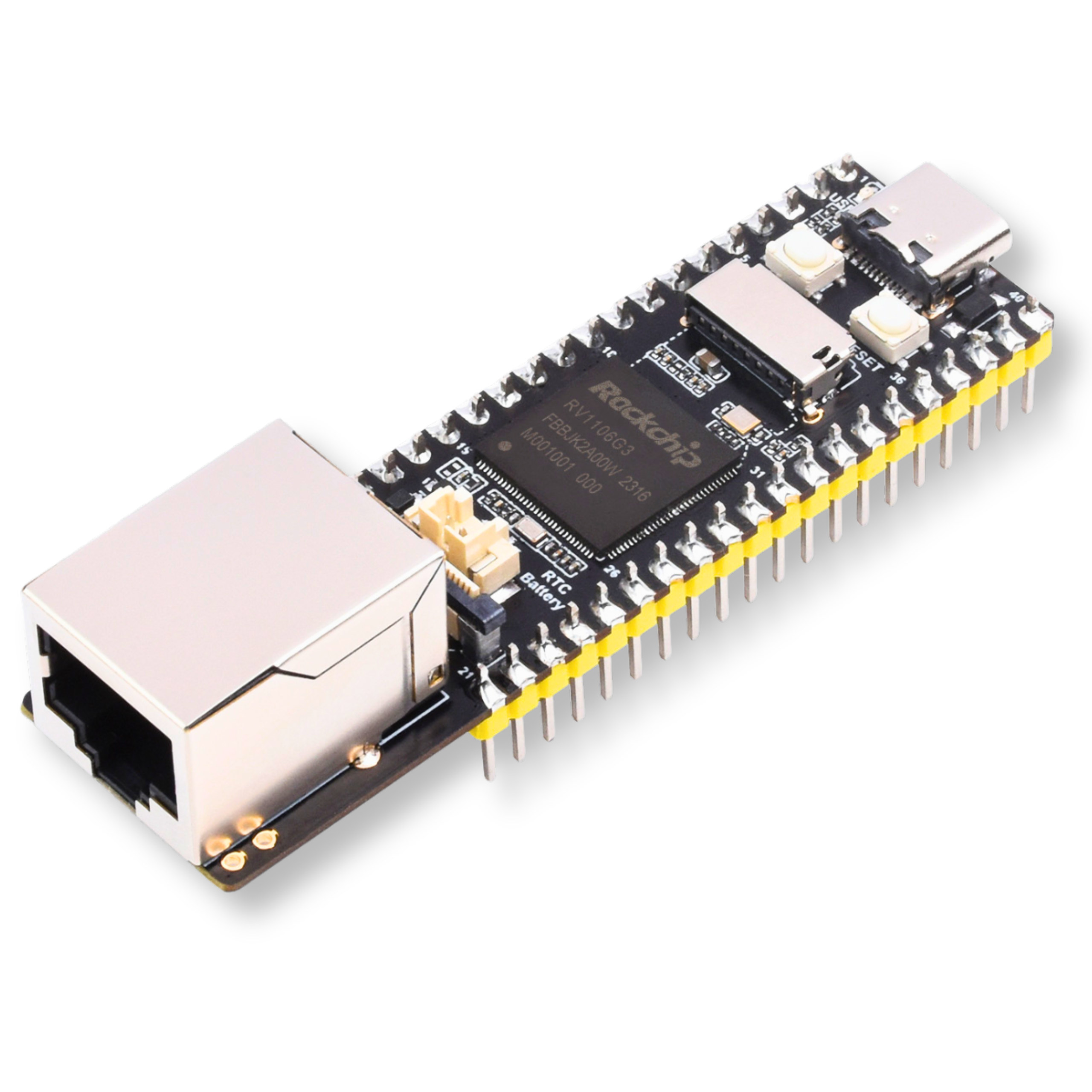

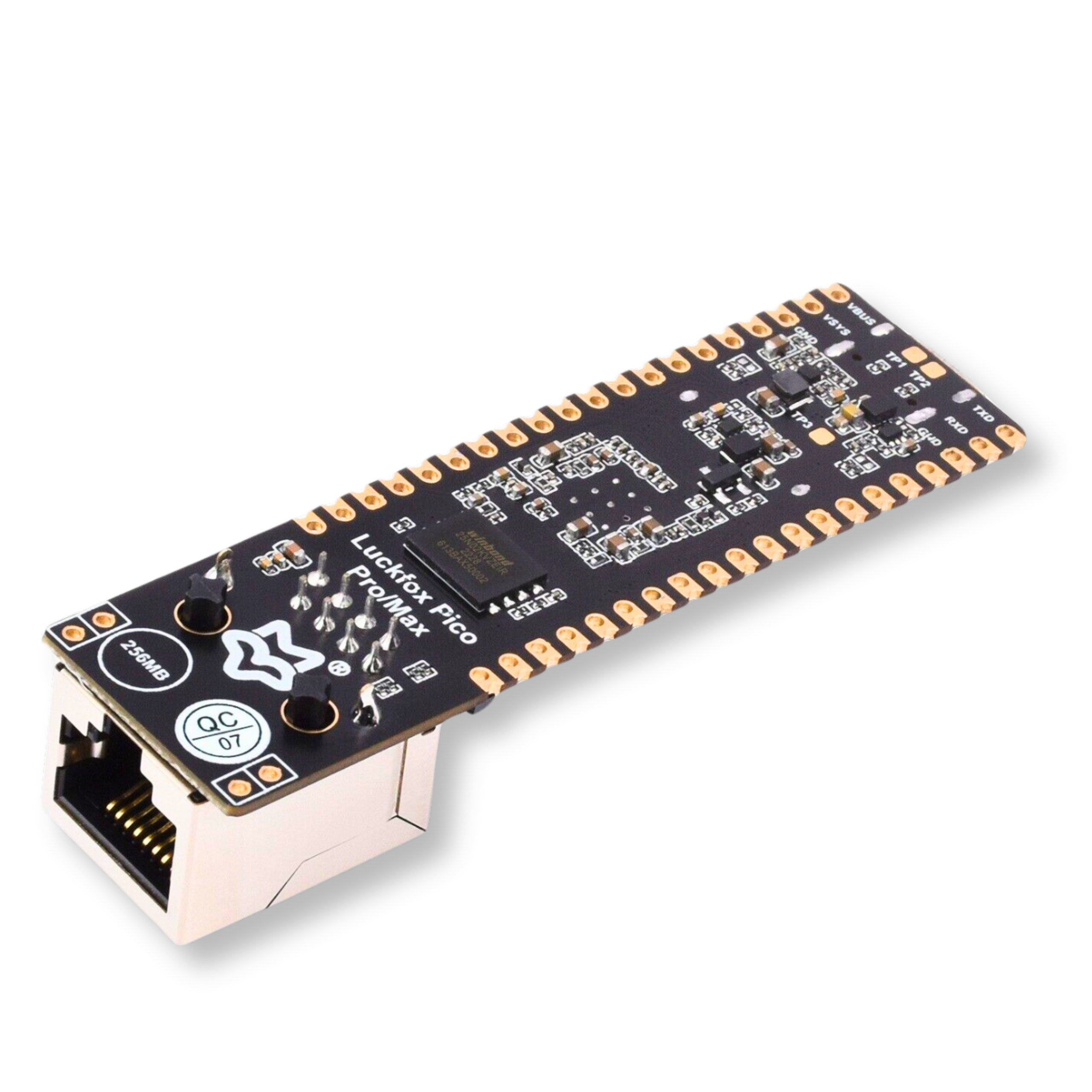

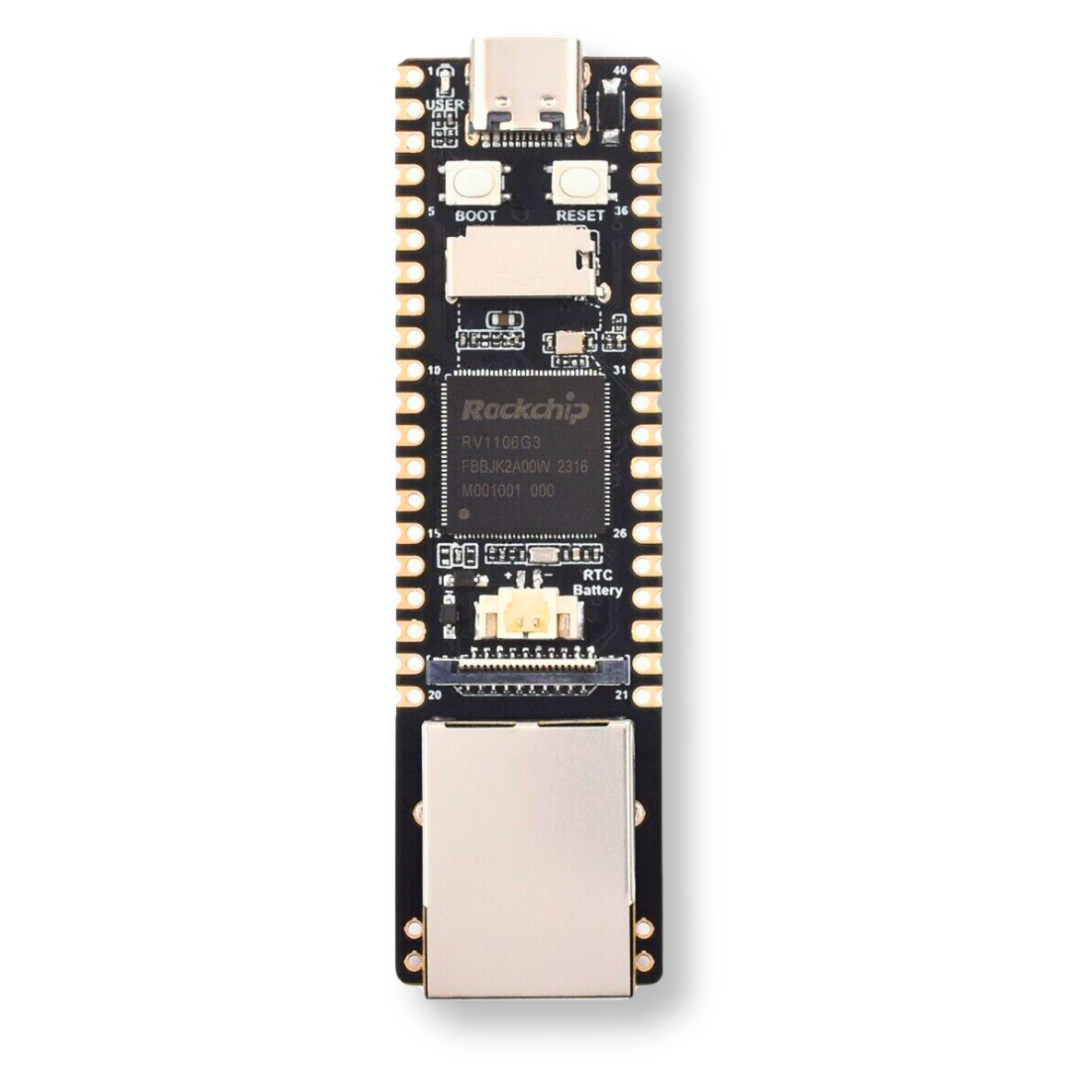

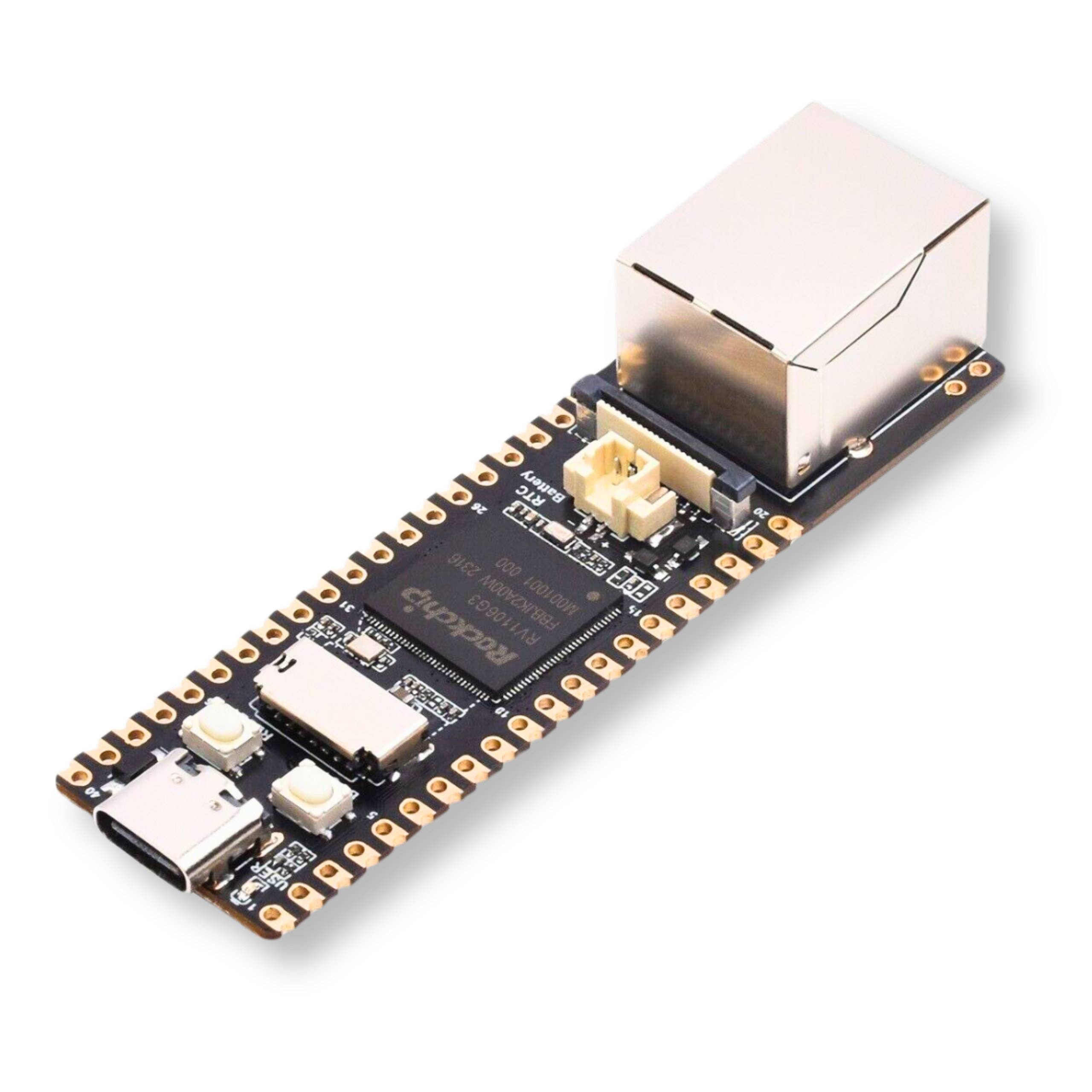

Linux microcomputer LuckFox Pico Max RV1106 256MB RAM Eth + pins + battery

Linux microcomputer LuckFox Pico Max RV1106 256MB RAM Eth + pins + battery

Pico Max RV1106 is an advanced micro development board for Linux, combining powerful ARM Cortex-A7, RISC-V, NPU, and ISP processors. Designed for developers seeking versatile tools for building AI applications, embedded systems, and advanced image processing. The module has pinouts compatible with a popular standard, making it an excellent choice for Raspberry Pi projects.

The board features a single-core ARM Cortex-A7 processor clocked at 1.2GHz with built-in NEON and FPU units for smooth, efficient operation. The Max version offers 256MB DDR3L, suitable for more demanding tasks.

Thanks to its advanced image signal processor (ISP), the microcomputer supports cameras up to 5 megapixels, with a wide range of image enhancement and correction algorithms such as HDR, WDR, and multi-level noise reduction. The integrated fourth-generation NPU from Rockchip supports precise computation in int4, int8, and int16 modes, delivering the compute power needed for advanced AI applications.

Pico Max RV1106 is an ideal solution for those who want a capable, flexible platform for modern embedded and artificial intelligence applications.

Key technical specifications

• Processor: ARM Cortex-A7 @ 1.2GHz
• NPU: Max: 1.0 TOPS, supports int4, int8, int16
• ISP: 5M input @ 30fps (max.)
• Memory: Max: 256MB DDR3L
• USB: USB 2.0 Host/Device
• Camera: MIPI CSI 2-lane
• GPIO: 26 GPIO pins - pitch compatible with Raspberry Pi Pico
• Ethernet: 10/100M Ethernet controller with integrated PHY
• Default storage: SPI NAND FLASH (256MB)

Example applications

• Advanced image and face recognition systems
• Smart surveillance cameras with AI analytics
• Robotics and home automation systems
• IoT gateways with Ethernet connectivity
• Educational projects in artificial intelligence and Linux systems

Benefits

• High performance from combining the ARM Cortex-A7 processor with a dedicated NPU
• Ready to use out of the box - soldered pins and included battery
• Easy integration with existing projects thanks to Raspberry Pi ecosystem compatibility
• Smooth video and image processing thanks to the advanced ISP
• Stable network connectivity via the built-in Ethernet port

Package contents

• Pico Max RV1106 microcomputer
• Battery
• Soldered GPIO pins (ready to use)
