Starter kit with STM32 NUCLEO-G431KB ARM 32-bit Cortex-M4 microcontroller

Availability: brak towaru
Price: €18.18
incl. 23% TAX, excl. shipping costs
18.18
quantity pcs

product unavailable

add to wish list
Rating: 0
Vendor: STMicroelectronics

Description

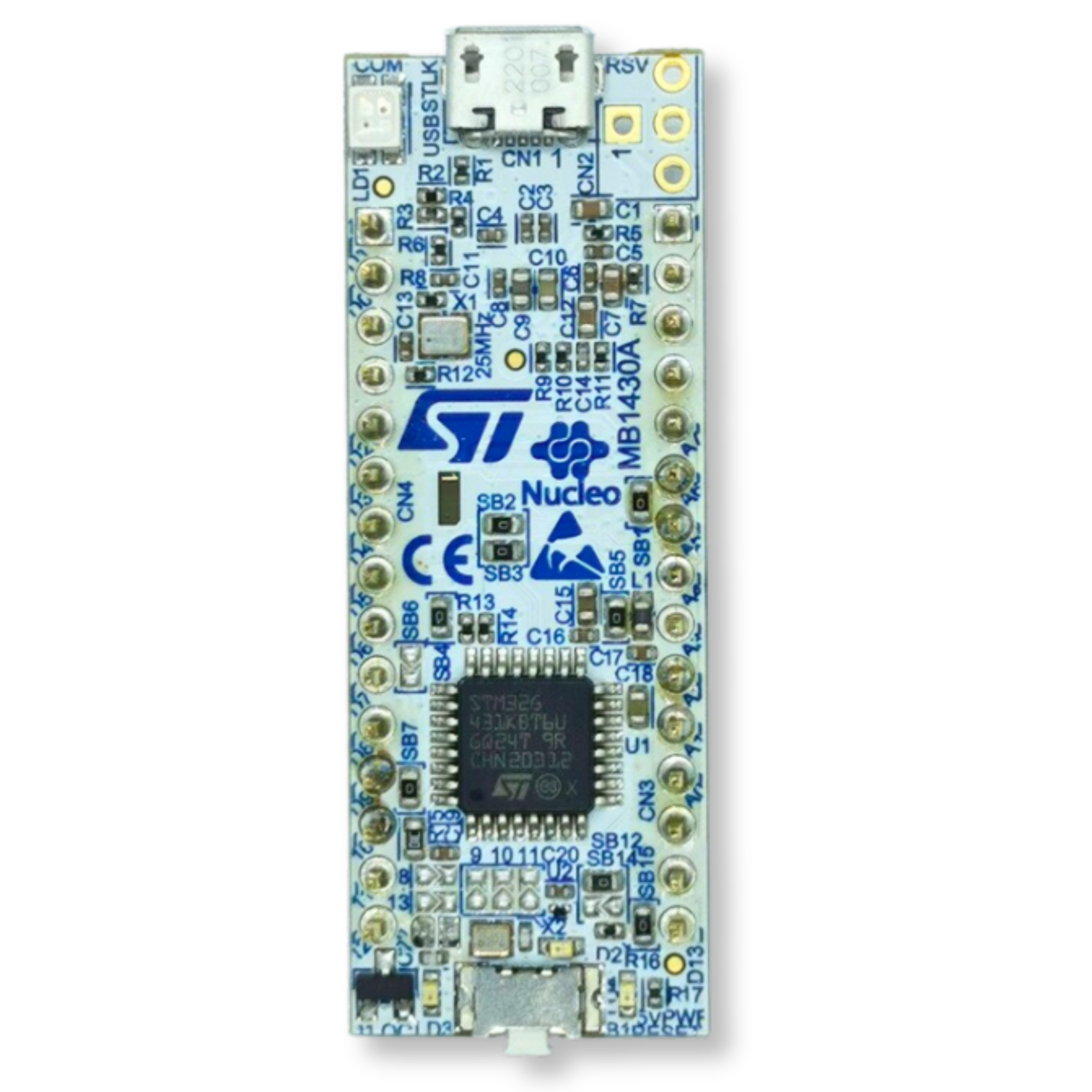

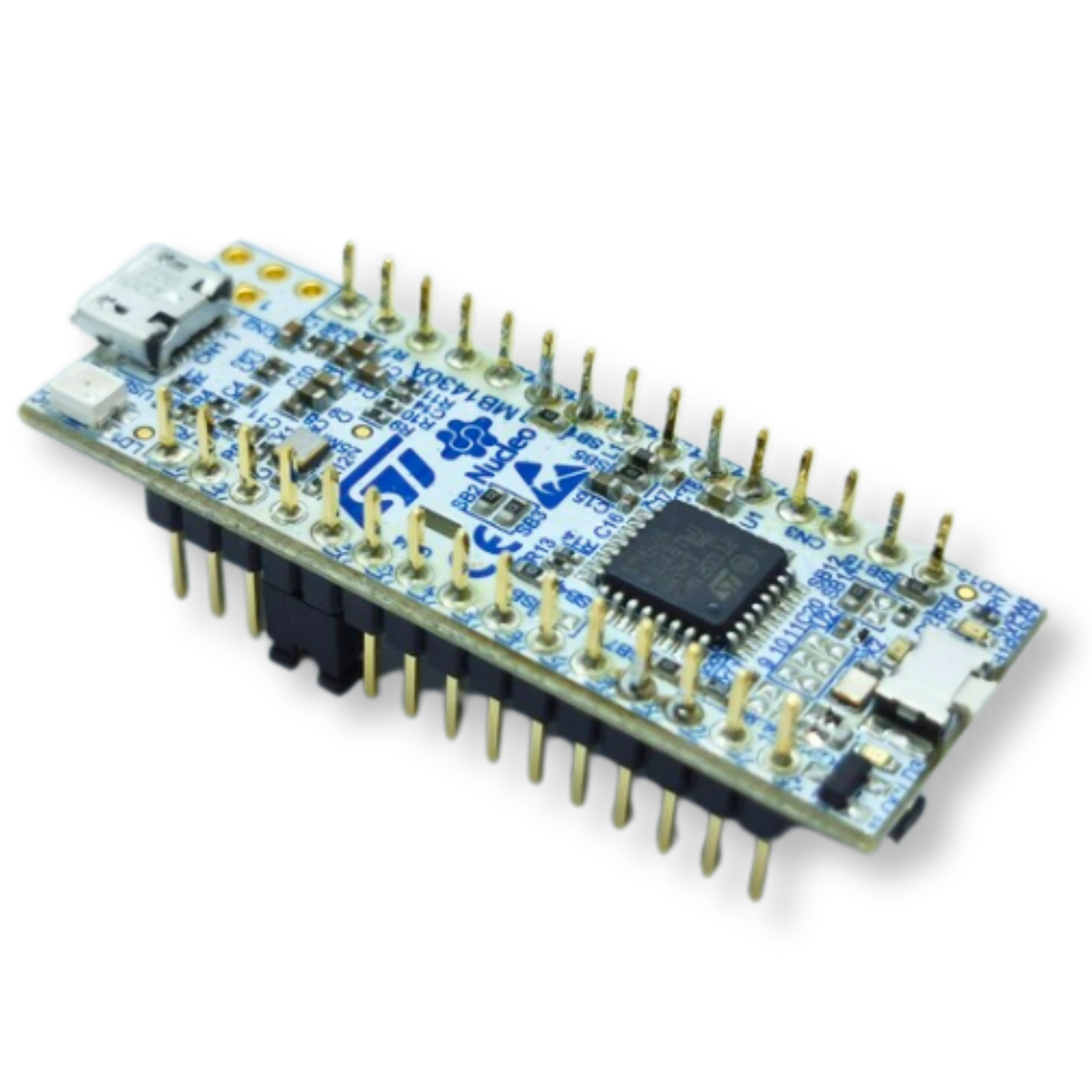

The Nucleo kit equipped with the STM32G431KB microcontroller makes it easy to test new solutions and build prototypes. The board is compatible with the Arduino Nano connector, increasing its versatility. With a built-in programmer/debugger ST-LINK that supports three modes of operation: storage, virtual COM port and debug port, it greatly simplifies the programming process. The programmer is compatible with many popular development environments, including IAR, Keil, STM32CubeIDE and other GCC-based development environments.

Technical specifications of the launch kit:

  1. STM32G431KBT6U microcontroller:

    • Core: ARM® Cortex®-M4 with FPU
    • Maximum clocking: 170 MHz
    • Flash memory: 128 kB
    • SRAM: 32 kB
    • DMA: 12 channels
    • Communication interfaces: 3 x I2C, 3 x SPI, 2 x I2S, 3 x USART, 1 x UART, 1 x Low-Power UART, 1 x FDCAN, 1 x SAI, 1 x USB 2.0 FS, 1 x UCPD
    • Analogue interfaces: 2 x ADC (16 bit), 4 x DAC (12 bit), 4 x analog comparator, 3 x operational amplifier, internal reference source (VREFBUF)
    • Timers: 14 pieces, including 1 x 32 bit (4 channels), 2 x 16 bit (4 channels), 2 x 16 bit (8 channels), 2 x 16 bit (1 channel), 2 x Watchdog, 1 x SysTick, 2 x Basic Timer, 1 x Low-Power Timer, 1 x RTC
    • Additional features: random number generator (RNG), CRC calculation unit, unique 96-bit identifier

    • Built-in ST-Link V2 programmer/debugger:

      • Micro USB connector
      • Can operate as a separate programmer with SWD output

    • Power supply:

      • Via micro USB
      • From an external 5V or 3.3V power source

    • LEDs:

      • USB communication
      • Power supply
      • User light

    • Reset button

    • Compatibility with the ARM mbed platform
