Stepsticks A4988 3D Printer Control Kit - Shield with Arduino Nano

This comprehensive control kit for 3D printers contains everything needed to precisely control three-axis mechanisms. Designed with 3D printing enthusiasts and professionals in mind, the kit enables the printer to operate efficiently and effectively.

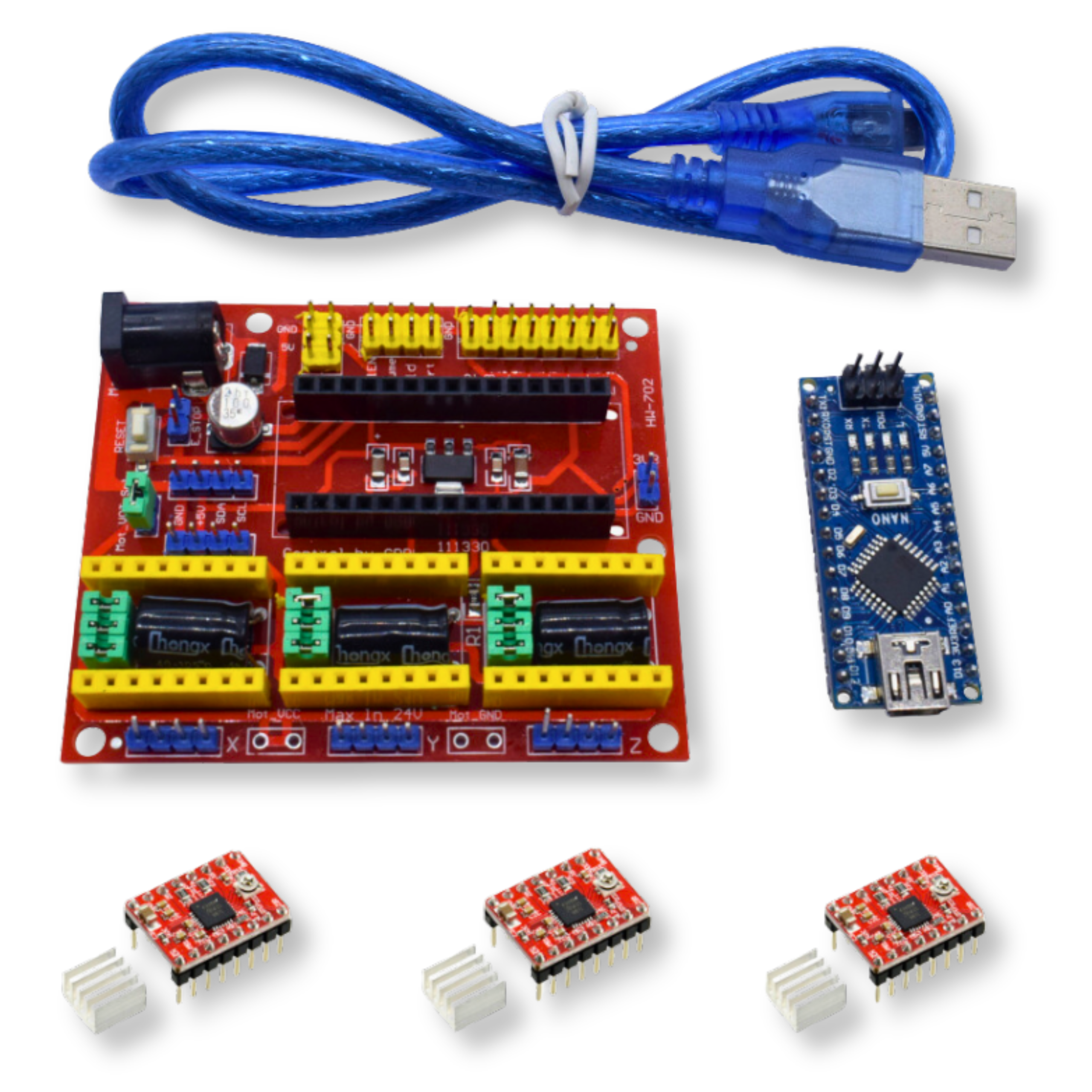

The set includes:

• CNC Shield V3 for 3 motors: Supports up to three axes (X, Y, Z) and is compatible with Arduino Nano and other boards. It has space for 3 controllers (A4988 or DRV8825) and six enstops for full motion control.
• Clone Nano V3 ATmega328P 16MHz CH340G with USB cable: With the ATmega 328 microcontroller, it provides excellent performance with a maximum clock frequency of 16 MHz, 32 kB of Flash memory and 14 I/O ports.
• 3x StepStick A4988 stepper motor controller with heatsink: Provide precision motion control with selectable step resolution from full step to 1/16 step. Supports voltages from 8 to 35 V and continuous current up to 2 A with active cooling.

CNC Shield V3 specification:

• Supply voltage: 7.5V to 12V
• Supports an I2C interface for connecting an I2C LCD or other I2C module
• Compatible with GRBL

Nano V3 specification:

• Supply voltage: 5V to 12V
• 6 PWM outputs and 8 analogue inputs
• Serial interfaces: UART, SPI, I2C

A4988 StepStick controller specification:

• Supply voltage: 8V to 35V
• Continuous current per coil: up to 2 A (with active cooling)
• Step resolution: full step to 1/16 step

Application: The kit is ideal for designers and hobbyists who need a reliable and precise control system for their 3D printer. With its easy setup and wide hardware compatibility, this kit is the perfect base for creating and developing advanced 3D printing projects.
