WeMOS D1 Mini USB-C ESP8266 NodeMCU ESP-12F CH340 Arduino Compatible + WiFi

WeMOS D1 Mini USB-C ESP8266 NodeMCU ESP-12F CH340 for Arduino for ESP8266

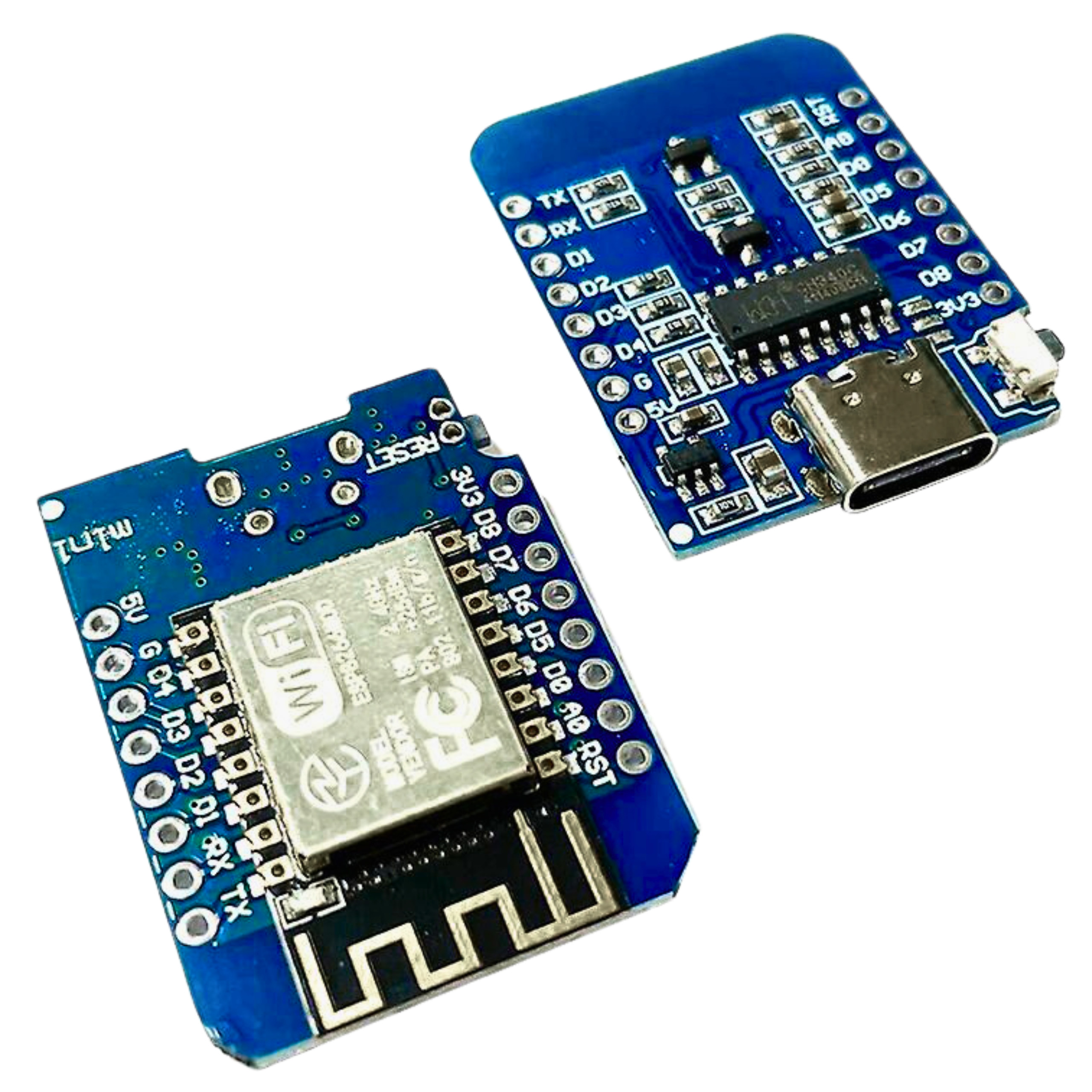

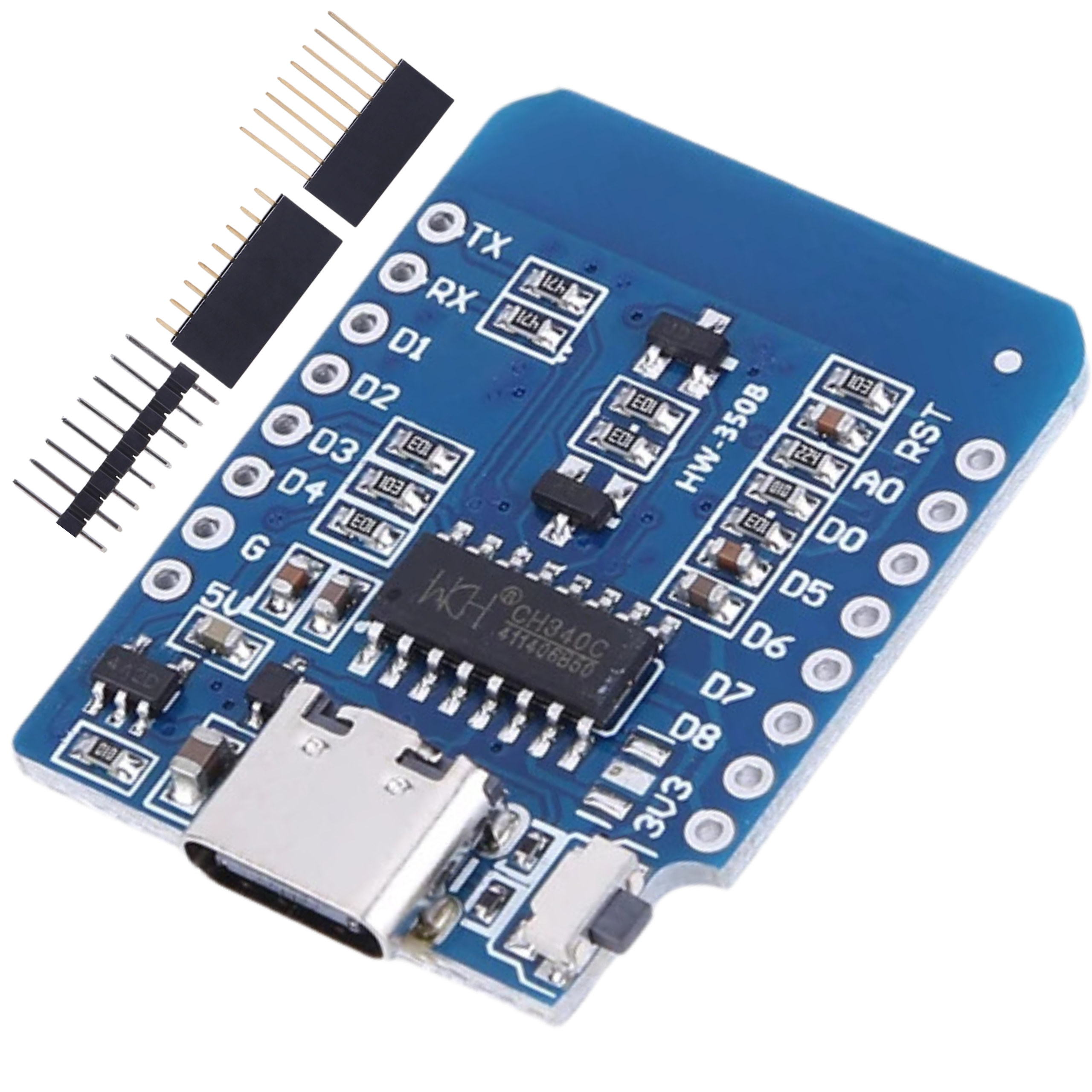

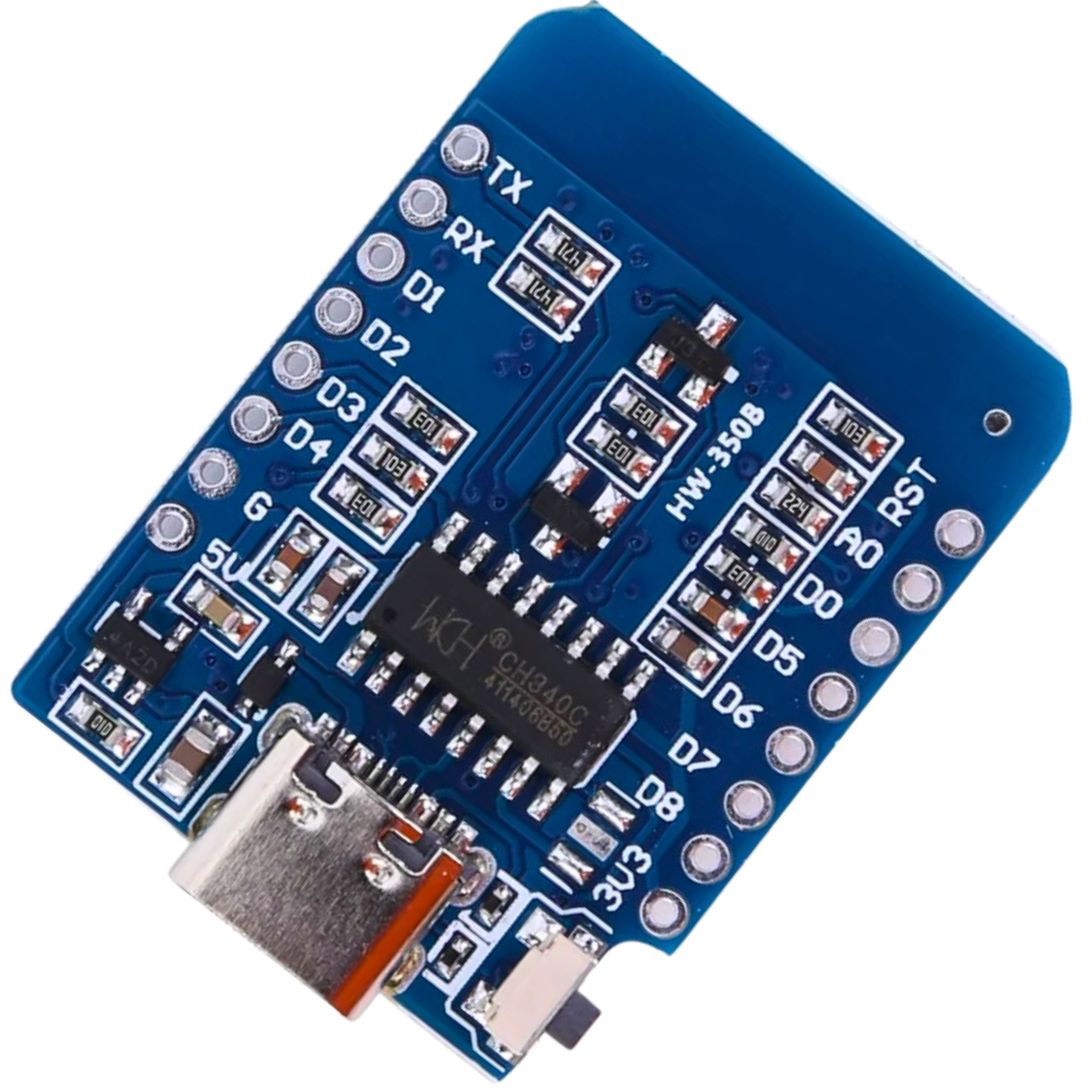

WEMOS D1 mini ESP8266 is a versatile board with a built-in ESP8266-12F module. It is equipped with a high-performance USB-UART (CH340) converter that enables direct programming via the USB-C connector without the need for additional converters. The module provides 9 GPIO ports supporting popular communication interfaces such as PWM, I2C, SPI and 1-Wire. An integrated 3.3V voltage regulator allows convenient powering of the circuit directly via the USB port.

The microcontroller is fully compatible with the Arduino IDE environment and works perfectly in projects based on ESP Home and Home Assistant.

Key technical features

The board stands out with its compact dimensions of 34 x 25 mm and a USB-C connector. The circuit is based on an 80MHz RISC processor with the ability to operate at 160MHz. It has 4MB of built-in flash memory and an integrated PCB antenna. Wireless communication uses the Wi-Fi 802.11 b/g/n standard with support for AP, STA and AP+STA modes.

Example applications

• Home automation and smart building systems
• IoT (Internet of Things) sensors with wireless communication
• Projects based on ESP Home and Home Assistant platforms
• Remote control of relays and lighting
• Wireless weather stations and data loggers

Benefits

• Direct programming via a modern USB-C connector
• Full compatibility with the popular Arduino IDE environment
• Easy integration with Smart Home systems thanks to built-in Wi-Fi
• Compact dimensions allowing installation in small enclosures
• Convenient prototyping thanks to the 2.54 mm pitch compatible with breadboards

Specifications

• Module based on the ESP8266 chip with a PCB antenna
• Built-in flash memory: 4MB
• Wi-Fi connectivity in the 802.11 b/g/n standard
• Operates in AP (Access Point), STA (Standalone), AP+STA modes
• Supports: TKIP, WEP, CRC, CCMP, WPA/WPA2, WPS
• Power supply: 3.3V (or 5V via USB port)
• 80MHz RISC processor (also operating at 160MHz)
• 9 GPIO ports - PWM / I2C / SPI / 1-Wire
• Maximum current on I/O pins: 12mA
• Recommended current on I/O pins: 6mA
• USB-UART converter - CH340
• ADC converter - 10-bit

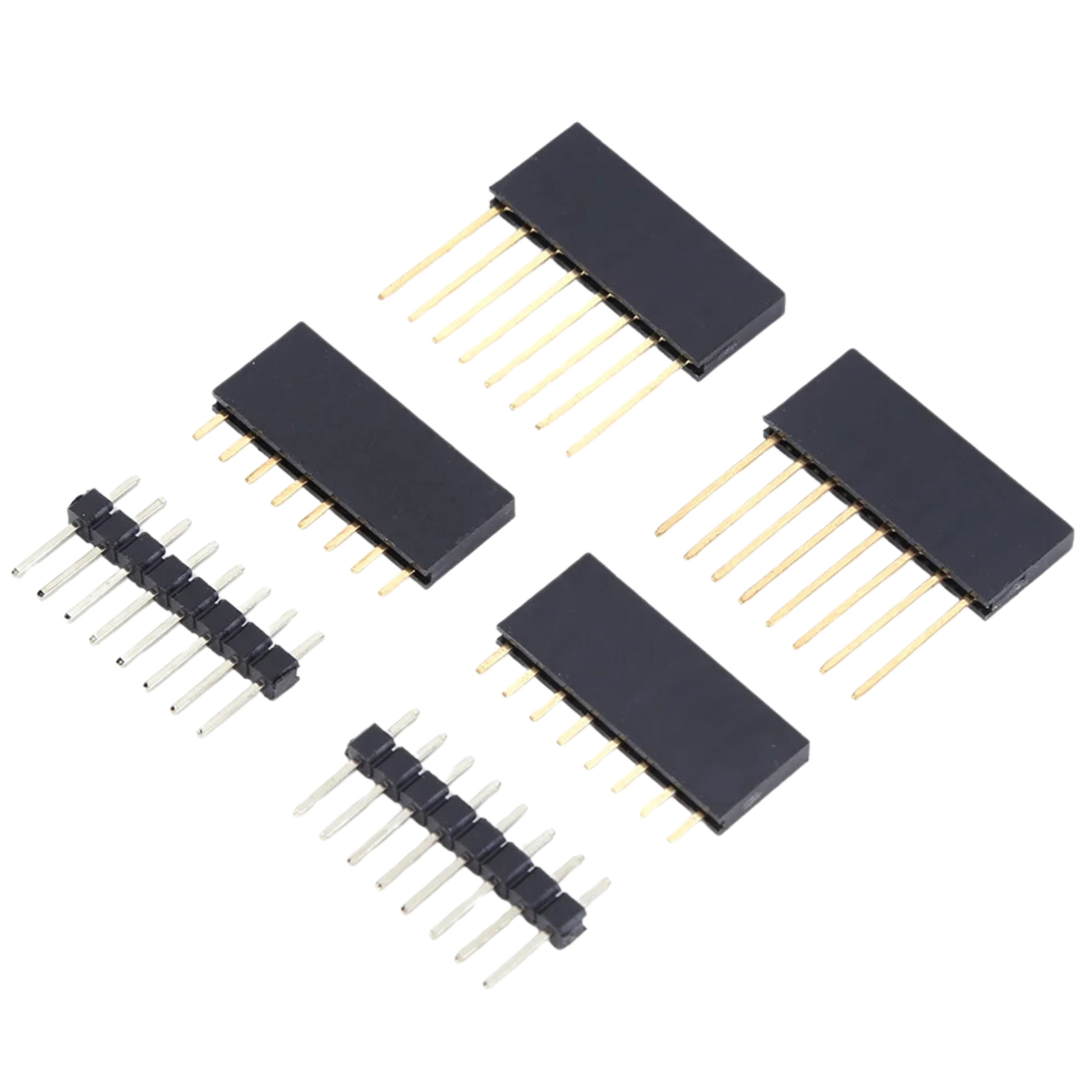

• 16 pins with 2.54mm pitch - fits breadboards
• USB-C connector
• Dimensions: 34 x 25mm
• LED connected to GPIO2 (D4)
