Mikrokontroler ESP-WROOM32 ESP32 USB-C CP2102 WiFi BT ESP-32 4MB do Arduino

Module Description

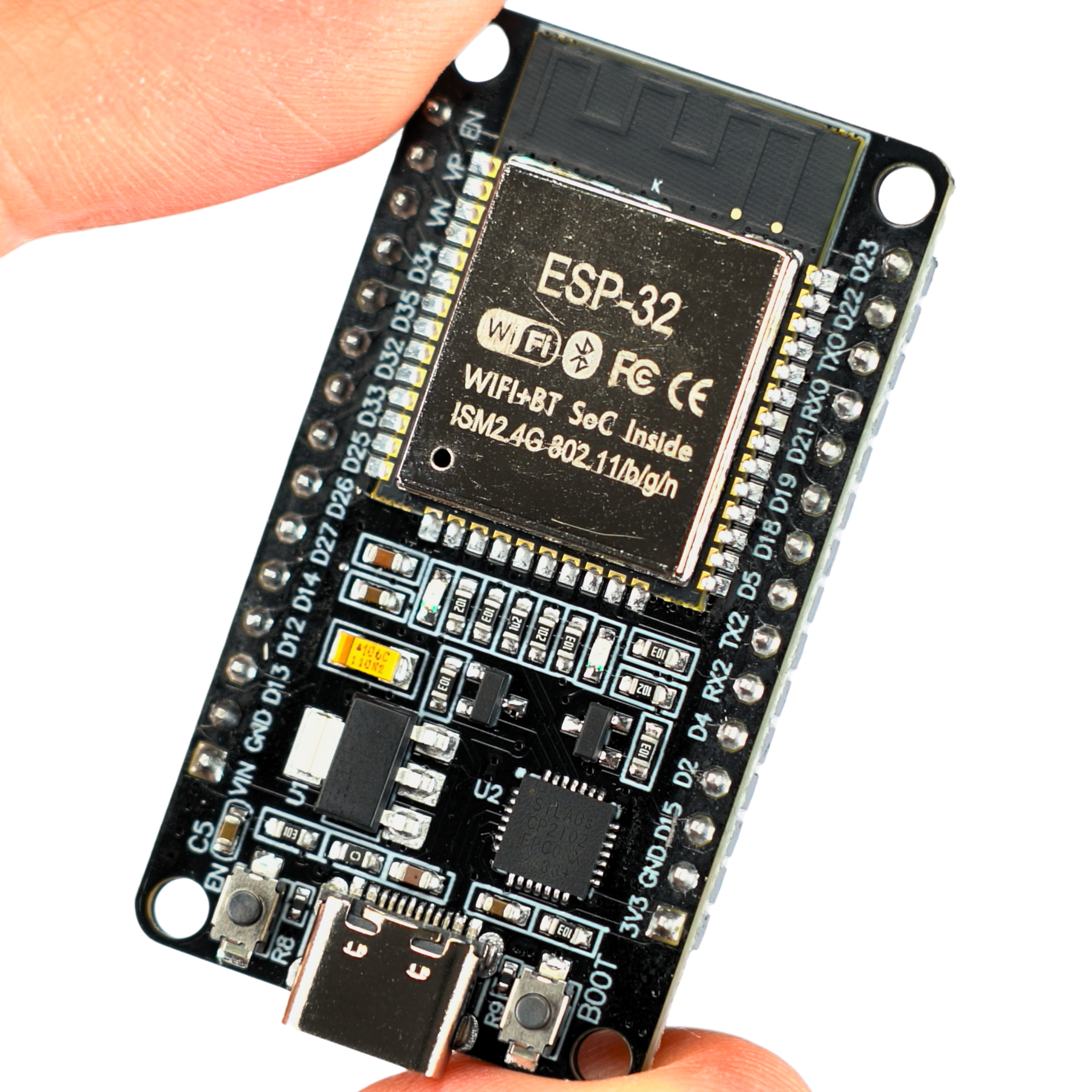

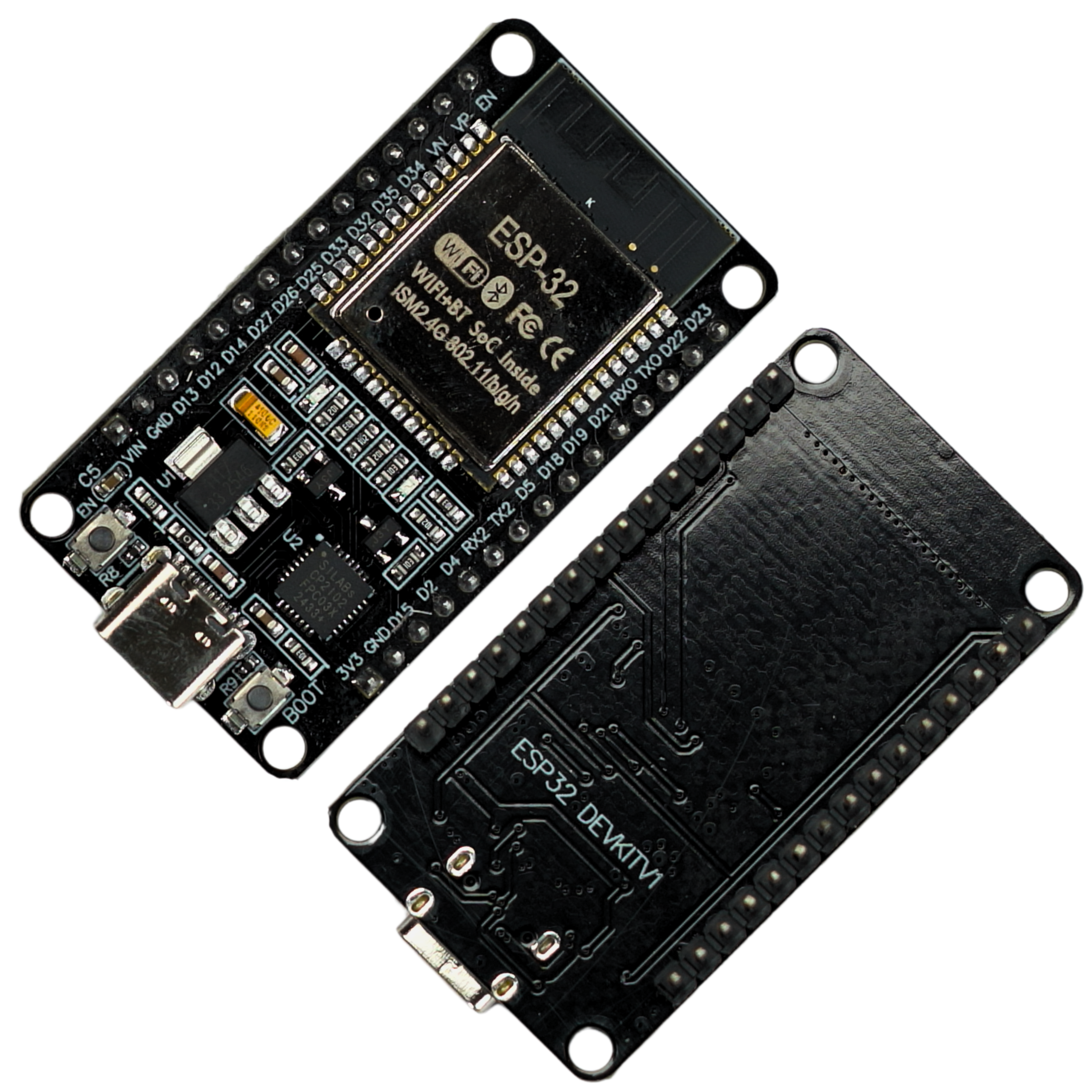

High-quality development board equipped with the ESP-WROOM-32 module, combining WiFi and Bluetooth (BLE) connectivity. The module is the successor to the popular ESP8266 chip (NodeMCU and similar), offering significantly higher performance, ease of use, and greater capabilities. The built-in USB Type-C connector, CP2102 chip, and 2 buttons (Enable and Boot) ensure hassle-free communication with a computer and convenient operation.

Key Technical Features

• Processor: Tensilica Xtensa Dual-Core 32-bit LX6 running at 160 or 240 MHz
• Memory: 4MB Flash, 520 KB SRAM
• Wireless connectivity: WiFi (802.11 b/g/n 2.4GHz standard, up to 150 Mb/s with HT40) and Bluetooth (Classic and BLE)
• Pinout: 30-pin (2x15 goldpin headers), 2.54mm pitch
• Supply voltage: 5V
• Peripheral interfaces: Peripheral interface with DMA, ADC, DAC, SPI, I2S, I2C, UART, RMII, PWM, capacitive touch
• Hardware security: Accelerators for AES and SSL/TLS

Example Applications

• Home automation and smart building systems
• Sensor nodes in Internet of Things (IoT) networks - with this module you can control all kinds of sensors via WiFi and Bluetooth
• LED lighting and relay controllers
• Data loggers with wireless transmission
• Educational projects, DIY, and advanced device prototyping

Benefits

Using this module allows you to create many DIY projects in the Internet of Things (IoT) world in a simple, efficient, and economical way. The main advantages are:

• High performance thanks to the dual-core processor, far exceeding ESP8266 chips
• Wide compatibility with popular development environments such as Arduino IDE and MicroPython (firmware)
• Low power consumption with deep sleep mode support
• Easy connection and programming thanks to the USB Type-C connector and CP2102 chip
• Ready to use on breadboards thanks to soldered headers with a standard 2.54mm pitch

Compatibility

The module is fully compatible with the DEVKIT V1 standard. The board is designed for creating microcontroller-based projects, including for ESP32 and for Arduino.

FlashESP Sample Code

Ready-made code to install on the board directly from your browser:

• https://flashesp.com/explore/OxdsToAYujBO6cRV1TAnD
