12V 92 mm radiator with fan - efficient cooling for Peltier cells

Efficient cooling for Peltier cells

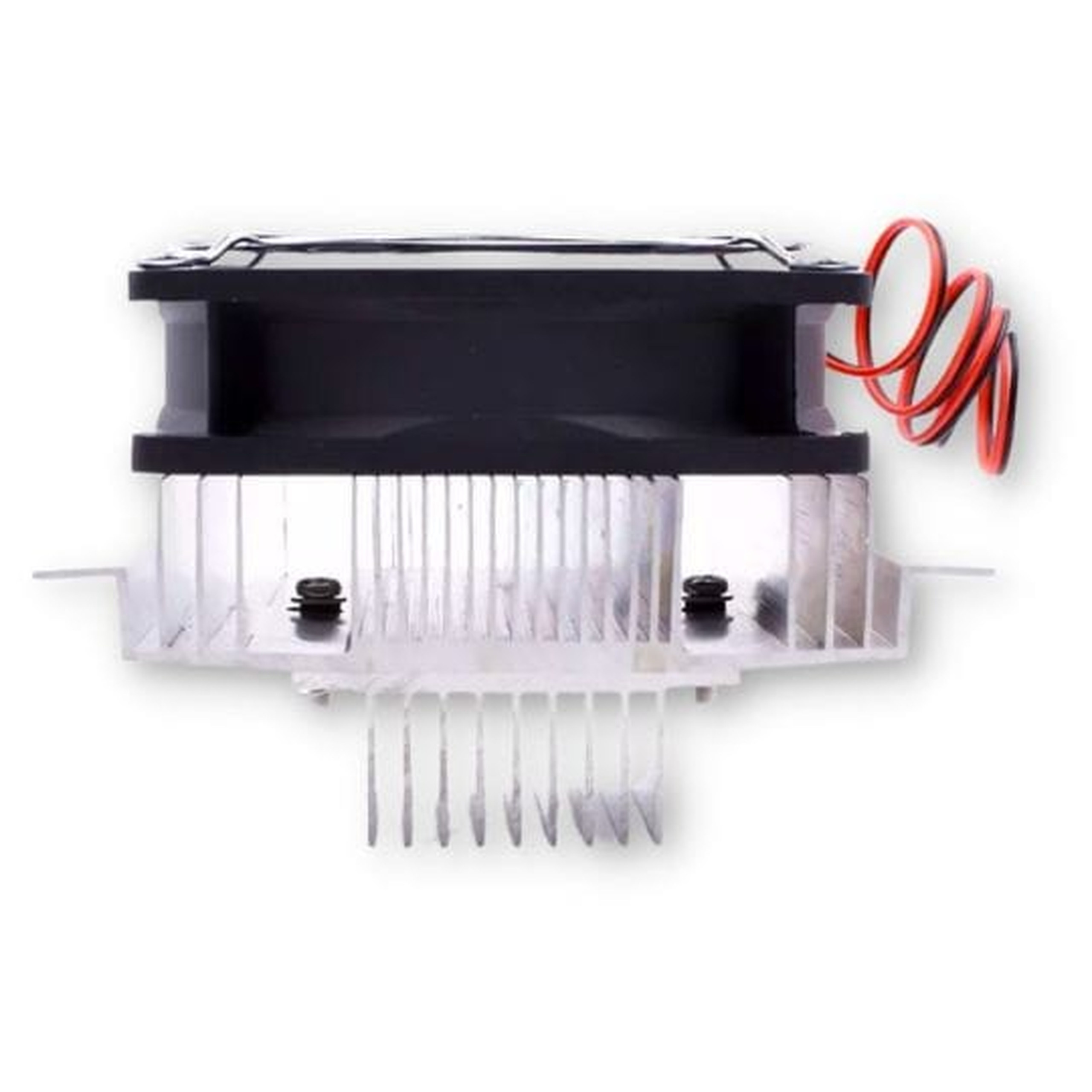

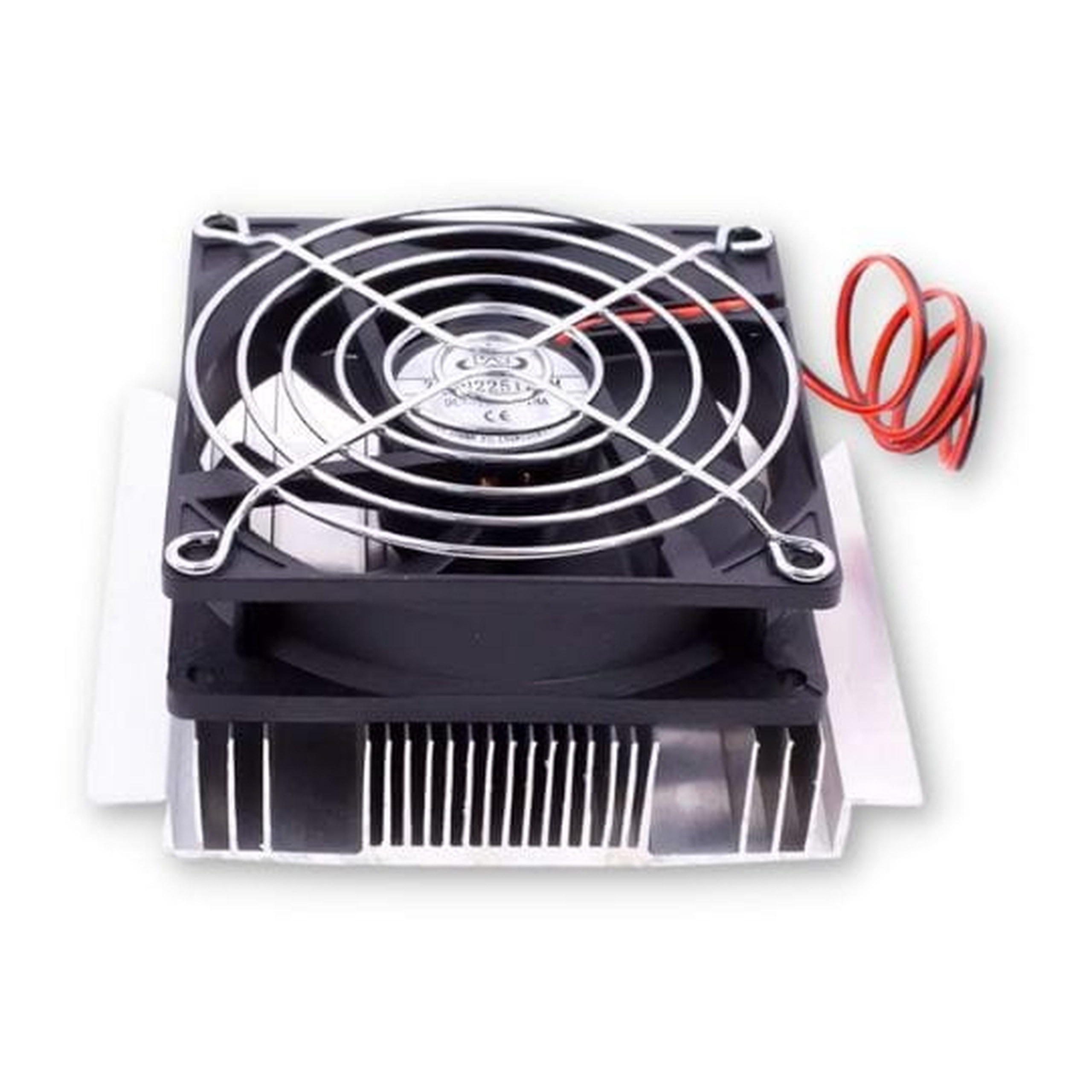

A kit consisting of a 92 x 92 mm heatsink and a fan, designed for effective heat dissipation from a 40 mm Peltier cell. The set includes a special foam pad with adhesive tape and a hole for the cell, which allows stable placement. After attaching the cell to the smaller heatsink, apply thermal paste, then join the assembly to the larger heatsink with screws for optimal cooling.

Key technical specifications

• Supply voltage: 12V
• Current draw: 0.18A
• Larger heatsink dimensions: 119 x 100 x 24 mm
• Smaller heatsink dimensions: 60 x 46 x 26 mm
• Fan dimensions: 92 x 92 mm

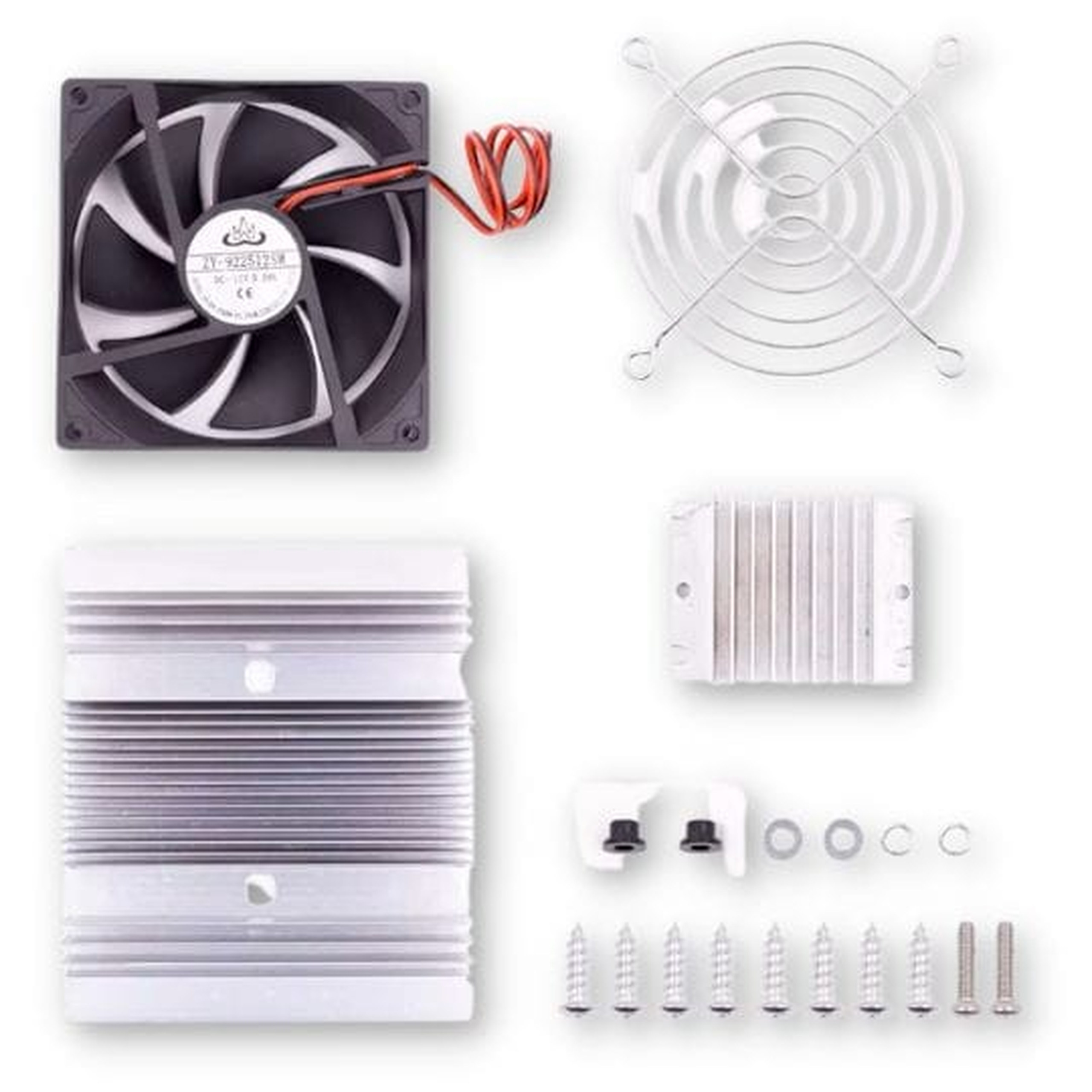

Kit contents

The kit includes everything needed to install and run the cooling:

• Two heatsinks (larger and smaller)
• High-performance fan with grille
• Polyurethane pad around the Peltier cell - 40 x 40 mm
• Full set of mounting screws
• Thermal paste

Example applications

• Portable camping fridges
• Cooling overheating electronic components
• Cooling high-power LEDs
• Aquarium and terrarium thermostats
• Chambers for storing drinks and food

Benefits

• High performance heat dissipation thanks to two heatsinks
• Complete kit ready for immediate installation
• Safe operation thanks to the included fan grille
• Versatility for many cooling projects
• Easy installation using the included paste and pad
