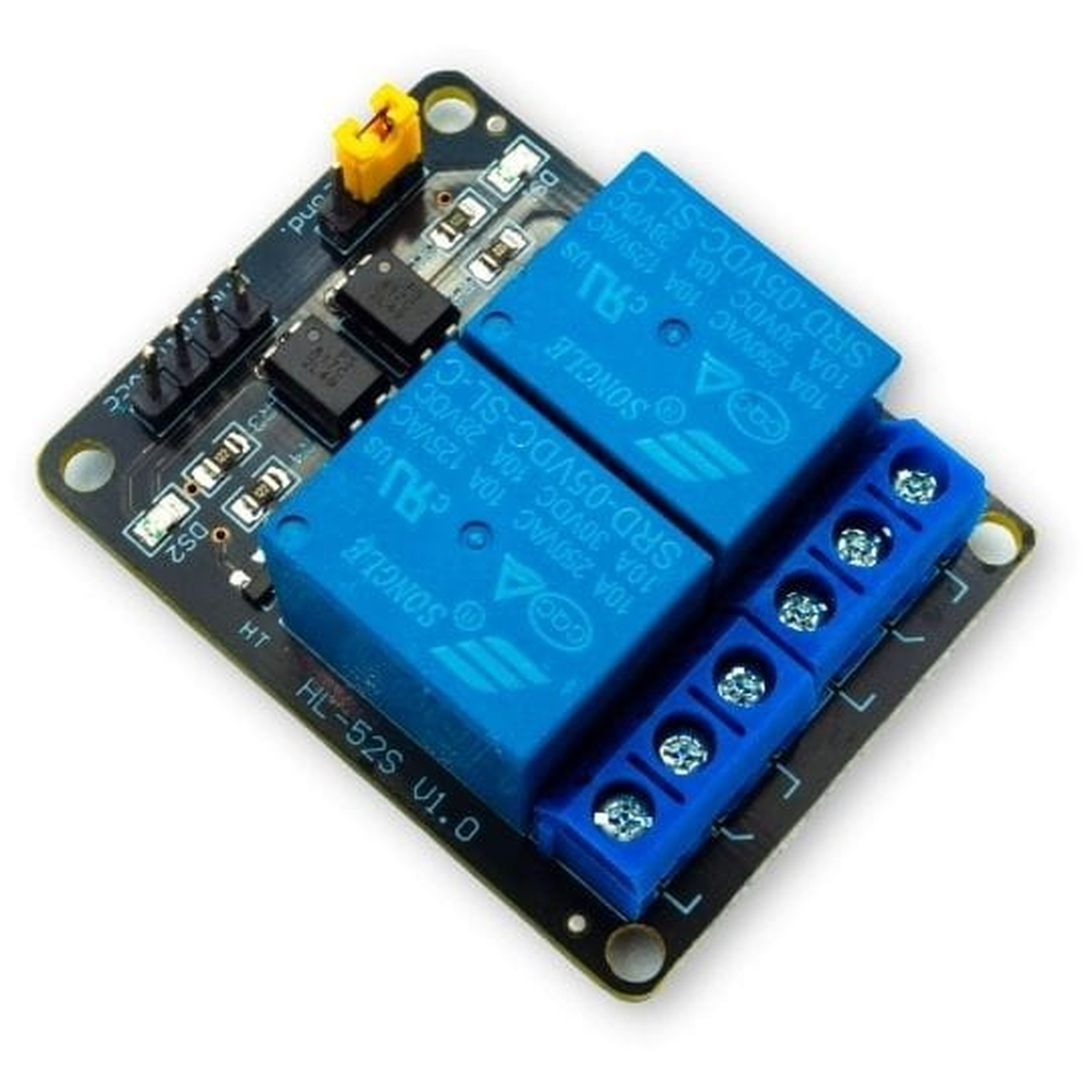

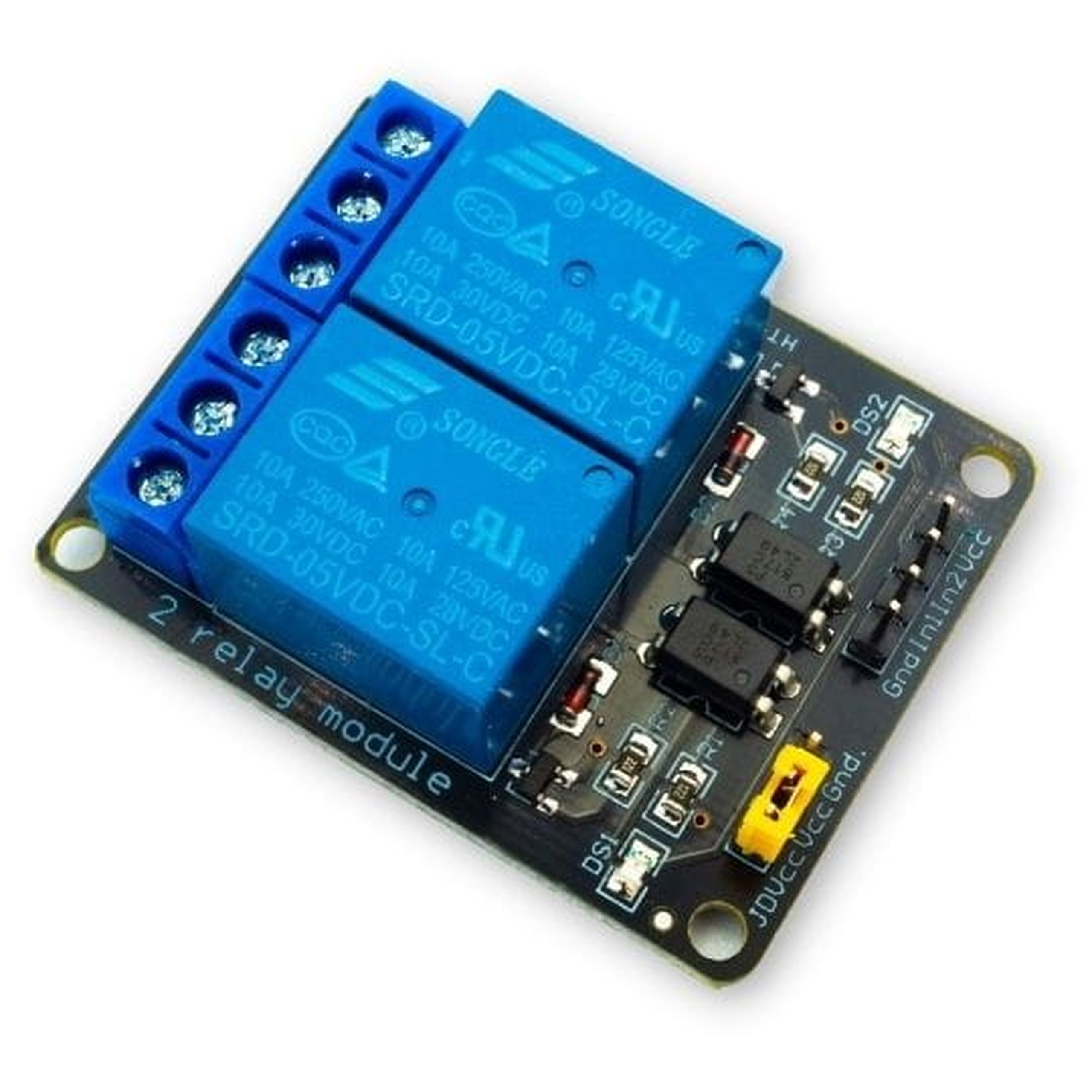

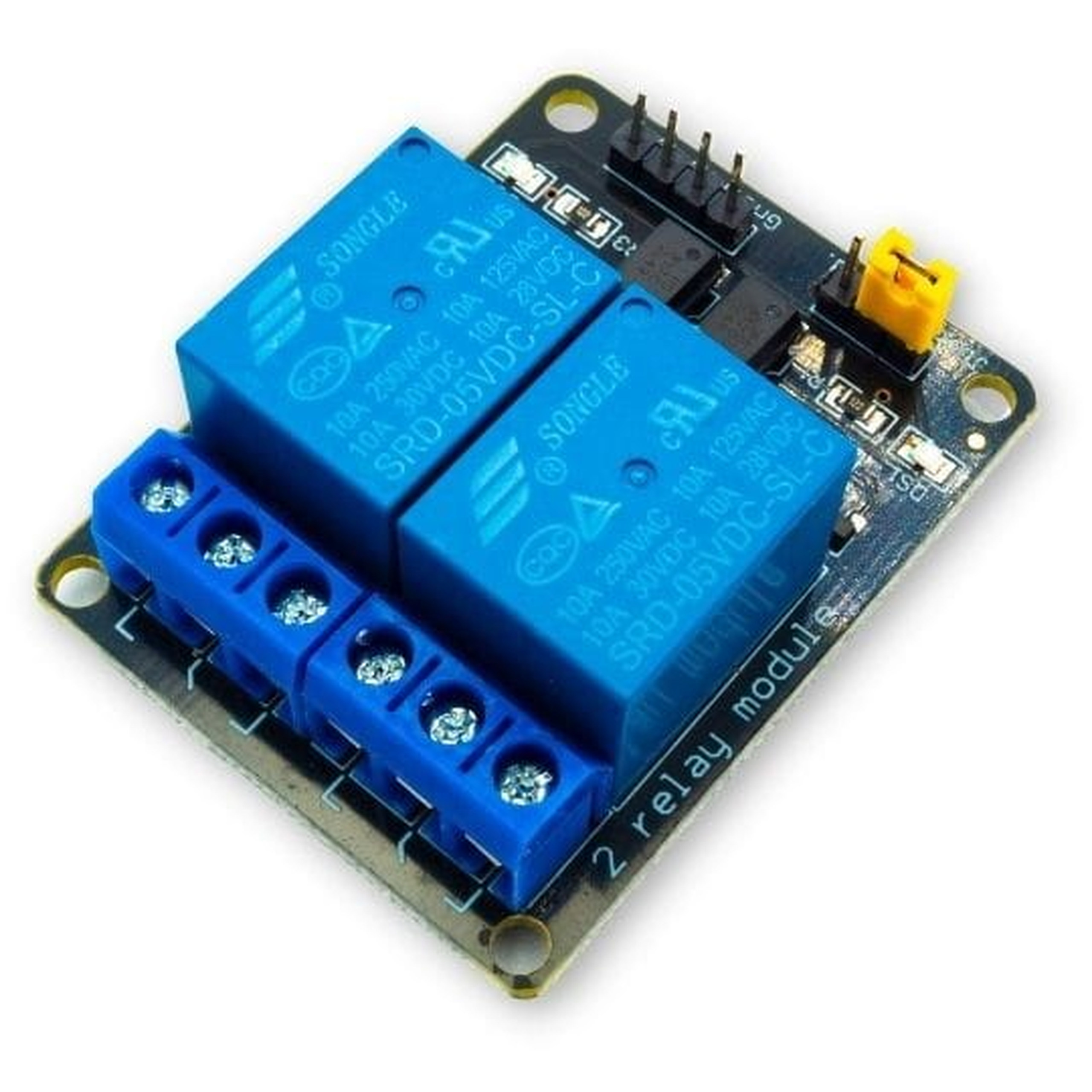

2-channel 5V 10A relay module, low-level triggered 0V, for Arduino

2-channel 5V 10A relay module for Arduino, Raspberry Pi, ESP8266, ESP32

The 2-channel 5V 10A relay module is a reliable solution for controlling higher-load circuits in microcontroller-based projects. The device is fully compatible with platforms such as Arduino, Raspberry Pi, Banana Pi, ESP8266, and ESP32. The module is powered by 5V and allows safe switching of loads with a maximum current of 10A.

Thanks to direct control from processor pins, designing and assembling electronic circuits becomes much simpler. The operating state of each relay is indicated in real time by a built-in LED. The relays are turned on by a low-level signal, which is a proven and trouble-free standard in digital electronics.

Key technical specifications

• Number of channels: 2
• Supply voltage: 5V
• Maximum load: 10A
• Control: directly from processor pins
• State indication: LED indicating relay state
• Activation: relays turn on with a low-level signal

Example applications

• Building home automation and smart building systems
• Safe control of electric motors
• Managing lighting circuits from a microcontroller
• Building custom controllers for household appliances
• Prototype projects requiring switching of high currents

Benefits

• Ease of use thanks to a ready-to-connect design
• Broad compatibility with popular microcontrollers on the market
• Convenient diagnostics thanks to LED indicators
• High reliability when driving demanding loads
• Simplified assembly without soldering additional control components
