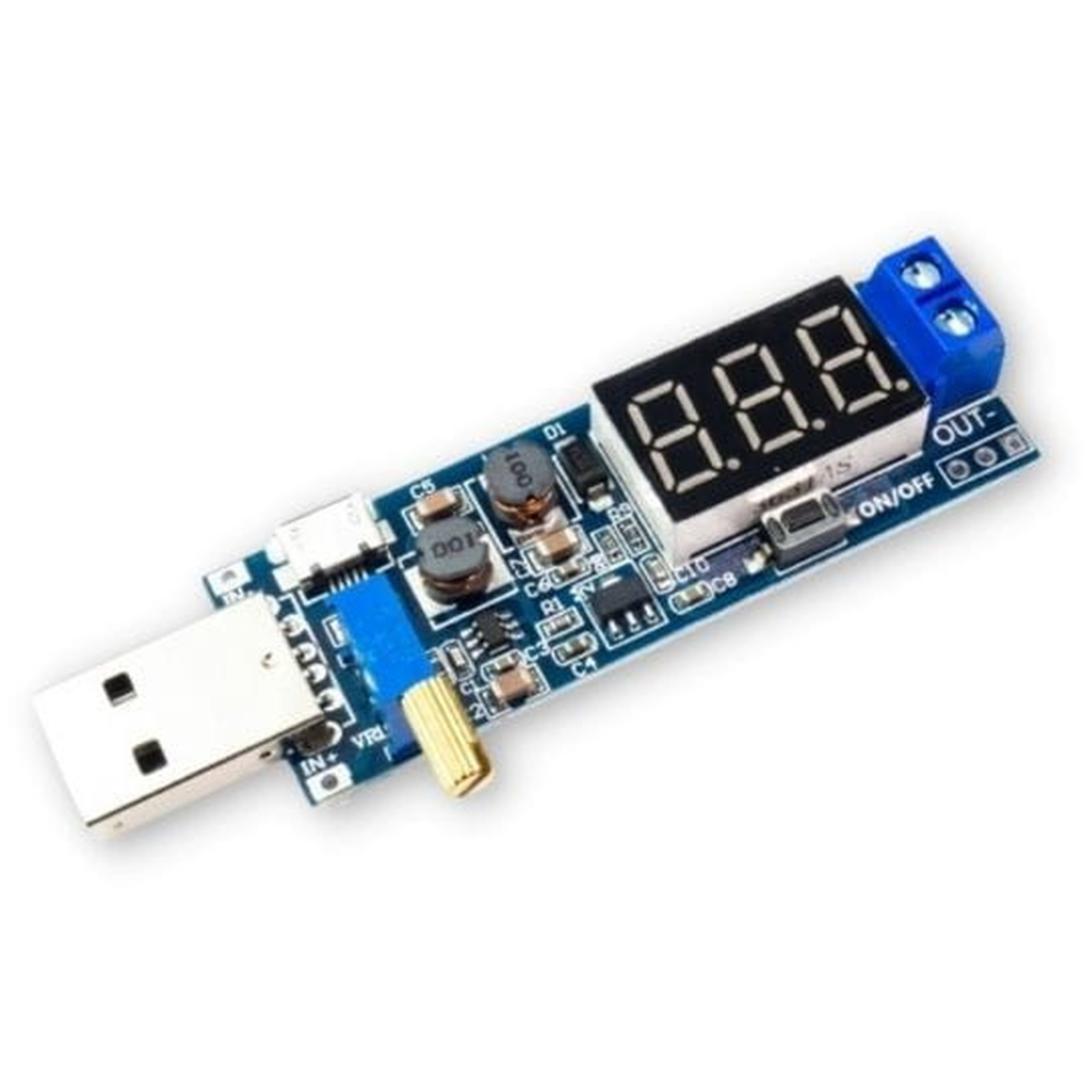

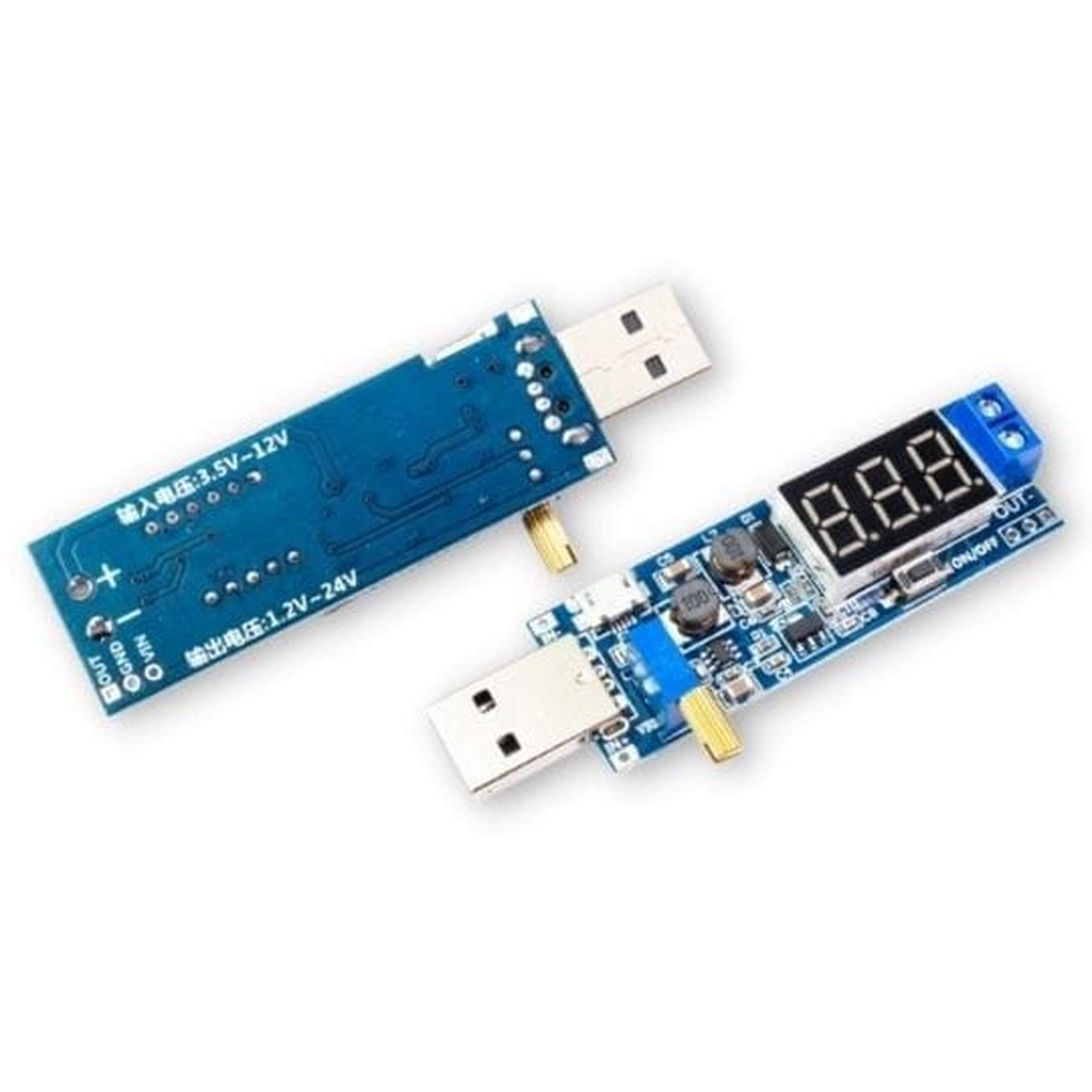

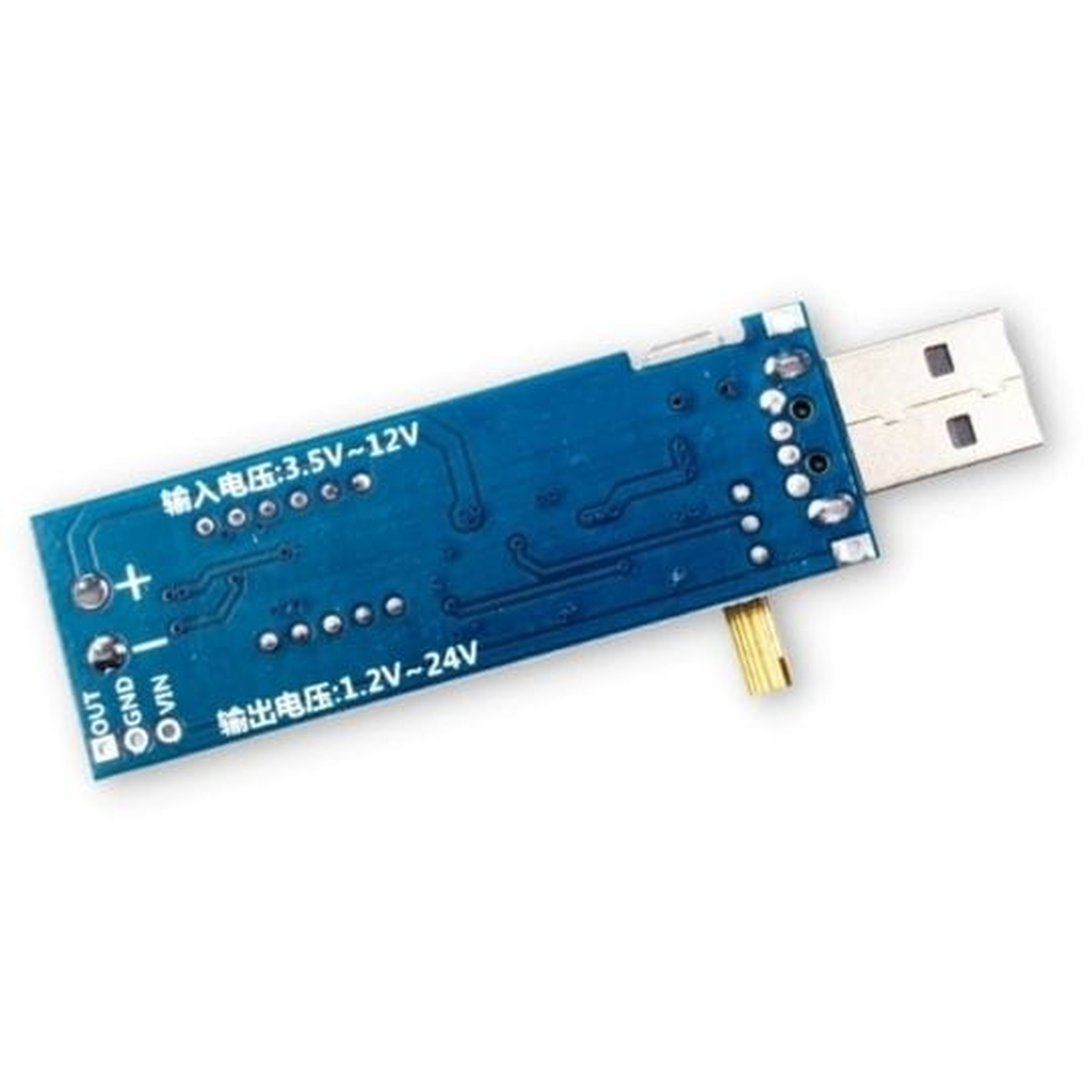

2-in-1 USB microUSB DC-DC Step-Up and Step-Down Voltage Converter 1.2-24 V

2-in-1 USB microUSB DC-DC Step-Up / Step-Down Voltage Converter

2-in-1 Step-Up/Step-Down converter enables efficient power management for a wide range of electronic devices. The module is compatible with and intended for ESP8266, ESP32, Arduino, and Raspberry Pi.

The device is highly versatile thanks to power supply via multiple ports: USB, microUSB, and dedicated IN+/IN- terminals. A key feature is adjustable voltage, which you can set precisely using the built-in potentiometer.

The converter has a clear display that shows the currently set output voltage. Thanks to its versatility, it is an excellent solution for hobbyists and professionals alike. It delivers high efficiency across a broad range of electronic applications.

Key technical specifications

• Input voltage: 3.5 - 12 V
• Output voltage: 1.2 - 24 V
• Output power: 2 W
• Power ports: USB, microUSB, IN+/IN- terminals
• Voltage regulation: smooth, via potentiometer
• Display: integrated, shows output voltage

Example applications

• Powering logic circuits and microcontrollers
• Prototyping and testing circuits on breadboards
• Adjusting voltage from power banks to meet specific module requirements
• Powering sensors and small measurement circuits
• Repair and diagnostic work on electronic equipment

Benefits

• Universal connectivity thanks to three popular input interfaces
• Live parameter monitoring thanks to the built-in, easy-to-read display
• Wide adjustment range for use with many different components
• Compact design for use in tight spaces
• Time savings when building circuits by integrating multiple functions in one module
