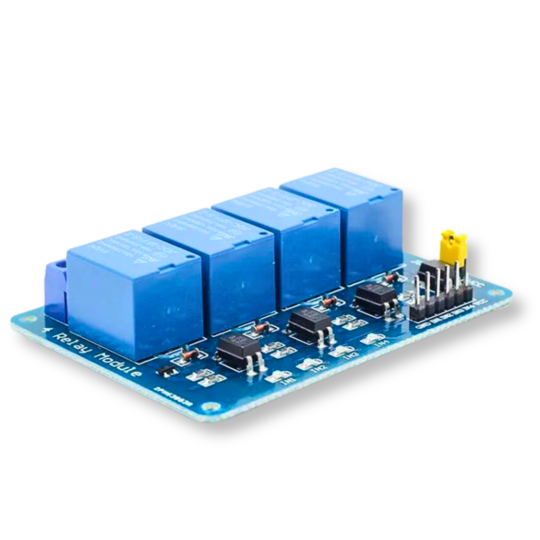

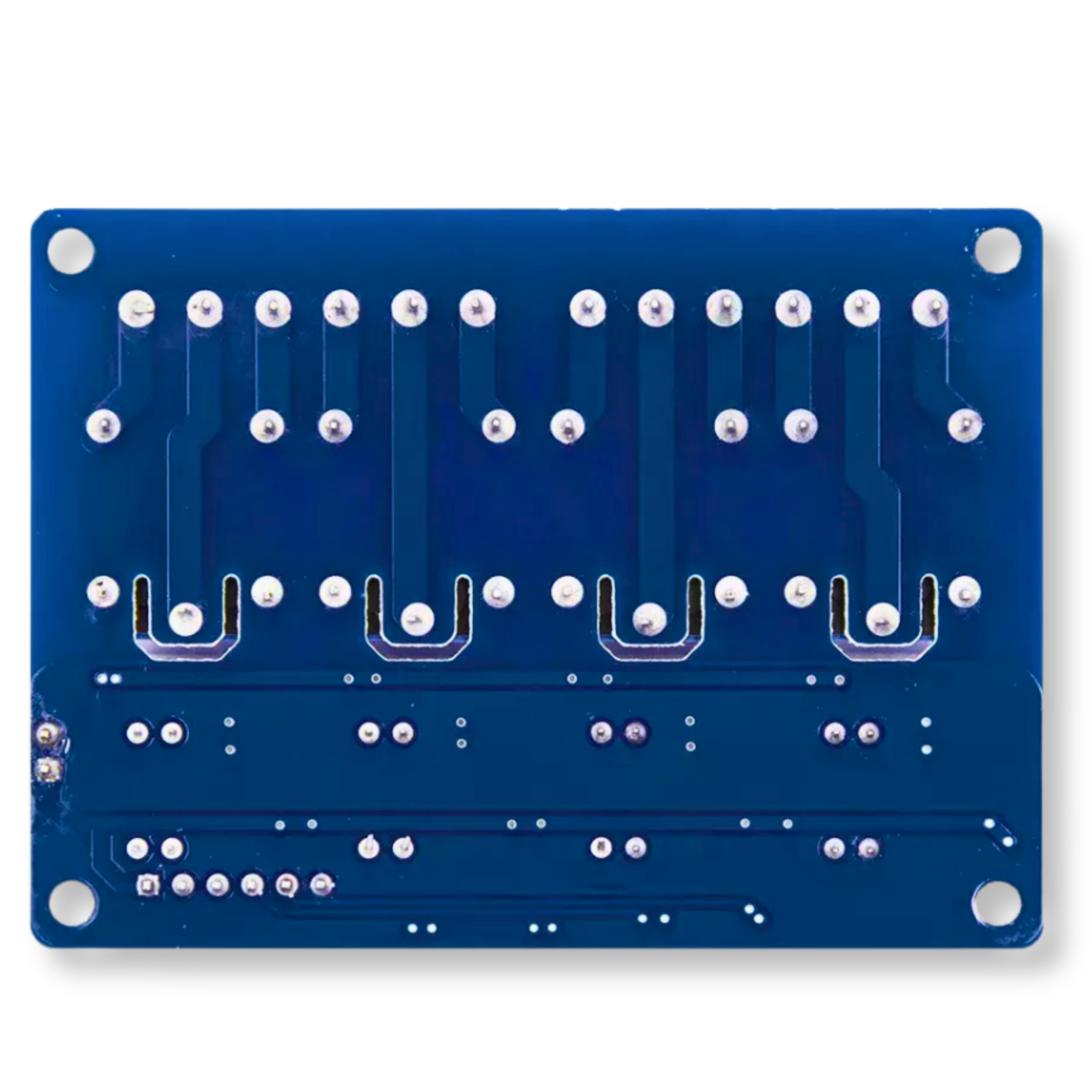

4-channel module 12V 10A relay controlled by 0V low state for Arduino
Availability:
duża ilość
Dispatched within:
1 day
Rating:
0
0
Vendor:
OEM
Description
The 4-channel 12V 10A relay module is the ideal solution for controlling high-power devices with a microcontroller such as an Arduino. Using opto-isolation, the module protects the control circuit from interference, ensuring stable and reliable operation. Each of the four relays is triggered by a low state and can operate devices with a maximum voltage of up to 250V and a current of up to 10A. The module has built-in LEDs to indicate the status of the relays for easy diagnostics during operation.
Specifications:
- Coil supply voltage: 12V (+/- 3V)
- Maximum contact voltage: 250 VAC
- Maximum contact current: 10A
- Number of channels: 4
- Protection: opto-isolation
- Signalling: LEDs for each channel
- Activation: low state on IN input
- Board dimensions: 72 x 54 x 19 mm
- Compatibility: Arduino, other microcontrollers
