4S Li-Ion/Li-Po Battery Charge Level Indicator with LED Display
0
Description

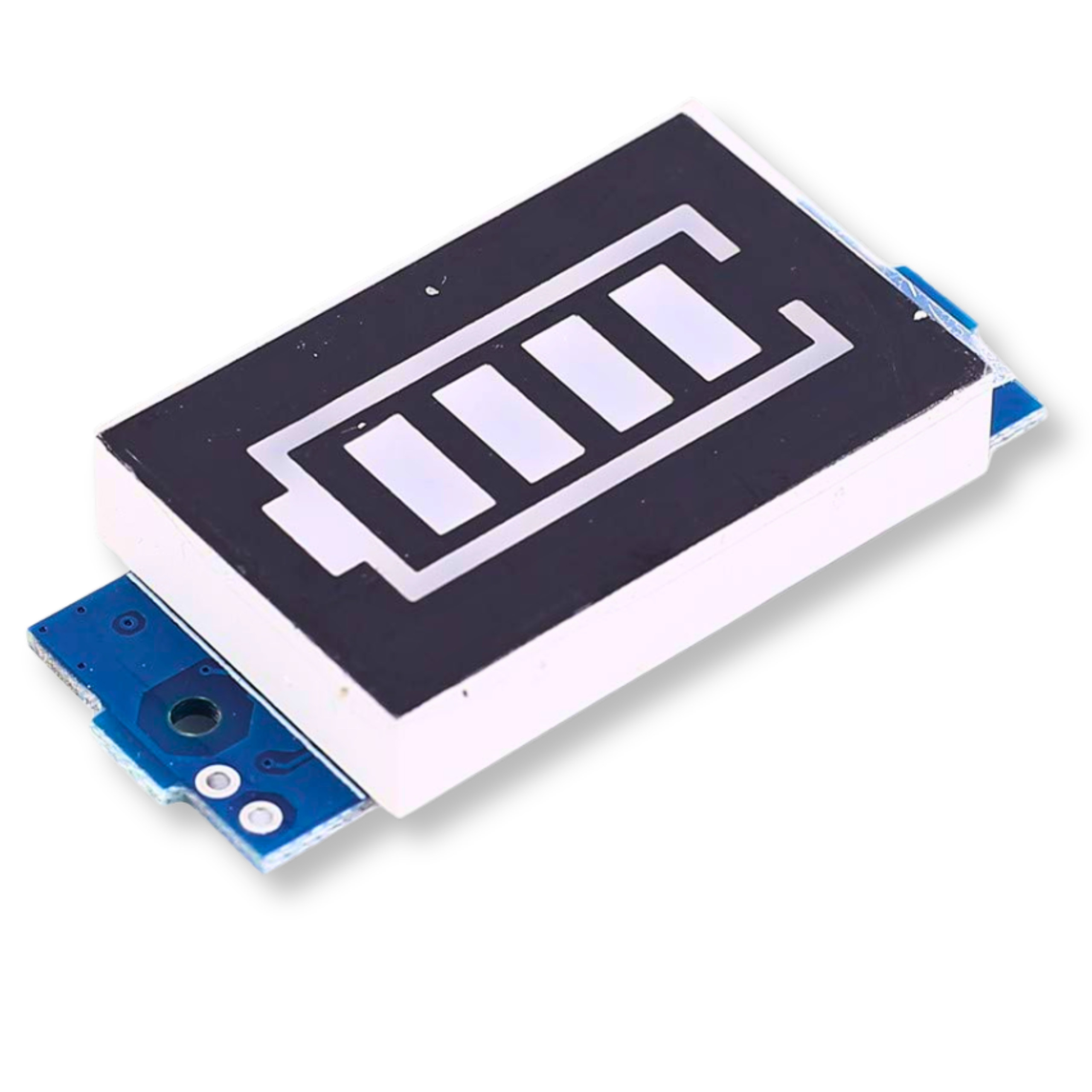

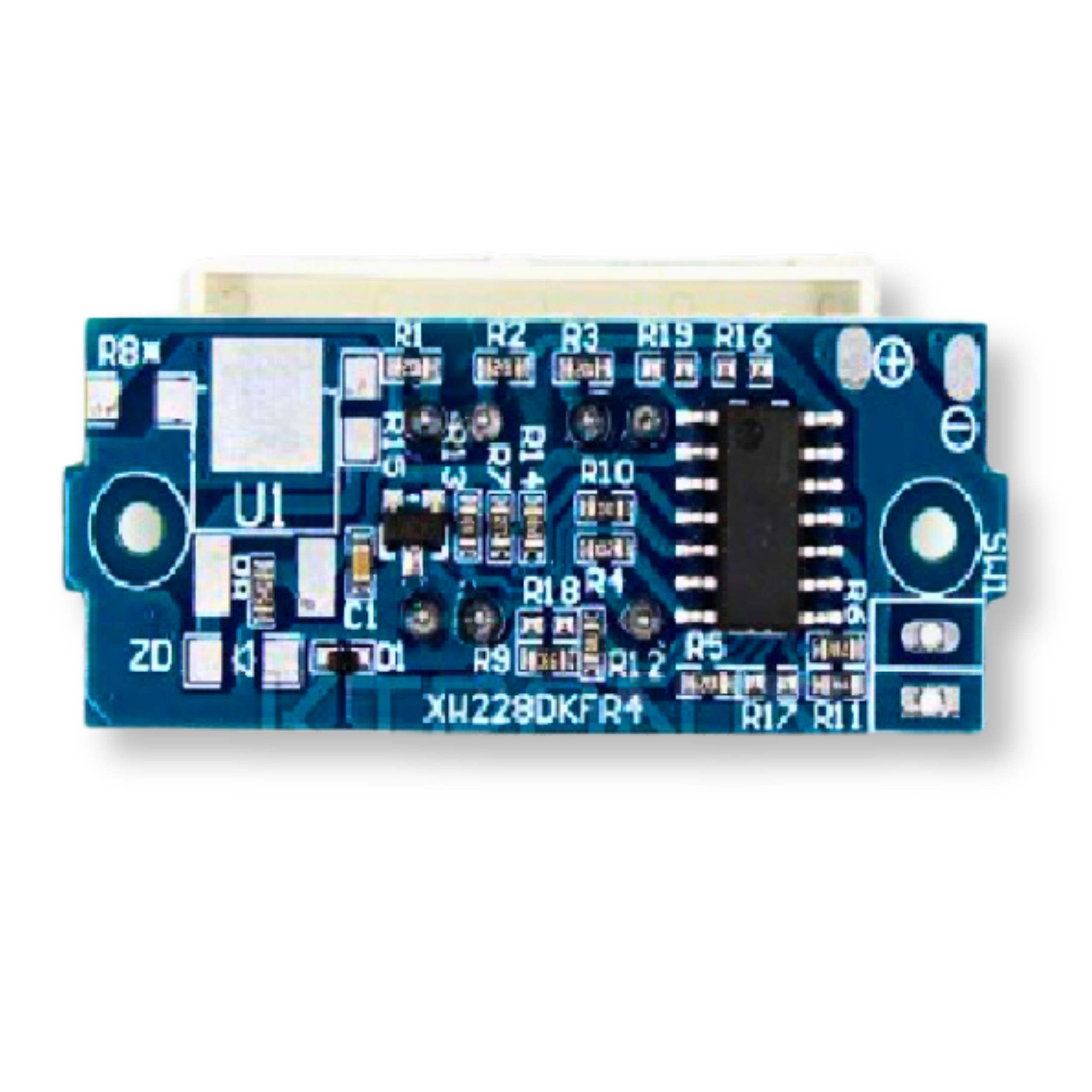

4S Li-Ion/Li-Po Battery Charge Level Indicator with LED Display
A compact battery charge level indicator module for accurate monitoring of 4S Li-Ion and Li-Po packs. The device is ideal for applications that require continuous voltage tracking from 13.2 V to 16.8 V. Equipped with a clear 4-bar LED display, it allows quick assessment of available energy.
Key technical specifications
- Measurement range: 13.2 - 16.8 V
- Power supply: directly from the measured source
- LED indicator: 4-bar, graphic
- Refresh rate: 500 ms / reading
- Operating temperature: from -10°C to 65°C
- Dimensions: 44 x 20 x 9.2 mm
- Bar backlight color: blue
- Battery outline backlight color: red

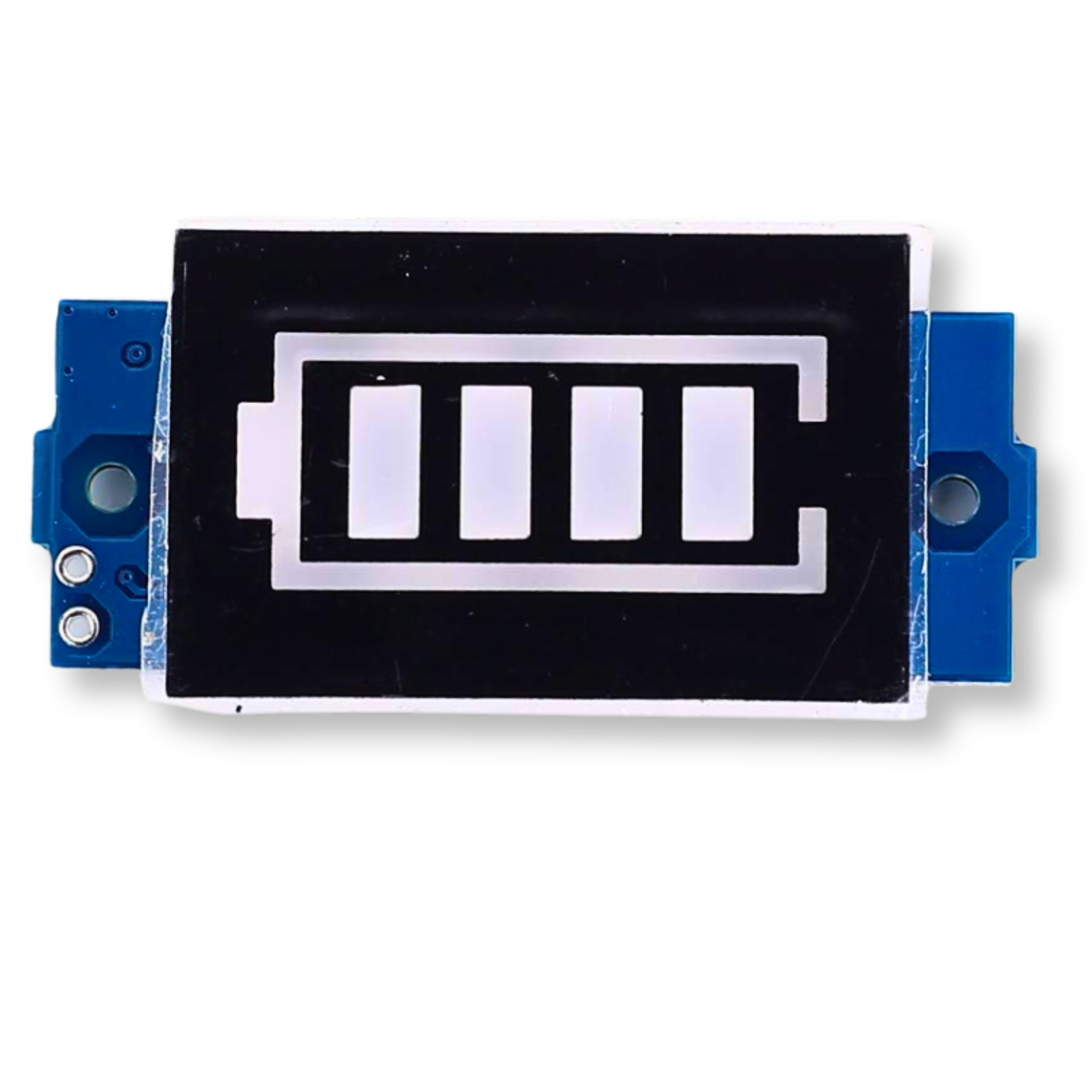

Charge levels on the display
The indicator automatically changes the number of lit bars depending on the currently measured pack voltage:
- Below 13.2 V: 0 bars
- 13.2 V - 14.0 V: 1 bar
- 14.0 V - 14.8 V: 2 bars
- 14.8 V - 15.6 V: 3 bars
- Above 15.6 V: 4 bars
Example applications
- Monitoring power status in RC models and drones
- Checking packs in portable audio systems
- Charge indicator in 4S battery-powered power tools
- Emergency power systems and mobile power stations
- DIY projects and robotics (for Arduino, ESP8266, ESP32, Raspberry Pi)
Benefits
- Instant readout of battery status thanks to contrasting colors
- Easy installation in any enclosure thanks to compact dimensions
- No need for a separate power supply - the module draws power directly from the measured source
- High reliability and measurement stability across a wide temperature range
- Attractive appearance that looks professional in finished projects
