New products
868MHz 5dBi LoRa Antenna with Magnetic Mount and SMA-M Plug for Meshtastic
Availability:
duża ilość
Dispatched within:
1 day
Rating:
0
0
Vendor:
Waveshare
Description

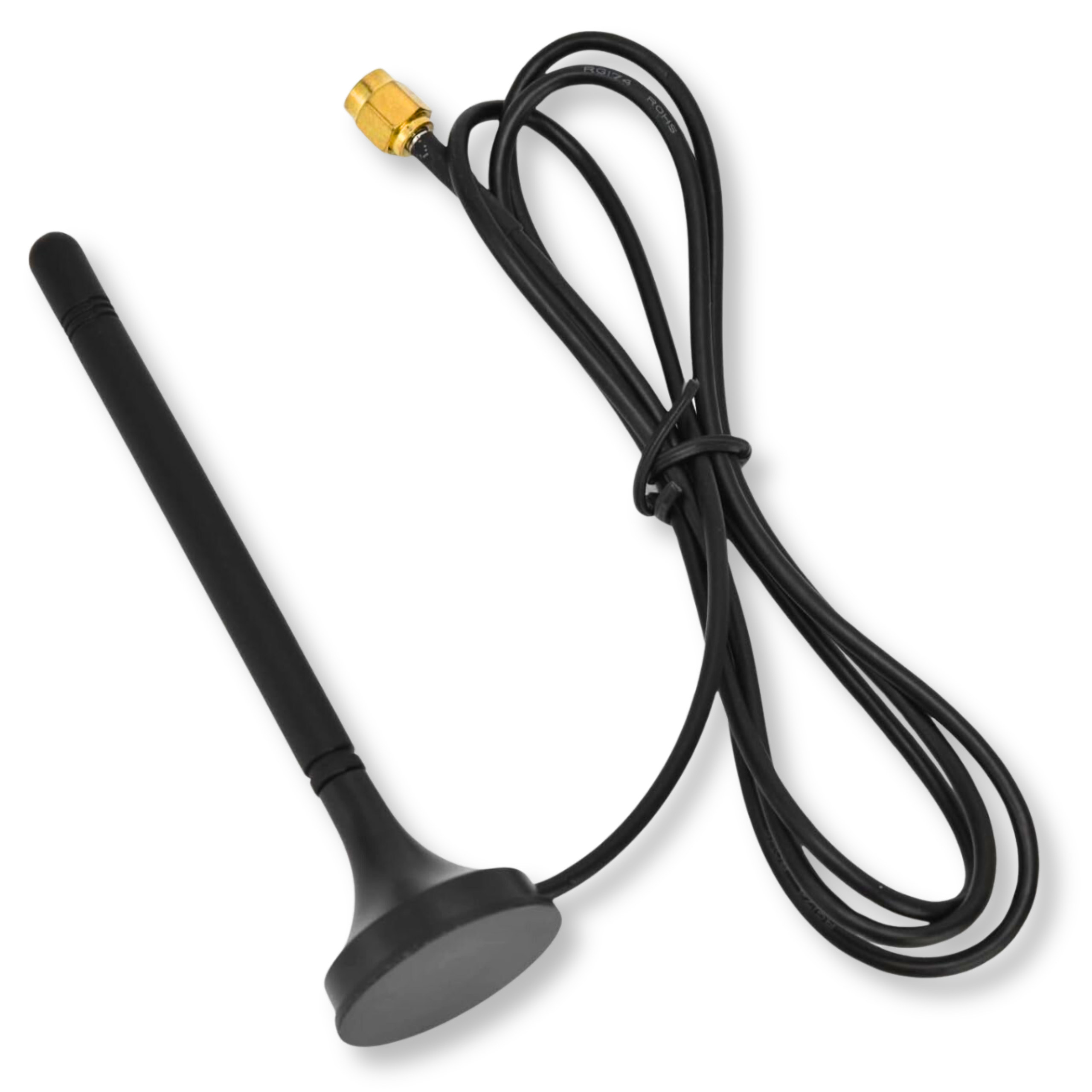

868MHz 5dBi LoRa Antenna with Magnetic Mount and SMA-M Plug for Meshtastic
This outdoor, waterproof LPWA antenna is designed for communication on LoRa networks operating in the 868 MHz frequency band. The device also supports 4G, 3G, 2G and LPWA standards. A male SMA connector and a 3-meter cable provide flexibility during installation. The product is compatible with popular platforms including ESP8266, ESP32, Arduino, and Raspberry Pi.
Key technical features

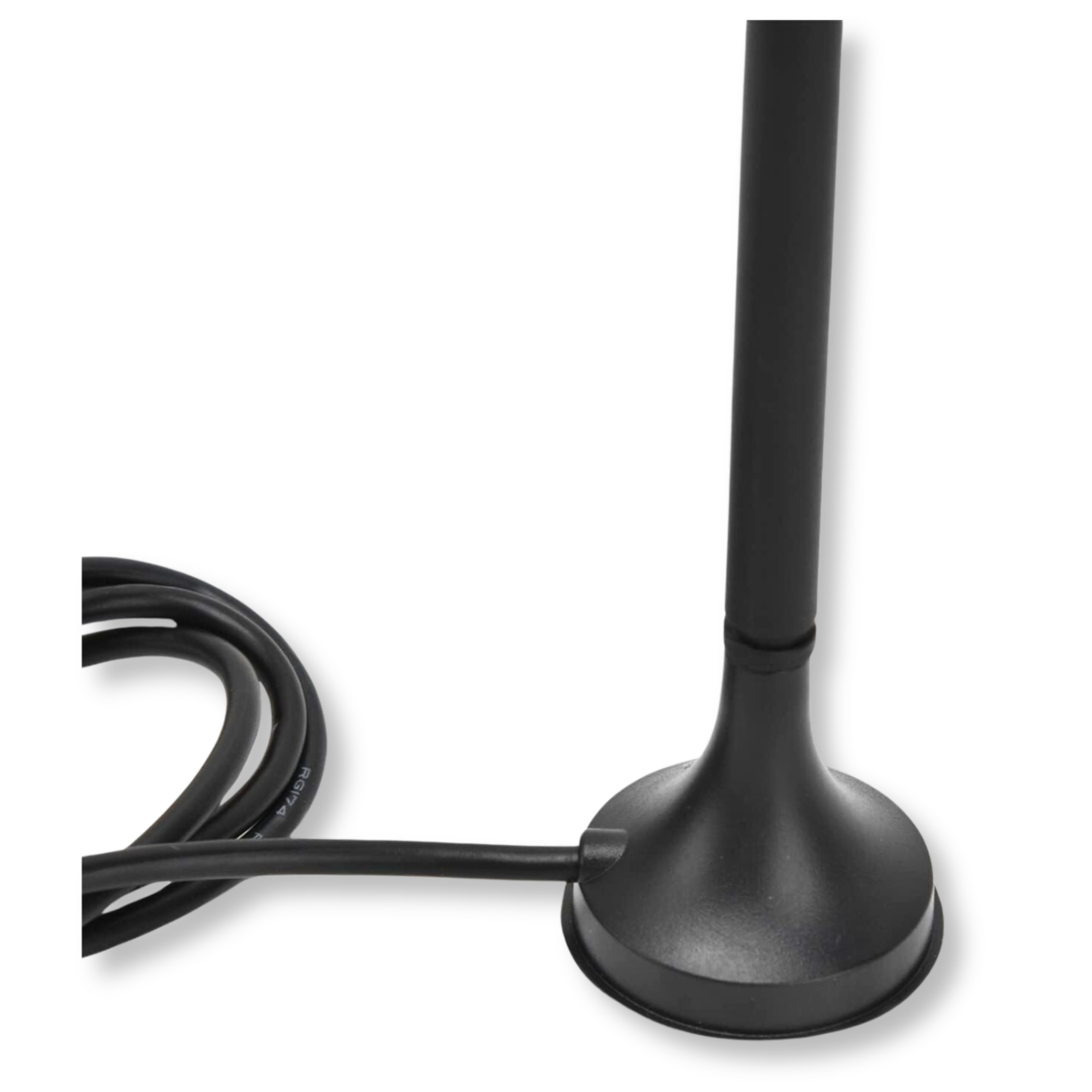

Thanks to the magnetic base, antenna mounting is quick and allows stable attachment to metal surfaces. The antenna offers high gain of 5 dBi, which translates to extended wireless communication range. Waterproofing to IP65 ensures reliable operation in demanding outdoor conditions.
Technical specifications
- Operating frequency: 690-2700 MHz
- Gain: 5 dBi

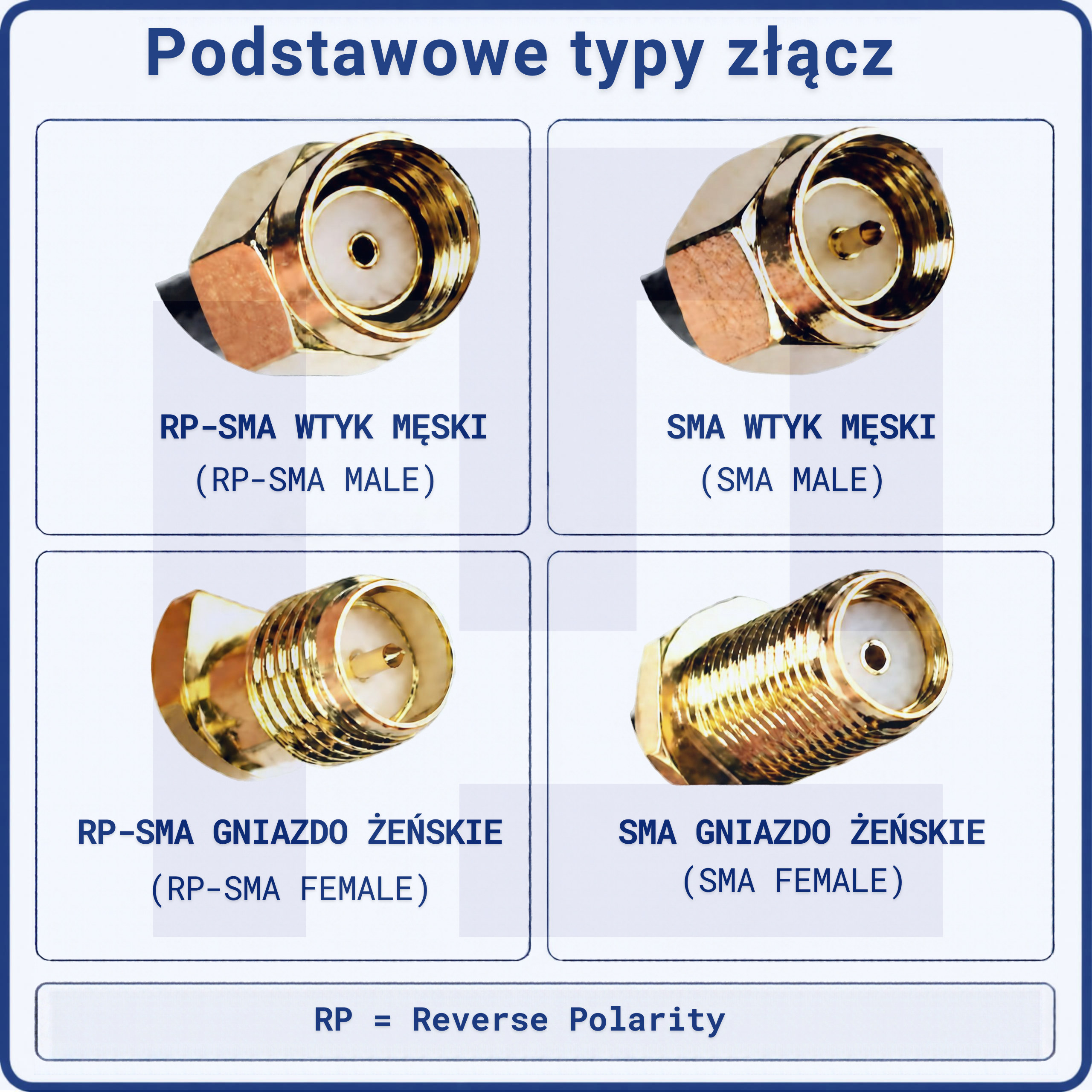

- Connector type: Male SMA plug
- Power: 10 W
- Polarization: Vertical
- Antenna type: Omnidirectional
- Mounting: Magnetic
- Impedance: 50 Ω
- Protection rating: IP65

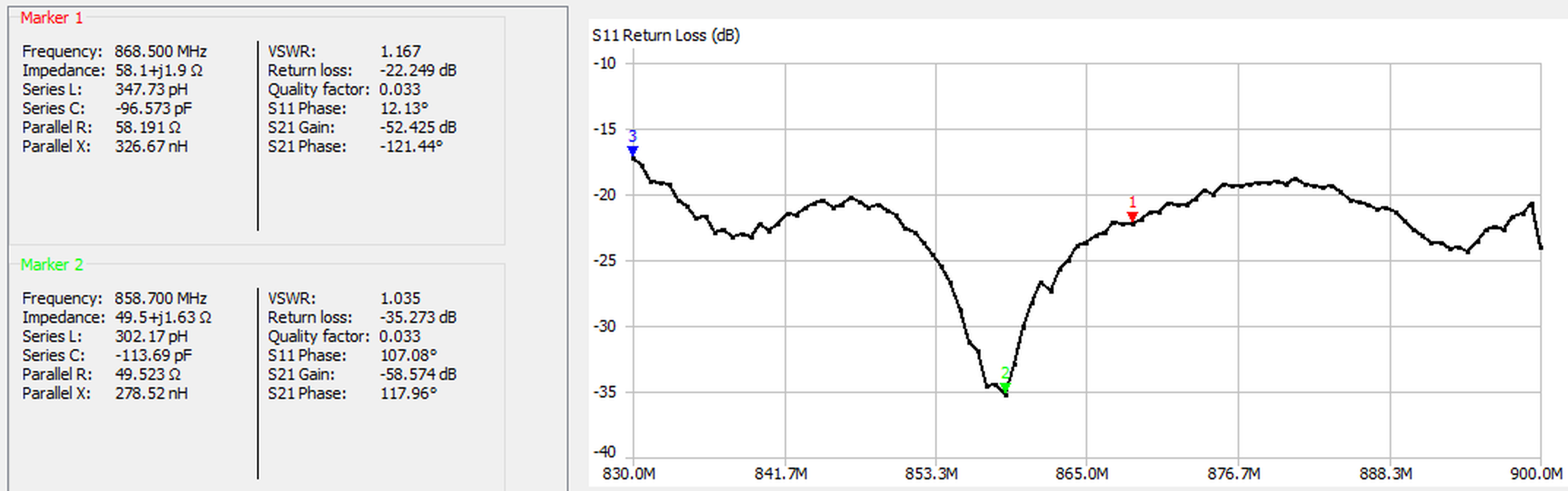

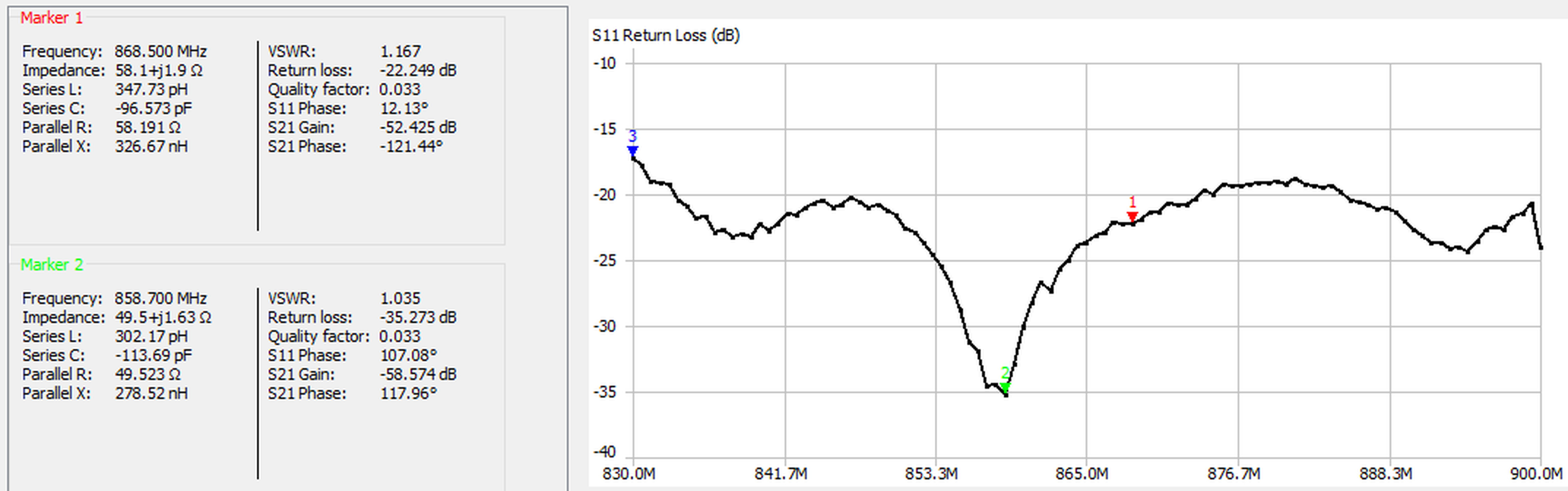

- SWR: <2.0
- Color: Black

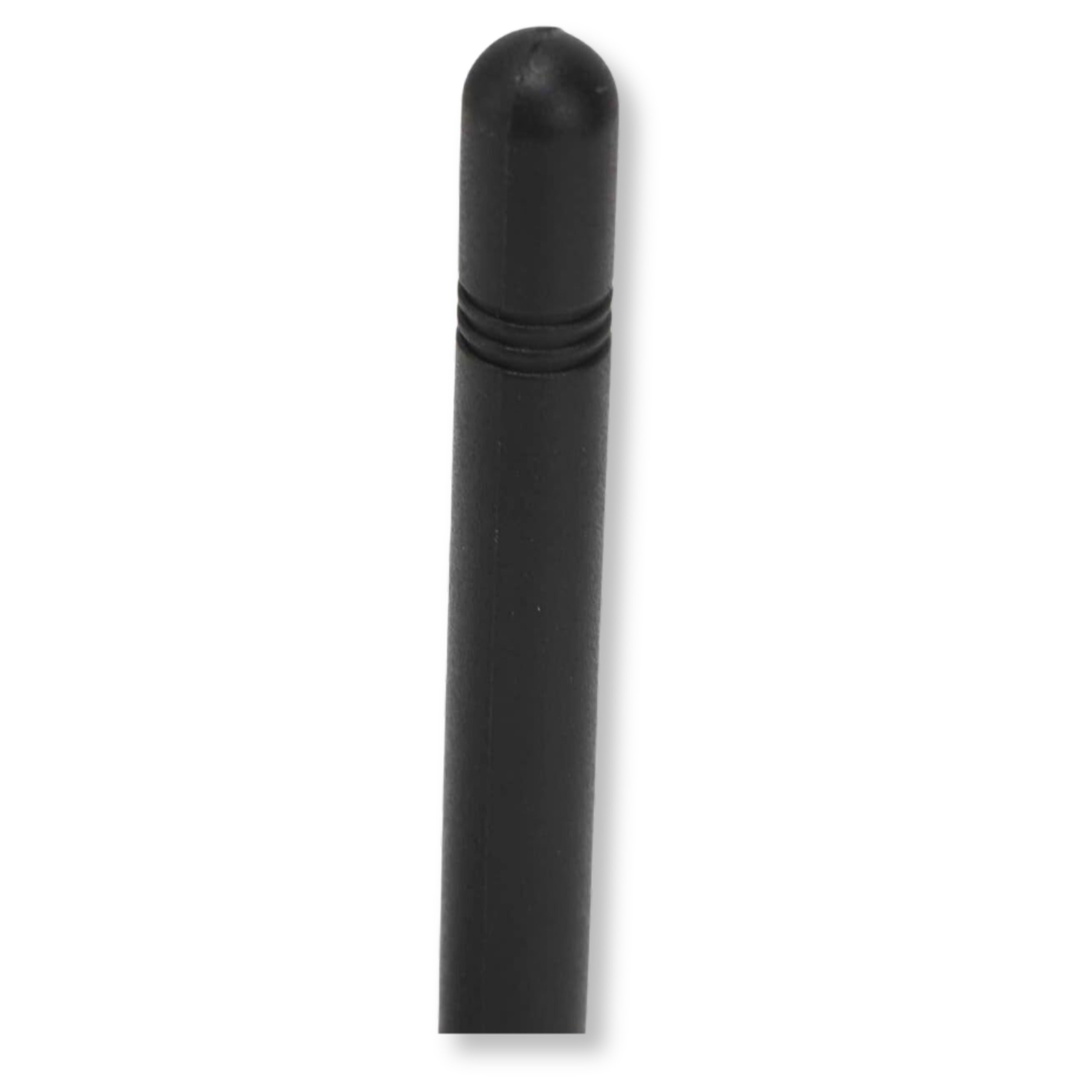

- Antenna length: 110 mm
- Cable length: 3 m
Example applications
- Communication nodes in Meshtastic projects
- IoT systems based on LoRa communication
- Remote weather stations and environmental sensors
- Network gateways requiring stable connection in the 868 MHz band
- Telemetry modules in industrial applications
Benefits
- Greater communication range thanks to 5 dBi gain

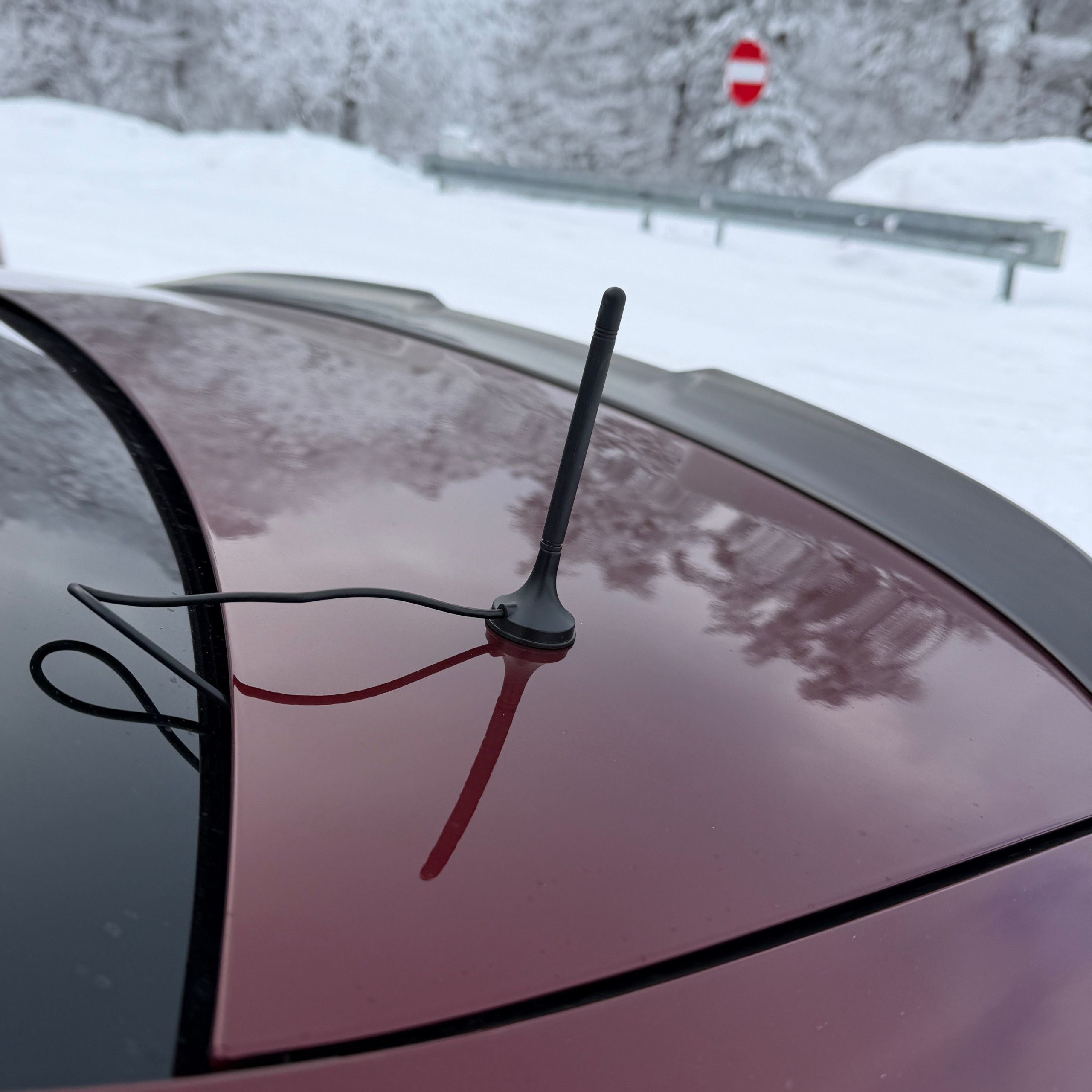

- Quick installation on metal parts using the magnetic base
- Flexible antenna placement thanks to the 3 m cable
- Weather resistance certified to IP65
- Versatility through support for multiple wireless communication standards
