Adapter for Arduino NANO with GPIO leads with DC power connector
Availability:
brak towaru
Rating:
0
0
Vendor:
OEM
Description

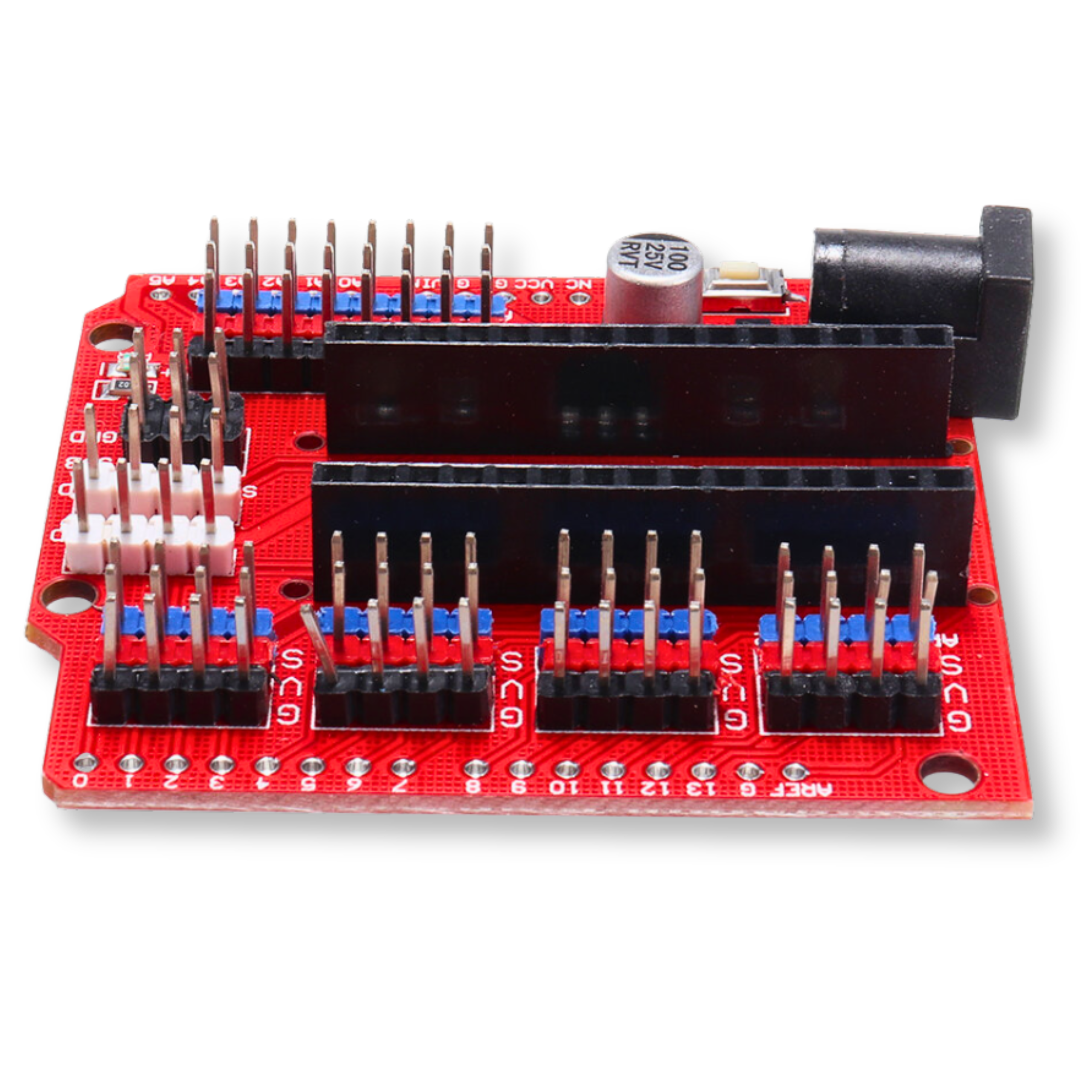

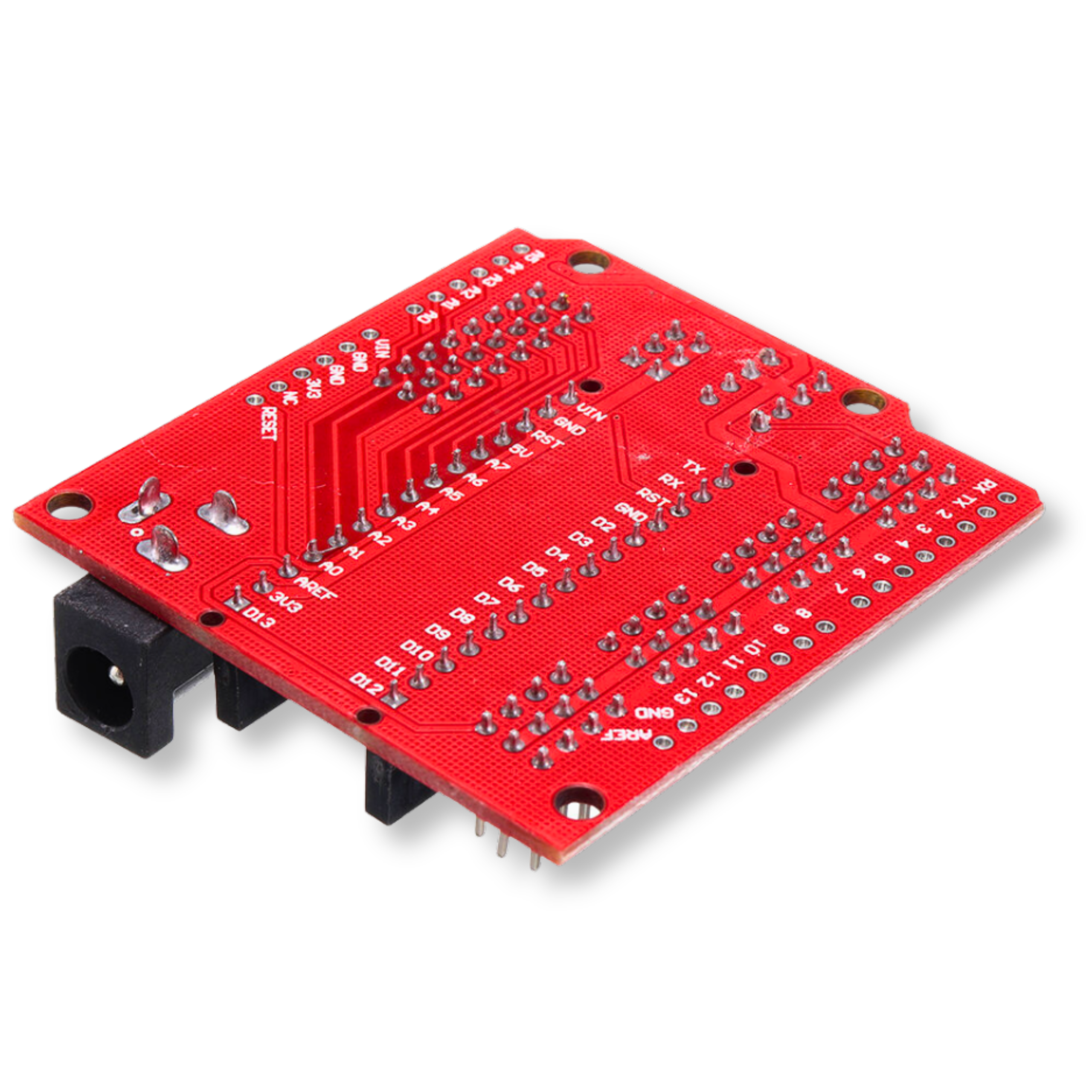

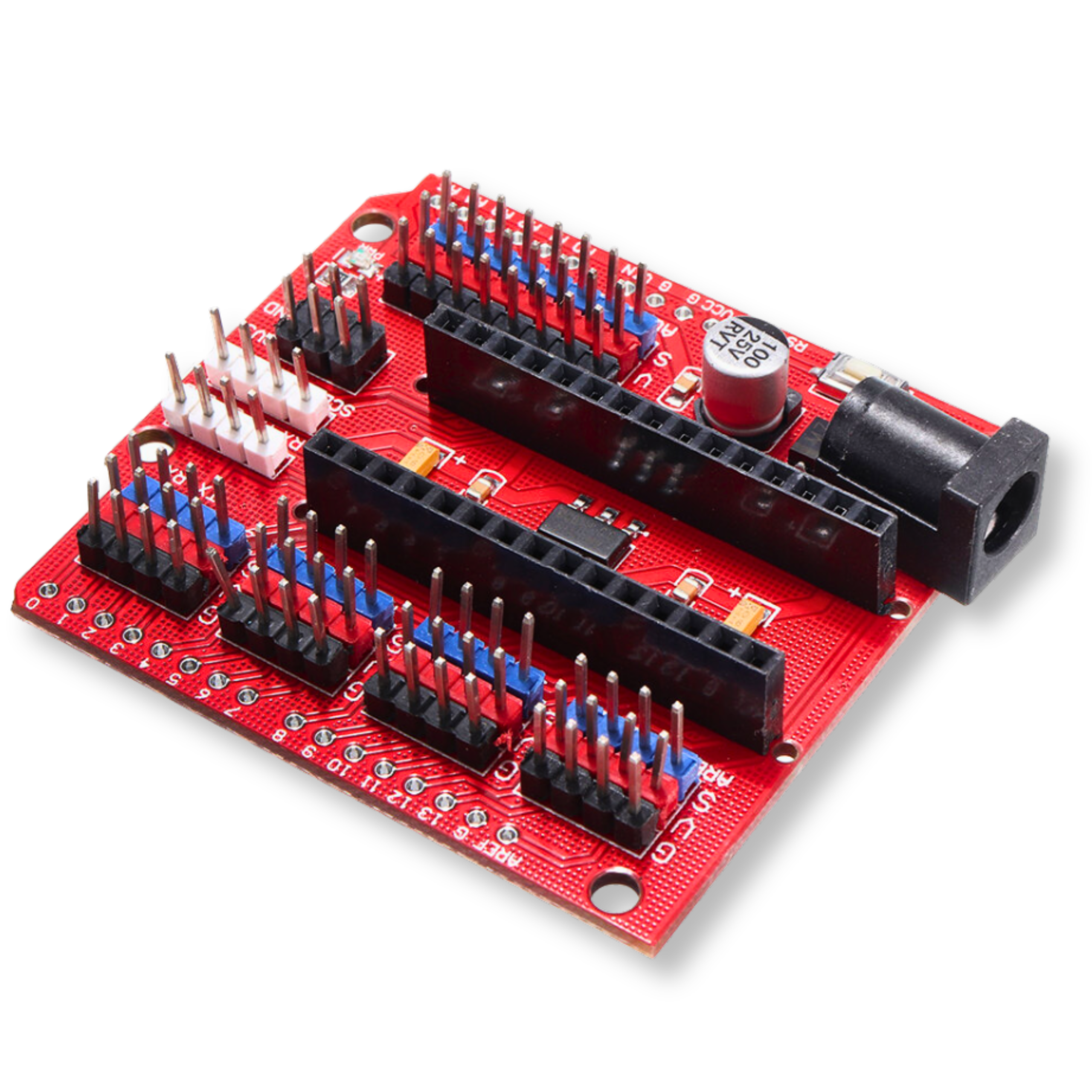

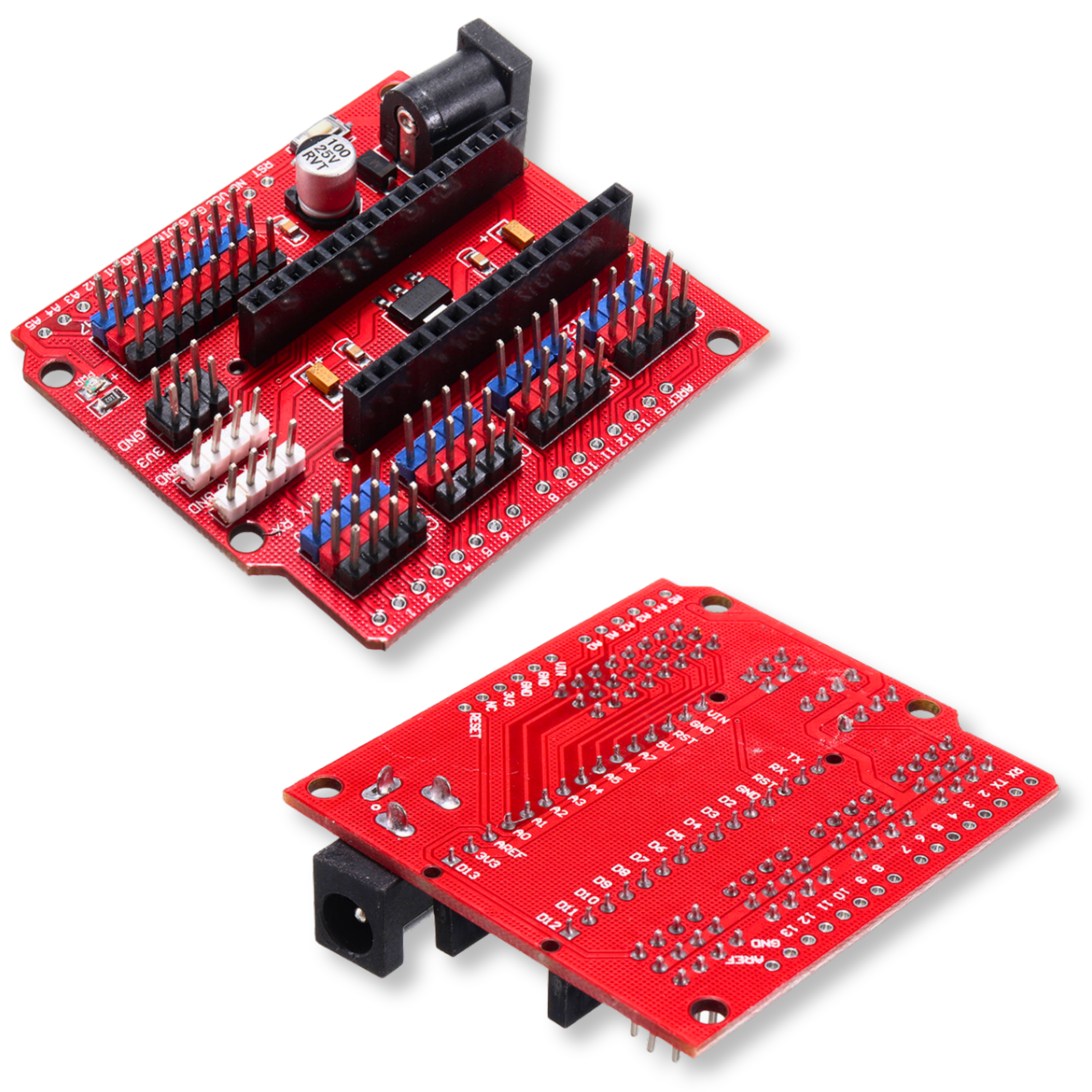

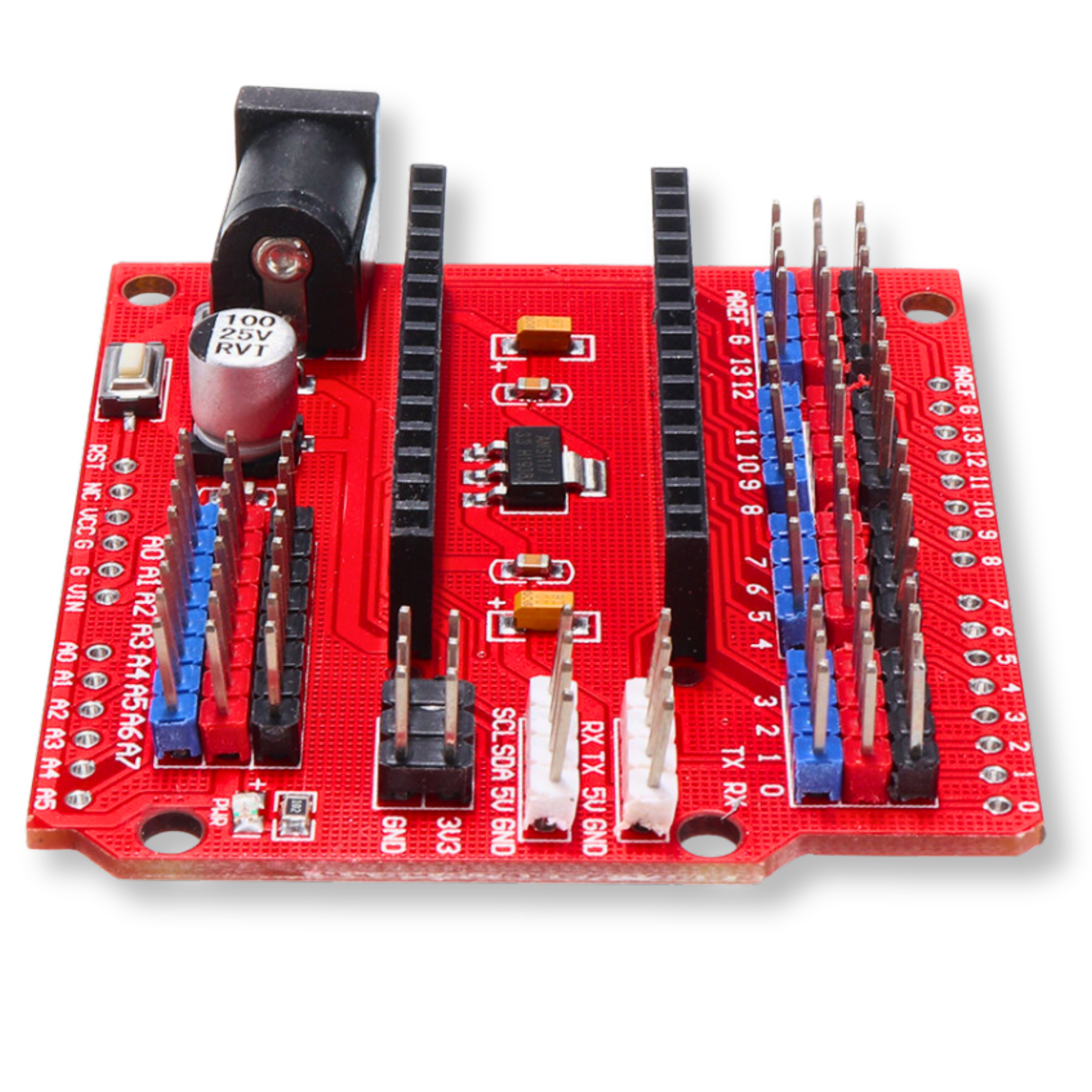

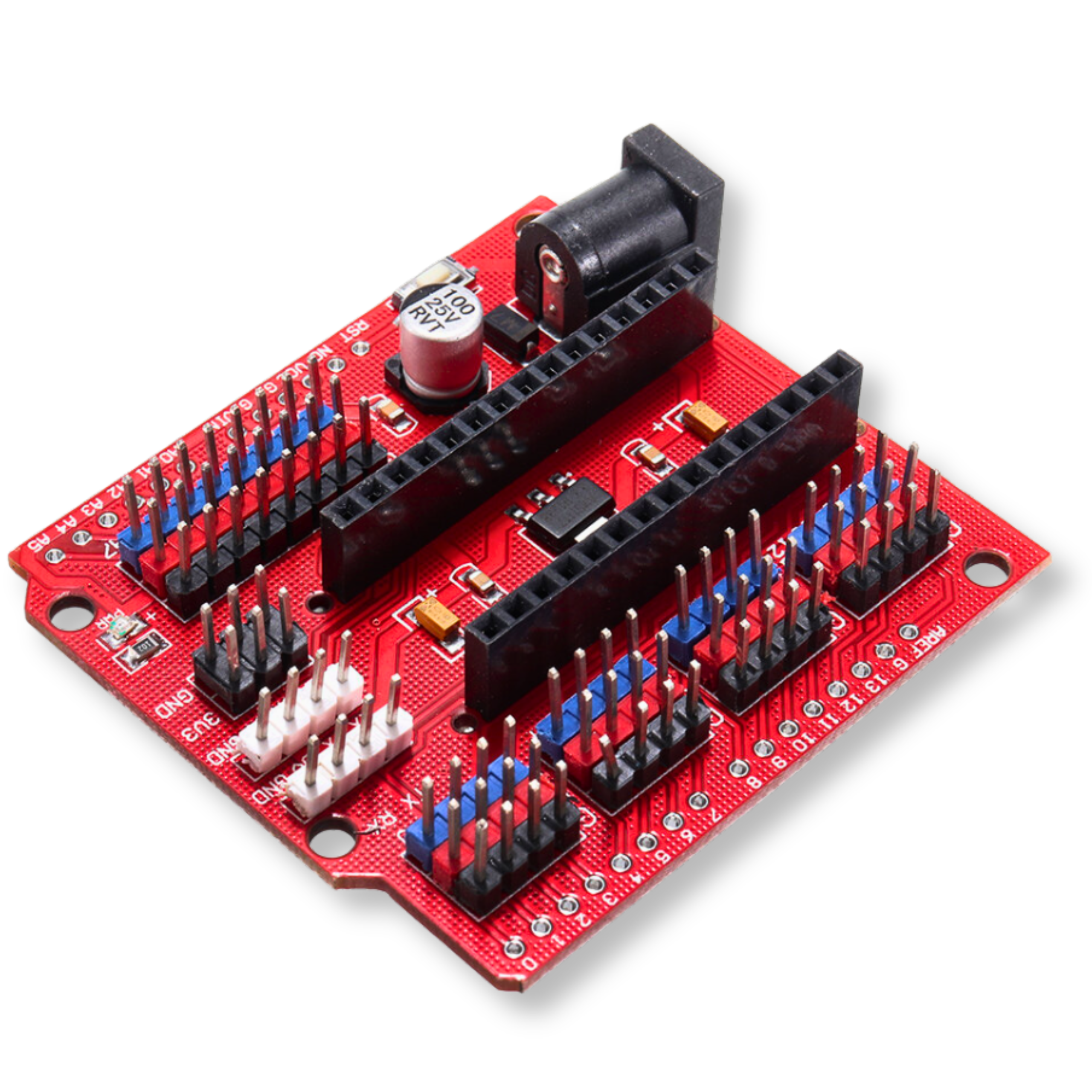

This module facilitates prototyping circuits using small boards Arduino Nano and after soldering additional pins on the outside of the board, we get a clone of the board Arduino UNO with the same leads and pins. The module has all Arduino board pins made and additionally a power socket 12V with power supply 5V and a RESET button. The Shield has a standard raster 2.54mm which makes it fit virtually all electronic devices such as ICs, passive components or plugs. The board provides access to all Arduino pins and its dimensions are 70x54mm.
Specification:
- 14 I/O pins (servo type with GND, power and signal),
- 8 analogue inputs,
- 6 PWM ports,
- AREF. output
