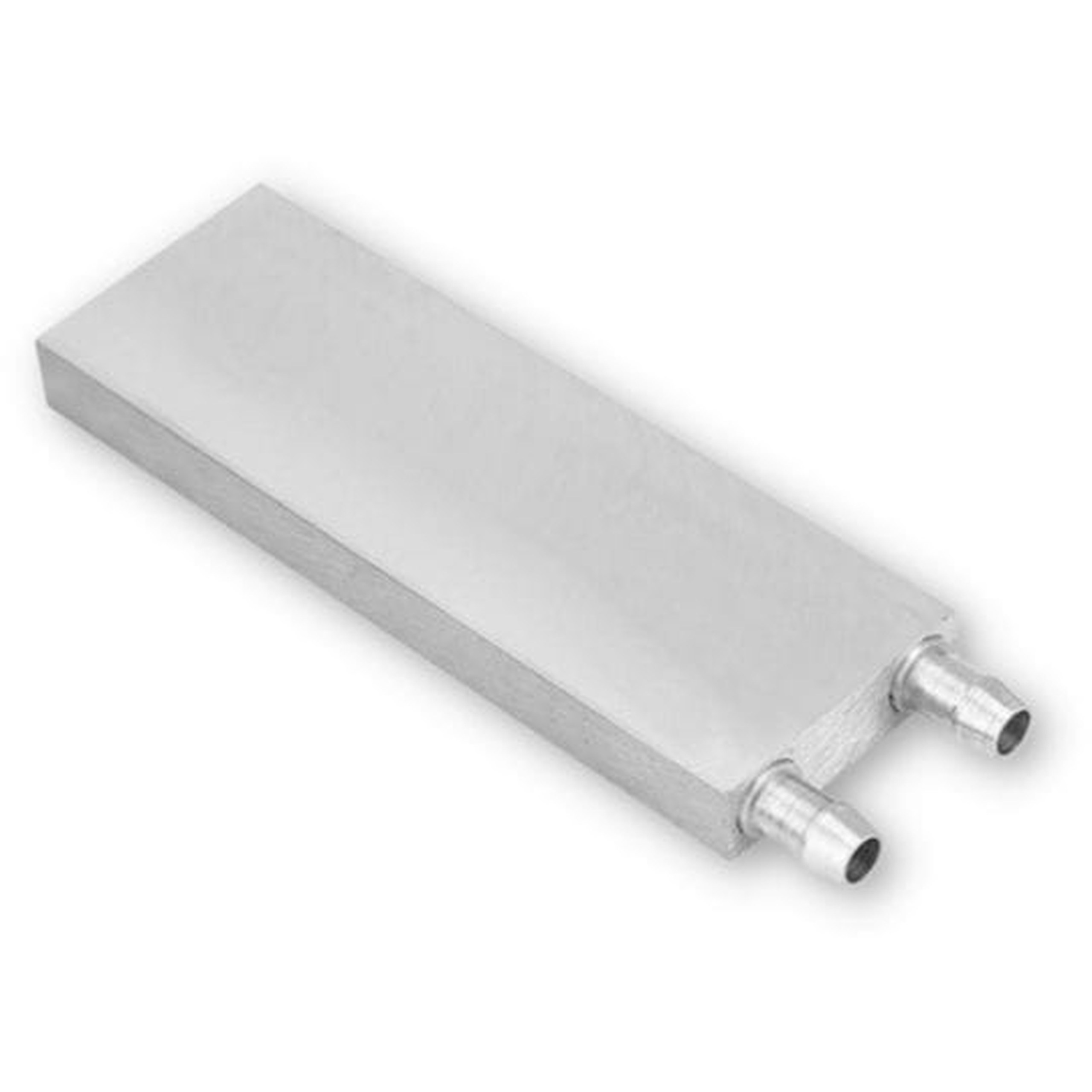

Aluminum Peltier Radiator 40x120 mm Water Block CPU Peltier Cooler

Aluminum Peltier Water Block 40x120 mm

This aluminum heat exchanger measuring 40 x 120 mm is designed to work with Peltier cells such as TEC1-12705 or TEC1-12706, with maximum dimensions of 40 x 40 mm. Compatibility with hoses with an inner diameter of 8 mm and aluminum construction ensure efficient heat exchange. Thanks to a wall thickness of 0.5 mm and compact overall dimensions of 136 x 40 x 12 mm, the water block is ideal for applications requiring effective heat dissipation in limited space.

Key technical specifications

• Heat exchanger surface dimensions: 40 x 120 mm
• Compatible Peltier cells: TEC1-12705, TEC1-12706 (maximum 40 x 40 mm)
• Fittings: compatible with hoses with inner diameter 8 mm
• Material: aluminum
• Wall thickness: 0.5 mm
• Overall dimensions: 136 x 40 x 12 mm

Example applications

• Cooling processors and electronic circuits
• Building small air conditioning systems
• Cooling in DIY projects with Peltier cells
• Liquid cooling systems in industrial equipment
• Heat dissipation in lasers and medical equipment

Benefits

• High heat dissipation performance thanks to aluminum construction
• Versatility - fits popular Peltier cells and standard hoses
• Compact dimensions allowing installation in tight spaces
• Durability and corrosion resistance thanks to aluminum
• Easy installation in liquid cooling systems
