Arduino UNO R3 starter kit for learning programming for beginners

UNO R3 starter kit for Arduino

A complete educational kit for learning programming and building electronic projects. Built around a module compatible with Arduino UNO R3, featuring an ATMega328p microcontroller and a CH340 communication chip. It is an excellent way into electronics and robotics, with no specialist programming or electronics background required.

Key technical specifications

• Microcontroller: ATMega328p
• Communication chip: CH340
• Compatibility: full compatibility with the Arduino IDE
• Applications: Arduino projects, circuit prototyping, education
• Power and communication: USB connector

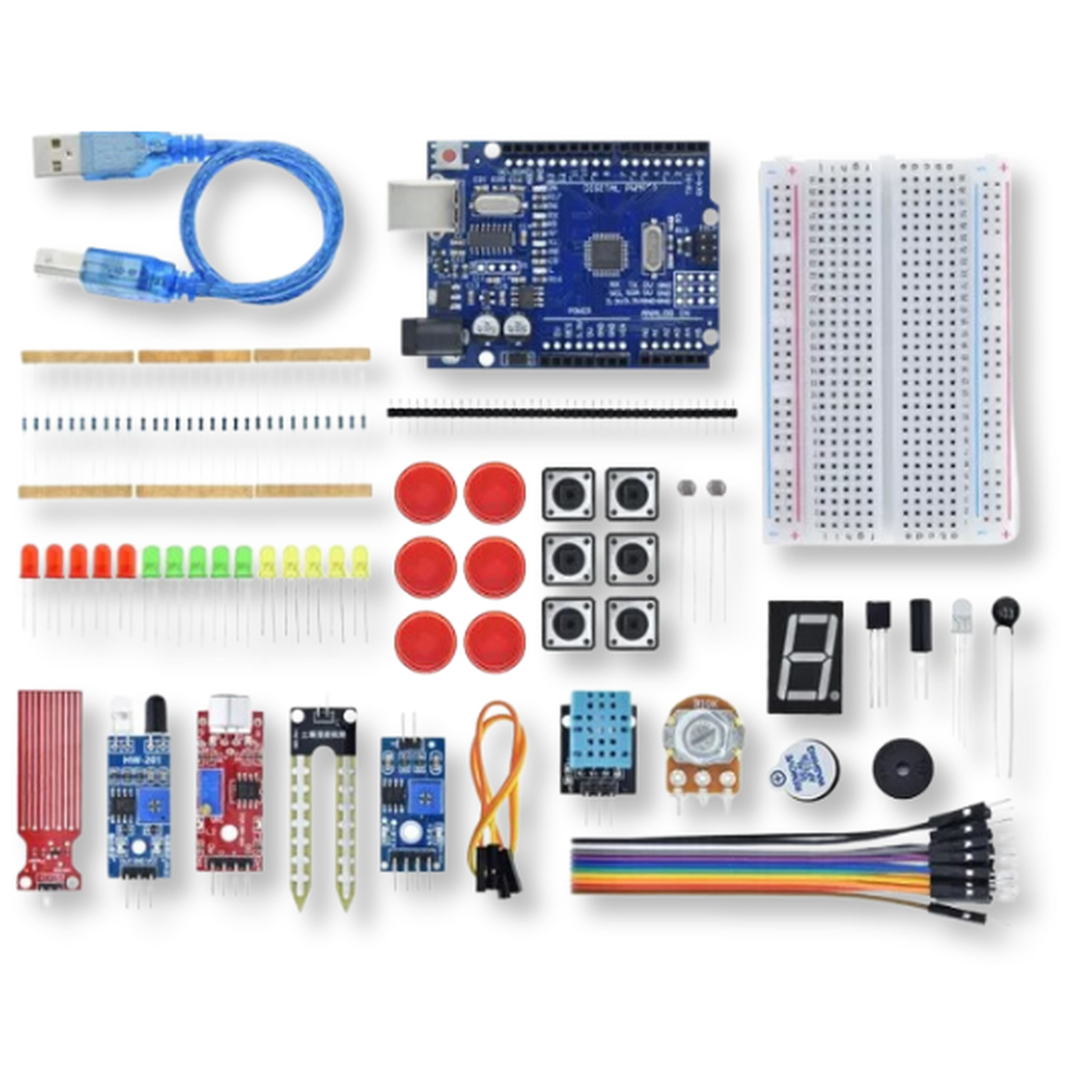

Kit contents

• Main module: Arduino UNO R3 compatible
• LEDs: 5x yellow, 5x green, 5x red, 1x RGB LED
• Environmental sensors: DHT11 temperature and humidity, soil moisture, water level
• Sensors and detectors: sound, reflective, photoresistor, thermistor, tilt switch
• Tactile and signaling parts: 6x red tact switches, active buzzer, passive buzzer
• Passive components: linear potentiometer B10k, resistors (10x 220 Ohm, 10x 1K Ohm, 10x 10K Ohm)
• Display: 7-segment, 1-digit
• Jumper wires: 10x male-to-male
• Packaging: compact, durable organizer

Example applications

• Weather station: measuring ambient temperature and humidity with the DHT11 sensor
• Smart plant pot: monitoring soil moisture and automatic alerts when plants need watering
• Simple alarm system: motion or sound detection with audible signaling using a buzzer
• Interactive lighting: controlling RGB LED colors depending on external conditions
• Event counter: counting signals from a reflective sensor and displaying the result on a 7-segment display

Benefits

• Completeness: everything you need to start learning in one package
• Ease of use: programming in the intuitive, widely used Arduino IDE
• Hands-on learning: test your code immediately on real hardware
• Versatility: ideal for self-study, prototyping, and school electronics classes
• Organization and looks: a dedicated organizer keeps parts tidy and makes the kit a great gift

For the module to work correctly with a computer, you must install drivers for the CH340 chip (CH341SER.ZIP file). Drivers can be downloaded from the manufacturer’s website: http://www.wch.cn/download/CH341SER_EXE.html
