Audio amplifier module 2x35W class AB 9-14.4V TDA7377 + heatsink + 3.5mm jack

Audio amplifier module 2x35W class AB TDA7377

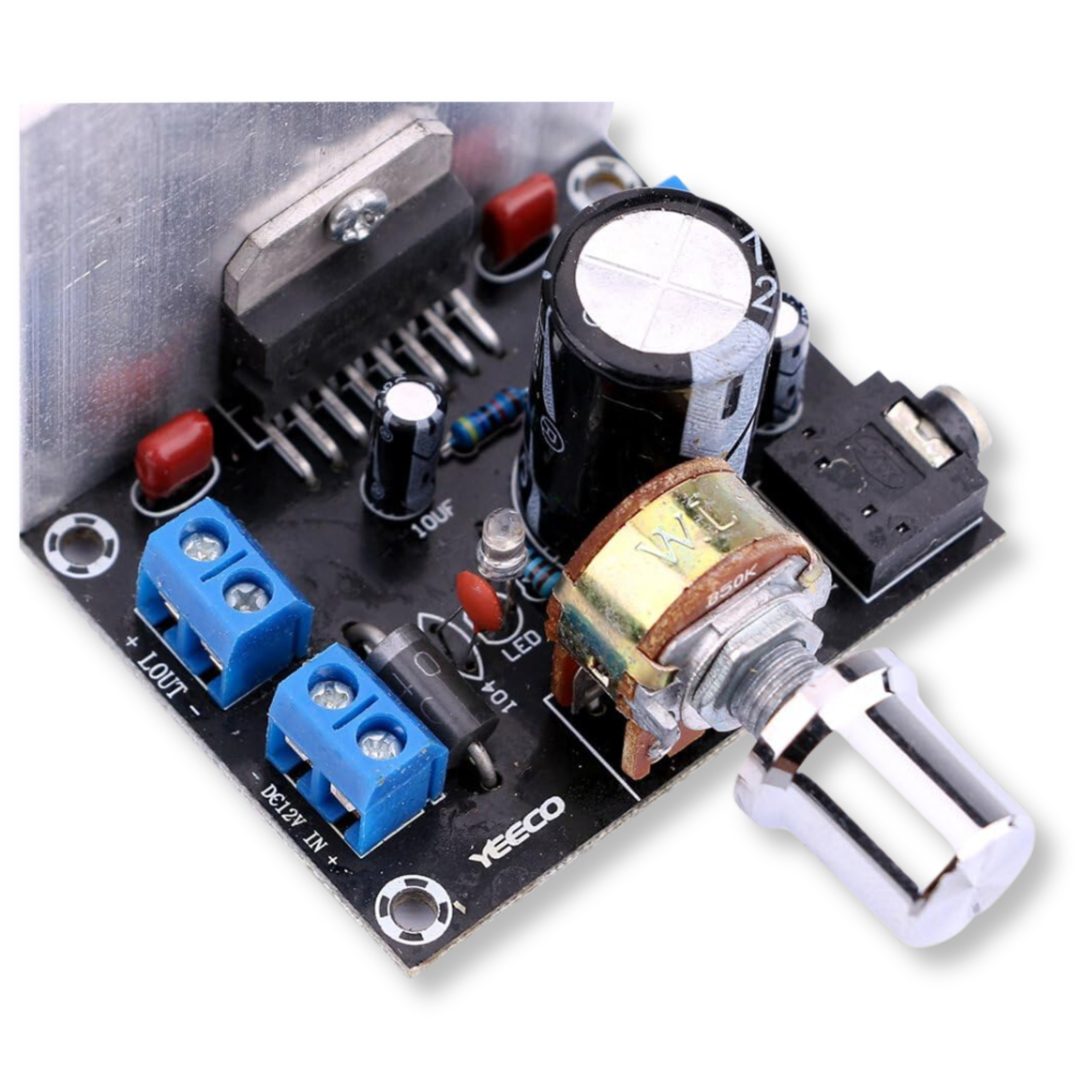

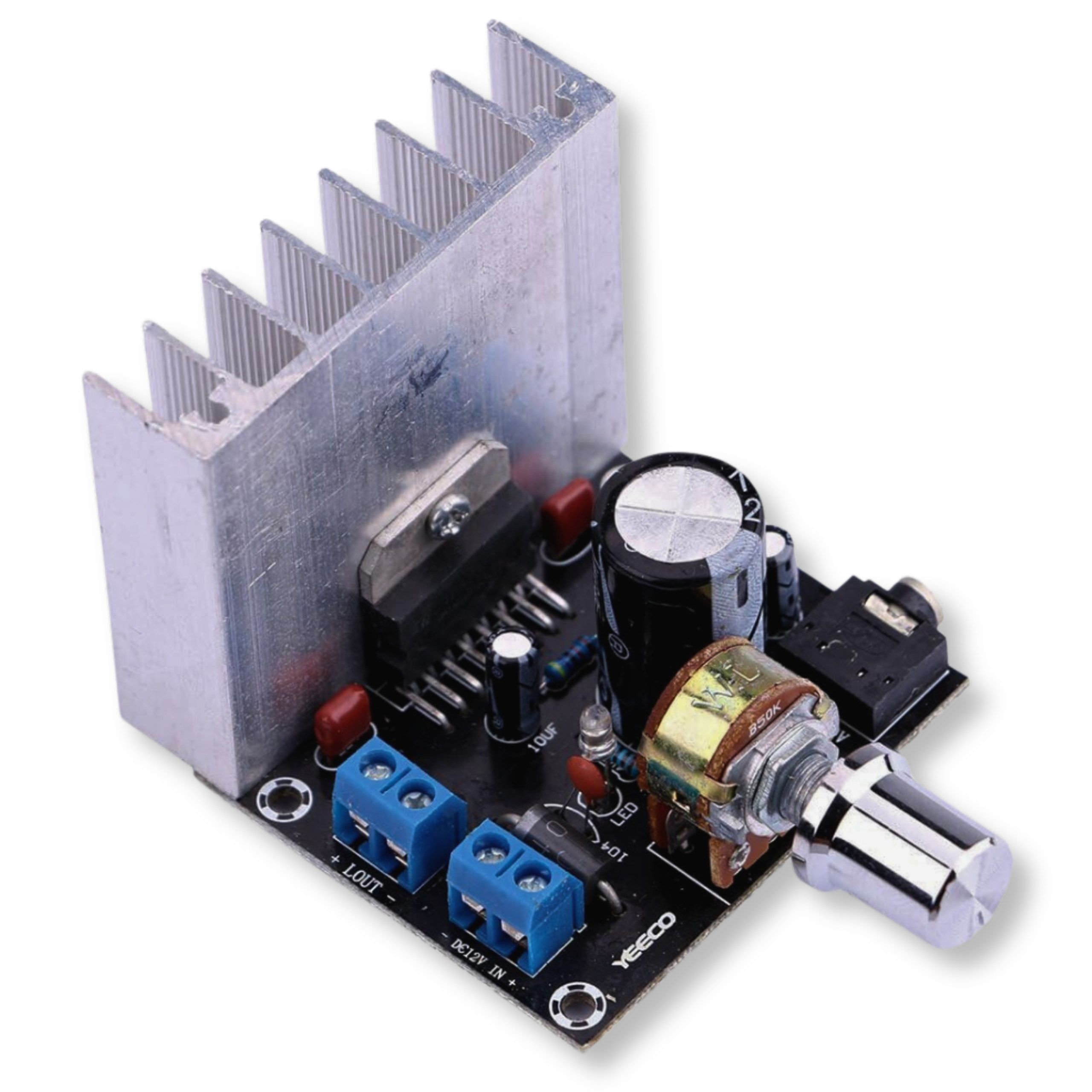

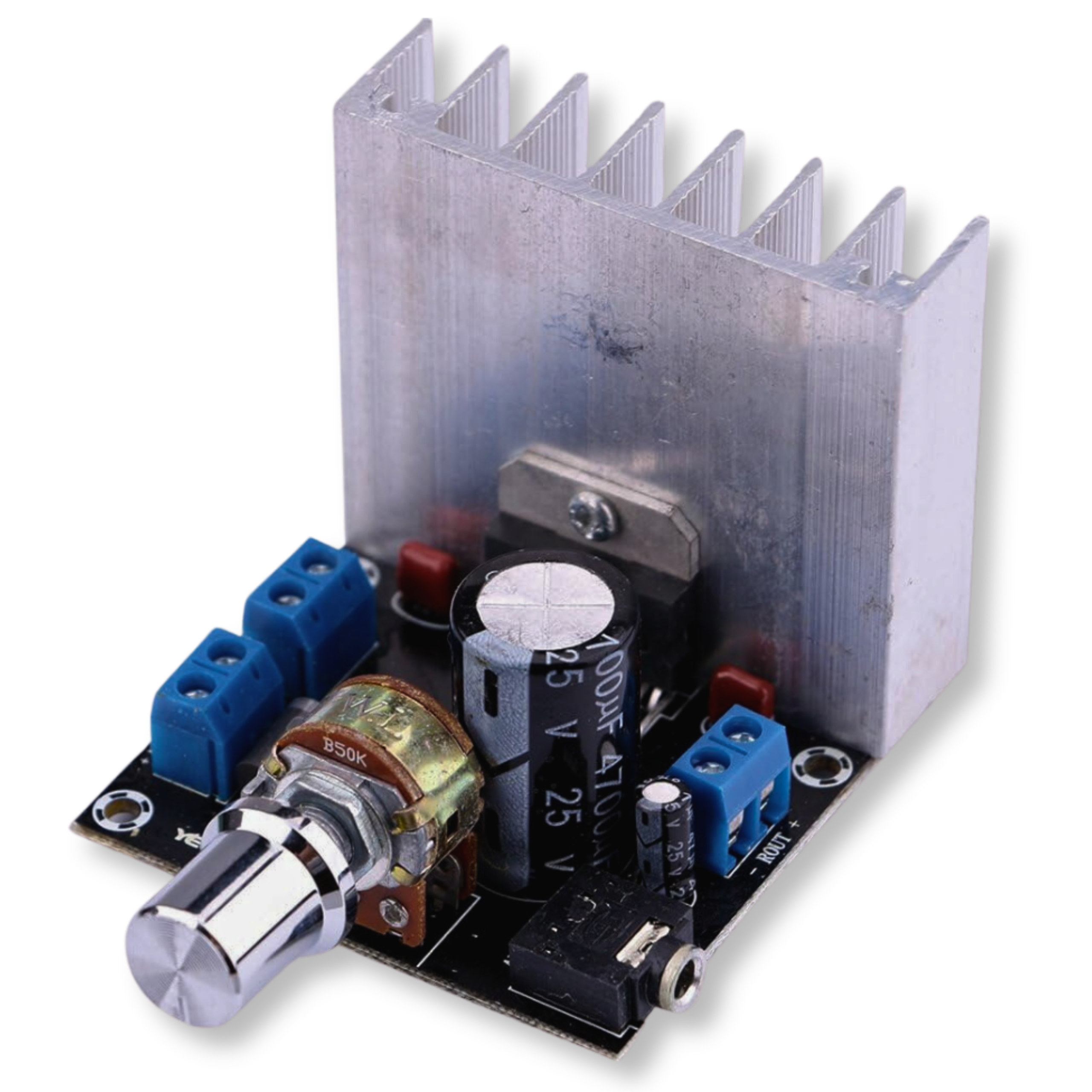

High-quality audio amplifier module based on the TDA7377 IC. It operates in class AB and delivers 2 x 35W output power into a 4Ω load at a supply voltage of 14.4V. The module requires power in the range of 9V to 14.4V (recommended voltage is 12V). The board includes a built-in heatsink for efficient heat dissipation during operation. Smooth volume adjustment is provided by an integrated potentiometer. The input signal is connected via a standard 3.5mm stereo JACK connector. The module works well as an output stage in audio projects, including as a sound add-on for Arduino, ESP8266, ESP32, and Raspberry Pi.

Key technical specifications

• Amplifier IC: TDA7377
• Operating class: AB
• Maximum output power: 2 x 35W at 4Ω (at 14.4V)
• Supply voltage: 9V - 14.4V (recommended 12V)
• Audio input: 3.5mm stereo JACK connector
• Volume control: built-in potentiometer
• Cooling: integrated heatsink
• Overall dimensions: height 53mm, length 83mm (including 15mm knob), width 56mm

Example applications

• Building active loudspeakers and studio monitors
• Home audio systems and desktop amplifiers
• DIY projects that need audio signal amplification from microcontrollers
• Upgrading and repairing older audio equipment
• Portable speakers powered from 12V batteries

Benefits

• Ready-to-use module with no need to solder SMD or through-hole parts
• High output power of 2 x 35W for clear, loud sound
• Easy connection of the audio source via the common 3.5mm JACK connector
• Stable, safe operation thanks to the factory-mounted heatsink
• Wide supply voltage range for use with various power supplies and batteries
