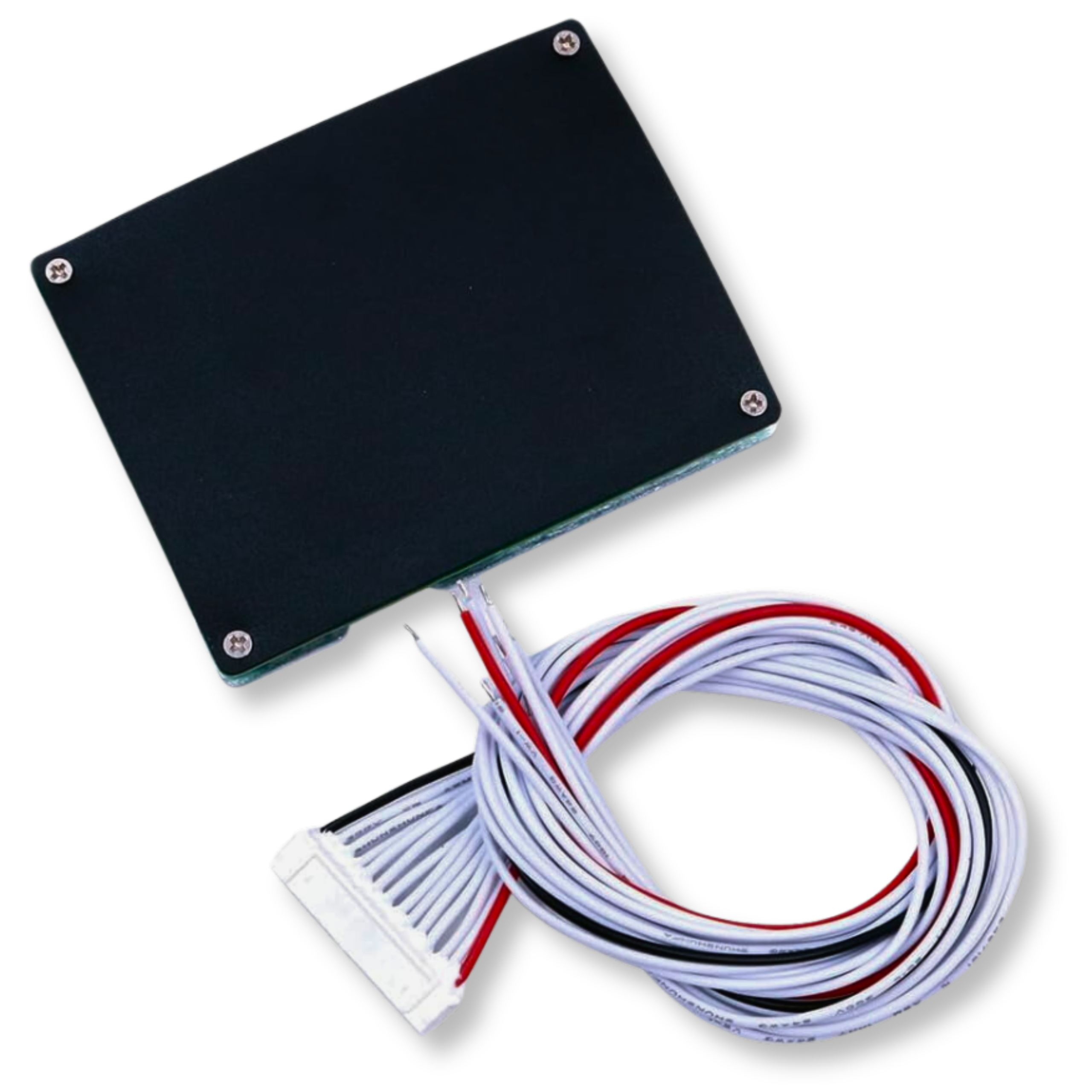

BMS module for 10 Li-ion 18650 cells 15A 10S 36-42V charger + plug

Availability: brak towaru
Price: €7.95
incl. 23% TAX, excl. shipping costs
7.95
quantity pcs

product unavailable

add to wish list
Rating: 0
Vendor: OEM

Description

The BMS module for Li-ion 18650 cells for 10 cells (10S) 36 - 42V with protection is the ideal solution for the batteries of electric bikes, scooters and other devices. The 10S 15A LI-ION 18650 BMS operates on a 42.5-43V power supply and supports 10 18650 lithium-ion or 26650 lithium-polymer cells. The module has over-discharge protection below 3.0V ± 0.1V and over-discharge protection with a maximum voltage per cell of 4.28V ± 0.05V. The maximum continuous operating current is 15 A and the instantaneous inrush current is 70 A ± 3A. The maximum charging current is 15 A and the short-circuit response time is 100 ms. The module is also current overload protected at 75 A ± 5 A and detects single cell voltage at 2.55 V ± 0.05 V. Equipped with a PH2.0 11 pin connector and 300 mm long leads, the module operates over a temperature range of -40°C to +50°C. Its dimensions are 63 x 33 x 9 mm.



Specification:
.

  • BMS 10S 15A LI-ION 18650
  • Zasilanie 42,5-43V
  • 10 18650 lithium-ion or 26650 lithium-polymer cells
  • Cell over-discharge protection below: 3.0 V ± 0.1 V
  • Overcharge protection - maximum voltage per cell 4.28 V ± 0.05 V
  • Maximum continuous operating current: 15 A
  • Maximum operating inrush current (instantaneous): 70A ± 3A
  • Maximum charging current: 15 A
  • Contraction protection: 100 ms
  • Current overload protection: 75 A ± 5 A
  • Single cell detection voltage 2.55 V ± 0.05 V
  • Connector PH2.0 11 pin
  • Cable length 300 mm
  • Operating temperature range: -40 + 50 deg C
  • Dimensions: 63 x 33 x 9 mm
