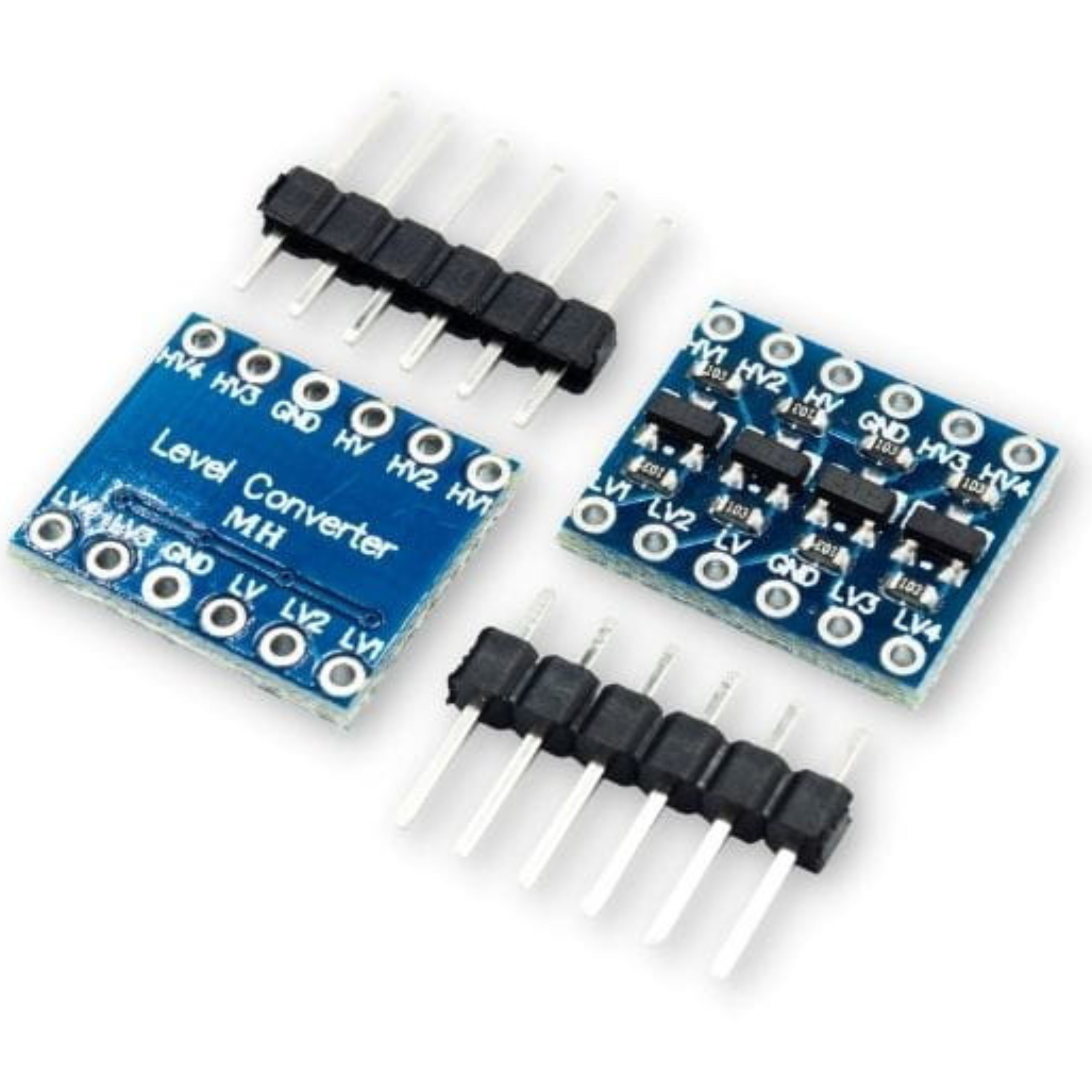

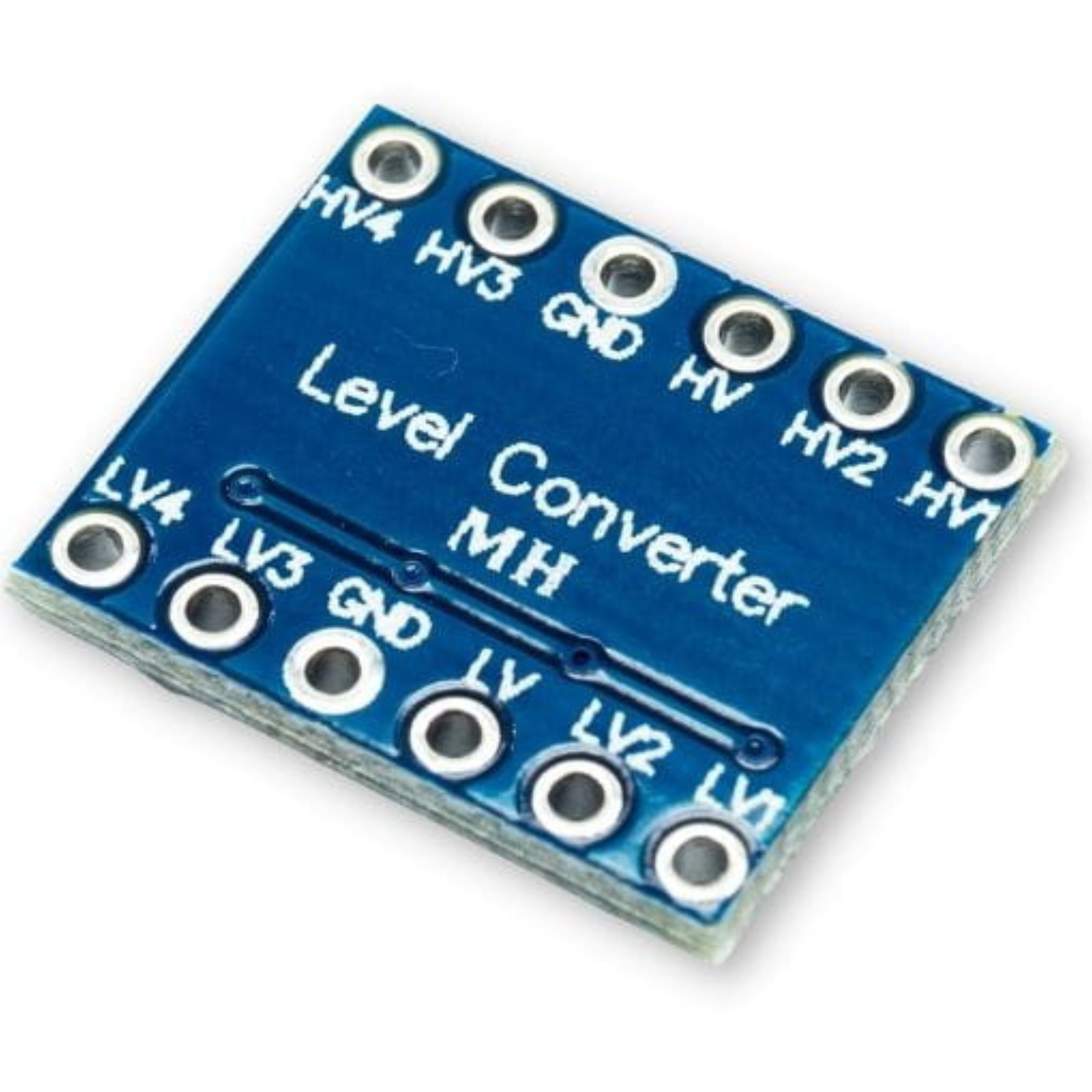

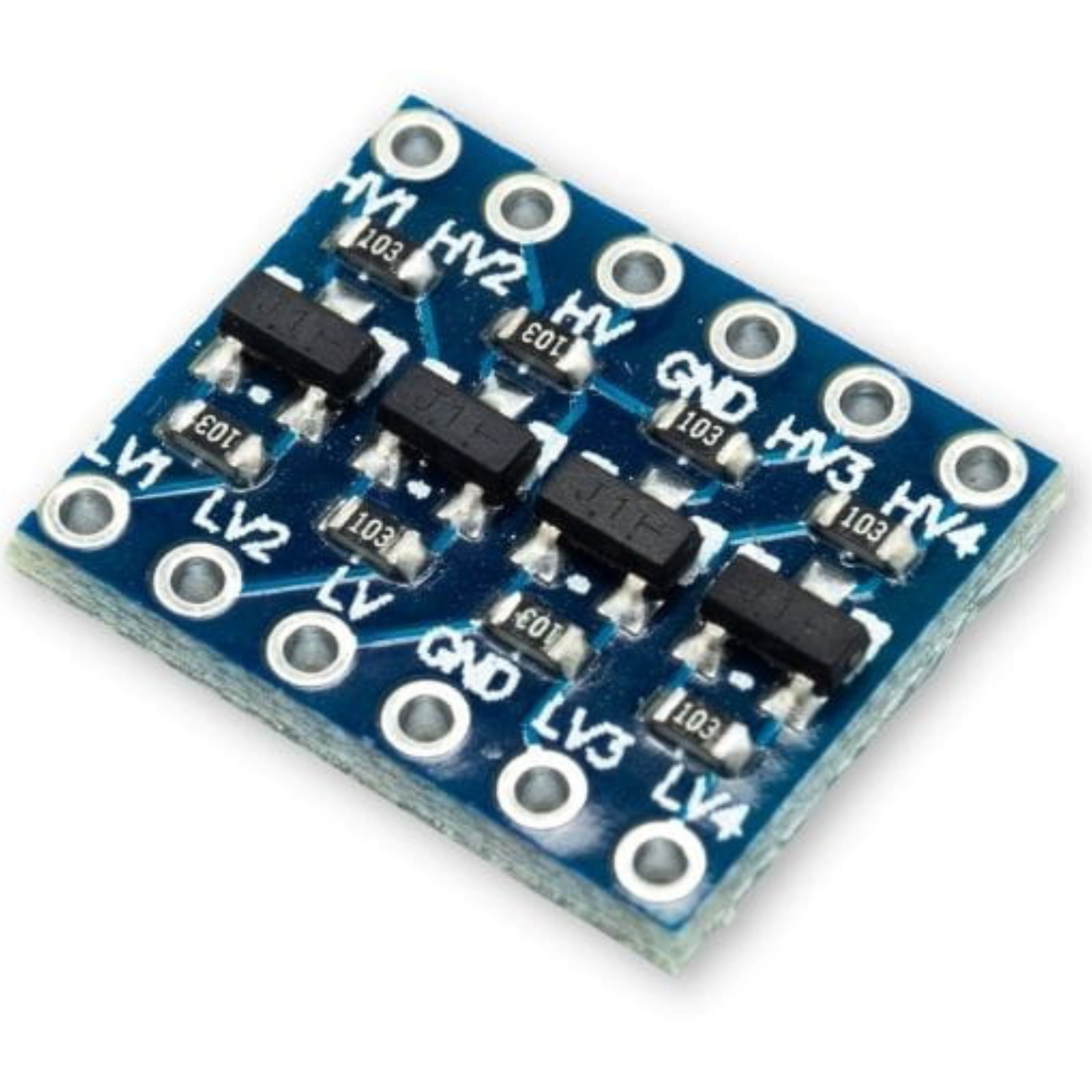

Bidirectional 4-channel logic level shifter 4CH 3.3V 5V
Availability:
duża ilość
Dispatched within:
1 day
Rating:
0
0
Vendor:
OEM
Description
Bidirectional 4-channel logic level shifter 4CH 3.3V 5V for Arduino, ESP8266, ESP32, Raspberry Pi
4-channel logic level converter is a tool that enables safe connection of devices operating at different logic voltage levels. The module provides bidirectional communication without risking damage to connected circuits.
Key technical specifications
- Operating voltages: 1.8; 2.8; 3.3; 5 [V]
- Supply voltage: 3.3 - 5 V
- Number of channels: 4 channels
- Communication type: bidirectional
- Number of pins: 12 pins
- Dimensions: length 11 mm, width 16 mm
Example applications
- Connecting 3.3 V modules to microcontrollers powered at 5 V
- Safe communication between Arduino and ESP8266 or ESP32 modules
- Level shifting for communication interfaces
- Integrating low-voltage sensors with Raspberry Pi boards
- Electronic projects requiring logic signal translation in both directions
Benefits
- Circuit protection: prevents component damage from excessive voltage
- Versatility: compatibility with popular microcontroller platforms
- Compact size: small footprint for installation in tight spaces
- Bidirectionality: smooth data exchange in both directions on each channel
- Easy integration: pinout simplifies connection to target circuits
