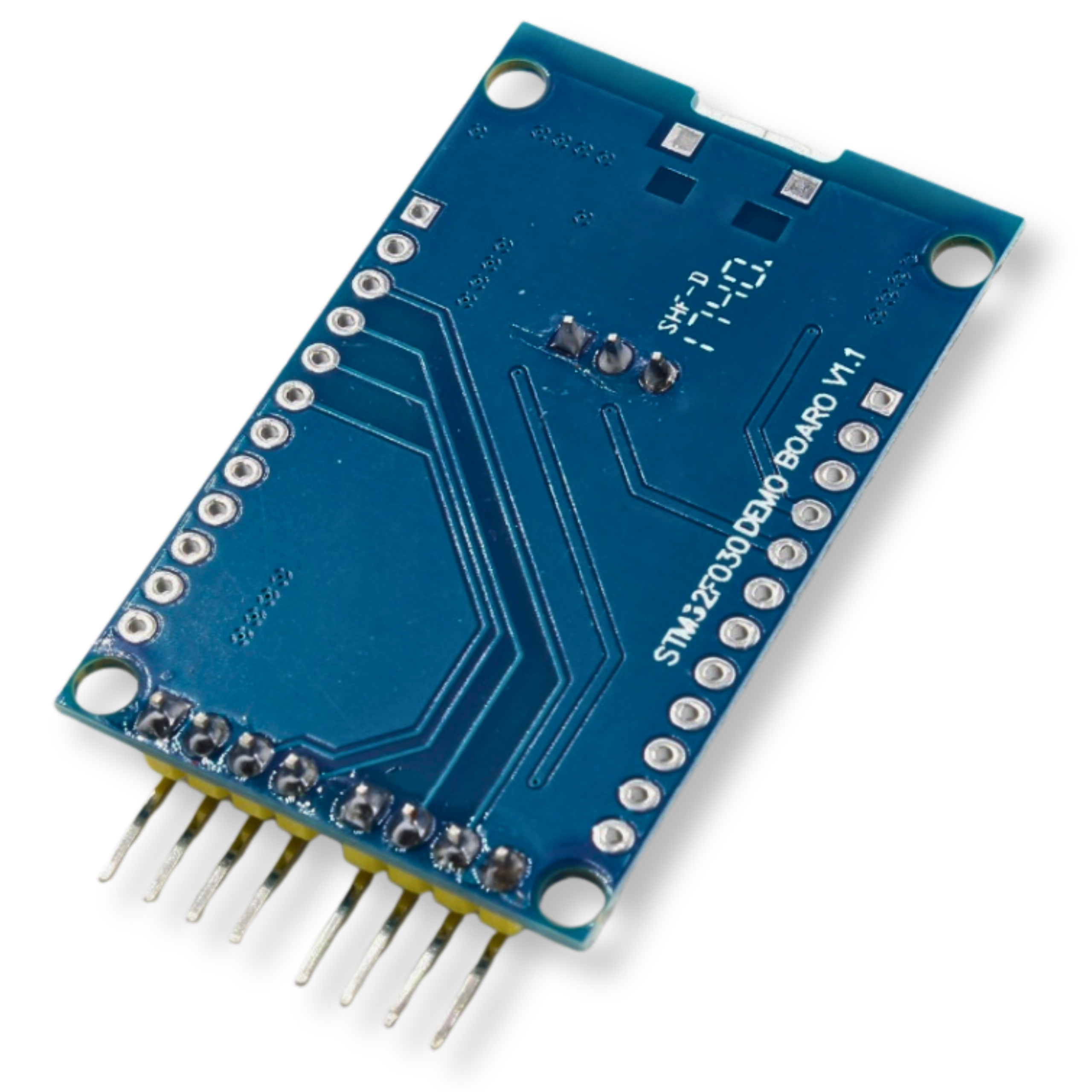

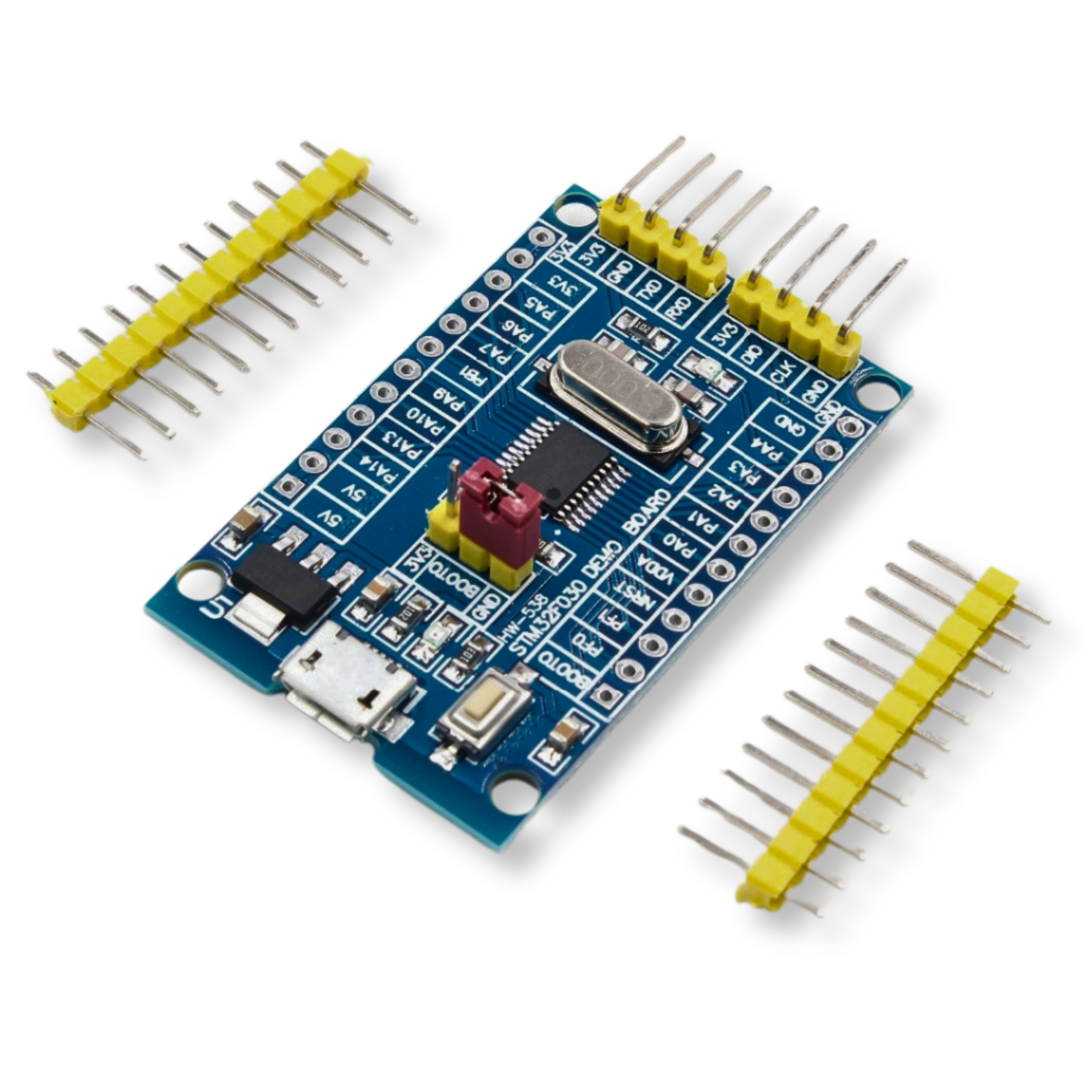

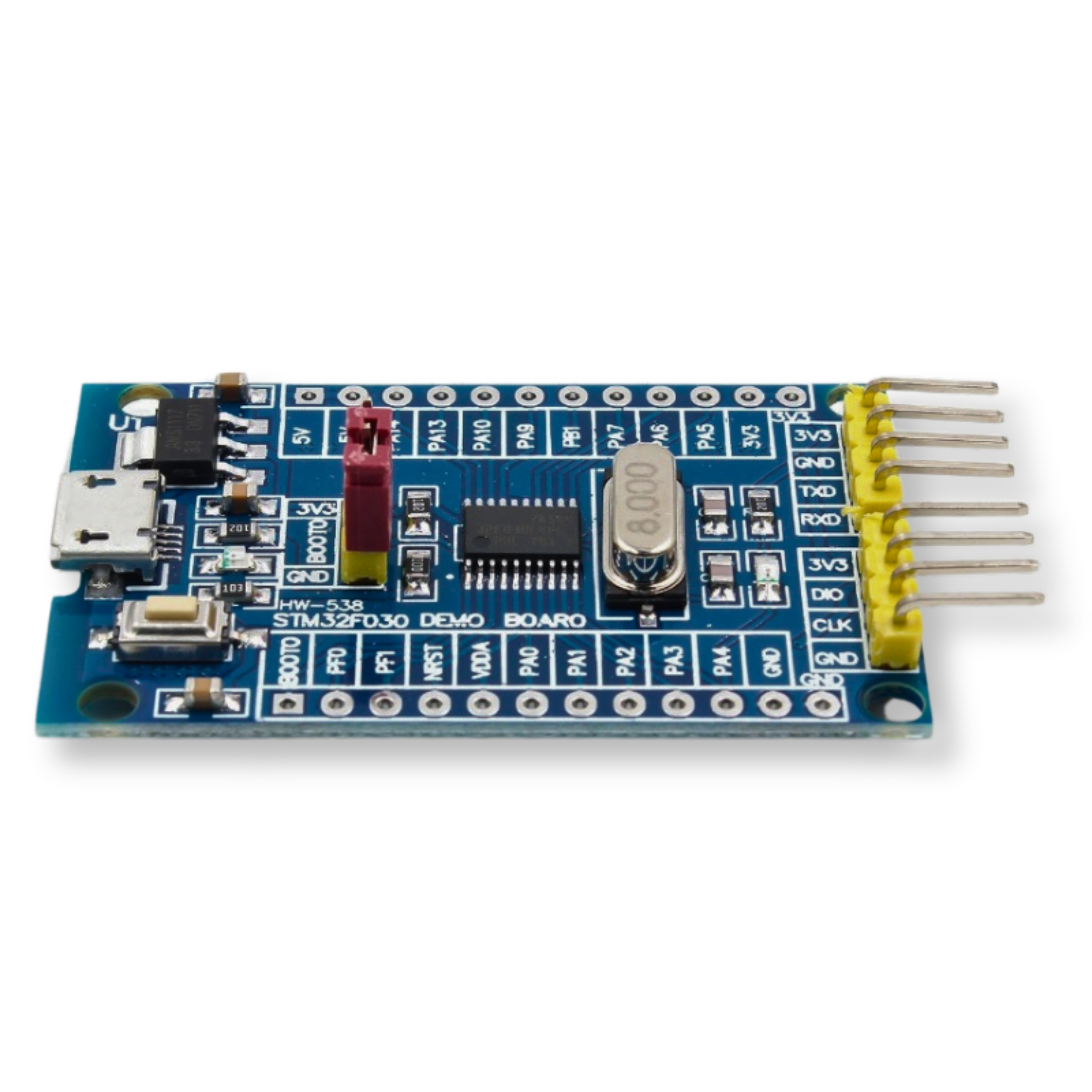

Black Pill ARM Cortex-M0 STM32F030F4P6 48 MHz 16kB Flash development board
Availability:
brak towaru
Rating:
0
0
Vendor:
OEM
Description
The development board uses a 32-bit microcontroller STM32F030F4P6 with a core ARM Cortex M0, clocked at 48 MHz, equipped with 16 kB of Flash memory and 4 kB of SRAM. It is equipped with 12-bit ADC, a variety of timers and communication interfaces such as I2C, SPI and USART, allowing easy integration with contact boards in projects. The module can be programmed using Arduino IDE or other popular IDE environments. For programming you will need a ST-Link programmer, available from us.
Specification:
- Microcontroller: STM32F030F4P6
- Core: ARM Cortex-M0
- Clock: 48 MHz maximum
- SRAM: 16 kB
- Flash memory: 4 kB
- Communication interfaces: SPI (x1), I2C (x1), USART (x1)
- 1 x A/D converter: 11-channel
- RTC clock with calendar
- 5 x timer
- Circuit powered by 2.4 V to 3.6 V
- Plate dimensions: 47 x 30.5 mm
