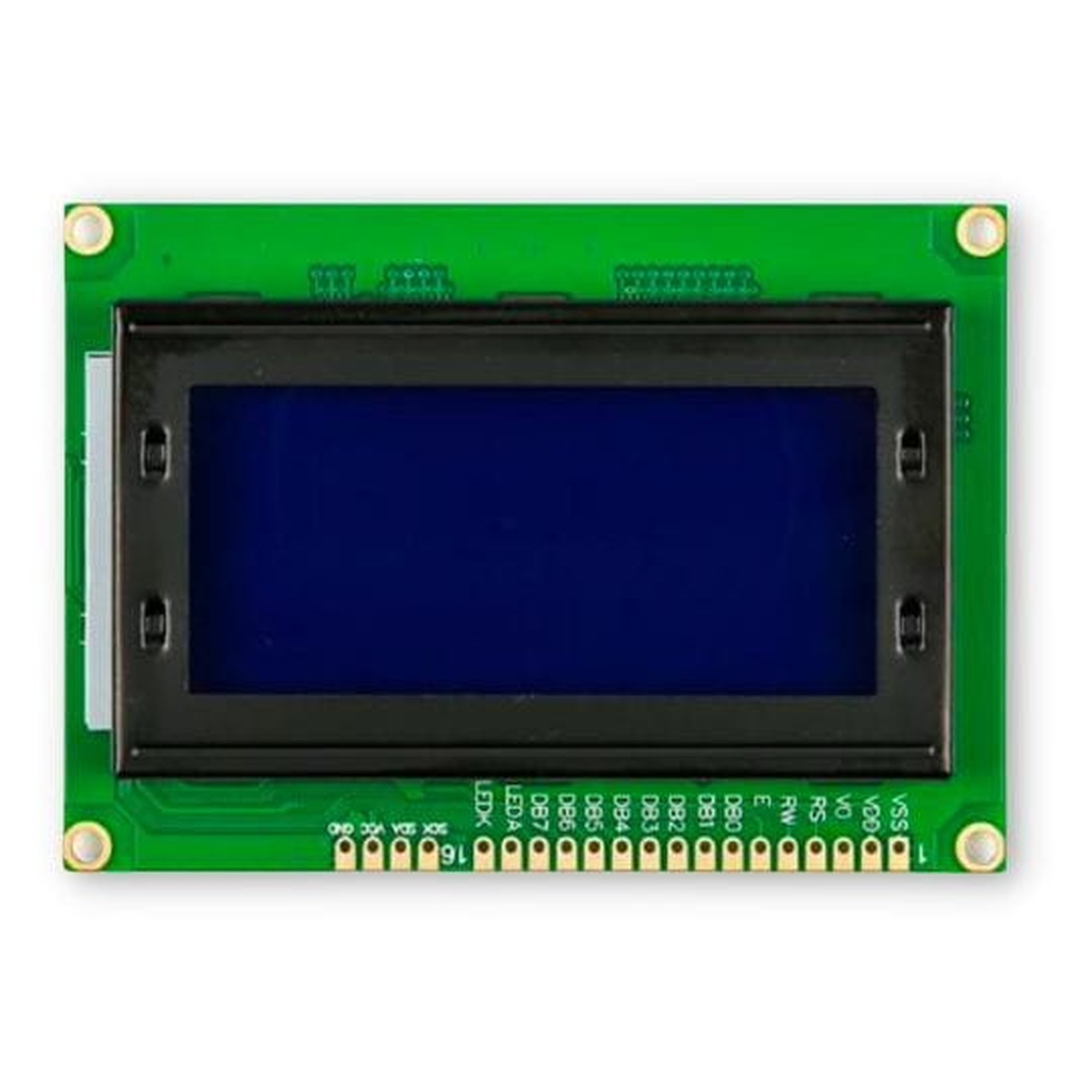

Blue LCD display 1604 16x4 HD44780 5V for Arduino Raspberry

Blue LCD display 1604 16x4 HD44780 5V for Arduino, Raspberry Pi, ESP8266 and ESP32

High-quality 4x16 LCD display, capable of clearly showing 16 characters in 4 lines. The module features attractive blue backlighting with white characters. It works excellently in projects based on Arduino, Raspberry Pi, ESP8266 and ESP32. It is also fully compatible with PIC, AVR and STM32 systems. It requires 5V power for correct operation.

Key technical specifications

• Backlight color: blue
• Screen resolution: 4 lines of 16 characters
• Displayed character color: white
• Controller used: compatible with the popular HD44780 standard
• Required supply voltage: 5V
• Communication type: 6800 4-bit parallel interface
• Operating temperature range: from -20 to 70 degrees Celsius
• External board dimensions: 87x60x13 mm
• Display window dimensions: 62x27 mm

Example applications

1. Building readable control panels in smart home systems
2. Creating user interfaces in amateur and semi-professional weather stations
3. Displaying current operating parameters in measurement devices
4. Presenting diagnostic data in robotics projects
5. Building information screens in controllers and machines

Benefits of choosing this display

• Excellent readability - high contrast between white characters and the blue background makes data easy to read in any conditions
• Versatile applications - seamless compatibility with most popular microcontrollers and single-board computers on the market
• Simple programming - thanks to the widely known and well-documented HD44780 controller
• Large working area - up to 64 characters on screen at once for showing many pieces of information
• Stable and reliable operation - trouble-free performance even in demanding temperature conditions
