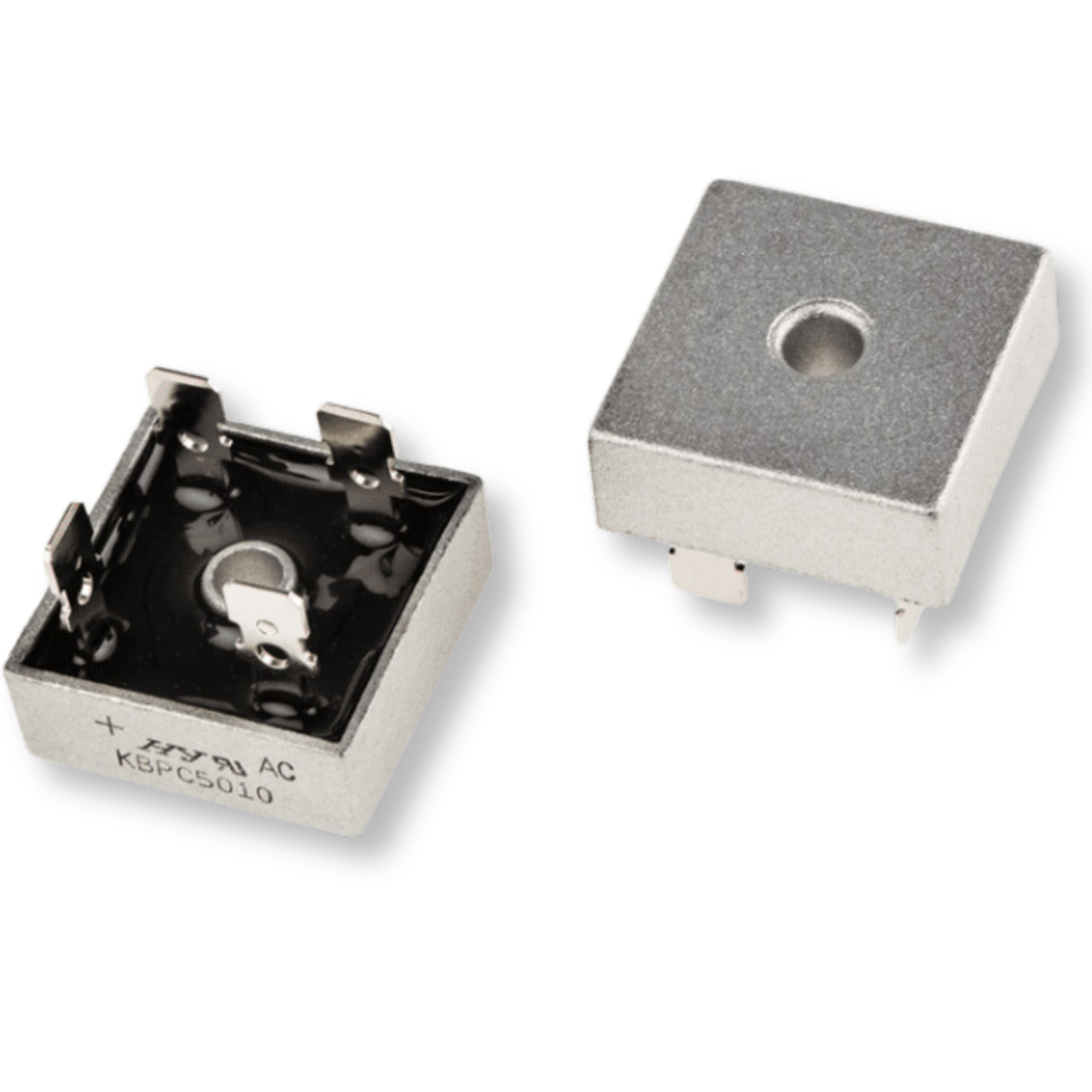

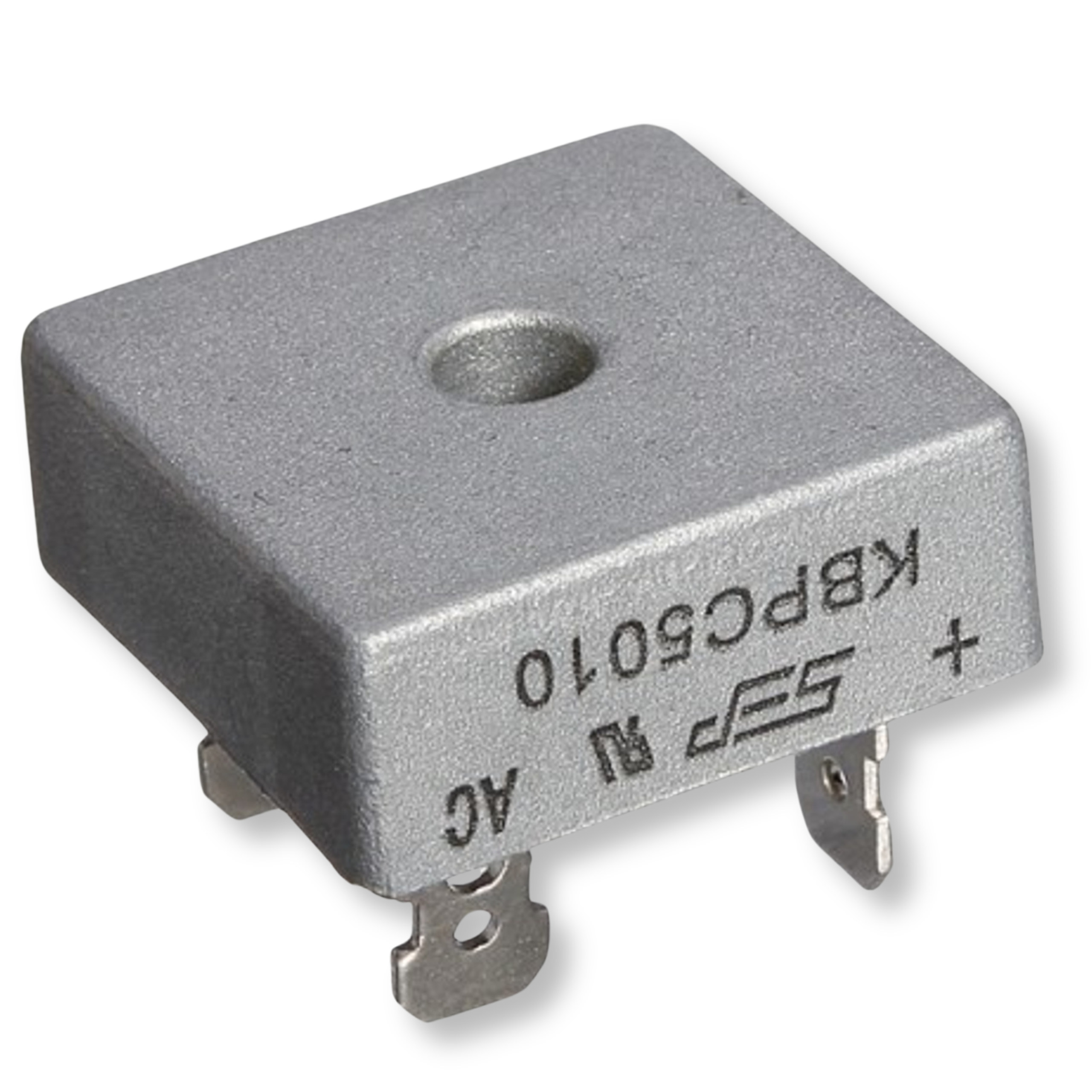

Single-phase bridge rectifier KBPC5010 designed for operation at a maximum voltage of 1000V and load current up to 50A. The component features four leads in the form of standard connectors. Intended for single-phase current, this electronic part is exceptionally compact, making it ideal for devices that require DC power. Given how single-phase bridges operate, selecting an appropriate filter capacitor is recommended to optimize circuit performance and tailor the output characteristics to specific power supply needs.

Key technical specifications

• Maximum load current: 50A
• Maximum surge current: 400A
• Maximum working voltage: 1000V
• Overall dimensions: 28 mm x 28 mm x 11 mm
• Mounting: mounting hole with option to screw to a heatsink
• Terminals: 6.4 mm connectors
• Case type: MB25

Benefits

• High current capability - safe operation even at currents up to 50A.
• Surge withstand - maximum working voltage of 1000V ensures stability.
• Easy installation - standard 6.4 mm connectors make wiring quick.
• Effective cooling - built-in hole allows straightforward mounting of a heatsink to dissipate heat.
• Compact size - MB25 case saves space in the designed power supply circuit.

Example applications

• Bench power supplies - as the main rectifier for transformer output voltage.
• Automotive battery chargers - for charging batteries.
• Industrial automation systems - where stable DC power is required.
• Transformer welders - in high-power rectifier circuits.
• Power amplifiers - in the power supply section of audio equipment.
