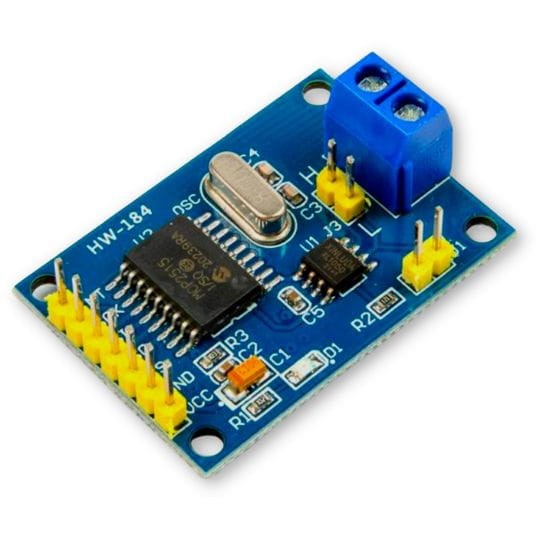

CAN BUS module MCP2515 TJA1050 SPI AVR STM8 STM32

The CAN-BUS module with MCP2515 chip is a tool for easy communication via the CAN bus, connected via the SPI interface. Supported by numerous libraries, including for Arduino, this module allows data to be read from the CAN bus, widely used in industry and automotive applications, especially for communication between modules in cars. With it, the vehicle's fault codes can also be queried.

The module is ideal for integration into microcontrollers that do not have a built-in CAN interface, extending their communication capabilities. It contains a TJA1050 transceiver, which generates a differential signal ready for connection to the CAN bus. For connection to the CAN line, goldpins or ARK-type screw connectors are used, providing flexibility in installation and integration into different systems.

The CAN MCP2515 TJA module is the ideal solution for CAN communication using microcontrollers such as:

• Ardunio
• AVR
• ARM
• PIC
• STM8
• STM32
• ESP32/8266

Specification:

• Supply voltage: 5V
• Interface: CAN v2.0B 1 Mbps
• CAN bus controller: MCP2515
• CAN transceiver: TJA1050
• Quartz: 8 MHz
• Communication interface: SPI
• LED indicating power supply to the module
• Spacing: 35 mm
• Goldpin connector pitch: 2.54 mm
• Dimensions: 40 x 28 mm

Ideal for communication between microcontrollers and more.
