CJMCU-TEMT6000 Light Intensity Sensor Module Lux Analog Phototransistor

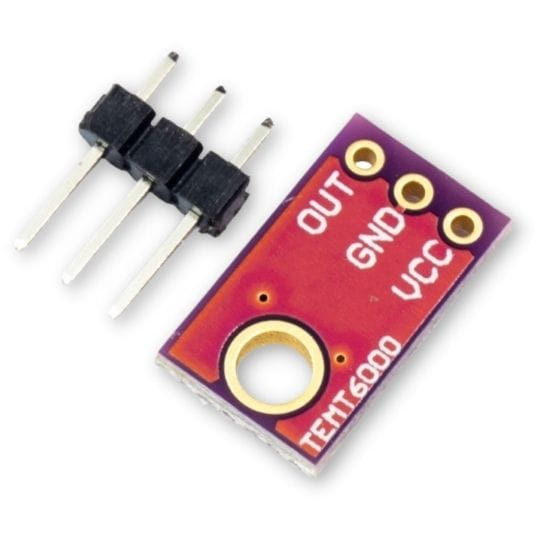

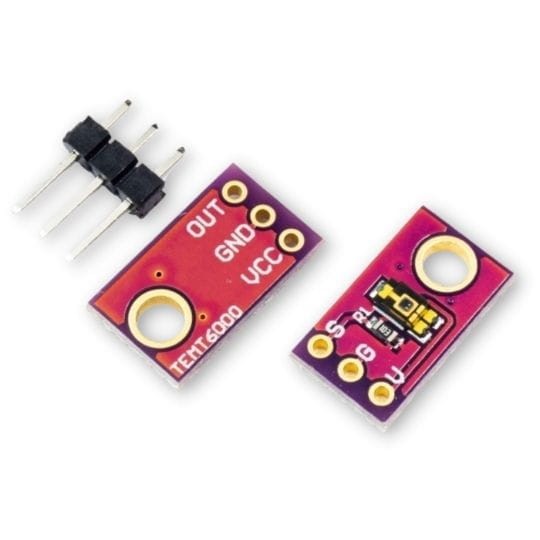

TEMT6000 Light Intensity Sensor Module

CJMCU-TEMT6000 module is a precise NPN phototransistor that responds linearly to visible light intensity. Thanks to its small size, it is ideal for compact electronic projects. The device produces an analog signal at the output, which makes it easy to read with ADC converters. The module is an excellent choice for Arduino, ESP8266, ESP32, and Raspberry Pi systems.

Key technical features

The sensor offers a wide measurement range from 1 to 1000 Lux and a 60° field of view. Power supply in the 3 - 5 V DC range makes it versatile and easy to use. The module is designed for demanding conditions, operating from -40 to 85°C. The kit includes gold pin headers for self-soldering.

Technical specifications

• Supply voltage: 3 - 5 V DC
• Sensing element: TEMT6000
• Measurement range: 1 - 1000 Lux
• Output type: analog signal
• Field of view: 60°
• Operating temperature: -40 to 85°C
• Board dimensions: 15 x 8 x 2 mm
• Connectors: gold pin headers (included for soldering)

Example applications

• Automatic lighting control in Smart Home systems
• Weather stations and environmental monitoring systems
• Adjusting brightness of LCD screens and displays
• Robotics projects requiring light level detection
• Alarm systems and twilight sensors

Benefits

• Linear response to light for accurate and predictable readings
• Easy integration with 3.3 V and 5 V logic systems
• Compact dimensions for mounting in small enclosures
• Simple programming thanks to standard analog output
• High reliability and stability across a wide temperature range
