Camera for Raspberry Pi Zero/Zero W 2W 1080p 5 MP 30 FPS 16 cm ribbon cable

5 Mpx camera module for Raspberry Pi

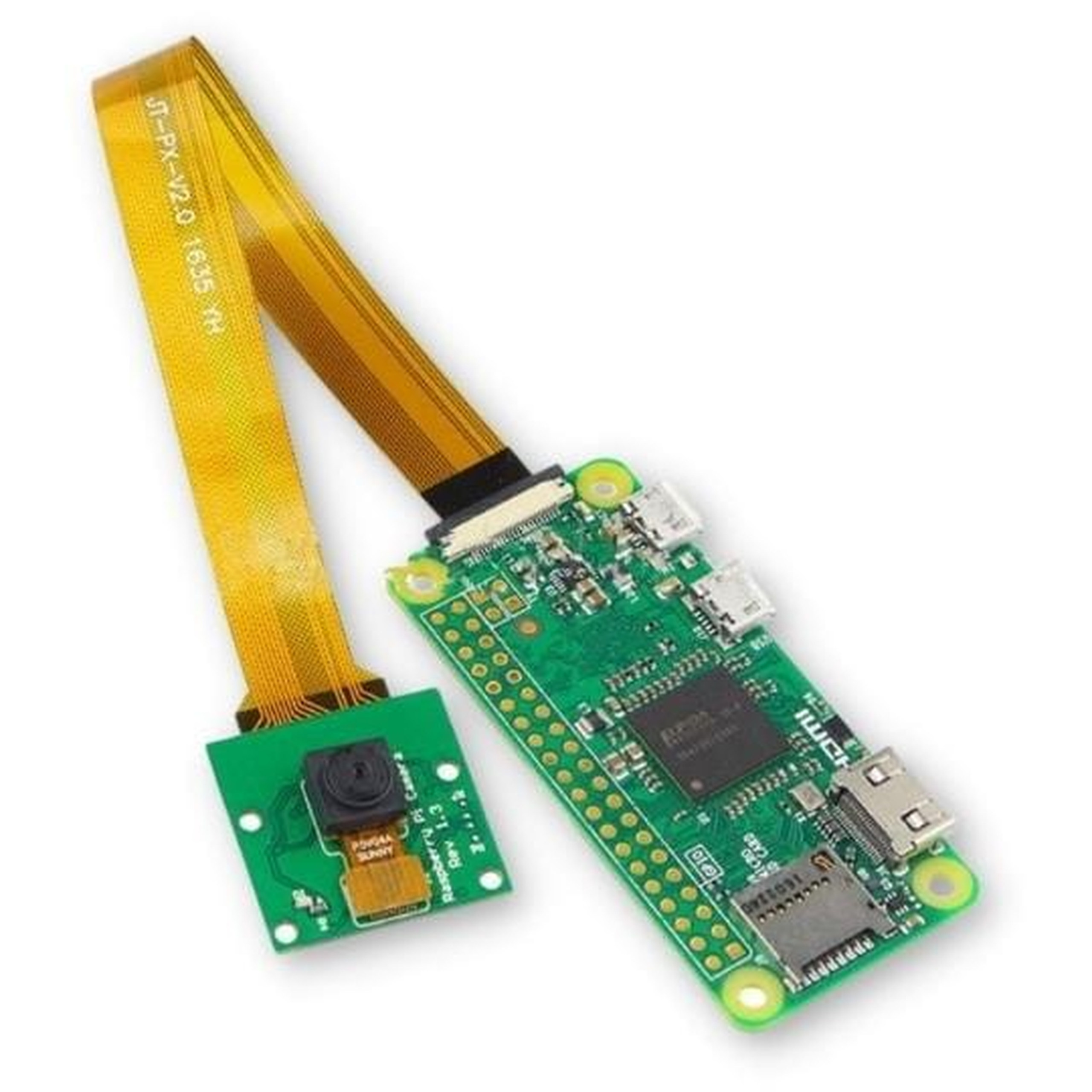

A compact 5 Mpx camera module designed specifically for Raspberry Pi Zero, Zero W, and Zero 2W mini computers. It features a sensor capable of detailed stills at 2592 x 1944 pixels and smooth video recording at 1080p at 30 frames per second. A 65-degree field of view provides a suitably wide imaging area, while fixed focus from 1 meter to infinity ensures sharp shots without adjustment.

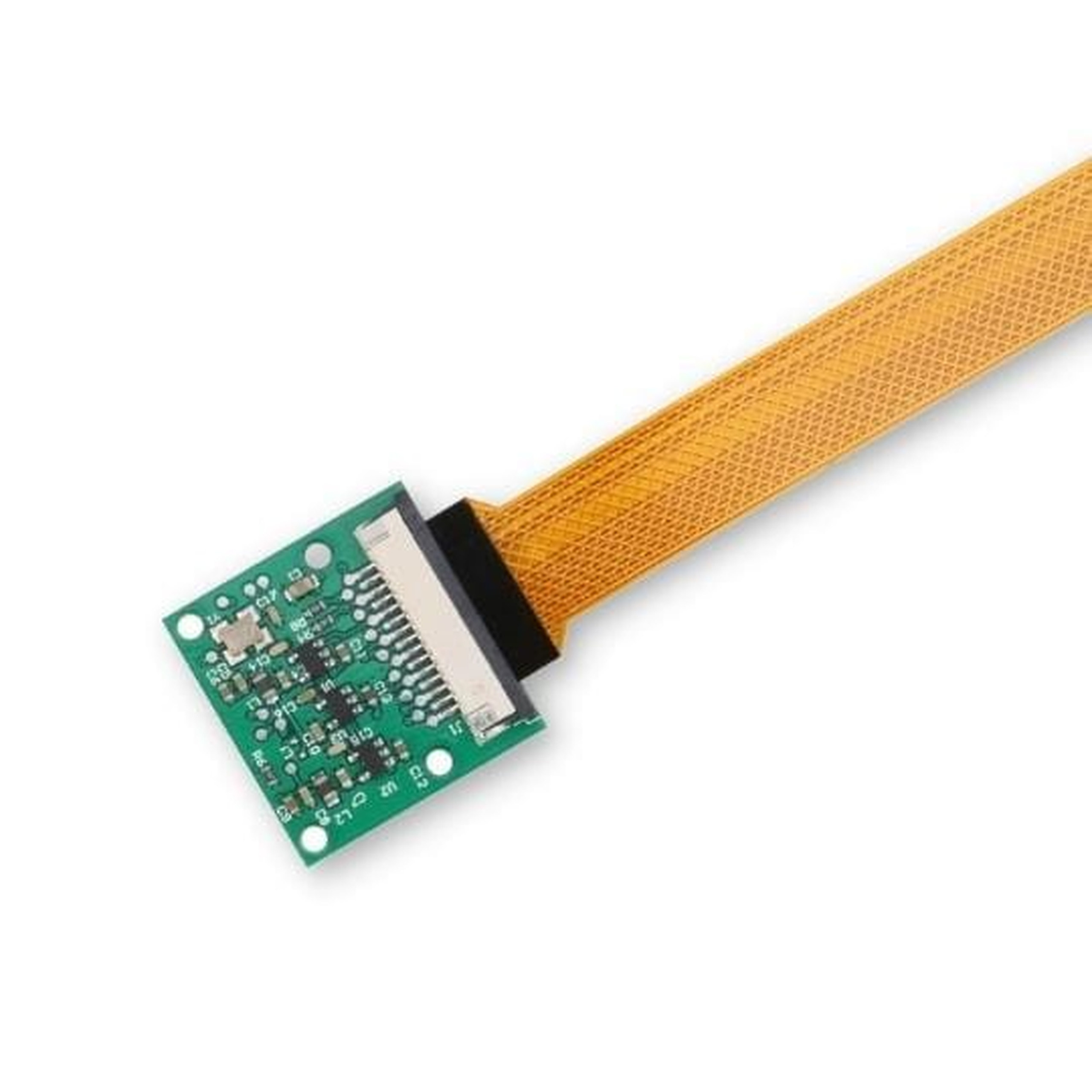

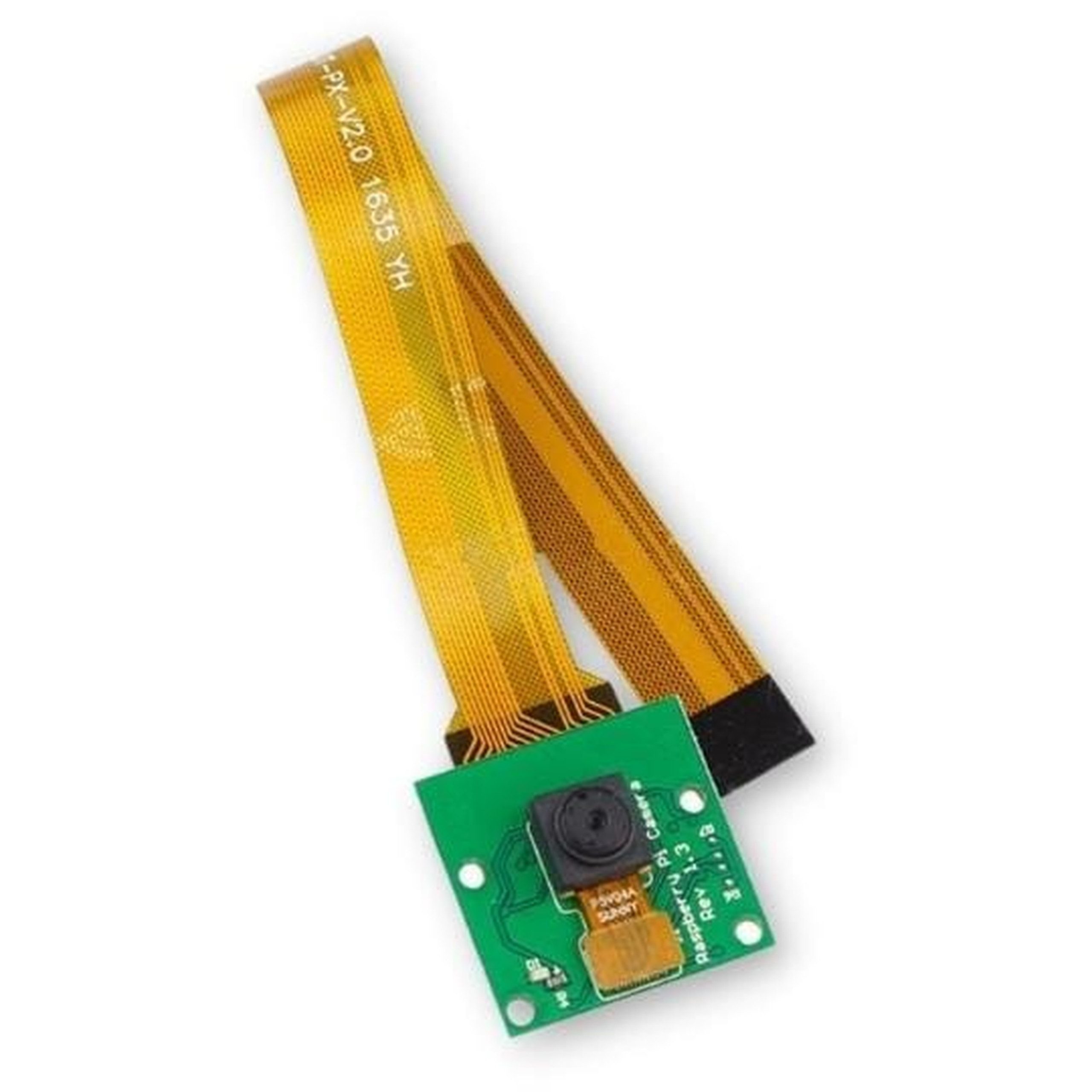

The module features a small board size-just 25 mm x 24 mm-for easy integration even in the most space-constrained projects. The kit includes a dedicated 16 cm ribbon cable for convenient mounting.

Key technical specifications

• Compatibility: designed for Raspberry Pi Zero, Zero W, Zero 2W
• Sensor resolution: 5 Mpx
• Maximum photo resolution: 2592 x 1944 pixels
• Video parameters: 1080p at 30 fps
• Field of view: 65 degrees
• Focus: fixed, from 1 m to infinity
• Board dimensions: 25 mm x 24 mm (without ribbon)
• Sensor size: 3.67 mm x 2.74 mm (1/4-inch format)
• Ribbon cable length: 16 cm

Example applications

• Compact home monitoring and security systems
• Machine vision projects
• Image capture on mobile robots and drones
• Creating timelapse videos
• Smart peepholes and image recognition systems

Benefits

• High image quality: 5 Mpx sensor and 1080p recording in a miniature form factor
• Easy integration: tiny dimensions for discreet mounting in enclosures
• Ready to use: kit includes a dedicated 16 cm ribbon for direct connection
• Versatility: fixed focus simplifies capturing subjects at various distances
• Full compatibility: native support and seamless operation with the Raspberry Pi ecosystem

Package contents

• 5 Mpx camera module for Raspberry Pi Zero and Zero W
• 16 cm mounting ribbon cable
