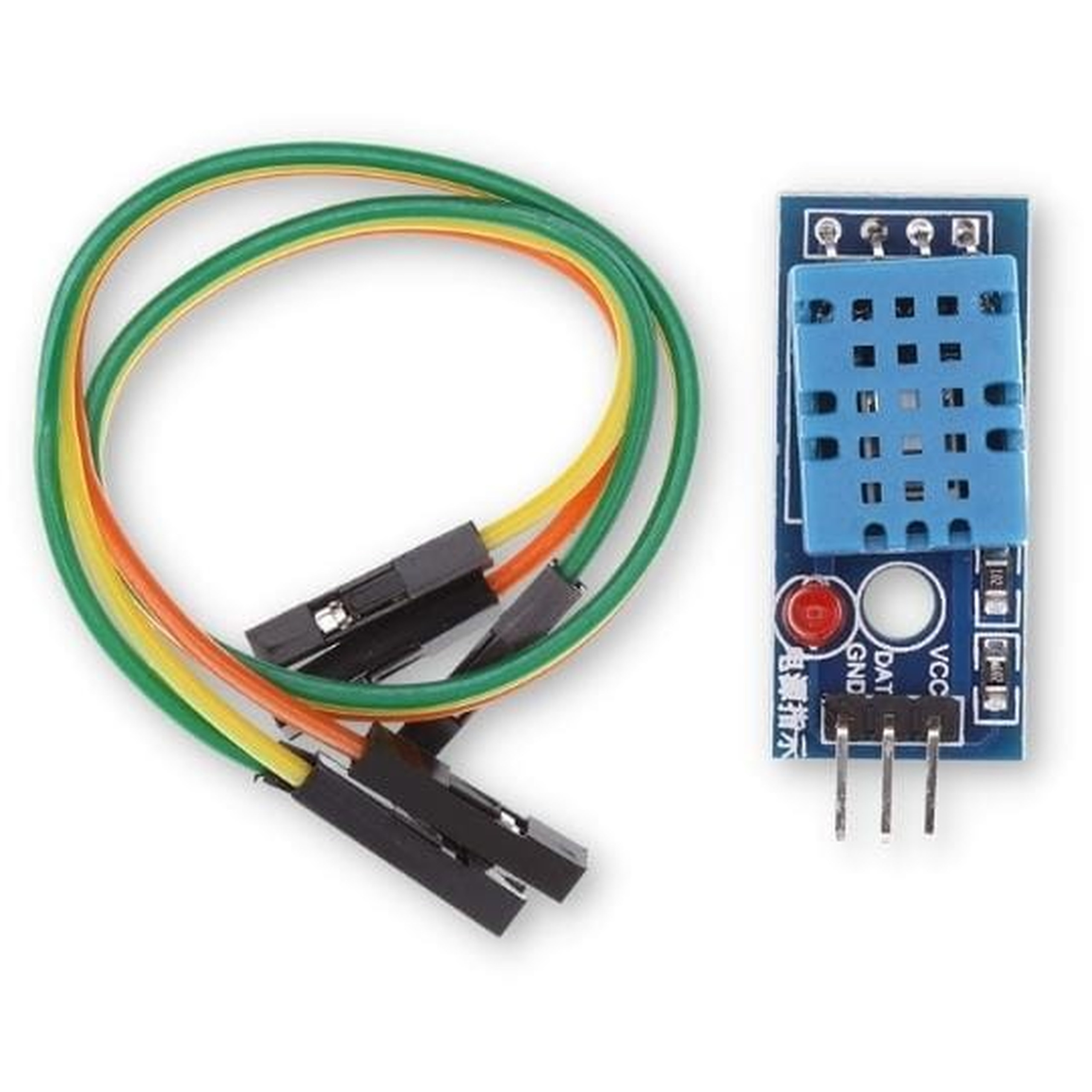

DHT11 temperature and humidity sensor with wires, module for Arduino

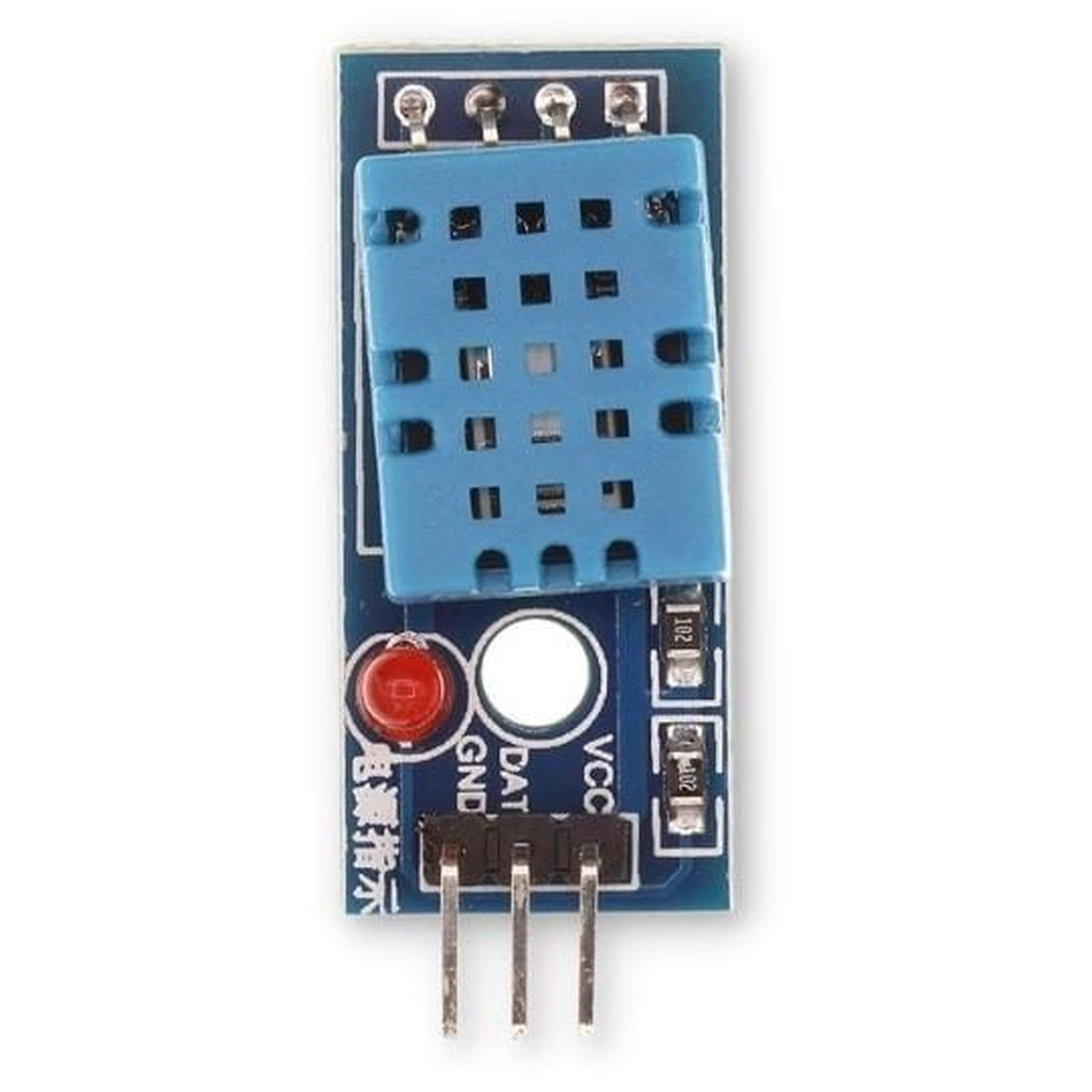

DHT11 temperature and humidity sensor module for ESP8266, ESP32, Arduino, Raspberry Pi

The DHT11 temperature and humidity sensor module is based on a single-wire digital interface. It provides temperature measurement in the range of 0 to 50 °C with an accuracy of ± 1 °C, and humidity from 20 to 90% RH with an accuracy of ± 4 RH (at 25 °C).

A low average current consumption of 0.2 mA and supply voltage from 3.3V to 5V make it suitable for energy-efficient projects. Resolution for both temperature and humidity measurements is 8 bits.

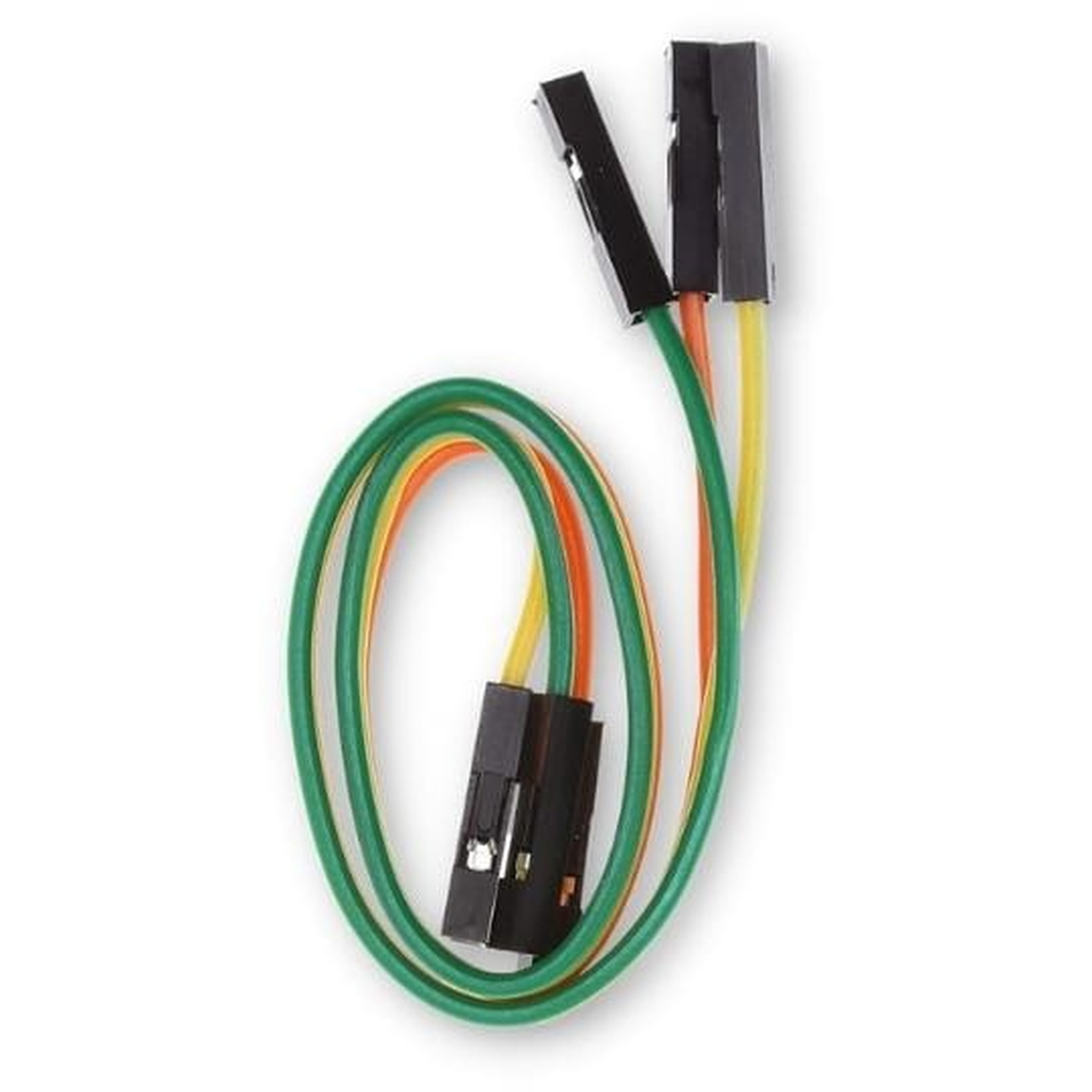

The module’s compact size, 14 mm x 20 mm, allows easy integration in various projects. The kit includes three wires for easy connection to the control board.

Key technical specifications

• Supply voltage: 3.3V - 5V
• Average current consumption: 0.2 mA
• Temperature measurement range: 0 - 50 °C
• Temperature measurement accuracy: ± 1 °C
• Humidity measurement range: 20 - 90% RH
• Humidity measurement accuracy: ± 4 RH
• Measurement resolution: temperature and humidity - 8 bits
• Dimensions: 14 mm x 20 mm

Example applications

• Home automation systems
• Advanced control and measurement devices
• Energy-efficient electronic projects
• Control boards and prototyping modules
• Temperature and humidity monitoring systems

Benefits

• Easy connection thanks to three wires included in the kit
• Energy efficiency thanks to low current consumption of 0.2 mA
• Easy integration thanks to compact dimensions of 14 mm x 20 mm
• Broad compatibility - for ESP8266, ESP32, Arduino, Raspberry Pi
• Reliability thanks to the single-wire digital interface
