DHT22 AM2302 temperature and humidity sensor with wires, Arduino module
0
Description
DHT22 AM2302 temperature and humidity sensor for ESP8266, ESP32, Arduino, Raspberry Pi
DHT22 (AM2302) temperature and humidity sensor is a highly sensitive device designed for precise measurements in various conditions. The module offers high reliability and stable readings.
The sensor measures temperature over a wide range from -40°C to +125°C with an accuracy of ±0.2°C. This ensures trustworthy, precise results in demanding projects.
Humidity measurement covers the full range from 0 to 100% RH with an accuracy of ±5% RH. Humidity measurement resolution is 8 bits with precision down to 0.1% RH, enabling detailed tracking of air parameter changes.
The module is powered from 3.3V to 6V. Standby current consumption is at most 60 µA, which is highly advantageous for battery-powered applications or energy-saving operation. During active measurement, current draw rises to at most 1.6 mA. A measurement takes only 2 seconds.

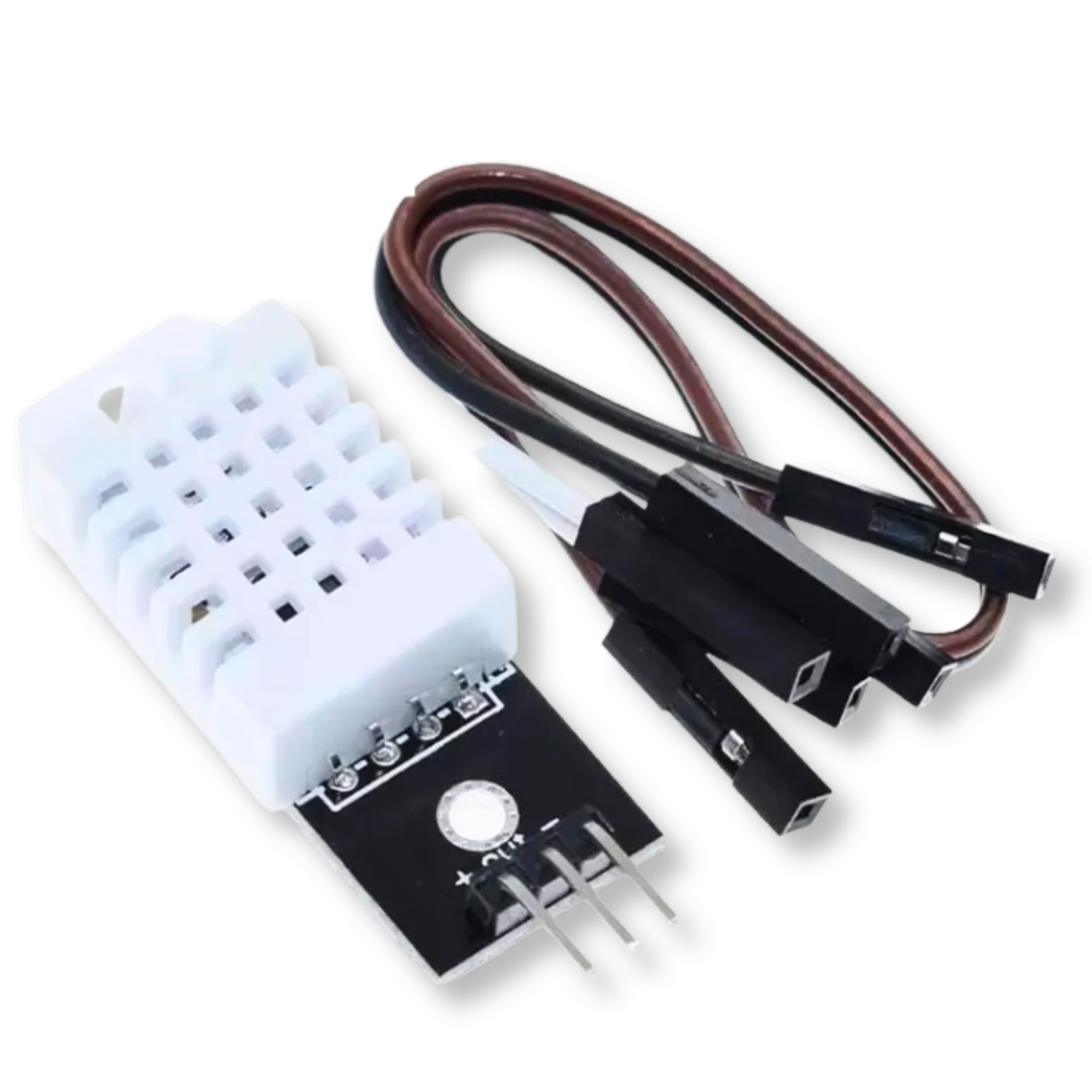

The kit includes 3 female-to-female jumper wires for quick integration of the sensor with various devices and prototyping systems.
Key technical specifications
- Temperature measurement range: -40°C to +125°C
- Temperature measurement accuracy: ±0.2°C
- Humidity measurement range: 0 - 100% RH
- Humidity measurement accuracy: ±5% RH
- Humidity measurement resolution: 8 bits, 0.1% RH
- Supply voltage: 3.3V - 6V
- Current consumption (standby): max. 60 µA
- Current consumption (measurement): max. 1.6 mA
- Measurement time: 2 s
- Dimensions: 26 mm x 16 mm x 7 mm
- Included: 3 female-to-female jumper wires
Example applications
- Weather stations and microclimate monitoring systems
- Home automation and smart buildings
- Temperature and humidity controllers in greenhouses and terrariums
- Ventilation and air conditioning systems
- Educational projects and IoT prototypes
Benefits
- High precision: Accurate temperature and humidity readings thanks to digital calibration
- Energy efficiency: Very low standby current (60 µA), ideal for battery-powered devices
- Broad compatibility: Easy connection to popular microcontrollers and single-board computers
- Ready to use: Included jumper wires let you start your project immediately
- Stability: Reliable operation over a wide temperature range from -40°C to +125°C
