Digital tachometer for rotational speed measurement + green LED CF5135C-Z
0
Description

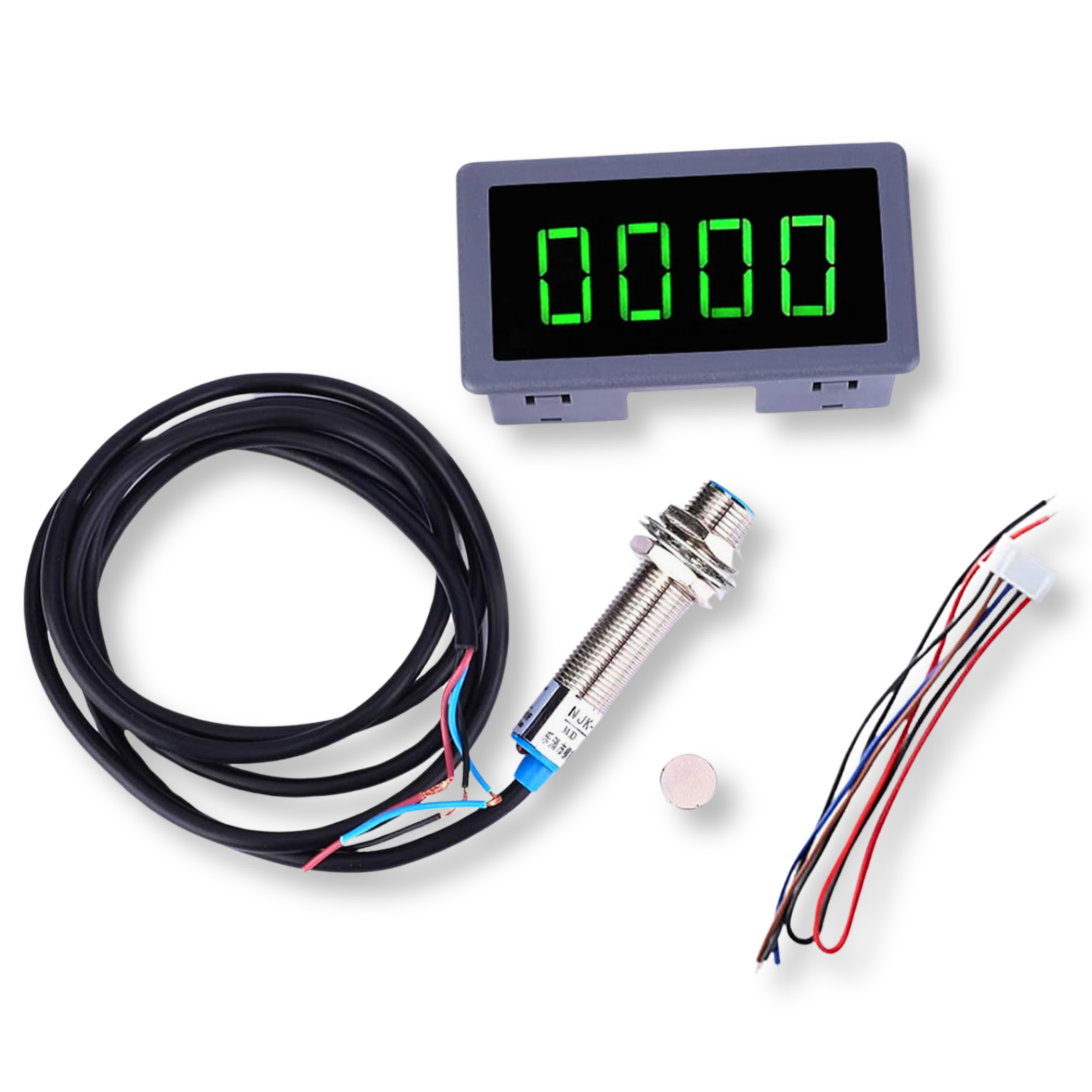

Digital tachometer for rotational speed measurement with green LED CF5135C-Z
The digital tachometer LED CF5135C-Z with a clear green display is an advanced device for precise measurement of rotational speed. The reading is shown in revolutions per minute (RPM). The device uses an NPN Hall effect sensor that works with a magnet mounted on the rotating element under test. The module is ideal for monitoring shafts, fans, and other rotating mechanisms. The product is an excellent addition to automation systems and projects, including ESP8266, ESP32, Arduino, and Raspberry Pi.
Key technical features
Connecting the tachometer is straightforward and requires correct wiring of the sensor and power supply. The sensor has three wires: black (output signal), brown (power +), and blue (power -). The display module itself is powered via: red (+) and black (-) wires. To ensure correct and stable readings, pay special attention to proper magnet placement relative to the sensor. If there is no signal from the inductive sensor, the display shows LLLL.
Specifications
- Display: Green LED 67 x 32 mm
- Sensor: NJK-5002C
- Magnetic sensor: M12 mm cylinder
- Sensing range: 10 mm
- Operating temperature: 0-50°C
- Power supply: DC 8-24V 40mA
- RPM measurement range: 10-9999 RPM
- Measurement accuracy: 0.1%
Example applications
- Monitoring spindle rotational speed in CNC machines and lathes
- Measuring rotation speed of industrial and household fans
- Monitoring drive shaft speed in vehicles and agricultural machinery
- Diagnostics of electric and internal combustion engines
- DIY projects and workshop automation systems
Benefits
- High readability thanks to the large green LED display
- Very high reading accuracy of 0.1%
- Wide supply voltage range from 8V to 24V DC, making integration with various systems easier
- Non-contact measurement with a reliable Hall sensor, minimizing mechanical wear
- Simple mounting and intuitive wiring thanks to clearly labelled leads
