Digital tachometer for speed + red LED CF5135C-Z
Availability:
duża ilość
Dispatched within:
1 day
Rating:
0
0
Vendor:
OEM
Description

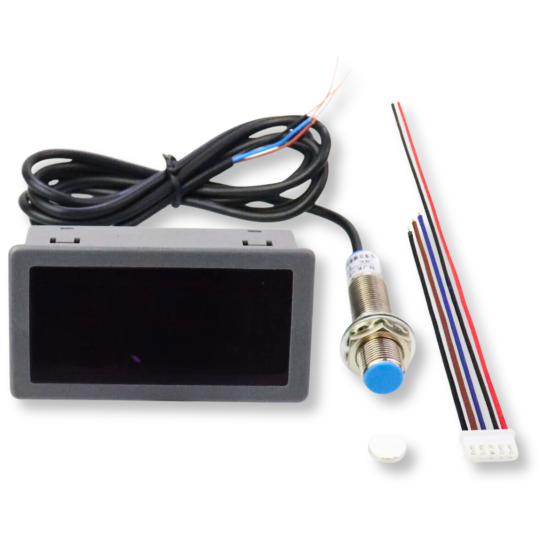

The digital tachometer is used to measure rotational speed and the result is displayed on a red LED display measuring 67 x 32 mm, in units of RPM (revolutions per minute). The device uses a Halla NPN sensor working with a magnet mounted on a rotating component. It is ideal for measuring the speed of shafts, fans and other rotating components. The meter is equipped with a NJK-5002C sensor, a magnetic cylinder with a diameter of 12 mm and a measuring range of 10 mm. It operates at temperatures from 0 to 50°C, and is powered by DC 8-24V at a consumption of 40mA. The measurement range is 10 to 9999 RPM and the measurement accuracy is 0.1%.
Specification:
- Display: Red LED 67 x 32mm
- Sensor NJK-5002C
- Magnetic sensor: M12mm cylinder
- Measuring range: 10mm
- Operating temperature: 0-50°C
- Power supply: DC 8-24V 40mA
- RPM measurement range: 10-99RPM
- Measurement accuracy: 0.1%
