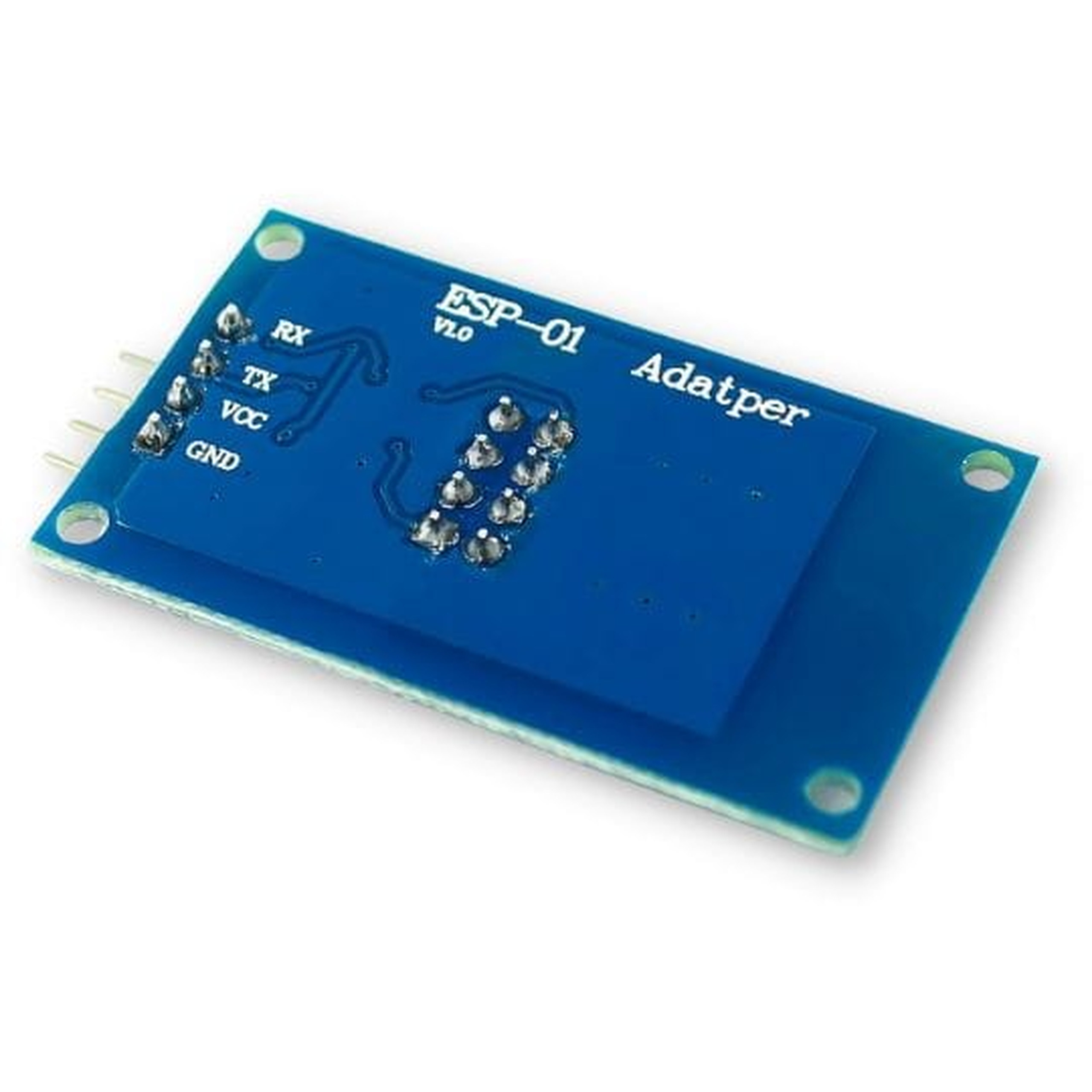

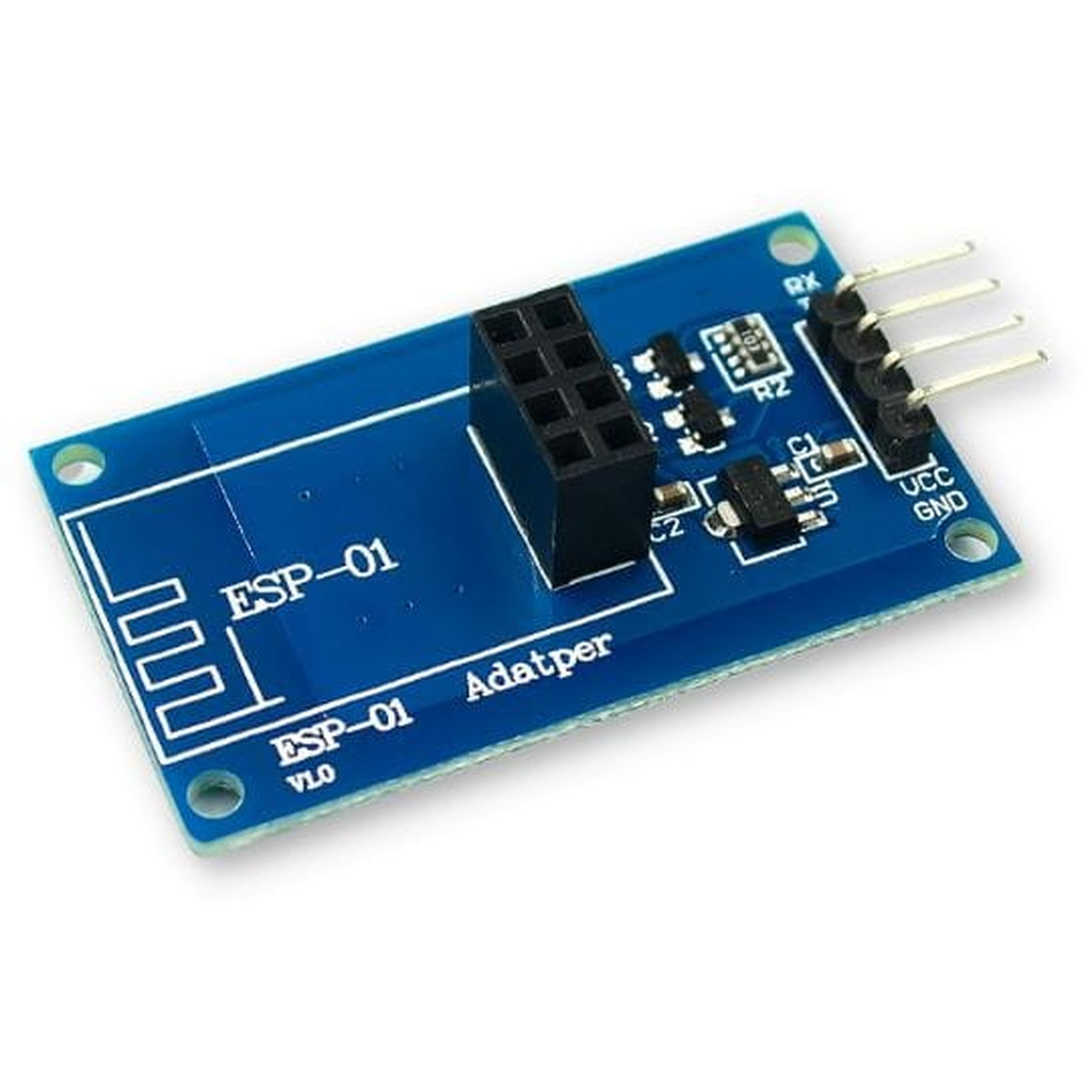

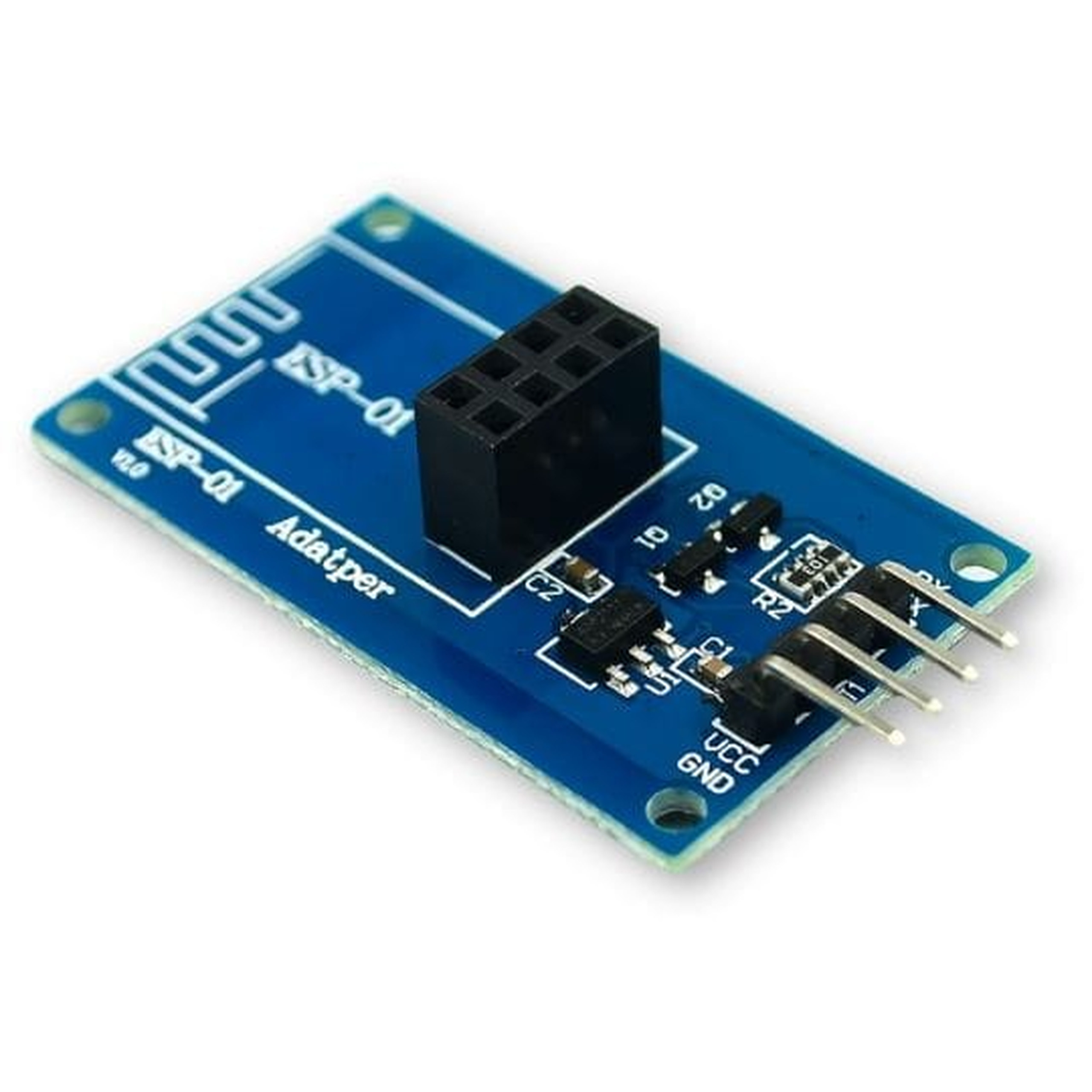

ESP-01 ESP-01S to ESP8266 adapter with 3.3-5V voltage regulator, 2.54 mm pitch

ESP-01 to ESP8266 adapter with voltage regulator

A convenient ESP8266 adapter designed for stable use with popular ESP-01 and ESP-01S modules. An excellent solution for microcontroller projects, including for ESP8266, for Arduino, and for Raspberry Pi.

The module has a built-in voltage regulator, so you can safely apply supply voltage in the range of 3.3V to 5V to the power pins. Standard TX and RX pins enable trouble-free communication with the module, while GND and VCC pins are used for power.

Key technical features

• Compatibility: ESP-01 and ESP-01S modules
• Integrated circuit: voltage regulator
• Allowed supply voltage: 3.3V - 5V
• UART interface pins: TX, RX
• Power pins: VCC, GND
• Standard pin pitch: 2.54 mm

Example applications

• Building network nodes in Internet of Things (IoT) systems
• Adding Wi-Fi wireless communication to Arduino
• Remote sensor readings and relay control
• Rapid prototyping of circuits based on ESP8266 microcontrollers
• Expanding Raspberry Pi projects with additional communication modules

Benefits

• Safe 5V connection without risking damage to the delicate ESP-01 module
• Instant mounting on breadboards thanks to 2.54 mm pitch pins
• Stable operation thanks to the built-in voltage regulator
• Simple, intuitive communication via standard TX and RX pins
• Compact size for easy placement of the adapter inside the target device enclosure
