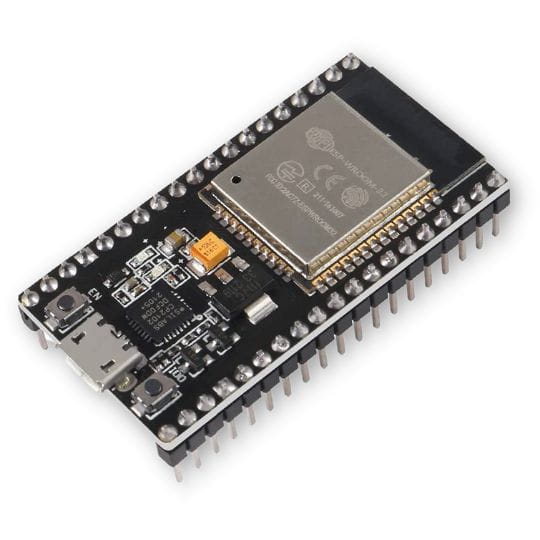

ESP-WROOM-32S CP2102 WiFi+Bluetooth microcontroller

Designed for efficient prototyping and testing, this prototyping board offers a rich set of connectors and interfaces, including GPIO, UART, SPI, I2C, ADC, DAC, PWM, I2S and more for easy integration with sensors, modules and peripherals.

Additionally, equipped with Ethernet, CAN and USB interfaces, it provides a simple network and computer connection, while built-in Wi-Fi and Bluetooth antennas enable seamless wireless connectivity.

Powered by micro-USB or an external 5V power source, the board is compatible with a number of programming languages such as C++, Python, JavaScript or Lua, allowing wide adaptation to a variety of projects.

Specification:.

• ESP-WROOM-32S microcontroller
• Supply voltage: 3.3 - 5 V
• Flash memory: 512 Kb
• Clock speed: 2.4 GHz
• WiFi standard: 802.11 b/g/n
• Bluetooth standard: v4.2, BLE, Dual Mode
• WiFi security: WEP, WPA / WPA2, PSK / Enterprise, AES / SHA2 / Elliptical Curve Cryptography / RSA-4096
• Converter: CP2102 - allows communication with the module and its programming via microUSB interface.
• Transmission band: 2.412 GHz to 2.484 GHz
• Connector: MicroUSB
• Buttons: Enable and Boot
• Connectors: Goldpin with a 2.54 mm raster, ideally suited to any contact board and most PCBs
• 38 GPIO leads
• 3x UART
• 3x SPI
• 2-channel DAC
• 12-channel ADC
• 2x I2C (2x I2S)
• PWM outputs
• SD card interface

Dimensions: 50 x 26 x 14 mm with connectors
