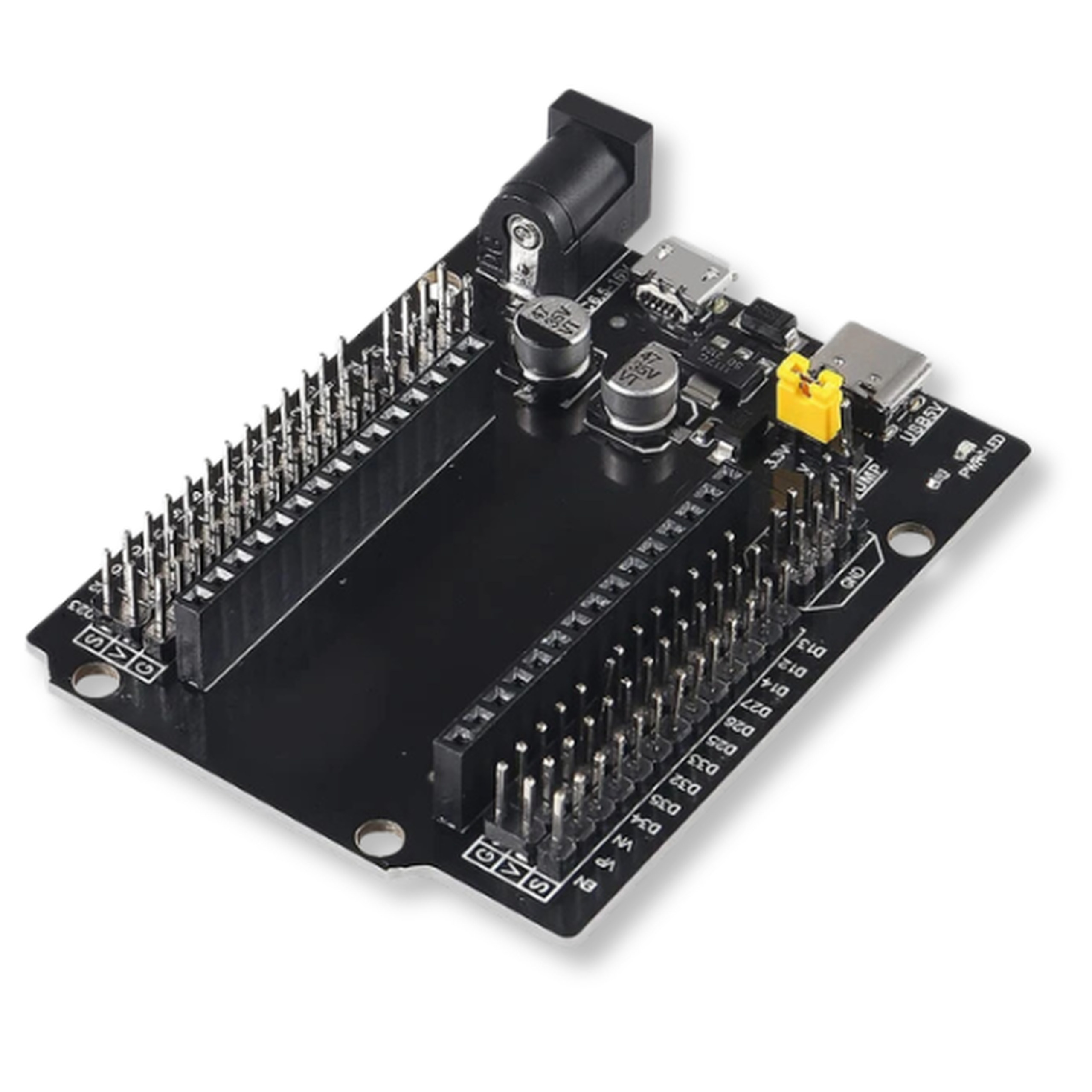

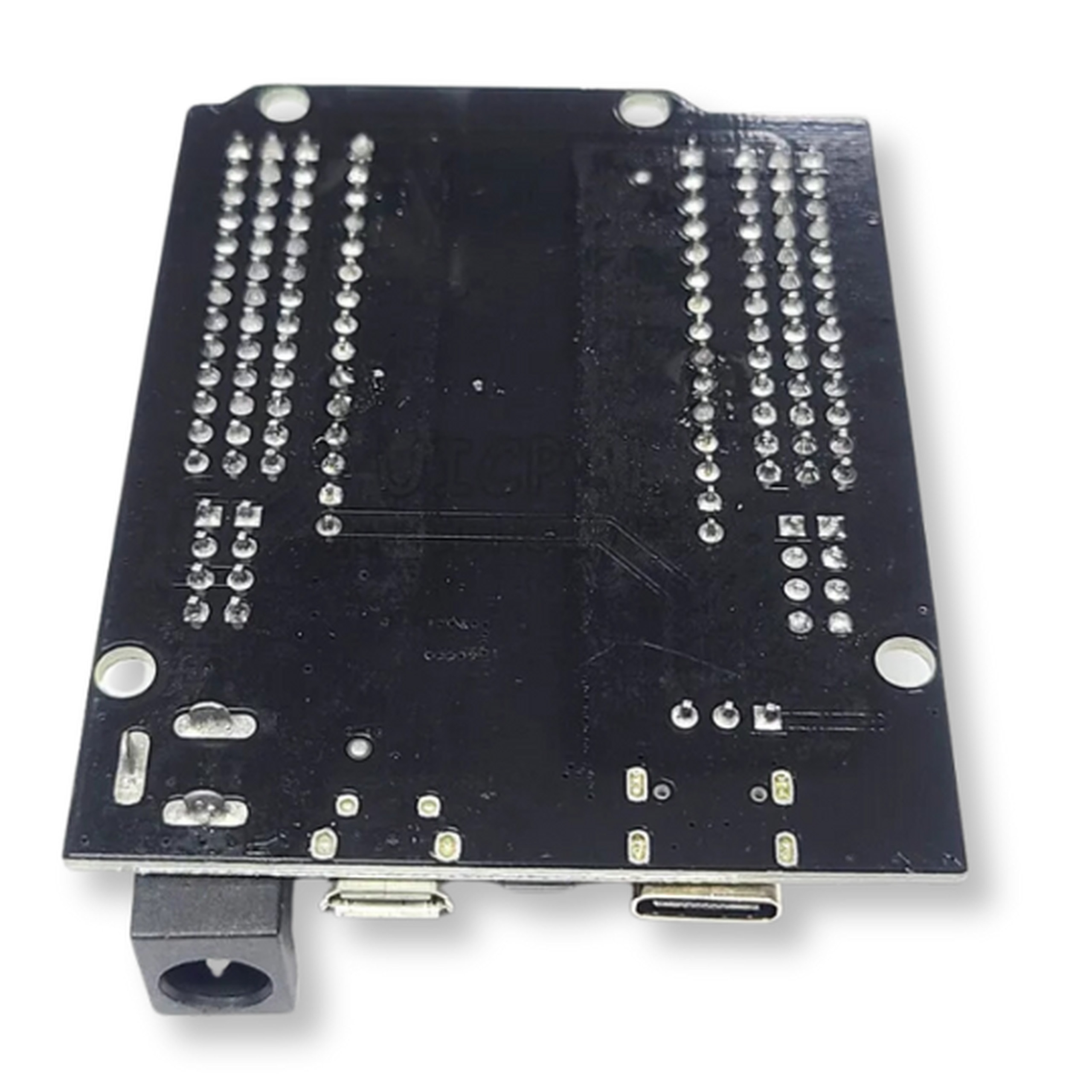

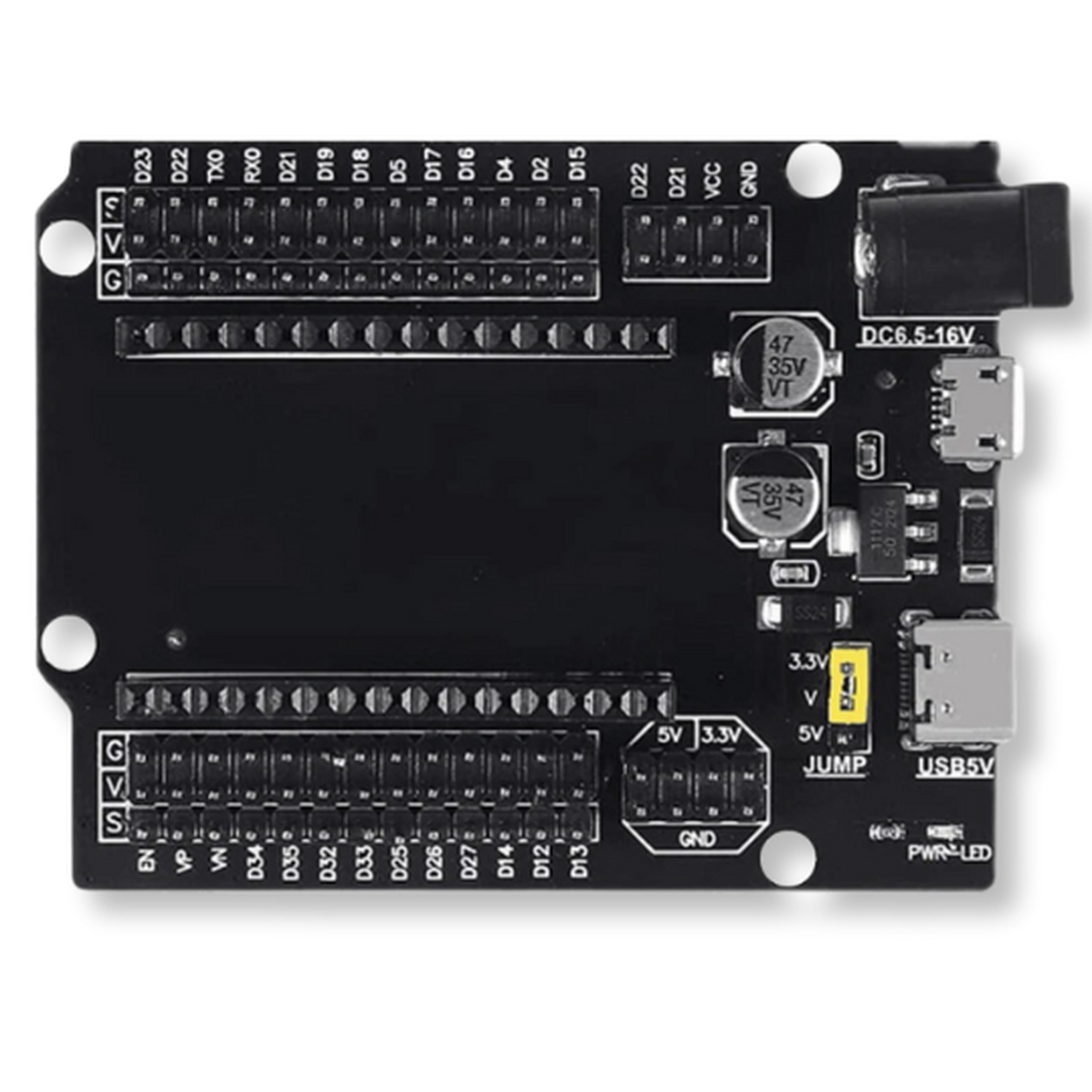

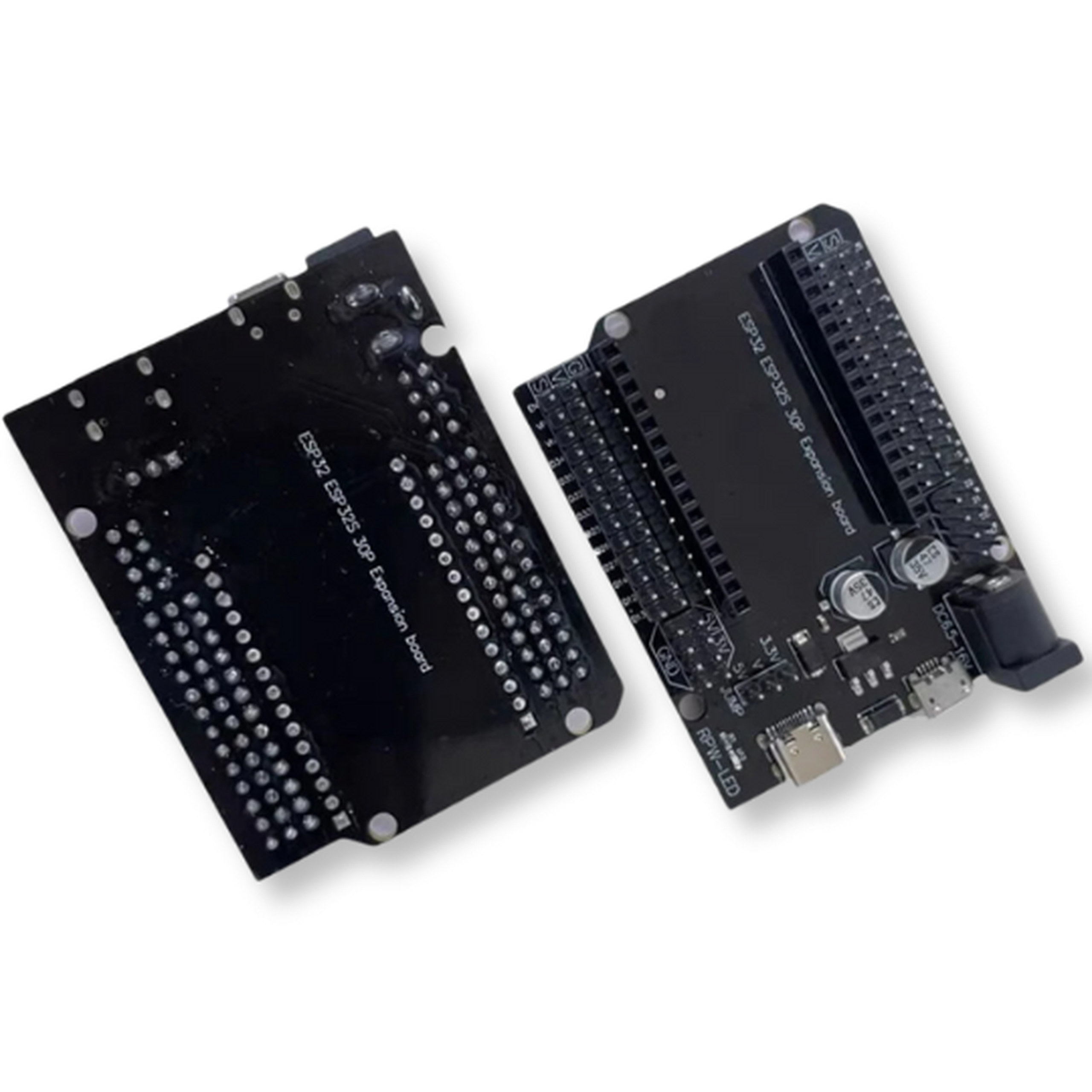

ESP32 30-pin adapter with USB-C, microUSB, and DC connectors for prototyping

ESP32 30-pin adapter with USB-C, microUSB, and DC connectors

Adapter for 30-pin ESP32 boards enables convenient prototyping with multiple power sources. This device greatly simplifies the use of 30-pin ESP32 boards in electronic projects. The adapter gives you flexibility and convenience when building circuits. The main advantage of this product is compatibility with various power sources, provided by three available connector types: USB-C, microUSB, and DC.

Key technical specifications

• DC connector supporting input voltage from 6.5V to 16V
• microUSB connector for powering the circuit
• USB-C connector as a modern power alternative
• 94 pins broken out in total
• VIN pin supplying power to the main ESP32 module
• Built-in LED indicating power presence
• Designed for ESP32 (30-pin version)

Example applications

• Prototyping Smart Home and IoT systems
• Building weather stations with various power options
• Educational projects and learning microcontroller programming
• Building automation systems requiring flexible power
• Quick testing of electronic circuits on breadboards

Benefits

• Significantly easier and faster prototyping
• Ability to choose the most convenient power source for your project
• Stable module mounting thanks to the dedicated socket
• Convenient access to all microcontroller pins
• Quick power verification thanks to the built-in indicator LED

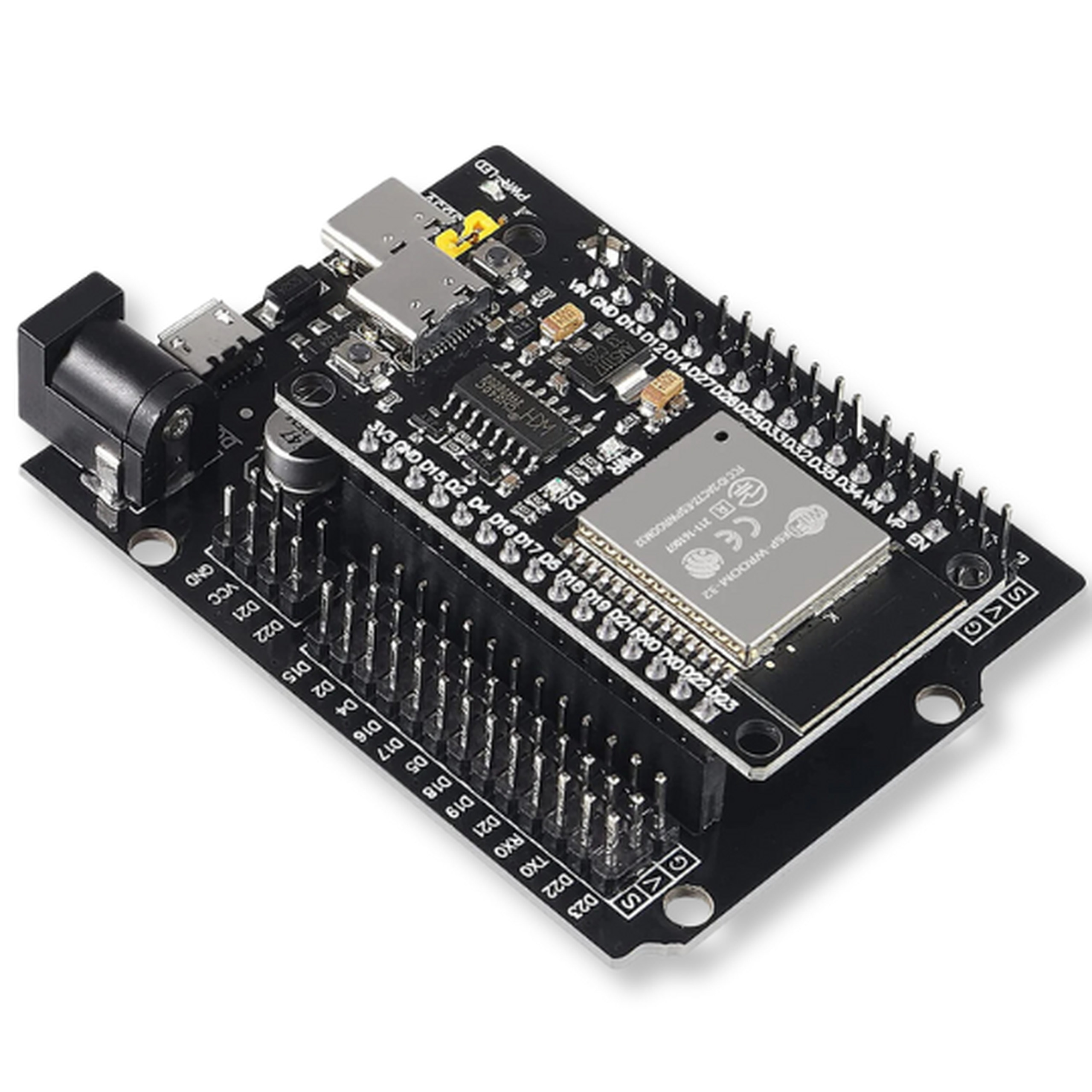

The ESP32 module shown in the photos is not included with the adapter. It is shown for illustration only to demonstrate how it fits in the socket.
