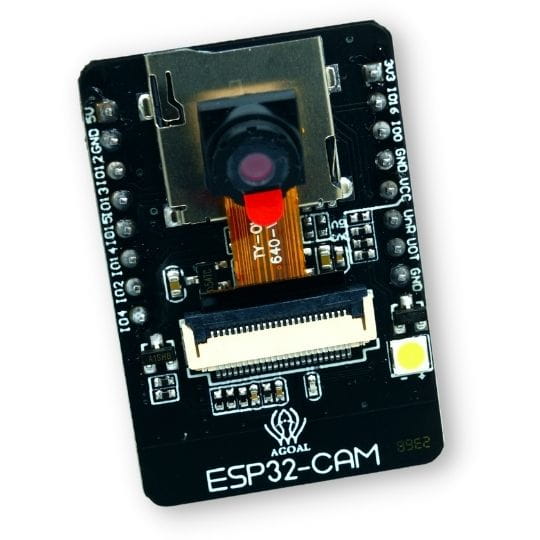

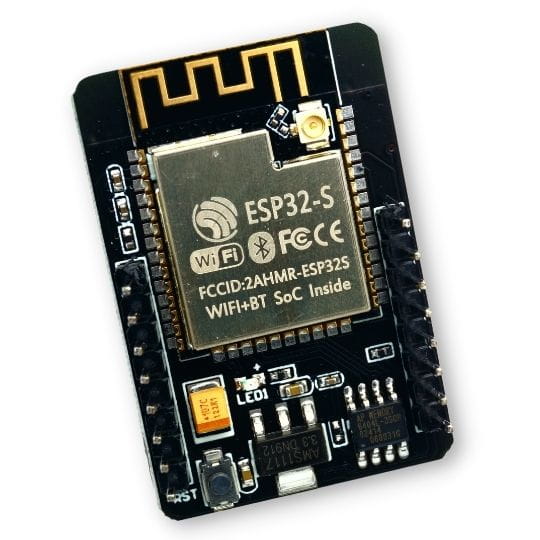

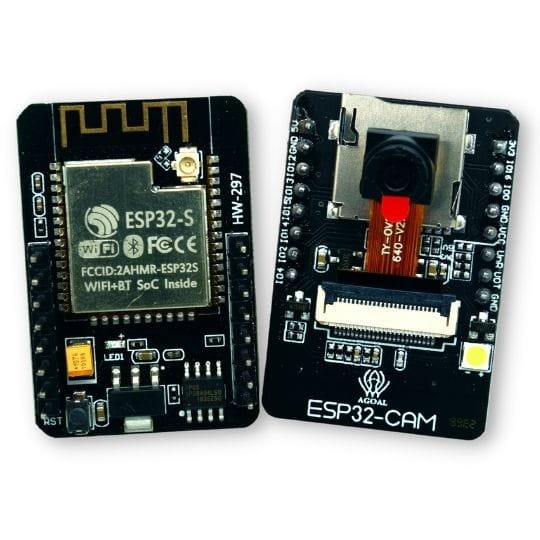

ESP32 CAM ESP-32S WiFi Microcontroller OV2640 Module
Availability:
brak towaru
Rating:
0
0
Vendor:
OEM
Description
The ESP32-CAM is a compact module with WiFi and a 2 MPx OV2640 camera, based on the ESP32-S chip. Due to its small size and low power consumption in sleep mode, it is ideal for IoT projects including smart home, industrial control or monitoring.
Included:
- Module ESP32-S
- MicroSD card reader
- Camera module OV2640
The module can be connected via Bluetooth or WiFi 2.4 GHz.
Due to its compact size, it is wonderfully suited to video monitoring and streaming.
The device enables, for example: car monitoring or the progress of 3D printing.
The module can be programmed via the Arduino IDE.
Specification:.
- 32-bit dual-core processor with a maximum clock speed of 160MHz
- 802.11b/g/n Wi-Fi Bluetooth SoC
- 520 KB SRAM
- 4 M PSRAM
- Supports UART/SPI/I2C/PWM/ADC/DAC
- Built-in FLASH LED for illumination
- TF/MicroSD card reader
- Multiple sleep modes
- Wi-Fi operating mode: STA/AP/STA+AP
- Smart Config / AirKiss
- Possibility of changing the firmware remotely
- OV2640 camera with a maximum resolution of up to 2 MPX.
- IPEX connector for connecting an external antenna
- Module reset button

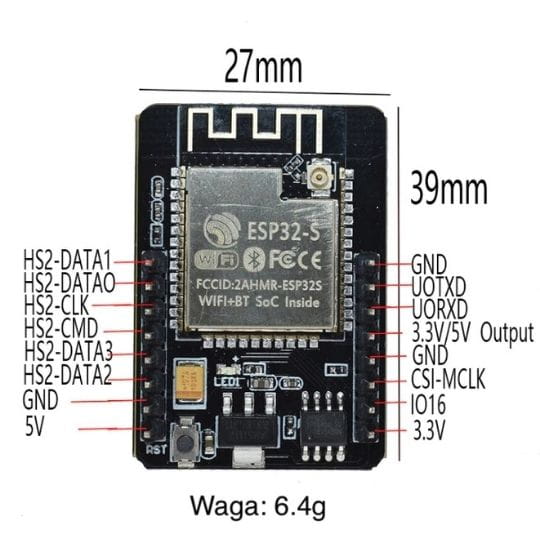

- Dimensions: 27 x 39 x 18 mm
For safety reasons, required during transport, the camera is removed from the plate.
