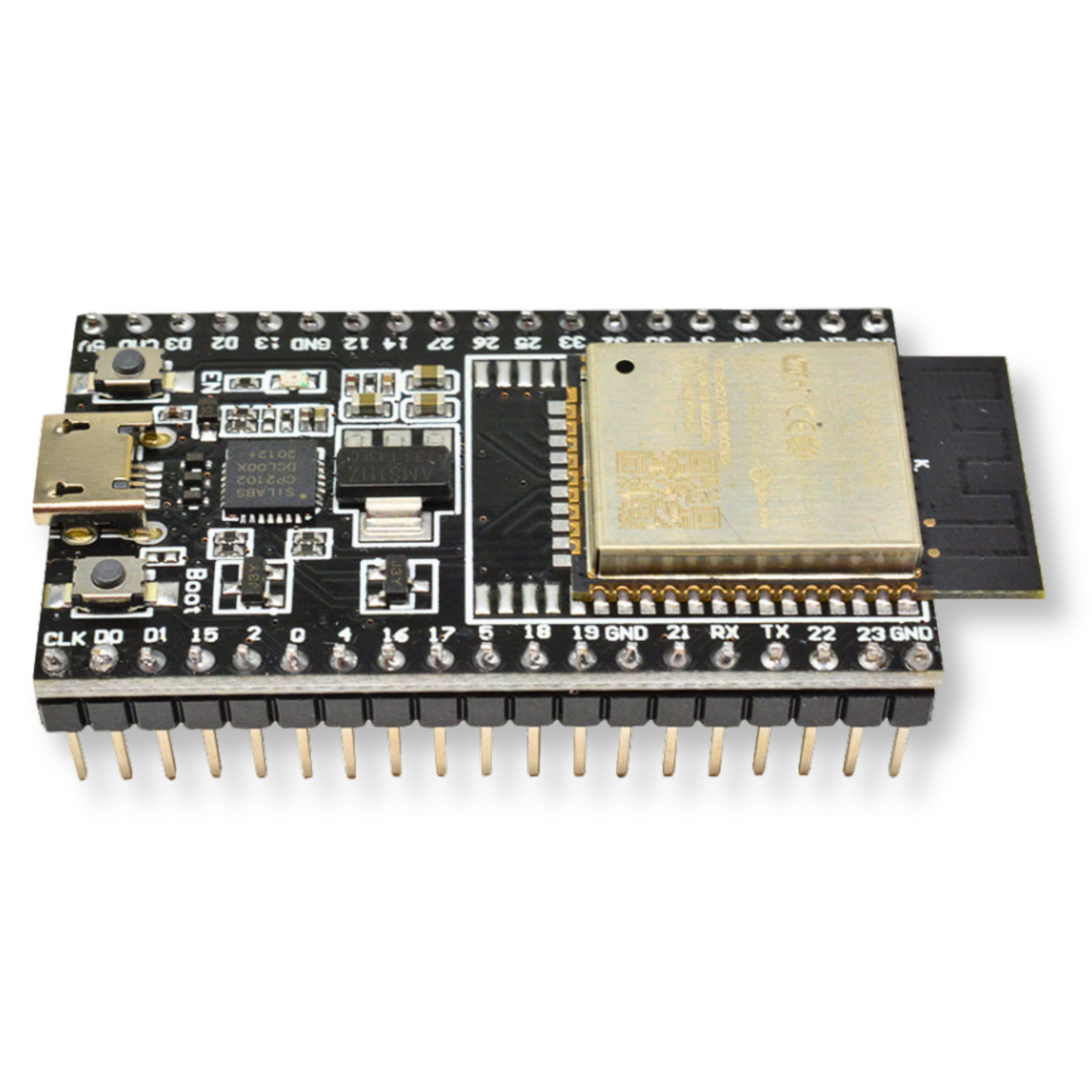

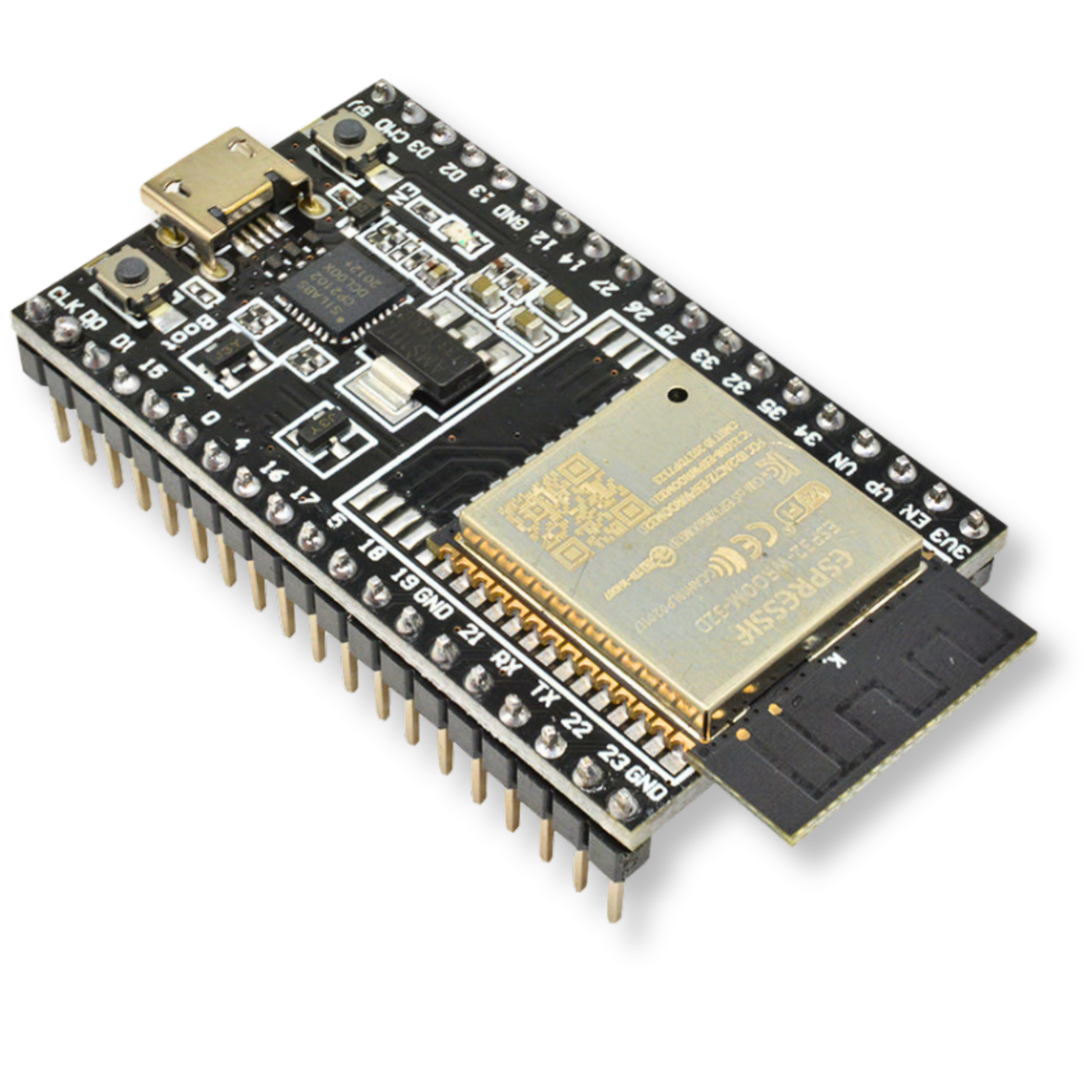

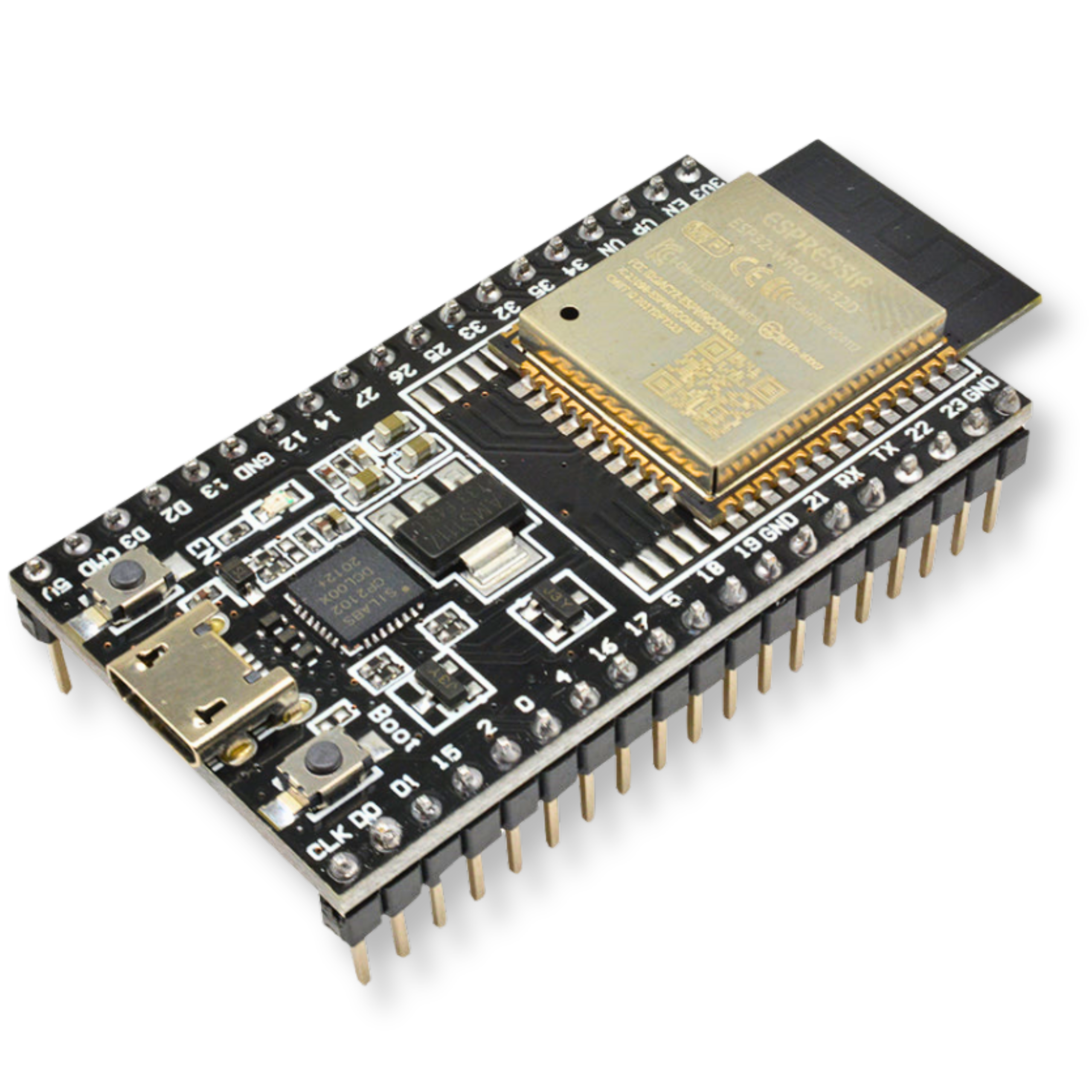

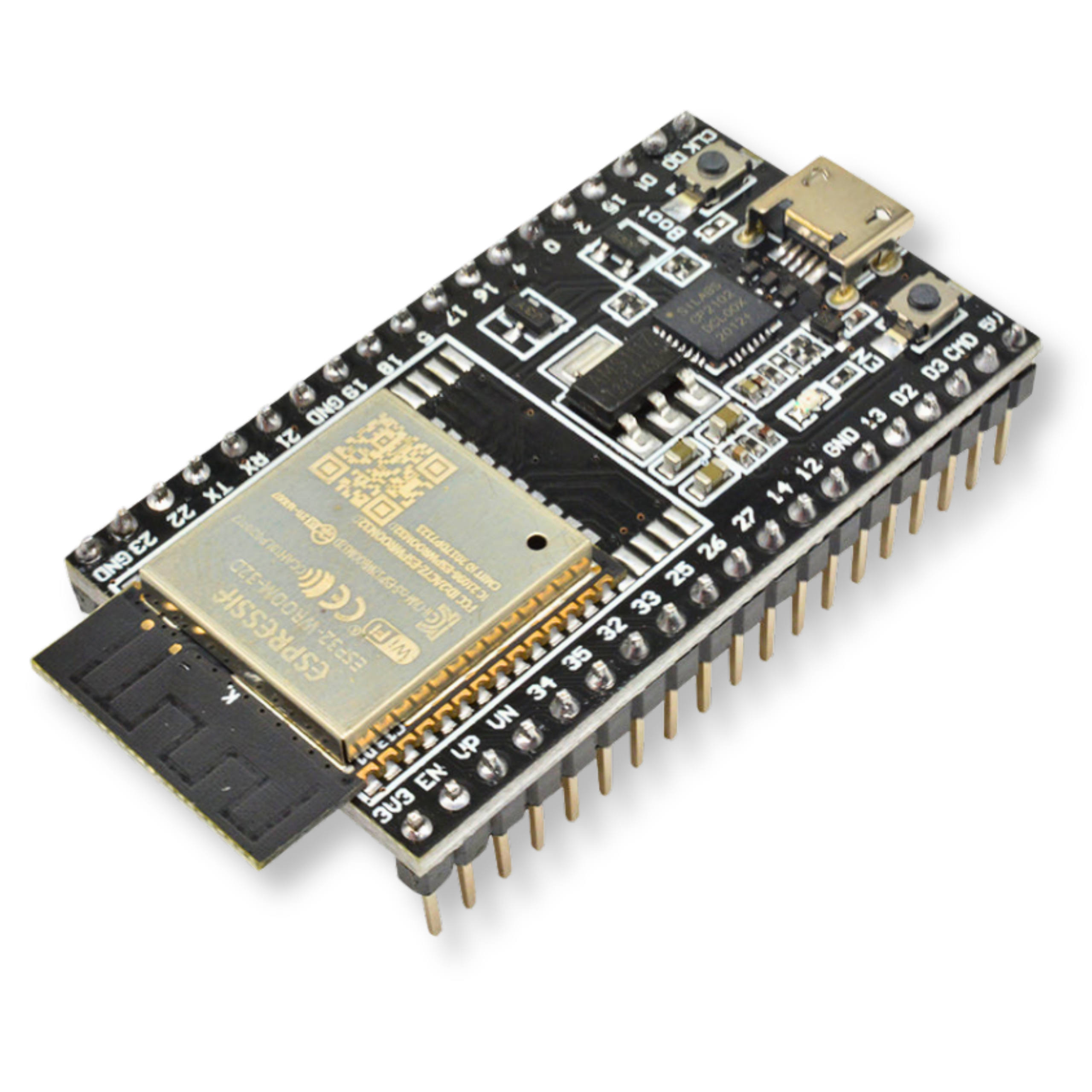

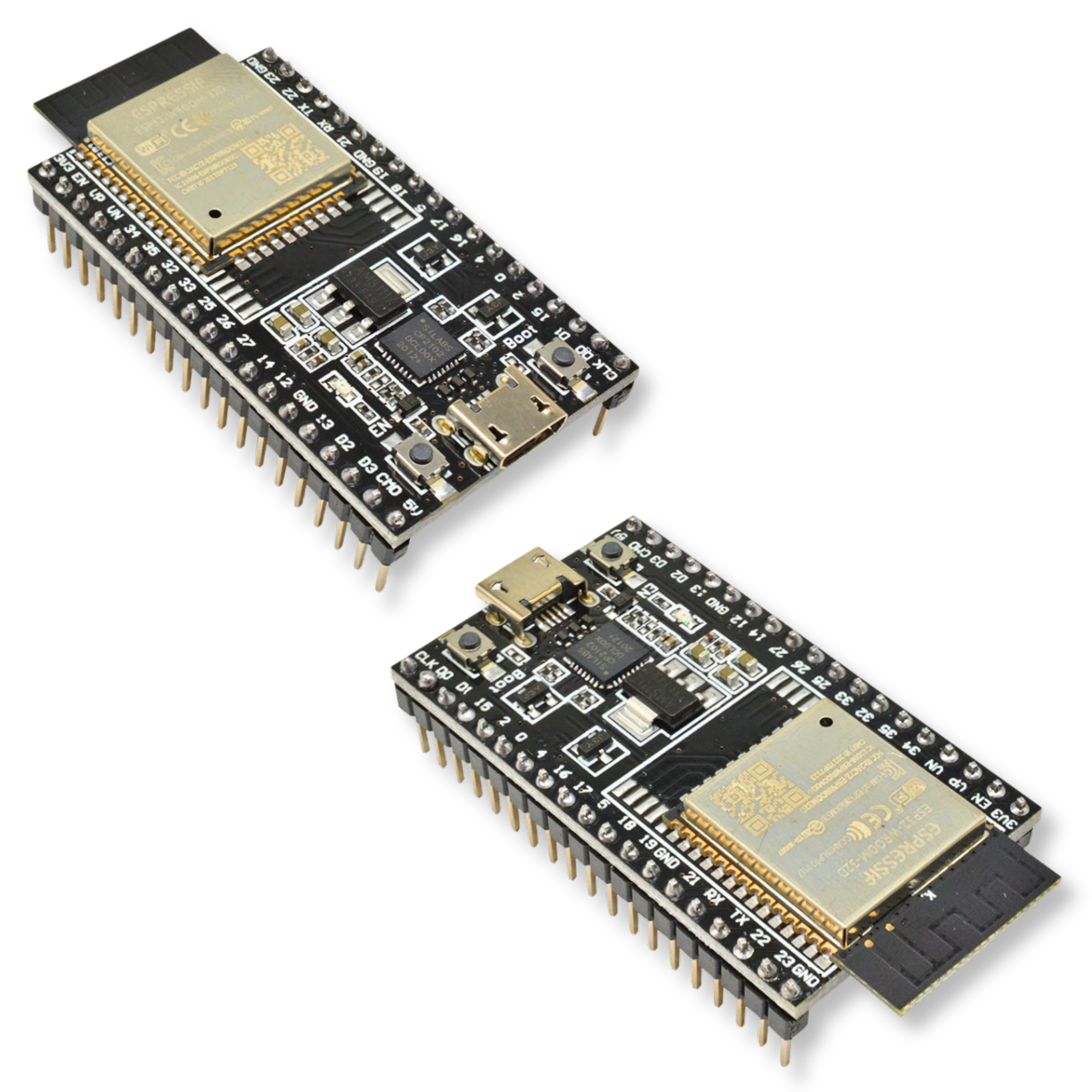

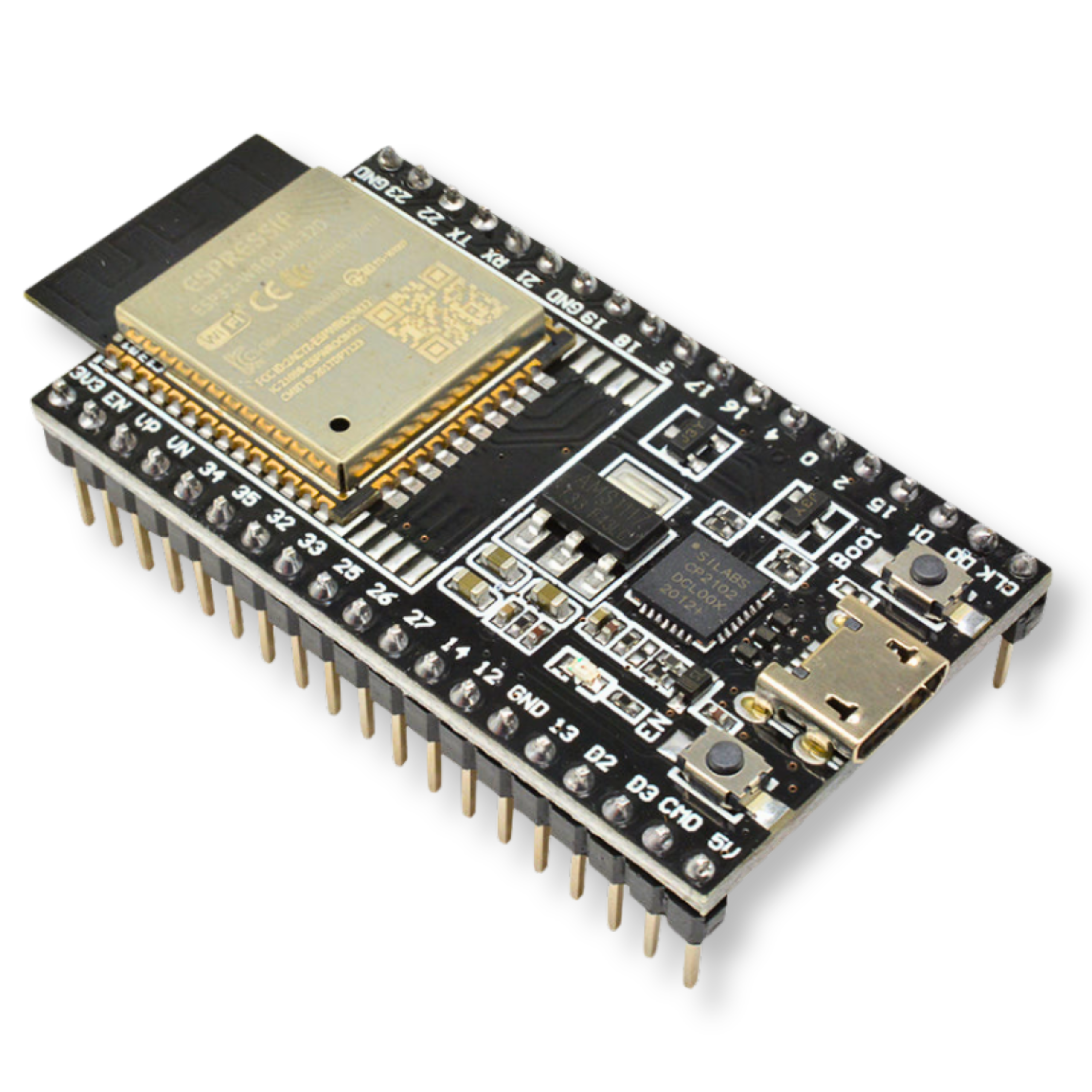

ESP32-DevKitCVE V4 ESP32-WROVER-E WiFi Bluetooth module ESP32 38 PIN 240 MHz

The module contains a Dual Core Xtensa 32-bit LX6 microcontroller that operates in the frequency rangefrom 80 to 240 MHz, providing high performance at 5V supply voltage. The maximum voltage on the I/O port is 3.3V, ensuring compatibility with most commonly used sensors and peripherals. The module is equipped with 520 kB of SRAM and 8 MB of Flash memory for advanced data processing and storage. The built-in WiFi 802.11 b/g/n chip supports security features such as WEP, WPA/WPA2, PSK/Enterprise, AES, SHA2, ECC and RSA-4096, ensuring secure wireless communication. In addition, the module features Bluetooth BLE and the USB-UART converter CP2102, which enables easy programming and communication via the microUSB connector. The dimensions of the module are 55mm x 28.5mm, making it ideal for IoT projects that require a compact solution.

Specification:

• Supply voltage: 5V
• Microcontroller: Dual Core Xtensa@ 32-bit LX6
• CPU clock: 80 - 240 MHz
• Max voltage on I/O port: 3.3V
• SRAM: 520 kB
• Flash memory: 8 MB
• Built-in WiFi 802.11 b/g/n
• WiFi security: WEP, WPA/WPA2, PSK/Enterprise, AES / SHA2 / Elliptical Curve Cryptography / RSA-4096
• Built-in Bluetooth BLE
• Built-in USB-UART converter CP2102, allows communication with the module and its programming via microUSB connector.
• Dimensions: 55mm x 28.5mm
