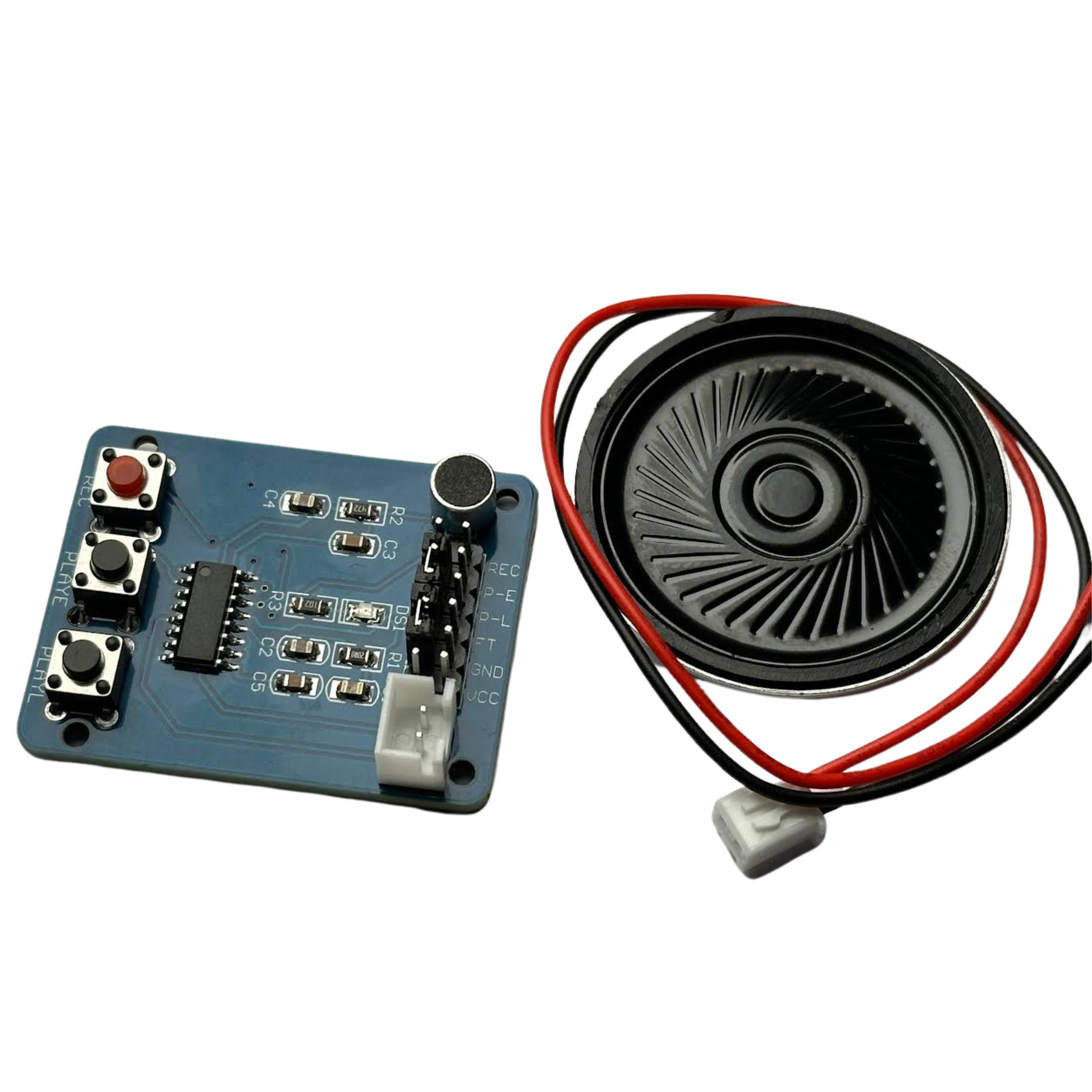

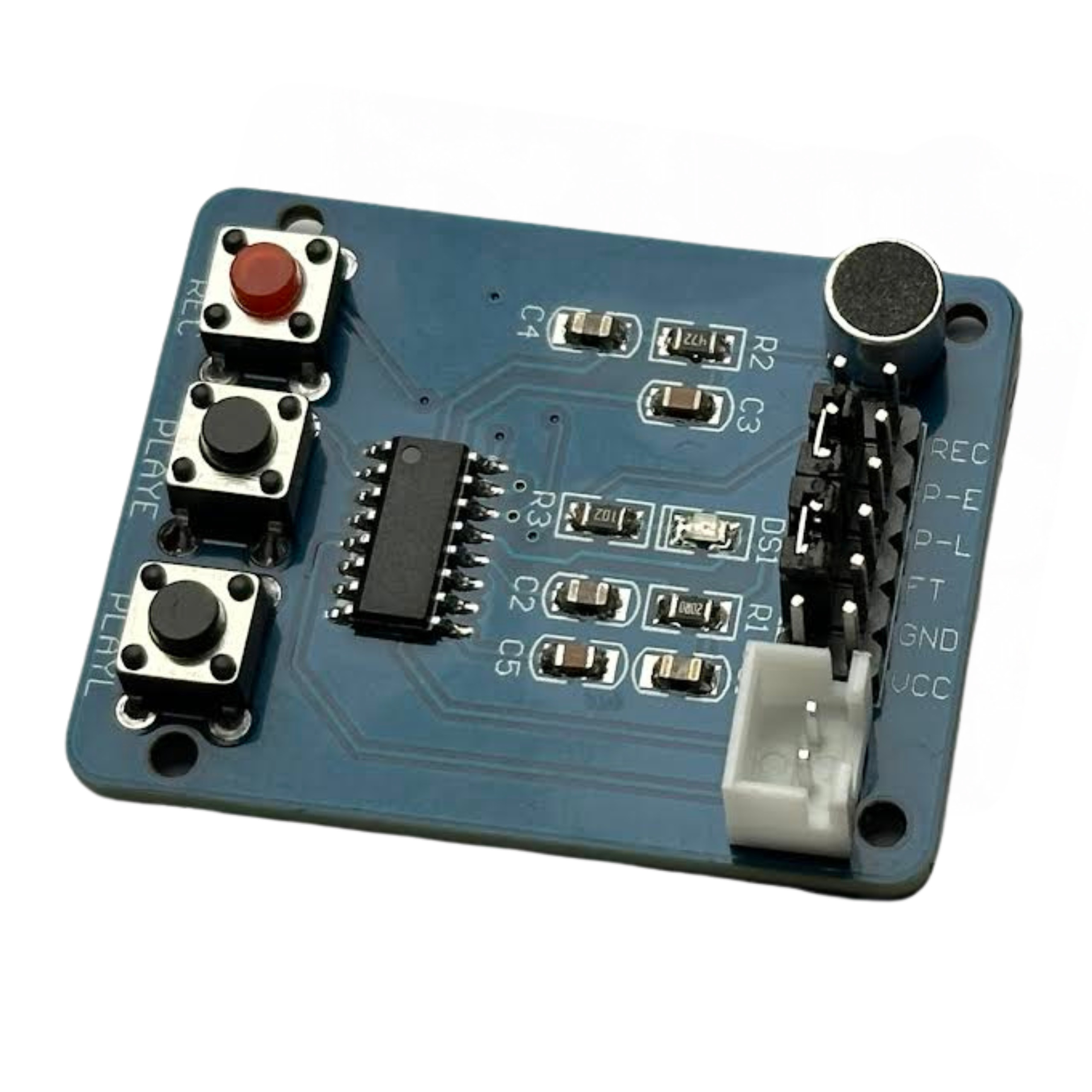

ISD1820 sound recording and playback module with speaker and microphone

ISD1820 sound recording and playback module with speaker and microphone for ESP8266, ESP32, Arduino, and Raspberry Pi

The ISD1820 module is a versatile circuit for easy sound recording and playback. By default it offers memory for up to about 11 seconds of audio. Thanks to the onboard buttons, the module can work fully standalone, but it also works well when controlled by a microcontroller. The integrated microphone lets you capture sound without external sources, and recordings are safely stored in non-volatile memory even after power is removed.

The device offers flexible playback modes. Pressing the PLAYE button plays the entire stored message. The PLAYL button plays audio for as long as it remains pressed. In addition, by setting the jumper on the board appropriately, you can enable continuous loop playback of the message.

Key technical specifications

• Supply voltage: from 3V to 5V
• Built-in microphone for direct recording
• Maximum recording length: up to about 11 seconds
• Can be controlled by an external microcontroller
• Speaker output with 8 Ohm impedance
• Integrated 0.5W audio amplifier
• Compact size: 39mm x 42mm

Example applications

• Interactive toys and sound gadgets
• Voice notification and alarm systems in DIY projects
• Models and mock-ups that need sound effects
• Simple voice recorders and memo devices
• Home automation with voice announcements

Benefits

• Easy to use - can run without a microcontroller thanks to onboard buttons
• Complete solution - integrated microphone and speaker amplifier on one board
• Data retention - recordings kept in memory after power loss
• Versatility - wide 3V to 5V supply range simplifies integration
• Compact - small footprint for tight spaces
