LED module, 24 WS2812 5050 LEDs, luminous ring RING - 5 V, 86 mm, for Arduino

Product description

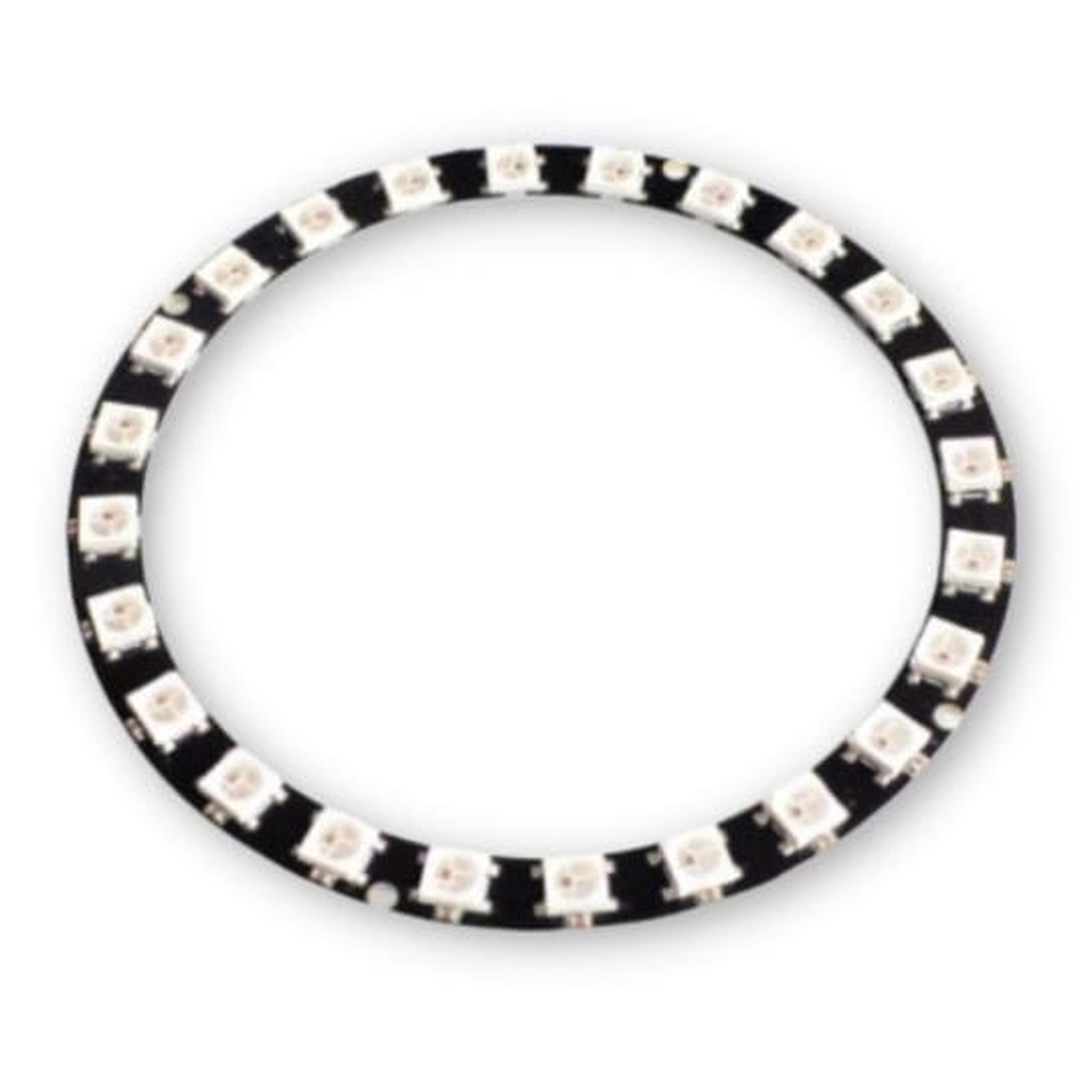

24 LED RING is a professional module with LEDs arranged in a circle with a diameter of 86 mm. The product is fully compatible with popular microcontroller platforms such as Arduino, Raspberry Pi, ESP8266, and ESP32.

Each of the 24 RGB LEDs in the standard 5050 (PLLC-4) package is individually driven by an integrated WS2812 controller. The module features a wide supply voltage range from 4V to 7V and a maximum current draw of up to 60mA per LED. Each primary color (R, G, B) offers precise control thanks to 256 brightness levels. The ring PCB is made in black and includes convenient built-in solder pads.

Key technical specifications

• Supply voltage: 5V DC (operating range from 4V to 7V)
• Current draw: up to 60mA per LED
• Light source: 24 RGB LEDs with WS2812 driver
• Ring and PCB color: black
• Connectors: built-in solder pads for easier assembly
• Outer dimensions: diameter 90mm
• Inner dimensions: diameter 74.5mm
• Mounting hole spacing: 53mm x 69mm

Dimensions may vary slightly depending on the batch supplied by the manufacturer.

Example applications

• Creating striking lighting effects in wearable electronics and DIY projects
• Building interactive spectrum clocks and circular parameter indicators
• Decorative and signalling lighting in robotics and modelling
• Visual status indication in prototype electronic devices
• Advanced lighting elements in Smart Home and IoT projects

Benefits

• Ability to achieve any color from the RGB palette for each of the 24 LEDs independently
• High brightness with optimal and predictable current draw
• Very simple cascade control using only one microcontroller pin
• Easy and durable assembly thanks to factory-prepared solder pads and holes
• Wide availability of free software libraries for a quick start
