LED module, 8 WS2812 5050 LEDs, illuminated strip - 5 V, 56×10 mm, Arduino

RGB strip 8 x LED WS2812 5050 - for Arduino, for ESP8266, for ESP32, for Raspberry Pi

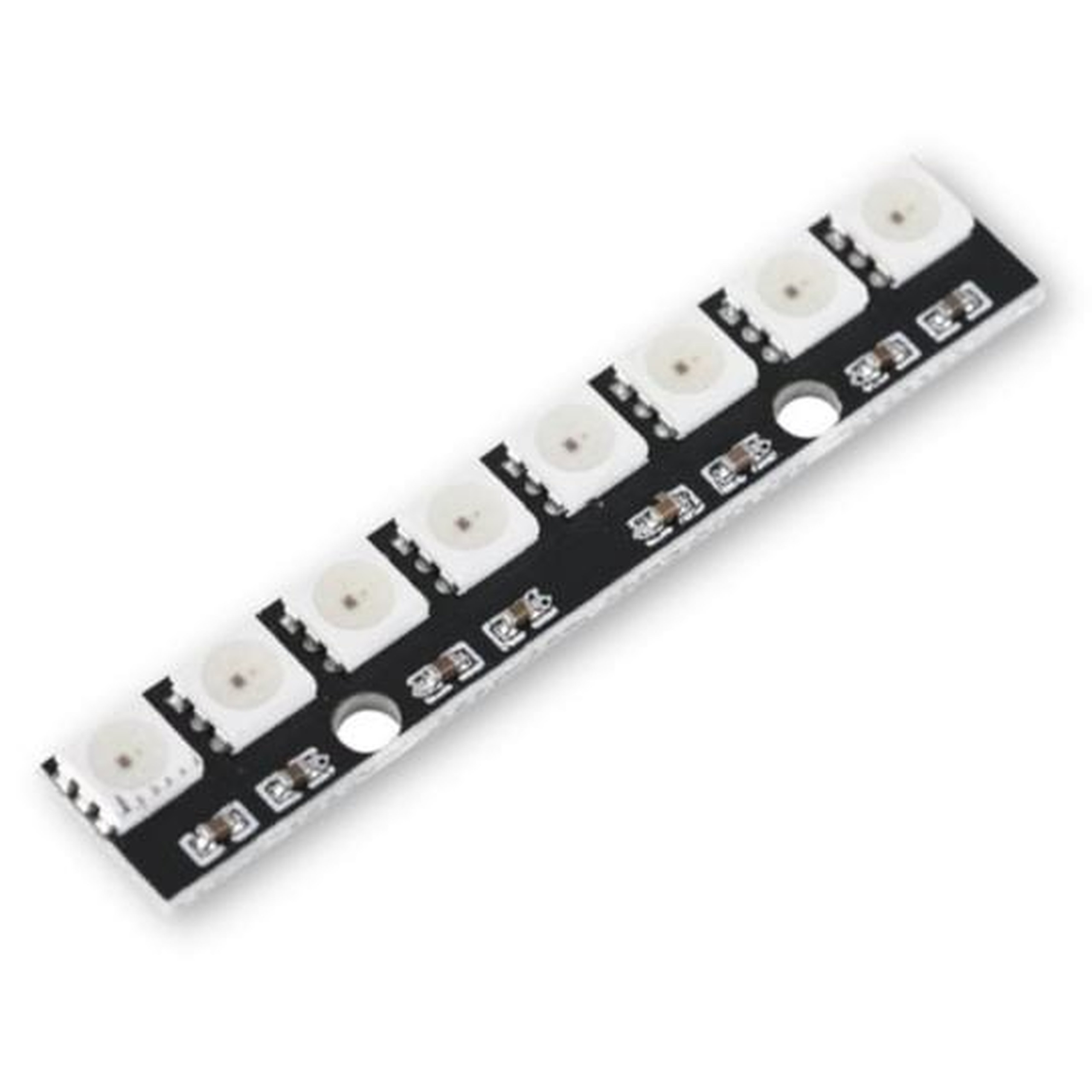

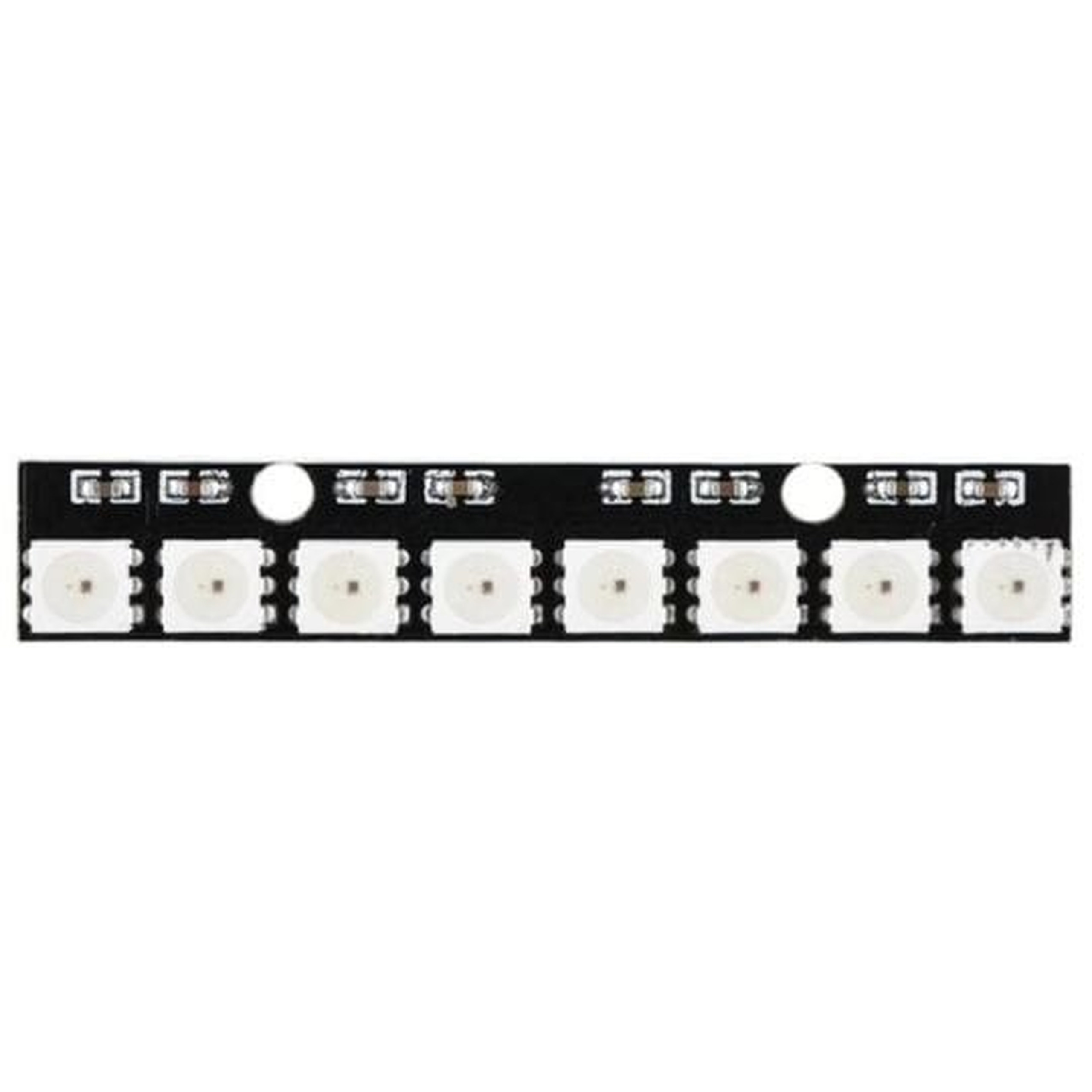

The strip consists of 8 individually addressable RGB LED diodes with an integrated driver. It can be controlled by most microcontrollers - for Arduino, for ESP8266, for ESP32, for Raspberry Pi. The LEDs on the 53 mm long strip are evenly spaced. Total current draw for all LEDs is about 160 mA. The module is powered by a voltage in the range of 4 V to 7 V.

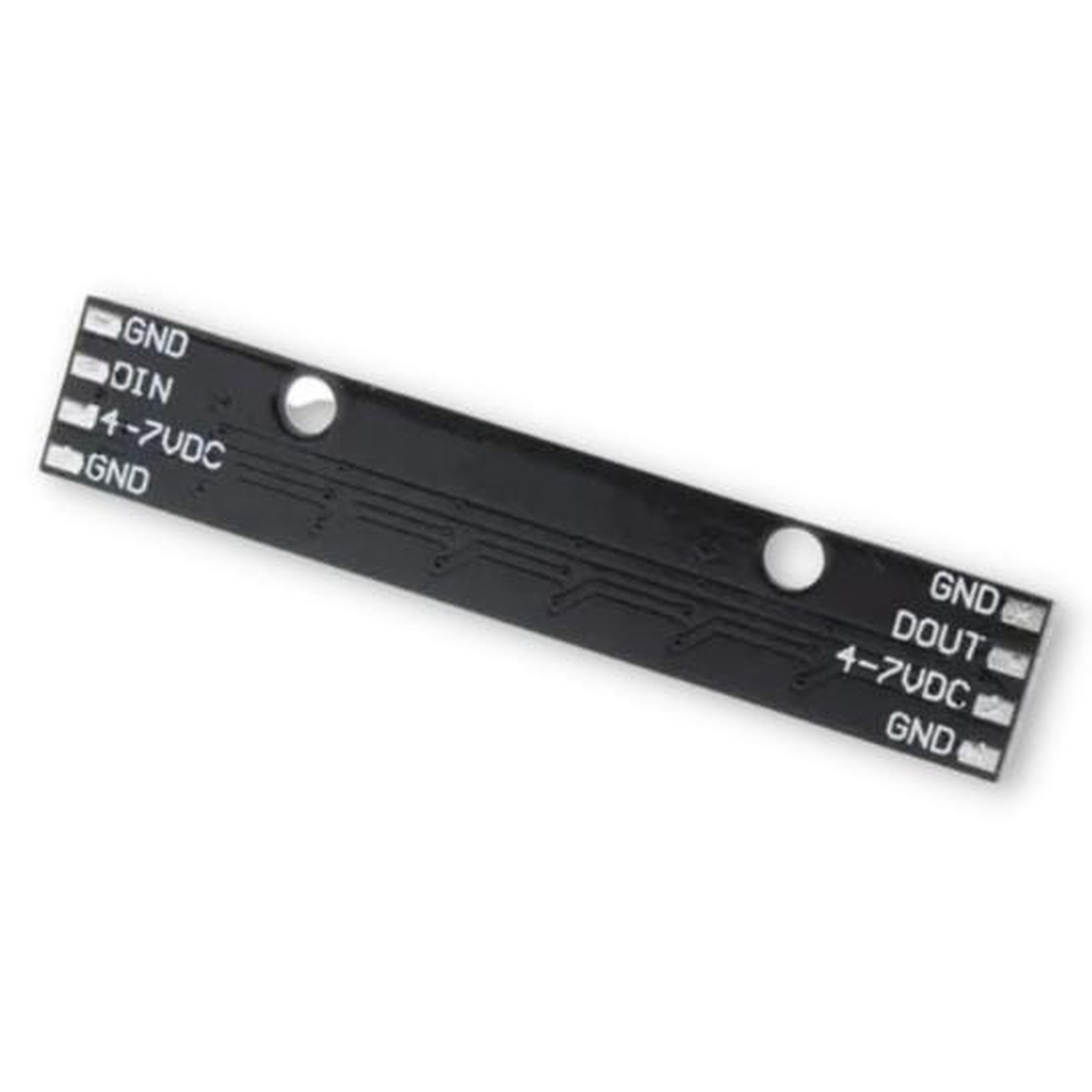

Thanks to the communication protocol used, serial connection of additional modules is possible. The next lighting element connects to the output connector by wiring the power and signal pins DOUT to DIN accordingly.

Key technical specifications

• Supply voltage: 4 V to 7 V
• Current draw: about 20 mA per LED
• Number of LEDs: 8
• Strip dimensions: 53 x 10 mm
• LED type: RGB LED WS2812 5050

Example applications

• Lighting projects using microcontrollers
• Status indicators for electronic devices
• Decorative elements in robotics and modeling
• Displays and simple LED light matrices
• Visual notification systems in electronic projects

Benefits

• Individual addressing - independent control of color and brightness for each LED
• Easy expansion - option to cascade multiple modules into longer chains
• Versatility - full compatibility with popular development platforms
• Compact size - small board that is easy to mount in tight spaces
• Simple control - communication over a single data line
