Description

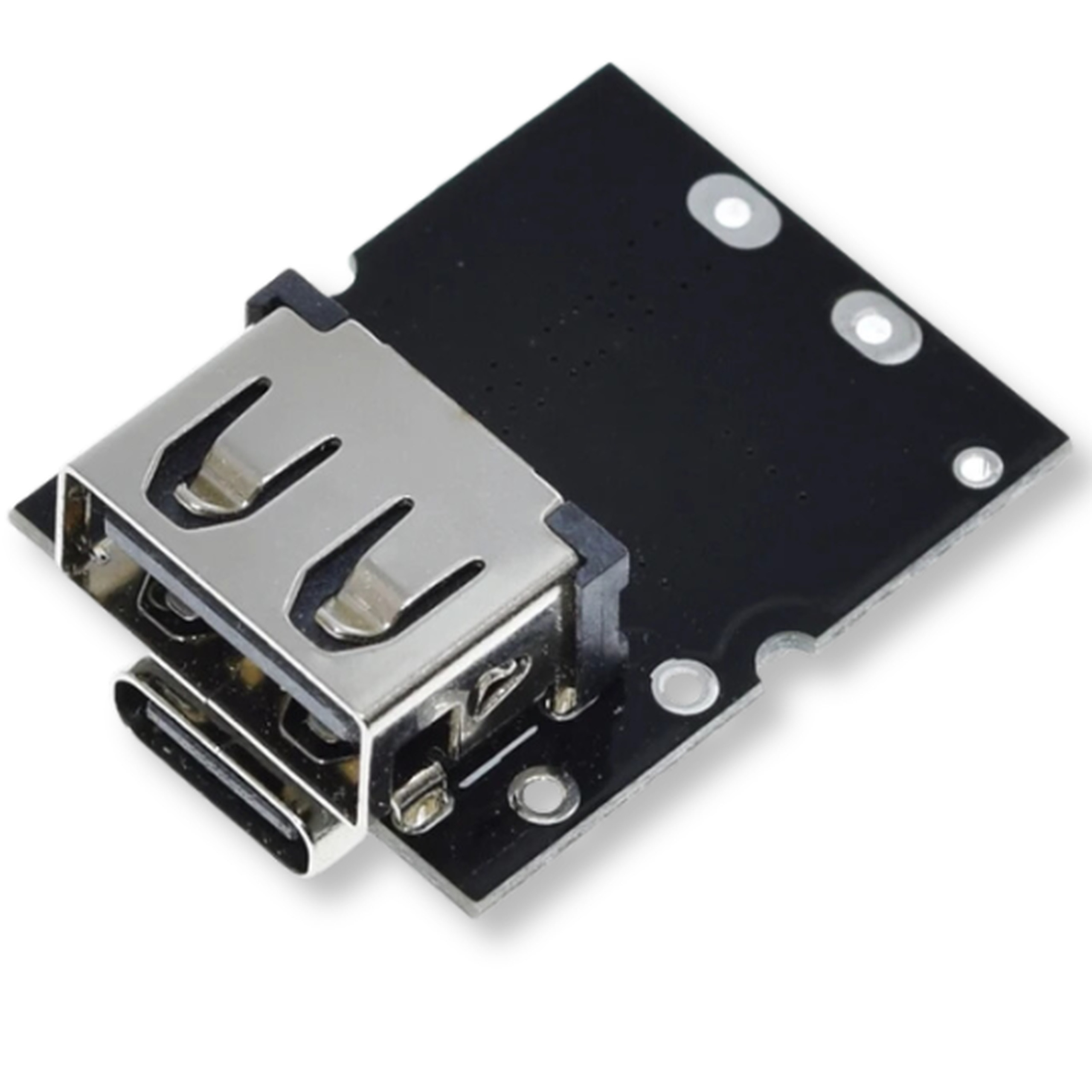

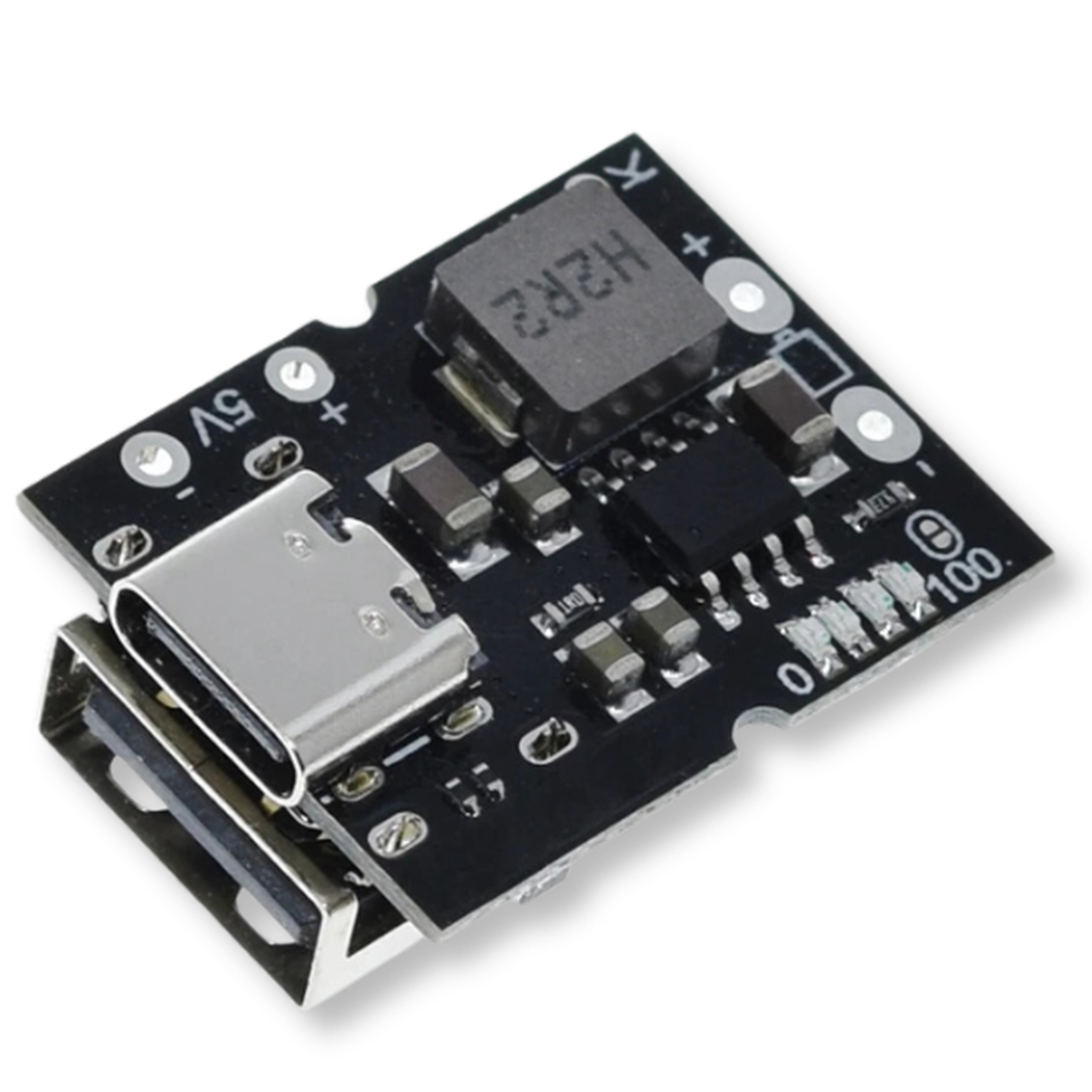

Li-ion TP4056 USB-C 5V 2A 10W Charger with Step-Up DC/DC Converter 18650

A compact Li-ion TP4056 charger module integrated with a Step-Up DC/DC converter. The circuit is designed for Li-Ion and Li-Po batteries (including popular 18650 cells). The module supports charging and discharging with a maximum current of 2A.

The circuit is powered at 5V via a modern USB-C connector. Discharging and powering external devices is handled through a standard USB-A port. Built-in LEDs indicate operating status and charge level.

Key technical specifications

  • Input voltage: from 5.0 V to 5.5 V
  • Output voltage: from 5.0 V to 5.15 V
  • Charging IC: TP4056 - ensuring safe charging
  • Connectors: USB-C input and USB-A output (factory soldered)
  • Maximum charge and discharge current: 2A
  • Maximum power: 10W
  • Built-in Step-Up converter: boosting voltage to the required levels
  • Compact dimensions: 25 x 20 mm

Example applications

  • Building portable power banks
  • Powering DIY electronics projects
  • Charging single 18650 cells and Li-Po packs
  • Upgrading battery-powered devices to rechargeable power
  • Creating emergency power systems for small electronics

Benefits

  • Versatile connectivity thanks to widely used USB-C and USB-A standards
  • High current capability of 2A for fast charging
  • Space saving in enclosures thanks to miniature 25 x 20 mm size
  • Ready to use straight out of the box thanks to factory-soldered connectors
  • Cell safety ensured by the proven and reliable TP4056 IC
