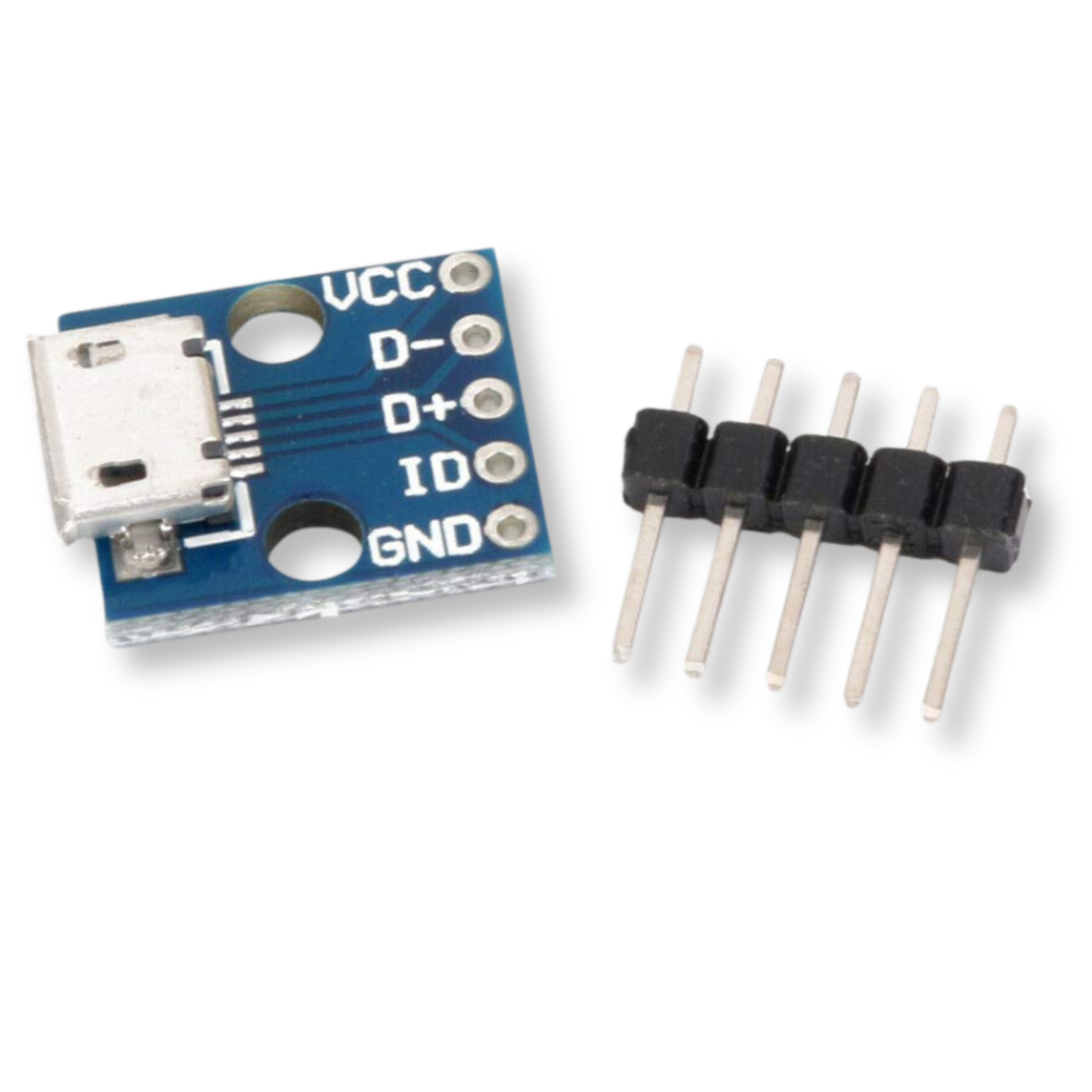

Micro USB 5 Pin socket soldered to PCB + 2.54 mm pin header strip

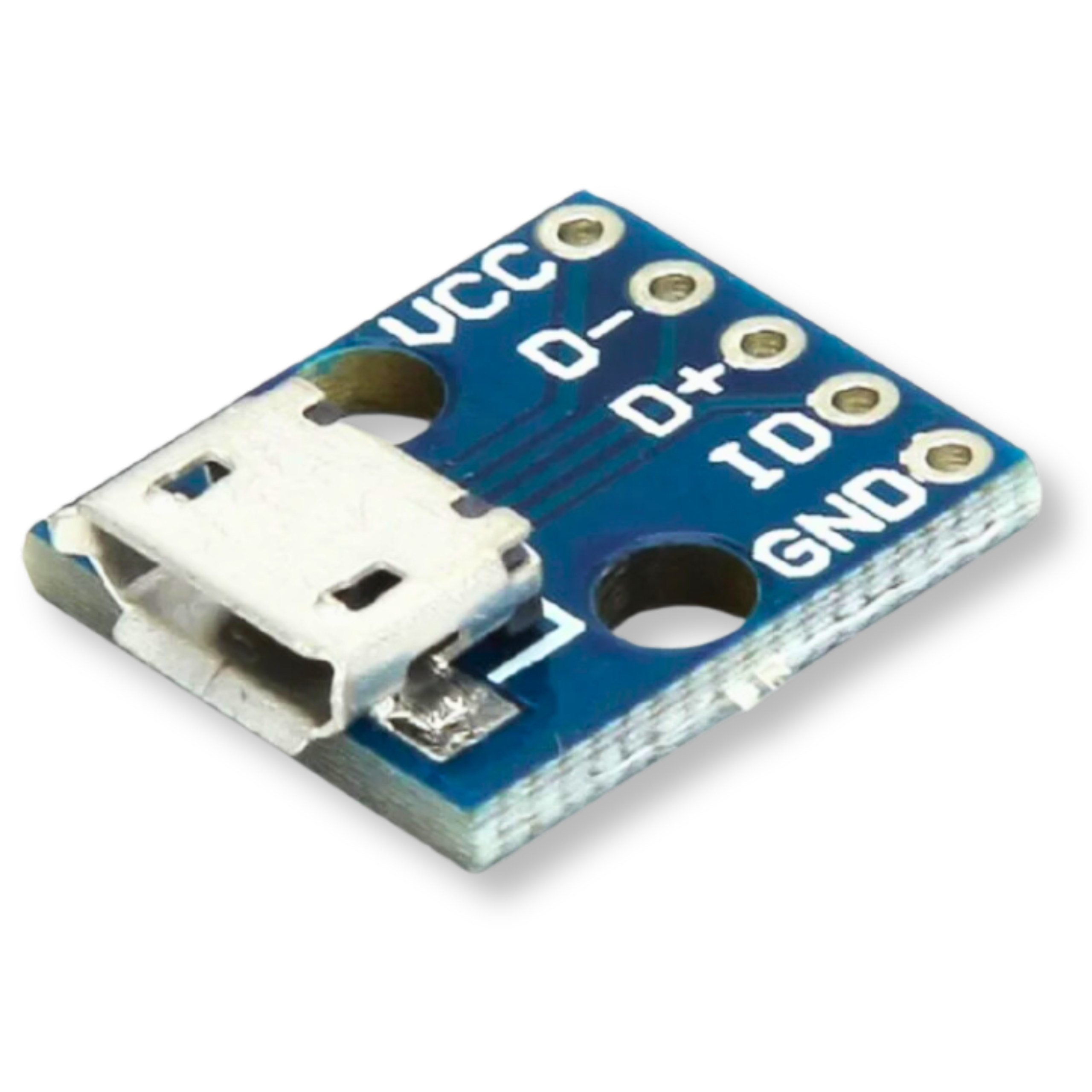

Micro USB 5 Pin socket on PCB

A module with a soldered Micro USB 5 Pin PCB socket, intended for electronics projects and prototyping. The kit includes a 2.54 mm pitch pin header strip (for self-soldering), enabling easy connection to breadboards and jumper wires. Compact dimensions make the connector ideal for space-constrained applications. The module is universal and works well as a power supply or communication interface for Arduino, ESP8266, ESP32, and Raspberry Pi.

Key technical specifications

• Module dimensions: 12.4 mm (width) x 14 mm (length without socket) / 15.4 mm (with socket)
• Height: 1.65 mm (without socket) / 4.3 mm (with socket)
• Mounting hole spacing: 8.5 mm
• Connector: Pin header with 2.54 mm pitch
• Socket type: Micro USB 5 Pin

Example applications

• Powering electronic circuits and microcontrollers
• Building custom USB adapters and dongles
• Prototyping on breadboards
• Repairing damaged power ports in devices
• Bringing a communication connector outside the device enclosure

Benefits

• Easy assembly - ready-made connections for standard pin headers
• Time savings - no need to solder fine pins of the SMD connector
• Versatility - compatibility with popular development platforms
• Compact size - suitable for miniature projects
• Mechanical stability - mounting holes for secure module attachment
