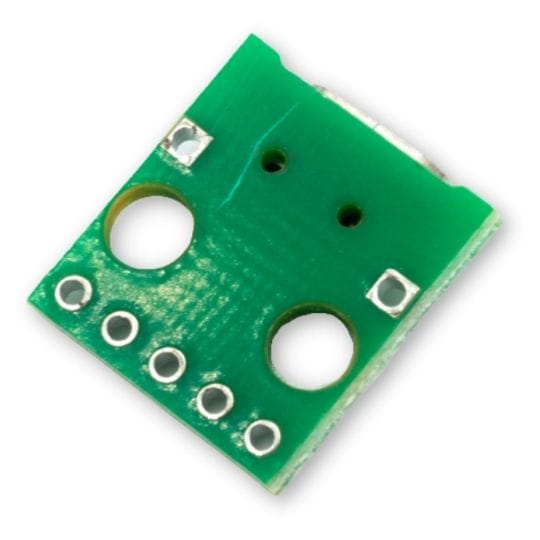

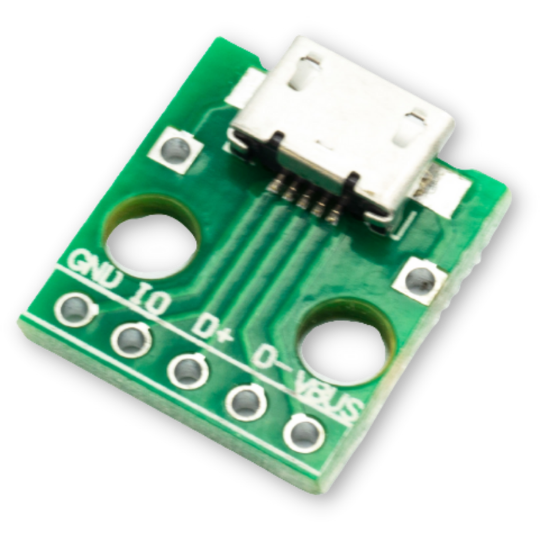

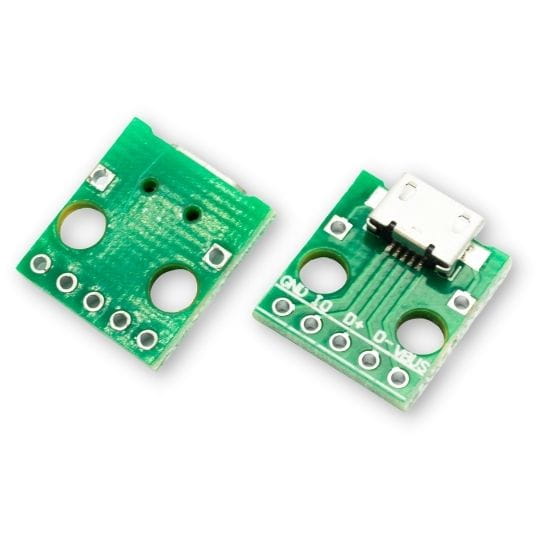

Micro USB socket, micro plug, PCB board, 5-pin, with mounting holes

Product description: Micro USB socket on a PCB board

Micro USB 5 PIN socket is a compact PCB board equipped with a standard Micro-USB connector. The module provides convenient access to all five signal and power lines present in a USB cable. Thanks to solder-pad through-hole connections, the product is ideal for prototyping and building your own electronic circuits, including projects for Arduino, ESP8266, ESP32, and Raspberry Pi.

Key technical specifications

• Connector type: Micro-USB socket (5 PIN)
• Connections: full access to all USB cable lines
• Mounting holes: two holes with a diameter of 3.5 mm for stable mounting
• Board dimensions: 15 mm x 14 mm

Example applications

• Powering electronic circuits and microcontrollers at 5V
• Building custom communication adapters and dongles
• Repairing damaged power ports in small devices
• Prototyping circuits on universal breadboards
• Integrating power connectors into DIY project enclosures

Benefits of using the module

• Ease of assembly - ready-made pads make it easy to solder wires or pin headers
• Mechanical stability - dedicated 3.5 mm mounting holes help prevent the socket from breaking off when plugging in a cable
• Compact size - a small 15 x 14 mm footprint allows trouble-free use in tight enclosures
• Versatility - full access to all 5 pins of the Micro-USB standard expands design options
• Time savings - no need to precisely solder hard-to-handle SMD connectors directly to wires
