PWM driver module - 400W 15A 36V - MOSFET HW-517 ESP for Arduino Raspberry
Availability:
duża ilość
Dispatched within:
1 day
Rating:
0
0
Vendor:
OEM
Description

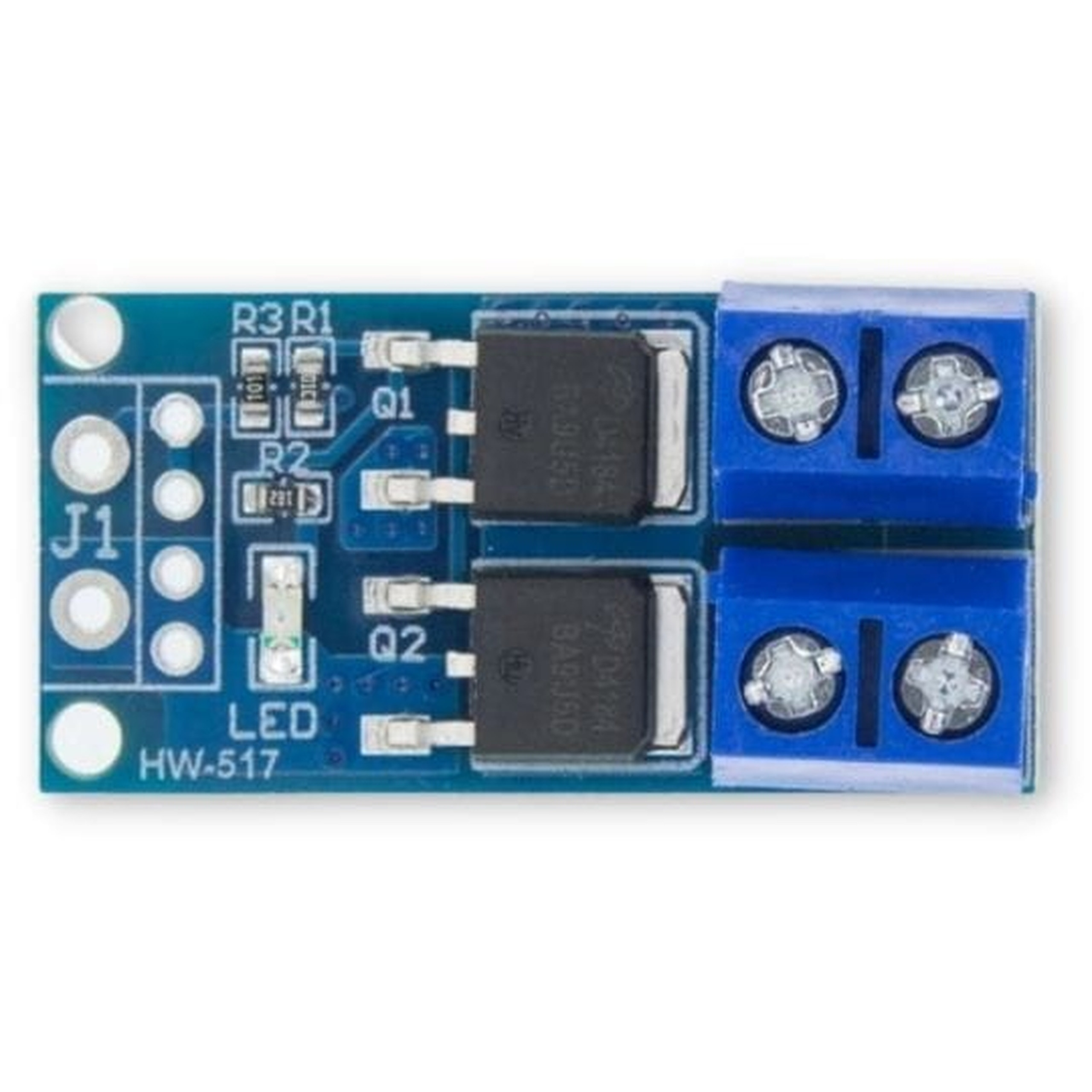

MOSFET PWM driver module HW-517
MOSFET PWM driver HW-517 is a high-performance device that enables precise control of direct current over a wide voltage range from 5V to 36V DC. The module works excellently for smooth speed regulation of DC motors and lighting control. Thanks to the use of MOSFET transistors, the circuit offers high current capability up to 15A and maximum power up to 400W. The product is fully compatible with popular platforms such as Arduino, Raspberry Pi, ESP8266, and ESP32.

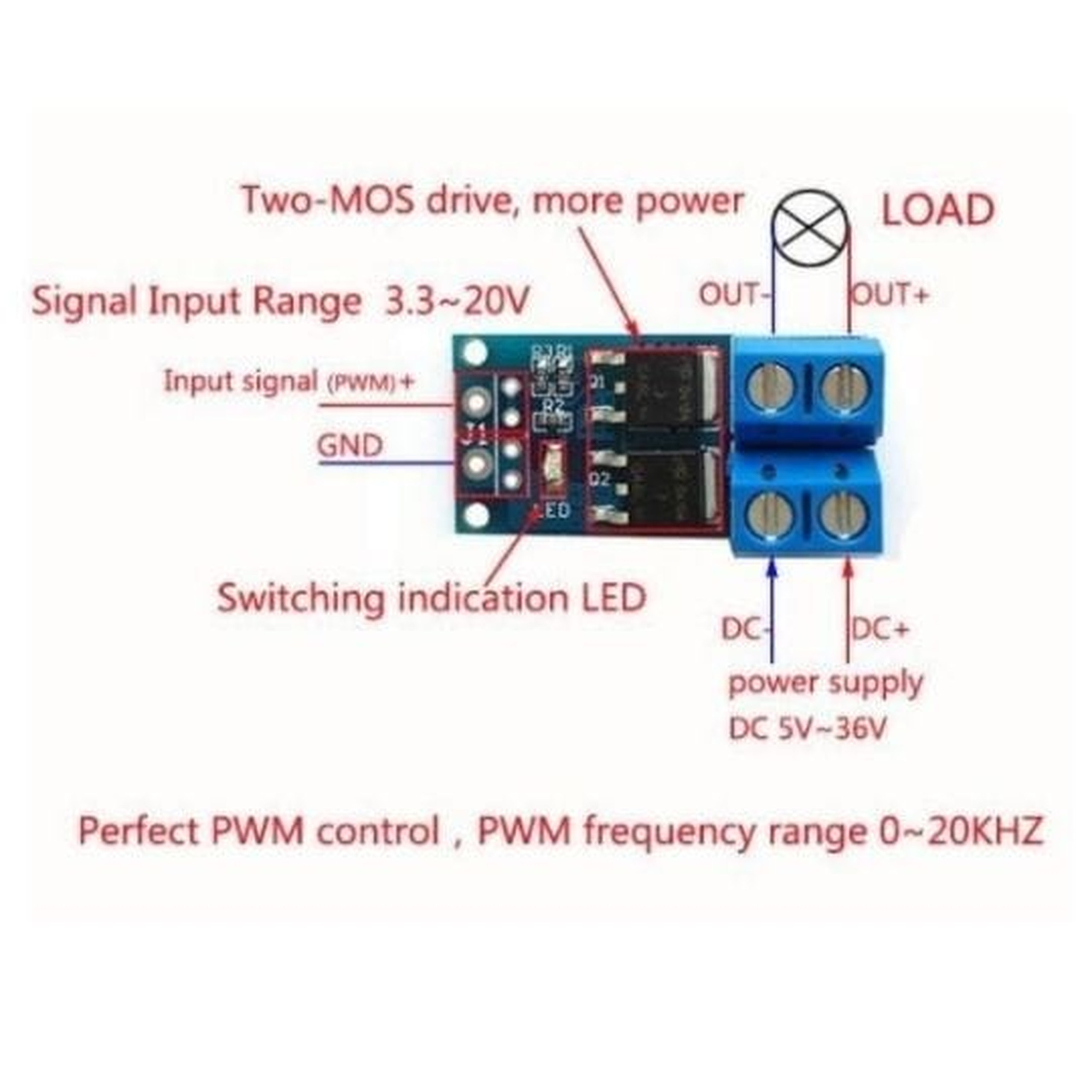

Key technical specifications
- Control voltage (PWM signal): 3.3V - 20V
- Input and output voltage: 5V - 36V DC
- PWM control frequency: 0 - 20 KHz
- Maximum continuous current: 15A
- Maximum output power: 400W
Example applications
- Smooth speed regulation of DC motors
- Controlling brightness of high-power LED strips and modules
- Controlling water pumps and DC fans
- Home automation projects using microcontrollers
- Building custom power supplies and power regulation circuits
Benefits
- High current capacity thanks to dual MOSFET transistors
- Wide supply and control voltage range for easy integration
- Direct compatibility with 3.3V and 5V logic
- Compact dimensions allowing installation in small enclosures
- No need for additional interfacing circuits for microcontrollers
