Peltier Cell 12V/3A TEC1-12703 38W 30x30 mm CPU Mini Fridge Cooling

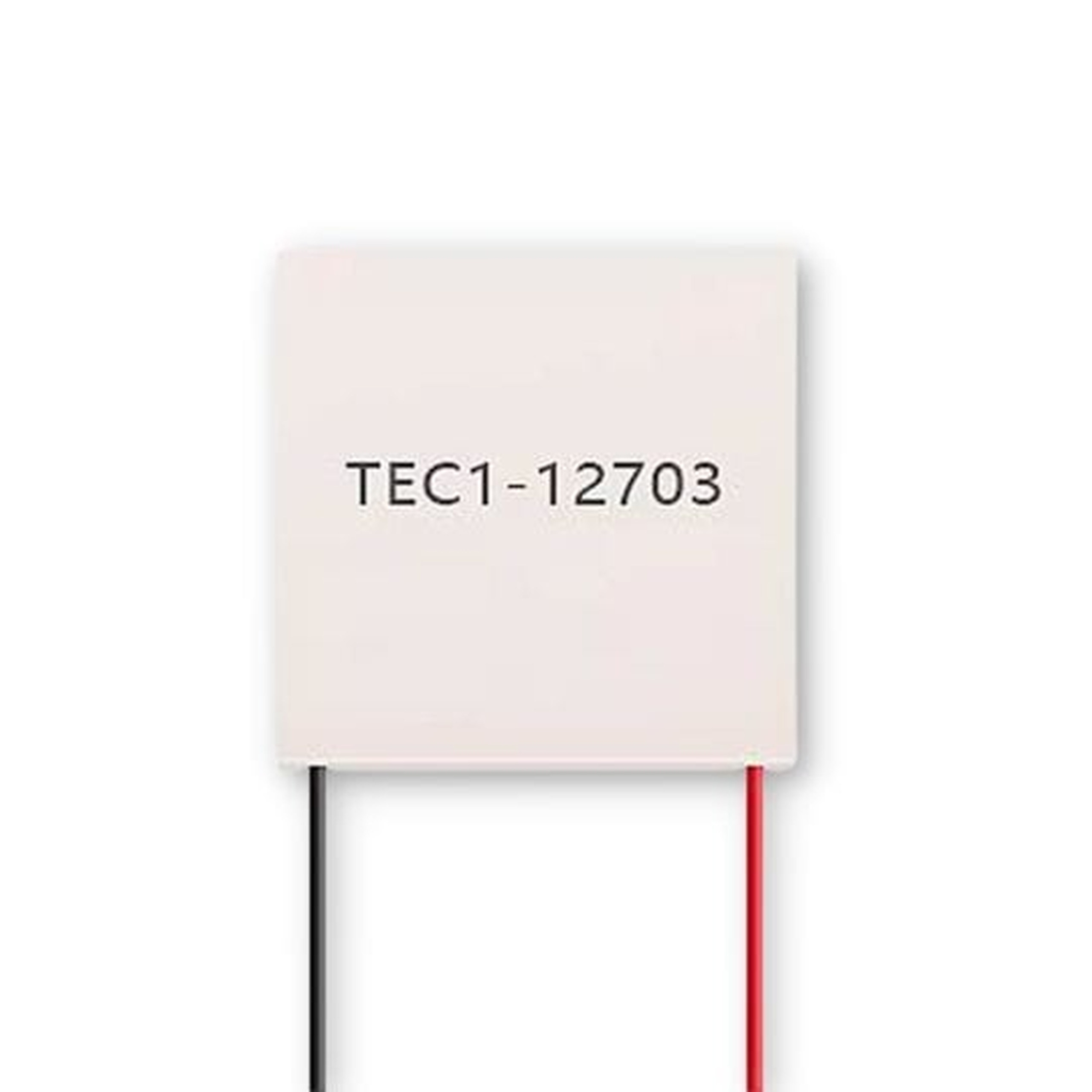

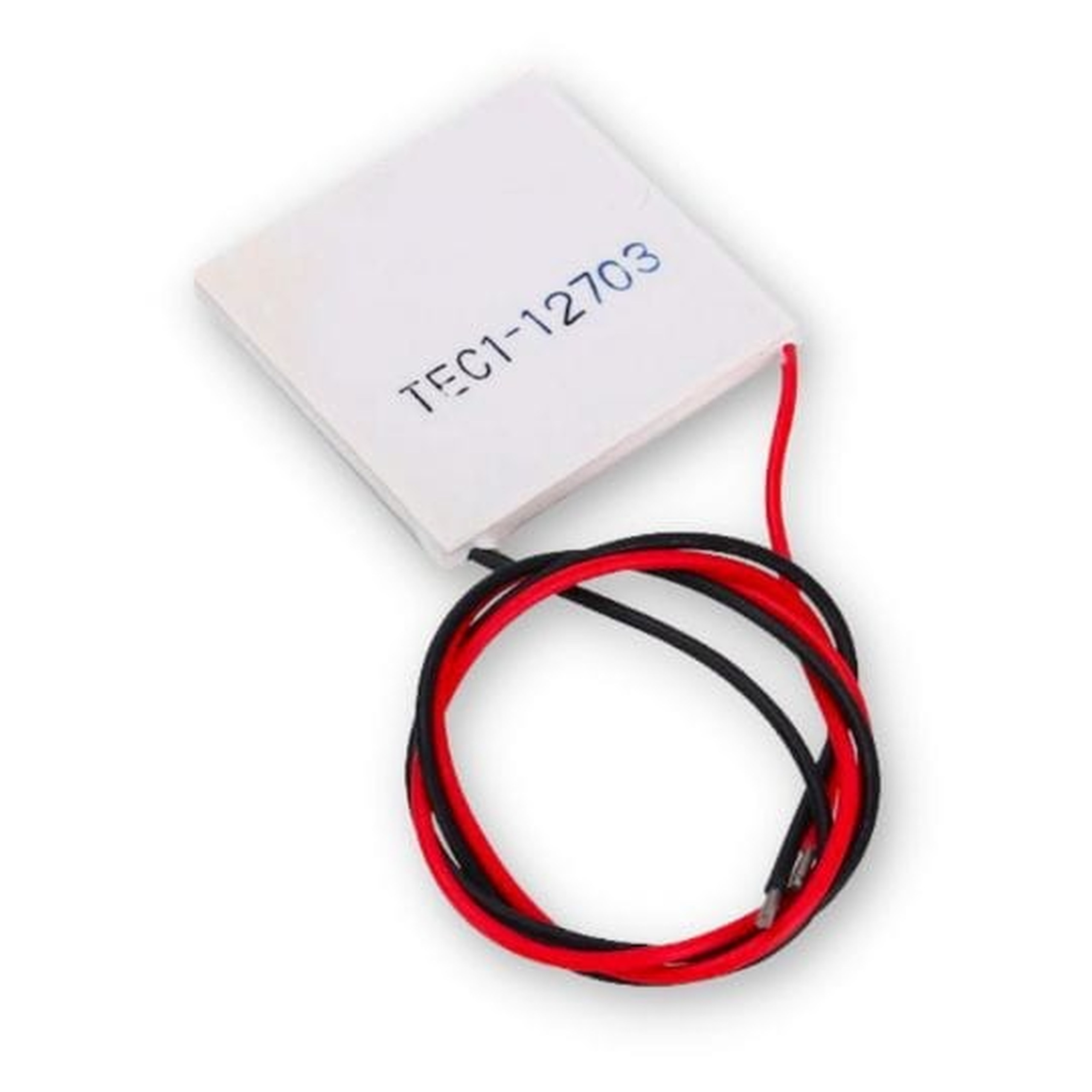

Peltier Cell 12V/3A TEC1-12703 30x30 mm

Peltier cell is a thermoelectric module used for cooling, heating, heat exchange, and thermocirculation. When voltage is applied, the module emits heat on one side and intensively cools on the other. The element is powered by up to 12 V and draws up to 3 A current. The plate dimensions are 30 x 30 x 4 mm. The product is excellent for projects using microcontrollers; it works with Arduino, Raspberry Pi, ESP8266, and ESP32.

Key technical specifications

• Supply voltage: from 0 V to 15.5 V (nominal 12 V)
• Maximum power: 38 W
• Maximum current draw: 3 A
• Resistance: up to 3.2 Ω
• Pressure: 85 N/cm2
• Operating temperature: from -55 °C to 83 °C
• Minimum wire length: 20 cm

Important usage information

Use only when mounted to heatsinks with thermal paste.

Connecting the cell to 12 V DC without heatsinks for longer than 2-3 seconds causes permanent damage to the cell.

Example applications

• Portable camping fridges and coolers
• Cooling hot electronic components, e.g. graphics cards or processors
• Cooling high-power generators and diodes
• Thermostats for aquariums and terrariums
• Chambers for storing alcohol, wine, and biological specimens

Benefits

• High cooling performance in a compact 30 x 30 mm size
• No moving mechanical parts for silent operation
• Instant switch from cooling to heating by reversing polarity
• Wide operating temperature range from -55 °C to 83 °C
• Easy integration with control systems and popular microcontrollers
