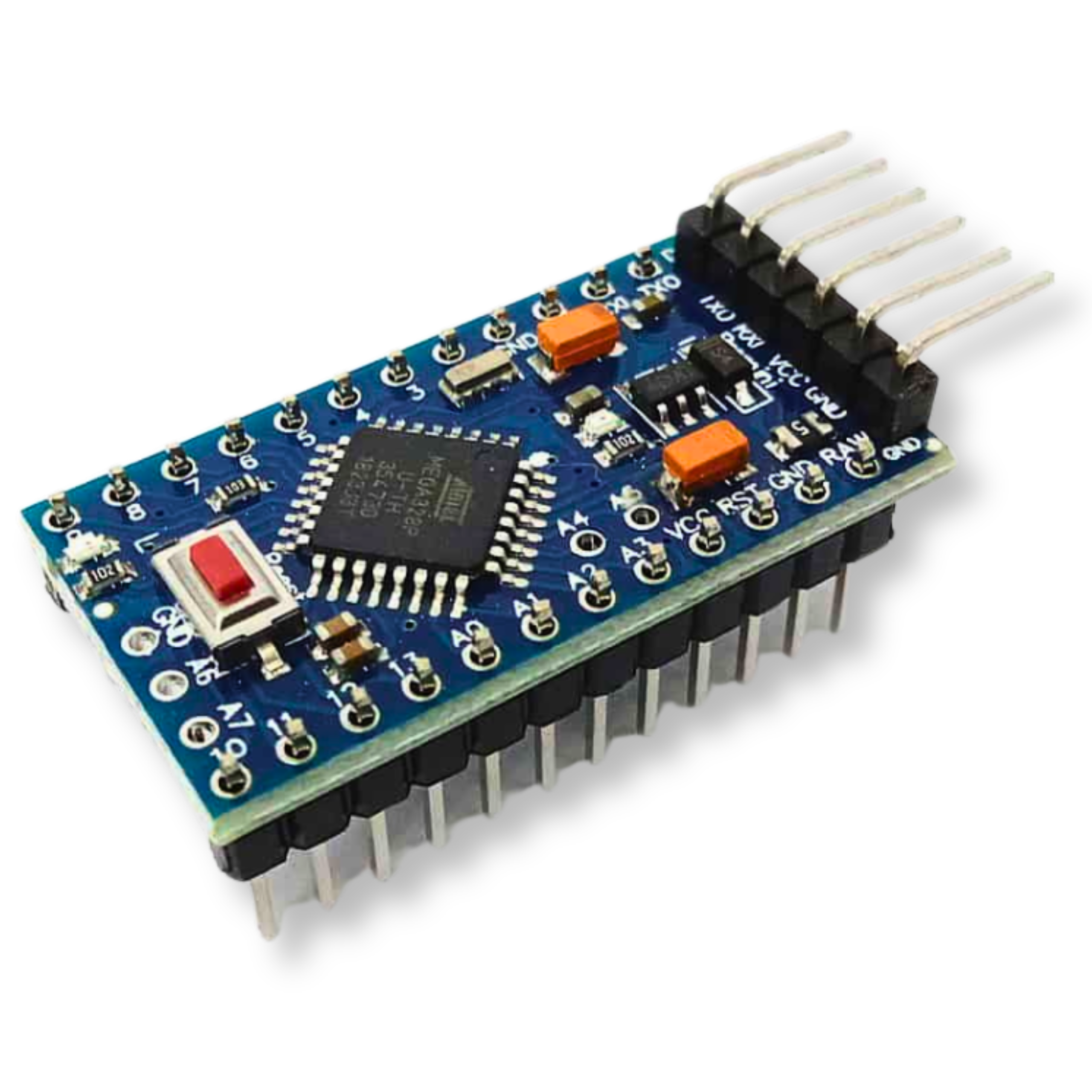

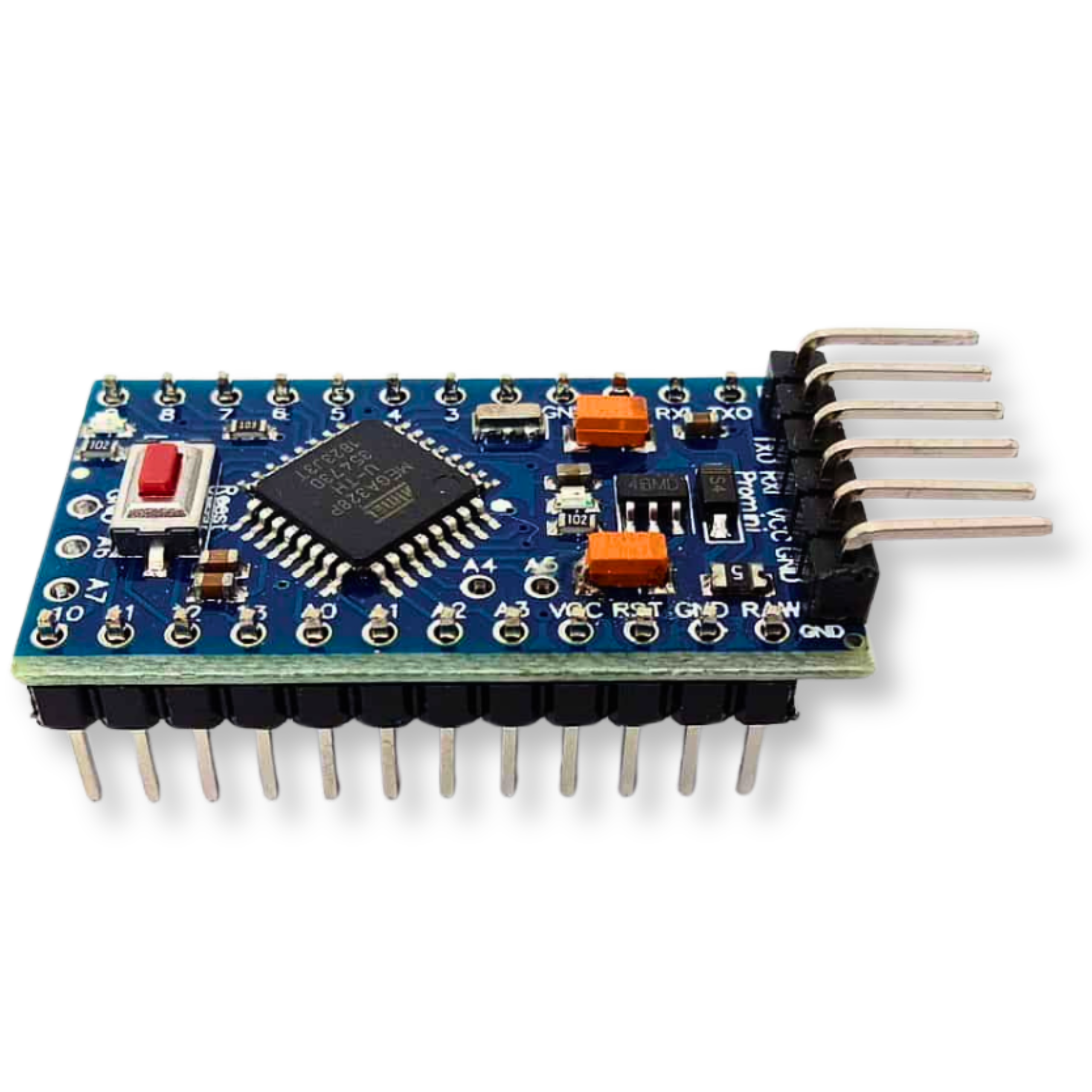

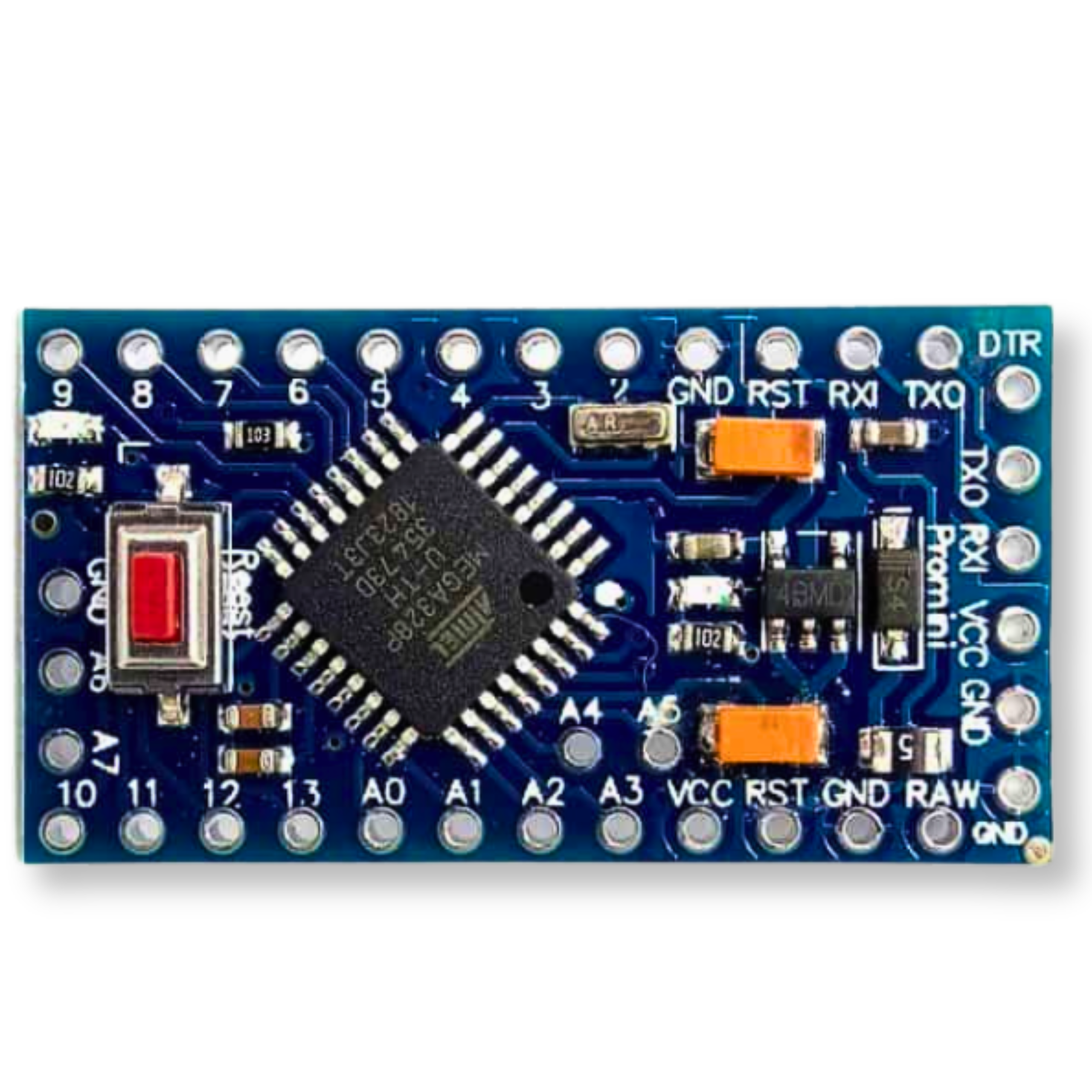

Pro Mini ATmega328P 16MHz 5V module compatible with Arduino Pro Mini + goldpins
Availability:
brak towaru
Rating:
0
0
Vendor:
OEM
Description
The Arduino Pro Mini-compatible microcontroller offers fast operation at 16MHz clock speed, is powered by 5V and is based on the proven ATmega328P. It is smaller than the popular Arduino Uno, but provides a large number of leads. It has 32kB of FLASH memory and 2kB of RAM for efficient resource management. The Arduino Pro Mini features 14 digital inputs/outputs, 6 of which can operate as PWM, and 8 analogue inputs, while supporting the most popular interfaces such as UART, I2C and SPI. Goldpin connectors are also included for easy assembly and expansion.
Specification:
- Supply voltage: 5V
- Microcontroller: ATmega328P
- Maximum clock frequency: 16 MHz
- SRAM: 2 kB
- Flash memory: 32 kB (5 kB reserved for the bootloader)
- EEPROM: 1 kB
- I/O pins: 14
- PWM channels: 6
- Number of analogue inputs: 8
- Serial interfaces: UART, SPI, I2C
- Dimensions: 33 mm x 18 mm
- Set of 3 goldpin strips complete for self-soldering.
