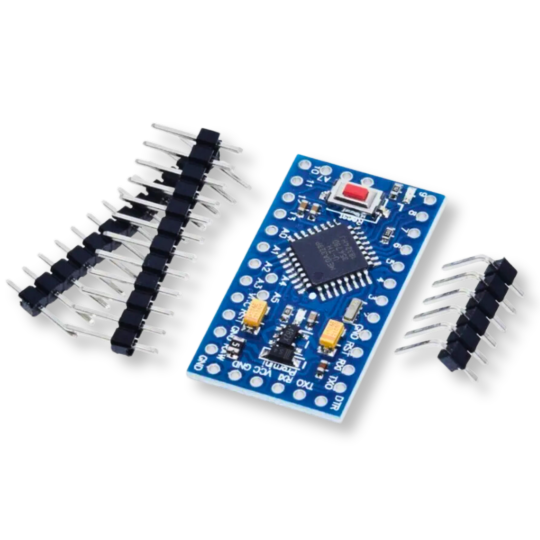

Pro Mini ATmega328P 8MHz 3.3V module compatible with Arduino Pro Mini + goldpins
Availability:
brak towaru
Rating:
0
0
Vendor:
OEM
Description
The Arduino Pro Mini, based on the popular Uno module, is a compact board with an ATmega328 microcontroller. It offers 14 digital I/Os, six of which can be used as PWM outputs, ideal for motor control, and eight analogue inputs. The board is clocked with an 8 MHz clock signal and operates at 3.3V. It is equipped with 32 kB of Flash program memory and 2 kB of SRAM. The Arduino Pro Mini is distinguished by its lack of pre-installed connectors, which keeps it small and gives the user the flexibility to decide which leads are needed.
Specification:
- Supply voltage: 3,3V
- Microcontroller: ATmega328P
- Maximum clock frequency: 8 MHz
- SRAM: 2 kB
- Flash memory: 32 kB (5 kB reserved for the bootloader)
- EEPROM: 1 kB
- I/O pins: 14
- PWM channels: 6
- Number of analogue inputs: 8
- Serial interfaces: UART, SPI, I2C
- Dimensions: 33 mm x 18 mm
- Set of 3 goldpin strips complete for self-soldering.
