Programmer clip adapter for reading SO8 SOP8 SOIC8 DIP8 EEPROM and FLASH

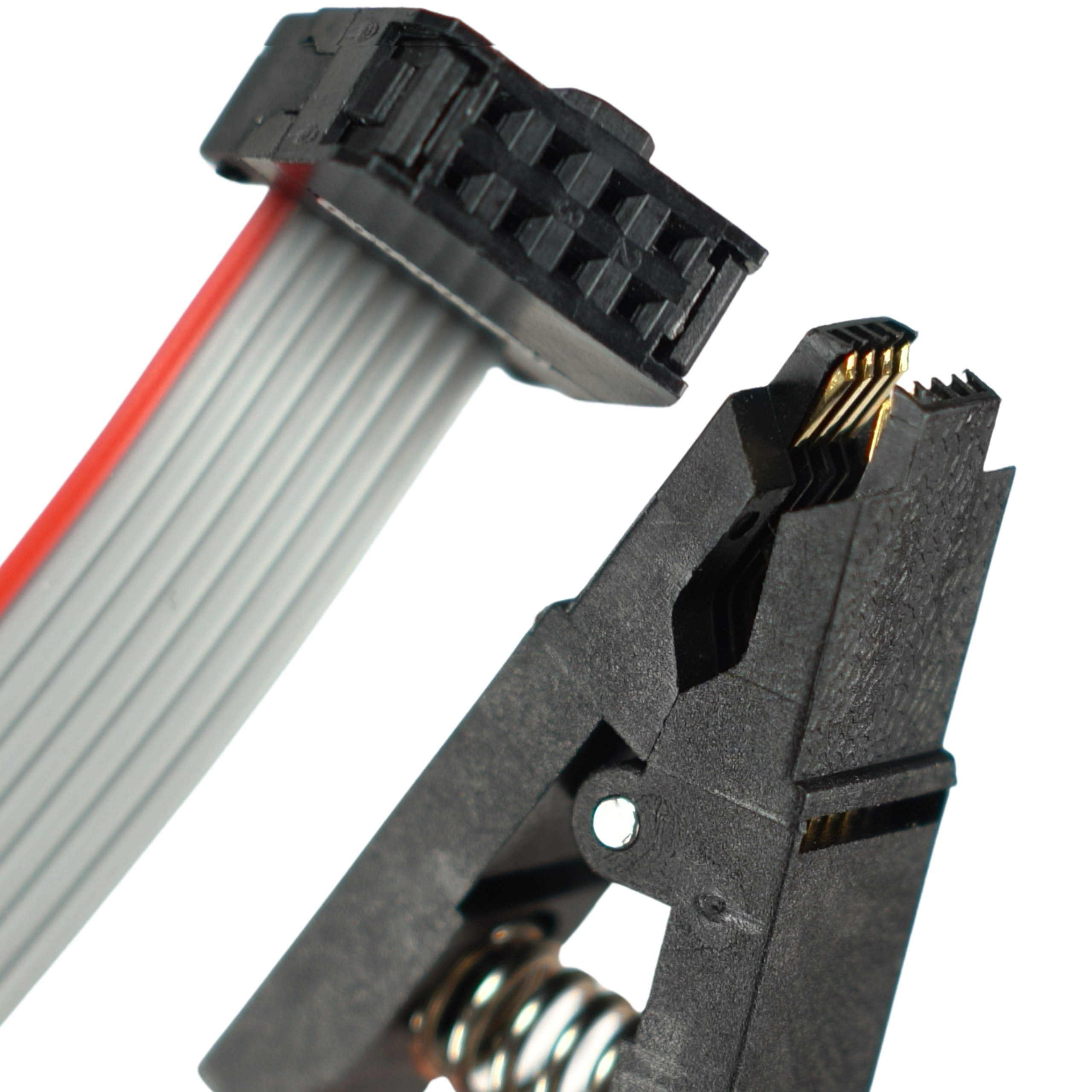

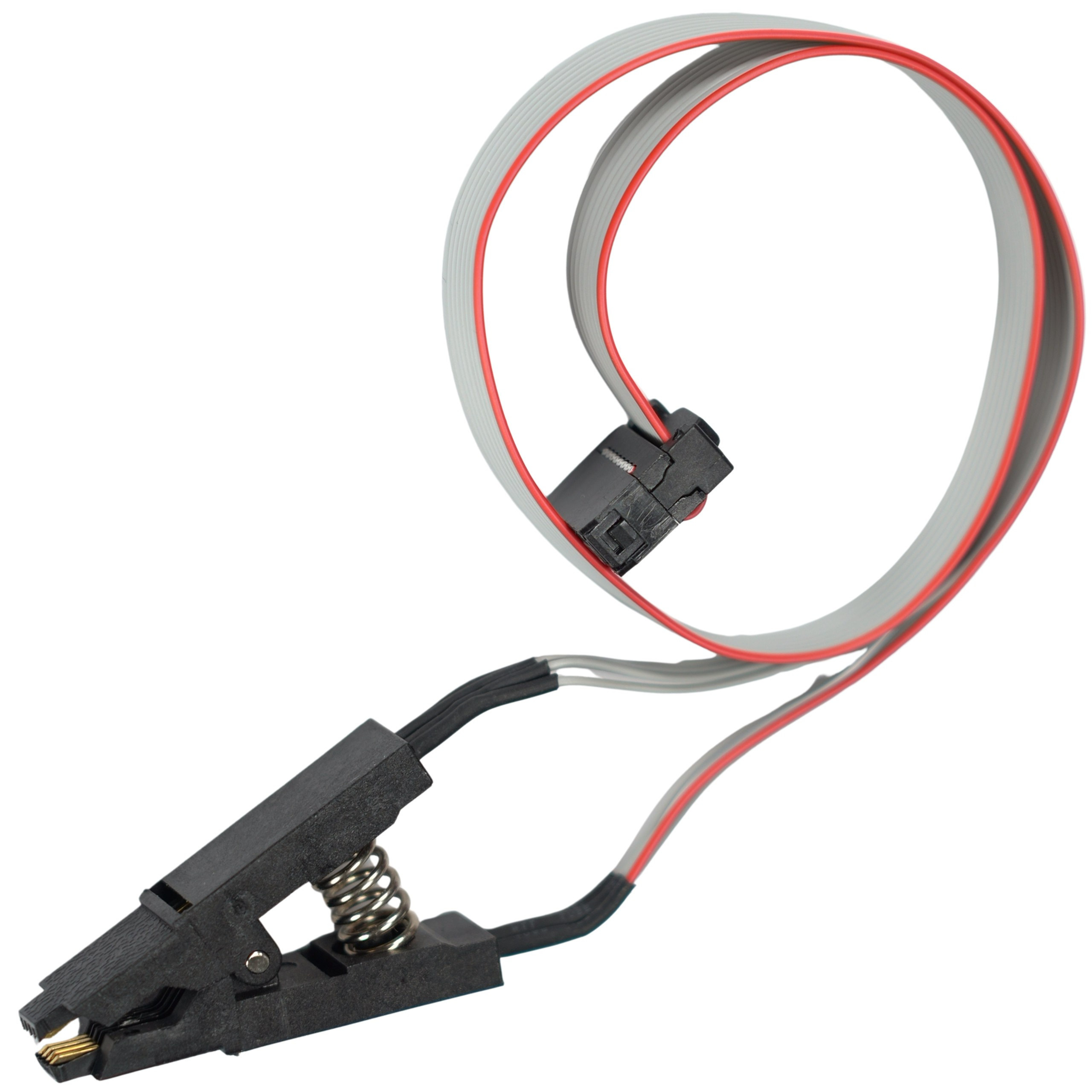

Programmer clip adapter for reading SO8 SOP8 SOIC8 DIP8 with connection ribbon cable

Professional SPI BIOS FLASH IC programming clip without the need to remove components from the printed circuit board. The tool is ideal for fast reading or writing of EEPROM memory. The clip enables direct in-circuit programming of SOP8 chips, which significantly speeds up electronics diagnostics and repair. The product can be successfully used as an accessory for programmers compatible with platforms such as ESP8266, ESP32, Arduino, and Raspberry Pi.

Simply clamp the chip with the clip to obtain a stable connection to the programmer, without the need to desolder it from the circuit board. The ISP cable is wired in a 1:1 configuration, so it works with any programmer equipped with a ZIF/DIL socket and supporting ISP/ICSP mode.

Key technical features

• Read and write SPI BIOS FLASH chips without desoldering
• Full compatibility with chips in SOP8, SO8, SOIC8, and DIP8 packages
• Support for popular memory series: 24C, 93C, and 25LF
• ISP 1:1 cable connection compatible with ZIF/DIL sockets
• Works with programmers supporting ISP/ICSP modes

Example applications

• Reading and writing BIOS memory on desktop and laptop motherboards
• Programming EEPROM memory in automotive modules and controllers
• Repair and diagnostics of consumer electronics and network devices
• Firmware modification in embedded devices
• Data recovery from damaged electronic devices without desoldering chips

Benefits

• Time savings - no need for tedious desoldering and resoldering of chips
• Component safety - minimizes the risk of damaging PCB traces during soldering
• Versatility - works with a wide range of programmers and popular chip packages
• Ease of use - ergonomic clip design ensures stable contact during operation
