RFID RC522 Reader + Key Fob + Card 13.56 MHz SPI Read/Write for Arduino

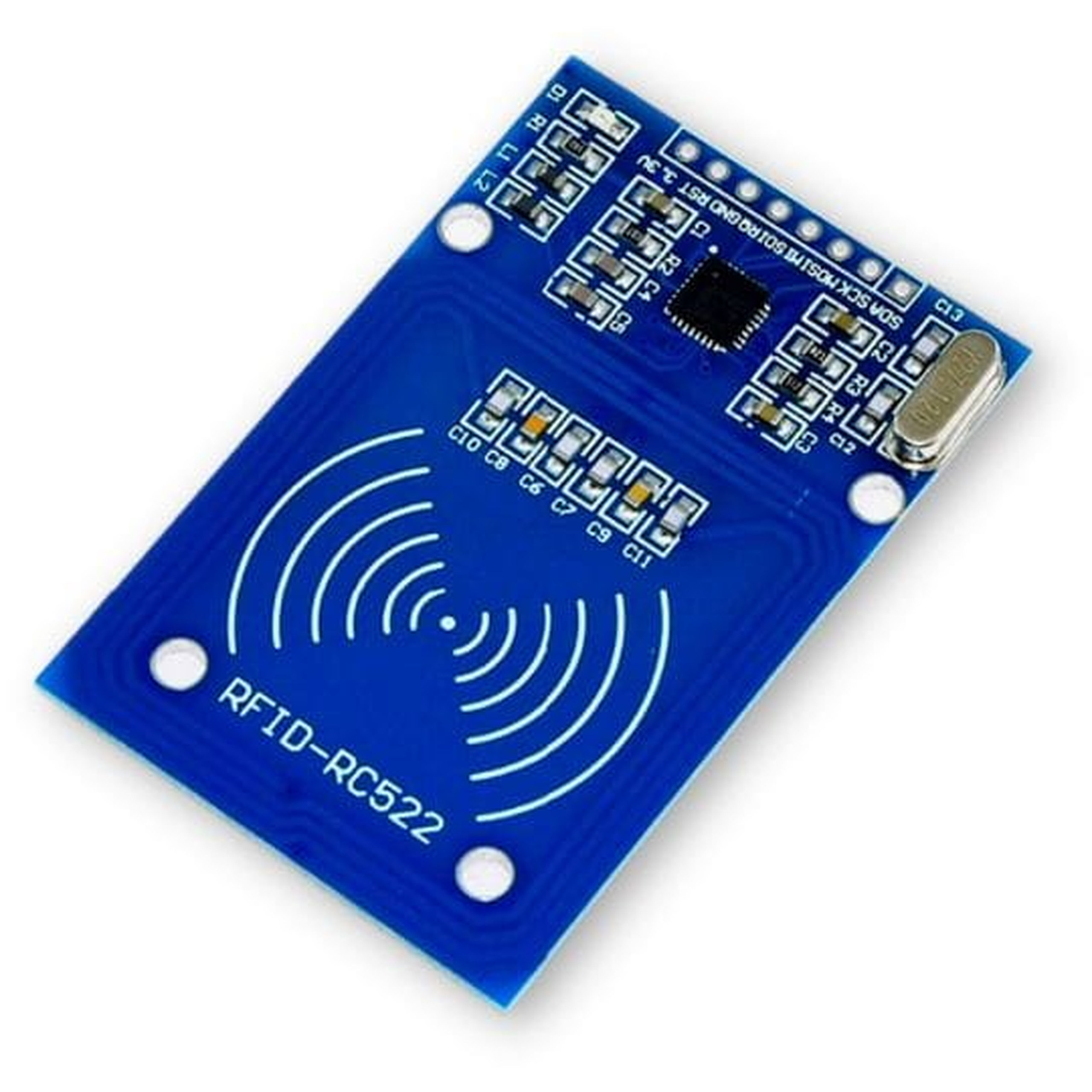

Advanced RC522 RFID reader module

The RC522 board is designed for interaction with RFID devices operating at 13.56 MHz. It features a built-in antenna that enables efficient reading and writing of data. The device is powered by 3.3V and uses the SPI interface for communication. Thanks to the integrated antenna, the module ensures stable communication at a distance of up to 10 cm, allowing reading even through non-conductive barriers. The product is ideal for systems that require authentication to perform actions.

Microcontroller compatibility

The module works with all popular platforms. It is intended for use with ESP8266, ESP32, Arduino, Raspberry Pi, and STM32.

Key technical specifications

• Supply voltage: 3.3V
• Operating frequency of reader and RFID tags: 13.56 MHz
• Current consumption: 30 mA
• Communication interface: SPI
• Range: 0 - 60 mm
• Transfer rate: up to 10 Mbit
• Operating temperature range: -20 to 80 degrees Celsius
• Reader dimensions: 59 x 40 x 5 mm (without pins)

Example applications

• Access control systems for buildings and rooms
• Electronic locks in furniture and cabinets
• Time and attendance tracking in businesses
• User identification in smart home projects
• Protection of devices against unauthorized startup

Benefits

• Complete kit ready for testing - includes reader, card, and key fob
• Easy implementation thanks to the popular SPI interface
• Stable communication through non-conductive barriers thanks to a strong antenna
• Broad compatibility with the most popular microcontrollers on the market
• Compact dimensions for easy mounting in your target project

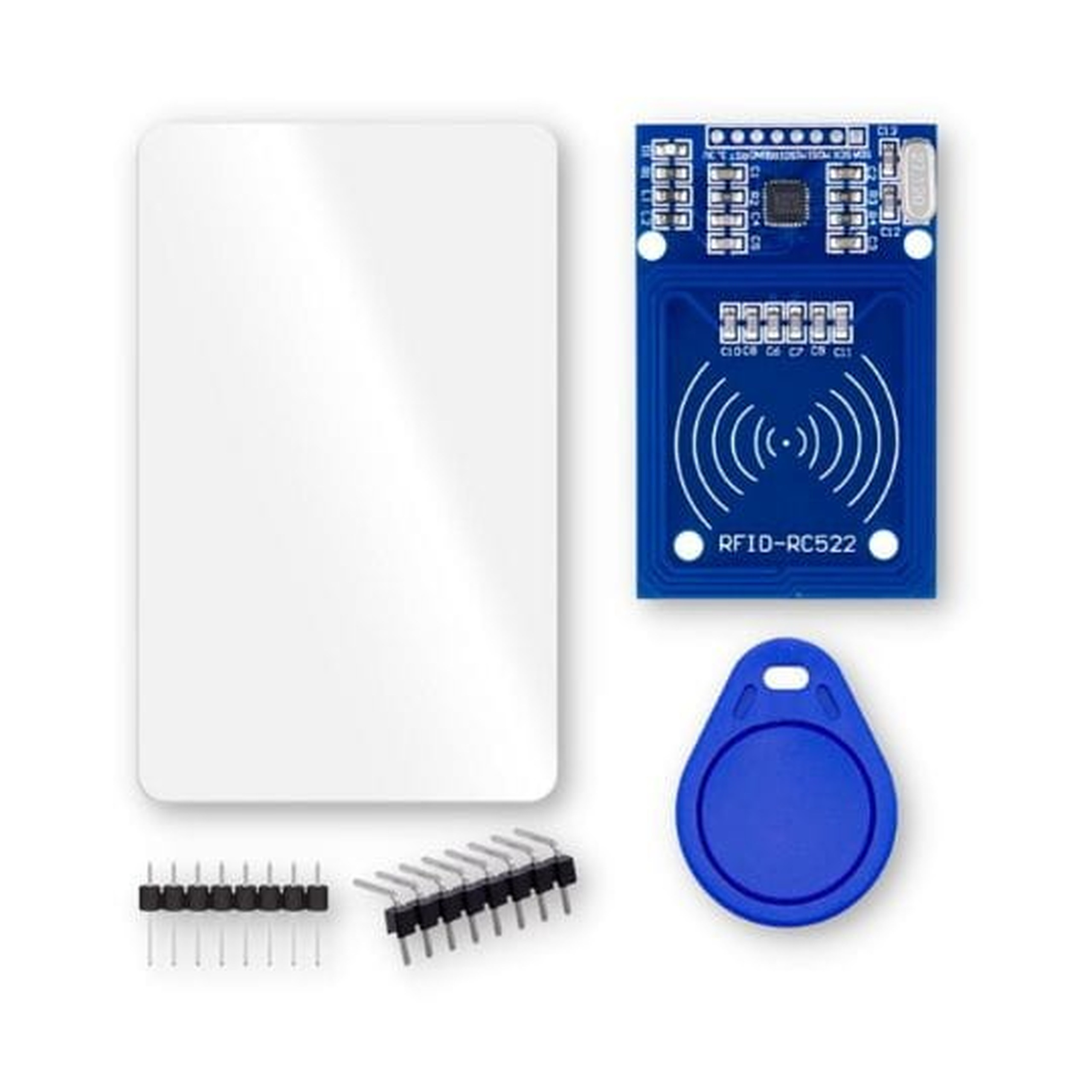

Kit contents

• RFID reader
• RFID card
• RFID key fob
• Pin header strips
