Raspberry Pi PoE+ HAT Pi 4B/3B+ - Power over Ethernet - SC0468

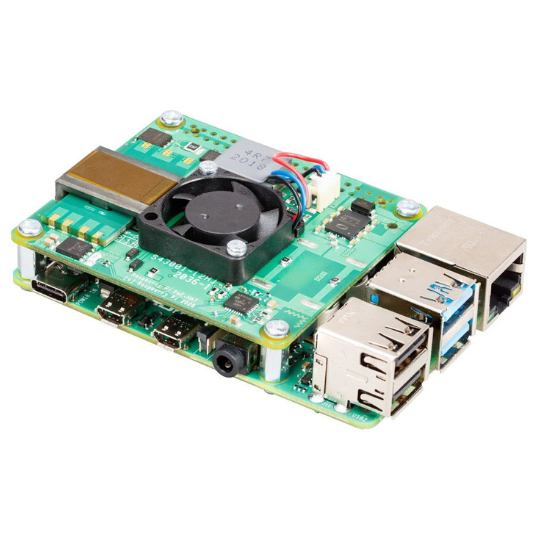

This powerful overlay is compatible with the Raspberry Pi 3B+ and 4B, allowing power and data transfer via a single Ethernet (RJ45) connector. With a 4-pin connector and PoE function, it ensures smooth and stable operation of the minicomputer, eliminating the need for multiple cables.

The PoE+ HAT module operates in plug-and-play mode, requiring no special drivers to be installed. This is ideal for those who value convenience and quick installation. A built-in brushless fan guarantees optimum operating temperature for the Raspberry Pi, automatically activating at elevated temperatures.

The technical specifications of the overlay include an input voltage of 37 V to 57 V and an output voltage of 5 V with a current capacity of 4 A. To fully exploit the module's potential, a router or switch with Power over Ethernet functionality is required.

Raspberry Pi PoE+ HAT Users' Safety Manual

1. Fan: Ensure that the fan is not obstructed or blocked to ensure adequate air circulation.
2. Manipulation of the Fan: Do not insert objects between the fan blades while the fan is running to avoid damage.
3. Protection against moisture: Protect the product from contact with water and moisture to avoid electrical damage.
4. Position of the Overlay: Do not place the PoE+ HAT on electrically conductive surfaces to prevent short circuits.
5. Environmental Temperature: Use the device in room conditions, avoiding areas with elevated temperatures.
6. Electrostatics: Minimise the risk of electrostatic damage by not touching the appliance during operation.
7. Periphery Compatibility: Ensure that all connected peripherals comply with relevant safety and quality standards.

Following these rules will ensure long and safe operation of the Raspberry Pi PoE+ HAT.

Raspberry PoE+ HAT overlay specification

• PoE standard: compliance with IEEE 802.3at-2003
• Input voltage: in the range 37-57 V
• Output voltage: stable 5 V
• Output current: up to 4 A
• Power output: 20 W maximum
• Current sensor: integrated
• Fan: brushless, 25 x 25 mm, flow rate 2.2 CFM
• Fan control: yes
• Power supply: fully insulated, mains powered
• Temperature range: works effectively at temperatures of 0-50°C
• Interface: 40-pin GPIO pinouts
• Accessories: includes 4 mounting spacers
• Dimensions: compact 65 x 56.5 mm

The kit does not include a Raspberry Pi microcomputer - only the PoE+ HAT overlay.
